Voice Guidance does not Function: Procedure

1. Display the "Voice Settings" or "Volume" screen.
2. Check that "Off" or "OFF" is not selected.

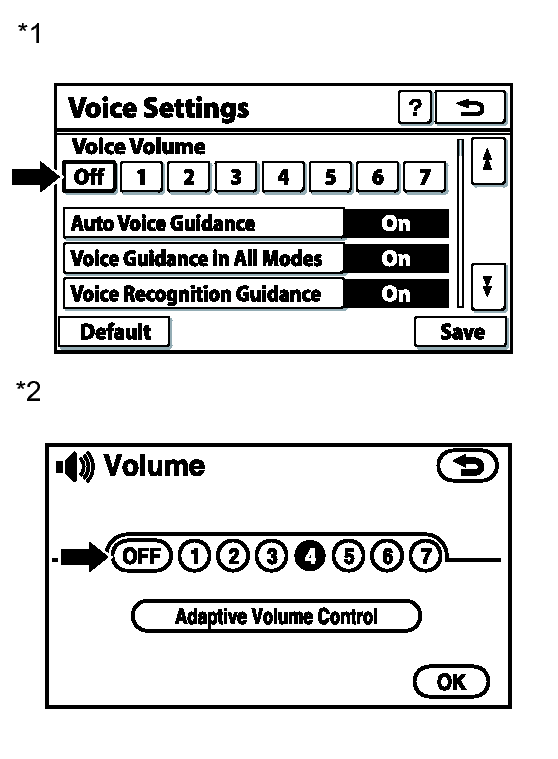

   Fig 1: Identifying Voice Settings And Volume Screen Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   "Off" or "OFF" is not selected.

   TEXT IN ILLUSTRATION



   *1	Example (w/ "Bluetooth" Audio System)
   *2	Example (w/o "Bluetooth" Audio System)

NG → SELECT VOICE VOLUME SETTING OTHER THAN "Off" OR "OFF"

OK: Go to next step

1. Display the "Voice Settings" or "Setup" screen.
2. Check that "Auto Voice Guidance" is not "Off" or "OFF".

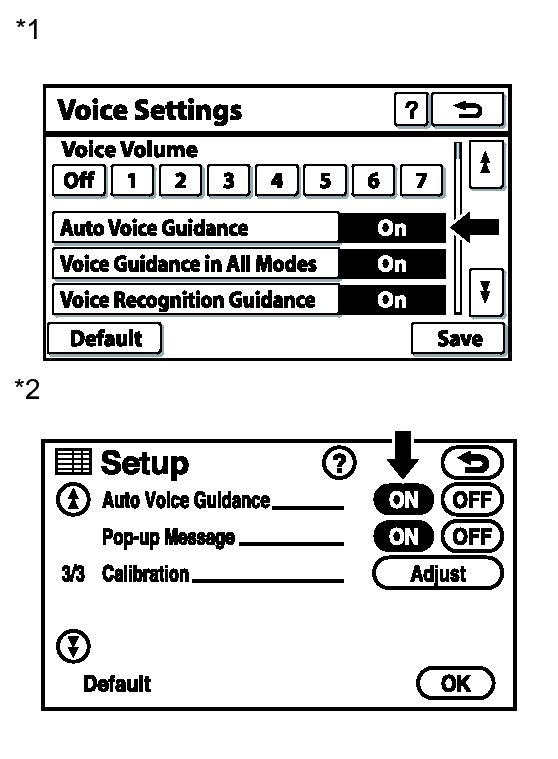

   Fig 2: Identifying Voice Settings And Setup Screen Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   "Auto Voice Guidance" is not "Off" or "OFF".

   TEXT IN ILLUSTRATION



   *1	Example (w/ "Bluetooth" Audio System)
   *2	Example (w/o "Bluetooth" Audio System)

NG → TURN AUTO VOICE GUIDANCE "On" OR "ON"

OK: Go to next step

1. Display the "Voice Settings" or "Setup" screen.
2. Check that "Voice Guidance in All Modes" is not "Off" or "OFF".

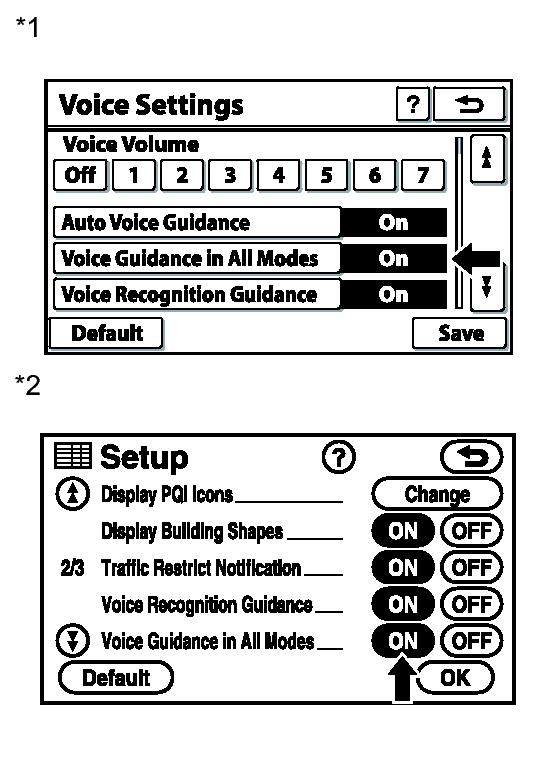

   Fig 3: Identifying Voice Settings And Setup Screen Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   "Voice Guidance in All Modes" is not "Off" or "OFF".

   TEXT IN ILLUSTRATION



   *1	Example (w/ "Bluetooth" Audio System)
   *2	Example (w/o "Bluetooth" Audio System)

NG → See step   7

OK: Go to next step

1. Check that the map disc is not deformed or cracked.
   Fig 4: Identifying Cracked Or Deformed Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   No deformations or cracks on the map disc

NG → REPLACE MAP DISC

OK: Go to next step

1. Check that audio sound can be heard from the driver side speaker.

   OK

   Audio sound can be heard.

NG → See step   8

OK → See step   6
