Inner Rear View Mirror Power Source Circuit: Wiring Diagram

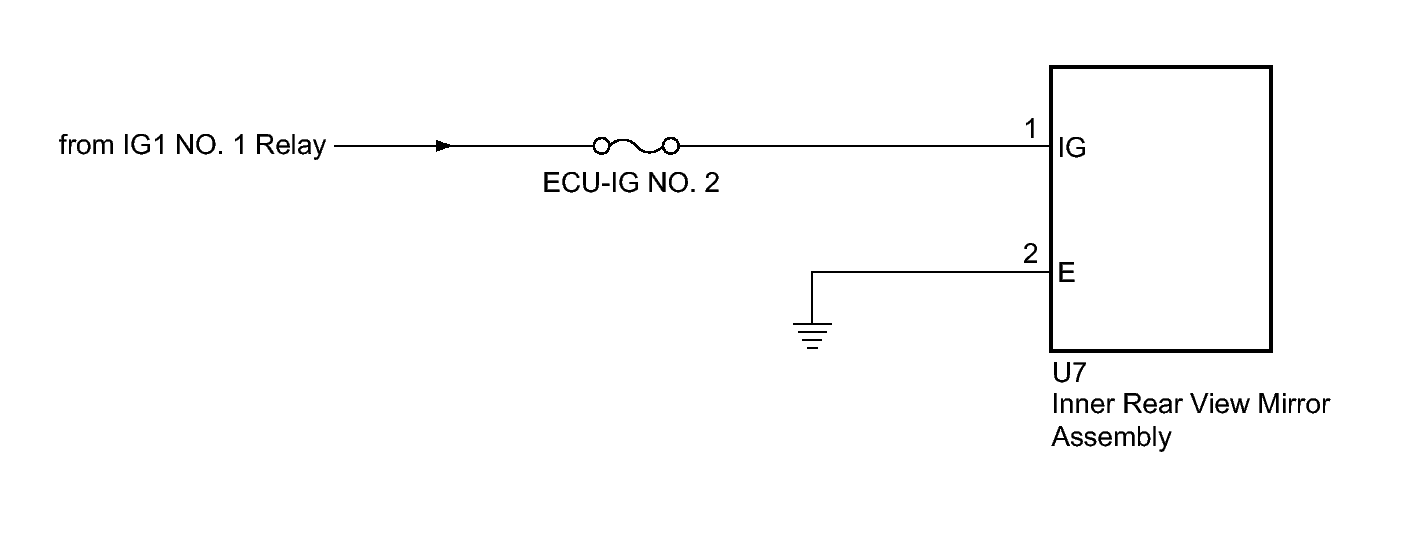

Fig 1: Inner Rear View Mirror Power Source Circuit Wiring Diagram
GTY213244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
