Hybrid System and Shift Control System: Notes

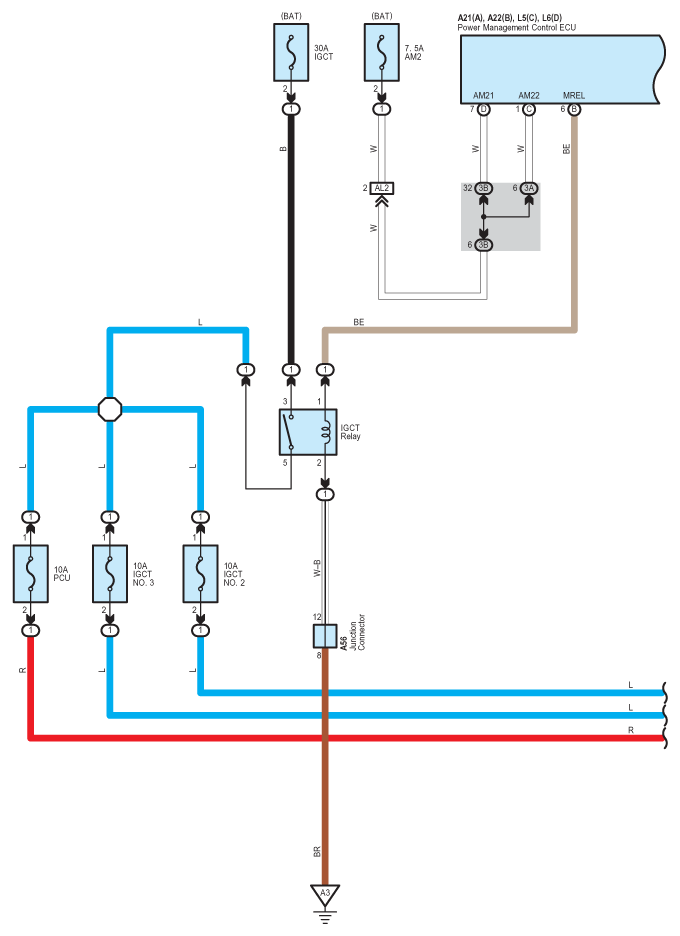

Fig 1: Hybrid System And Shift Control System - Circuit Diagram (1 Of 27)

G07570650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

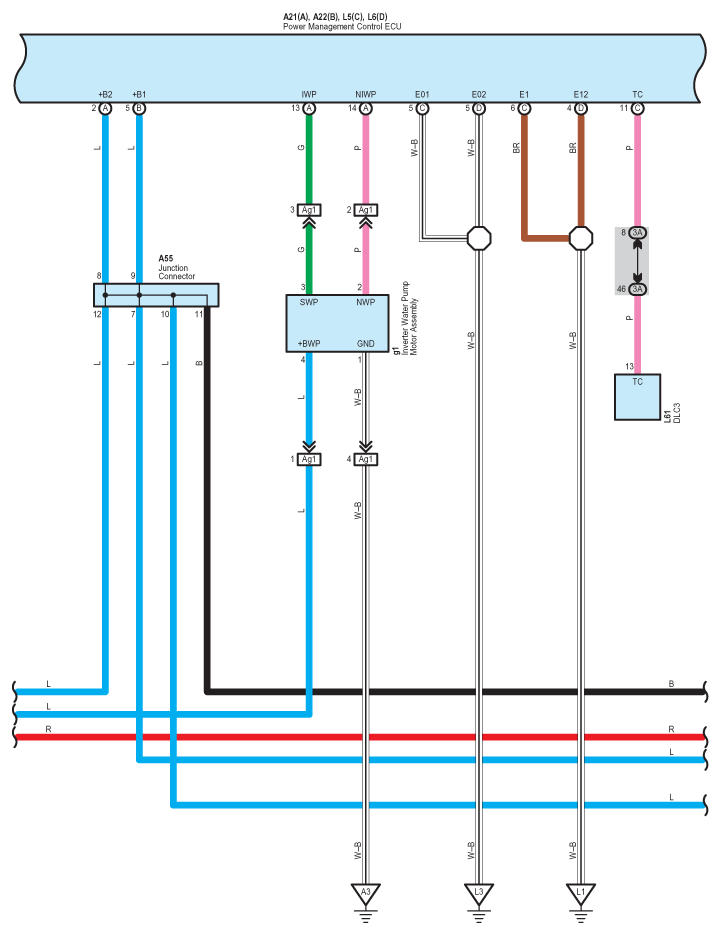

Fig 2: Hybrid System And Shift Control System - Circuit Diagram (2 Of 27)

G07570651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

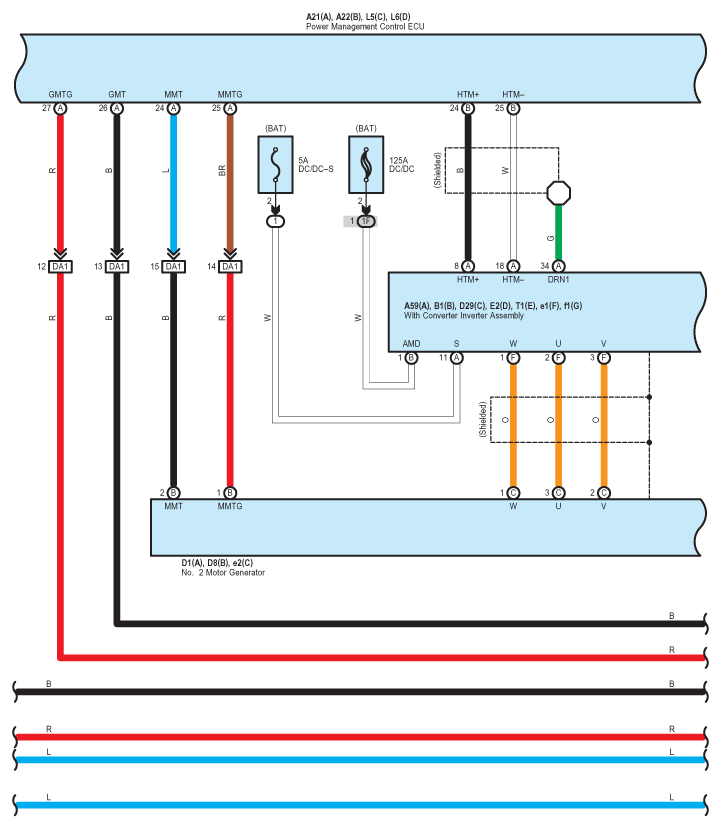

Fig 3: Hybrid System And Shift Control System - Circuit Diagram (3 Of 27)

G07570652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

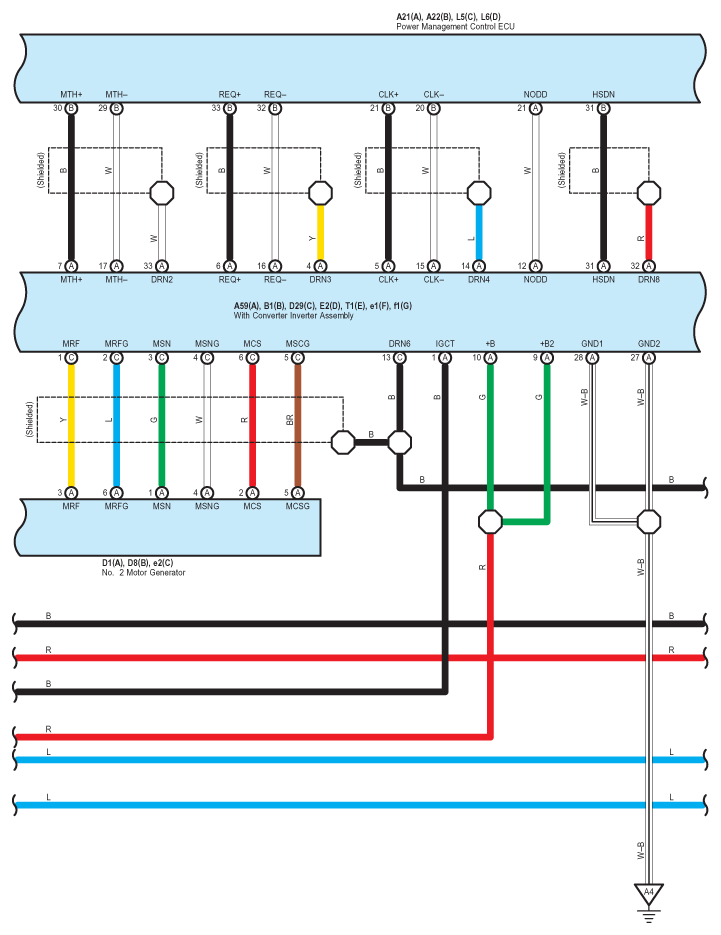

Fig 4: Hybrid System And Shift Control System - Circuit Diagram (4 Of 27)

G07570653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

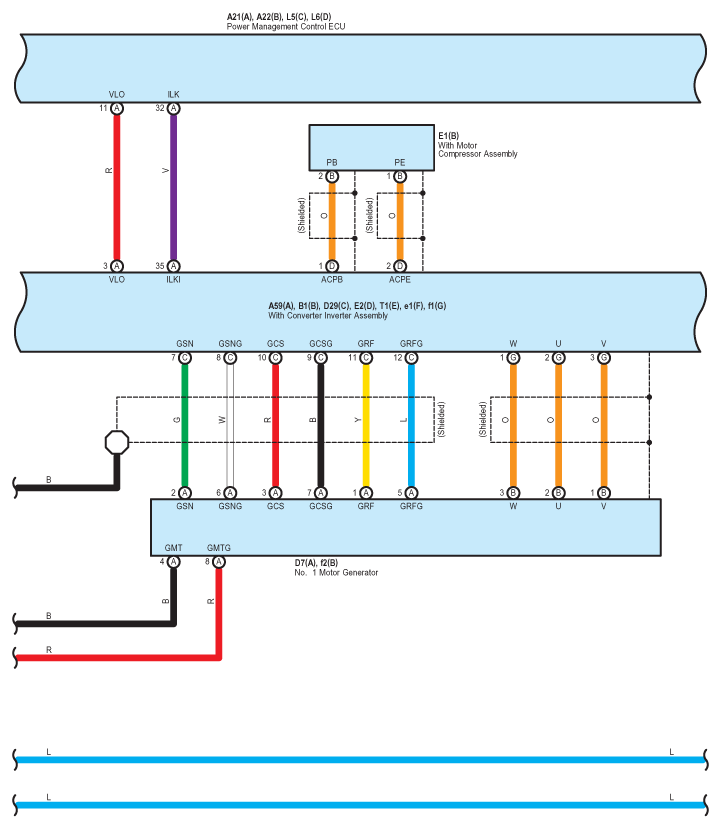

Fig 5: Hybrid System And Shift Control System - Circuit Diagram (5 Of 27)

G07570654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

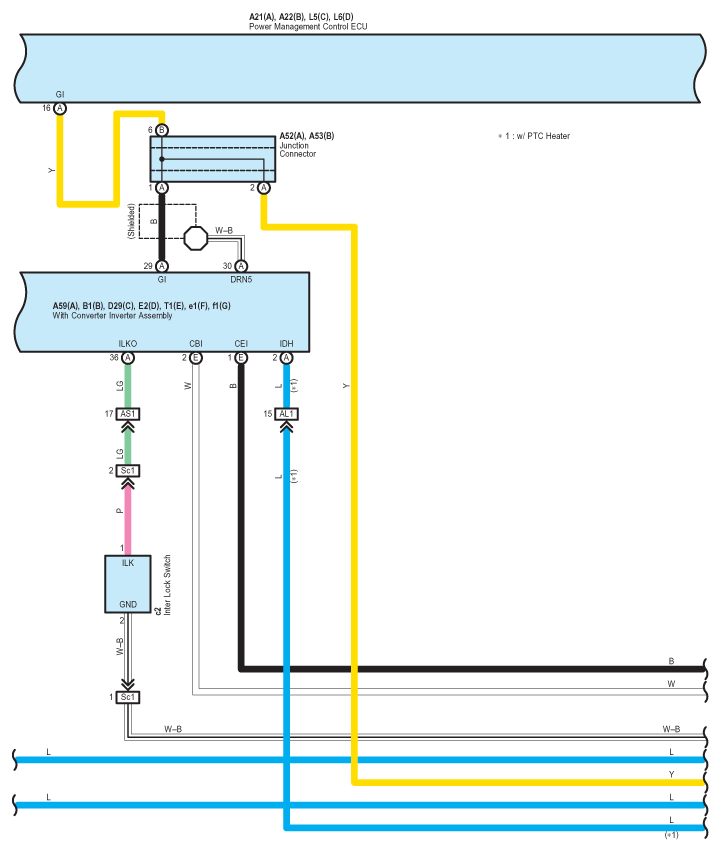

Fig 6: Hybrid System And Shift Control System - Circuit Diagram (6 Of 27)

G07570655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

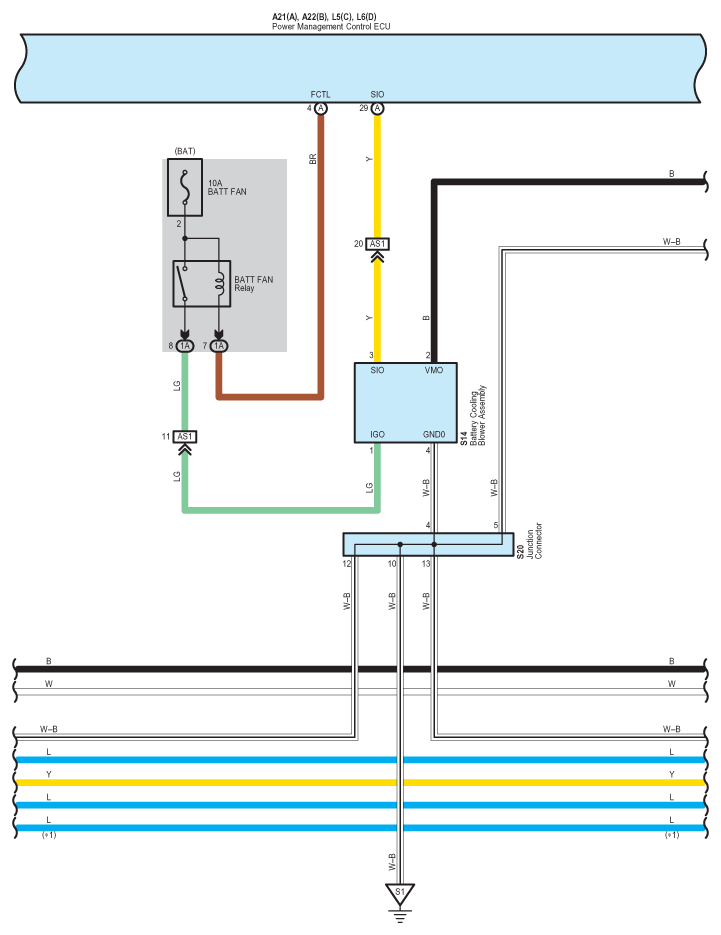

Fig 7: Hybrid System And Shift Control System - Circuit Diagram (7 Of 27)

G07570656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

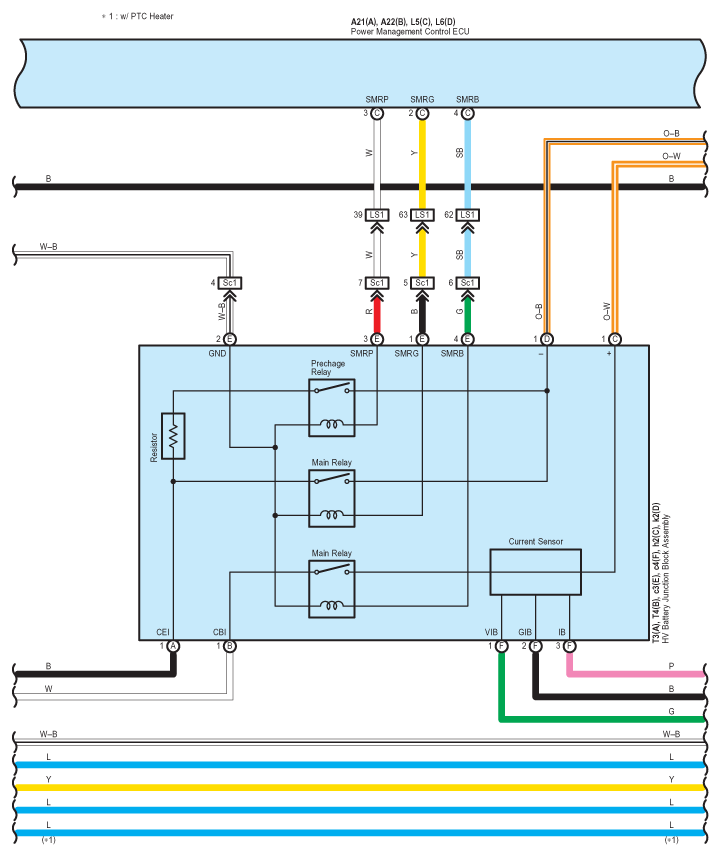

Fig 8: Hybrid System And Shift Control System - Circuit Diagram (8 Of 27)

G07570657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

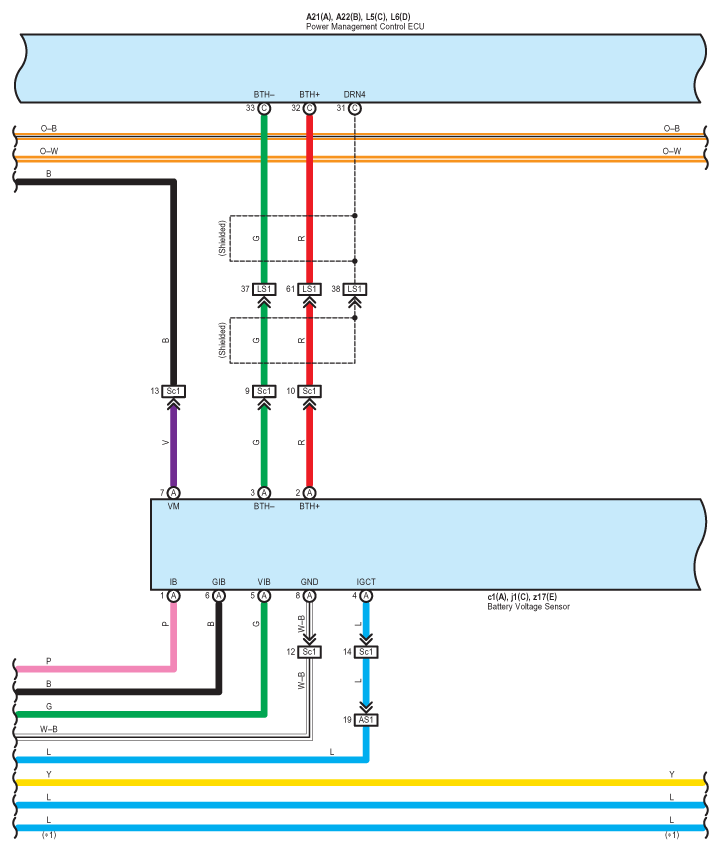

Fig 9: Hybrid System And Shift Control System - Circuit Diagram (9 Of 27)

G07570658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

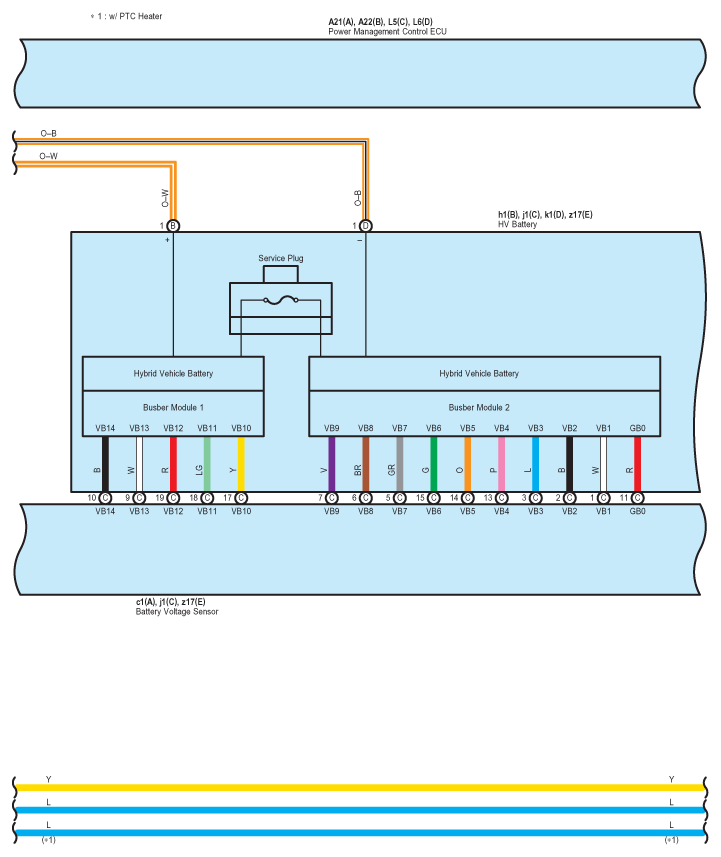

Fig 10: Hybrid System And Shift Control System - Circuit Diagram (10 Of 27)

G07570659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

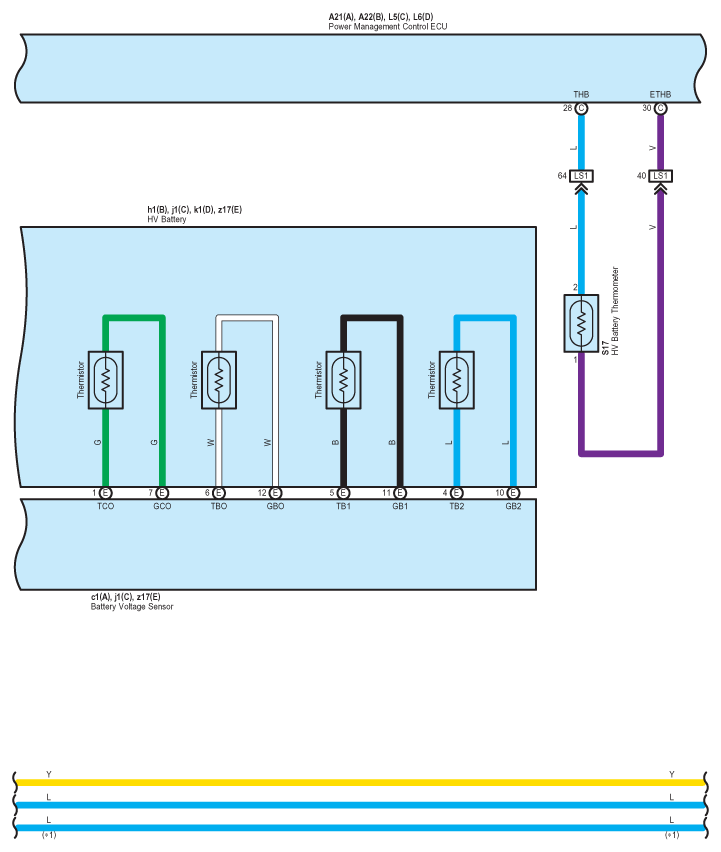

Fig 11: Hybrid System And Shift Control System - Circuit Diagram (11 Of 27)

G07570660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

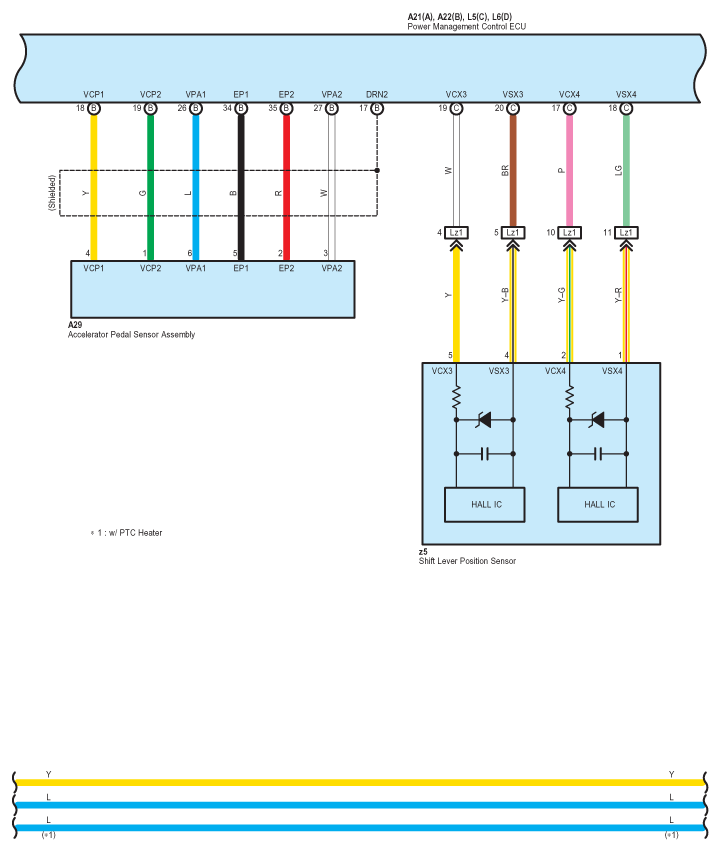

Fig 12: Hybrid System And Shift Control System - Circuit Diagram (12 Of 27)

G07570661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

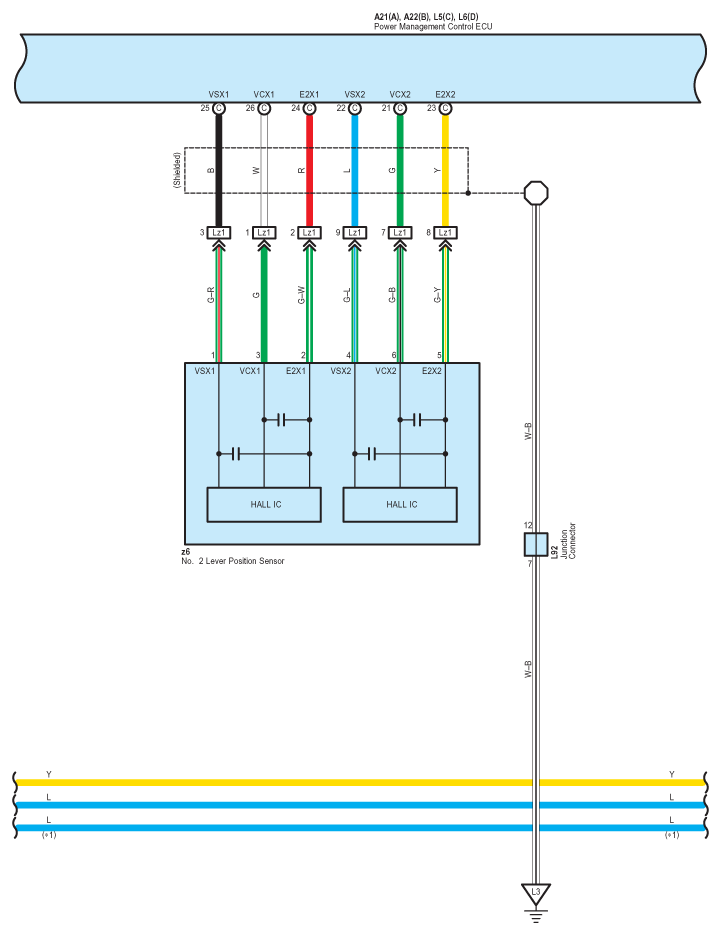

Fig 13: Hybrid System And Shift Control System - Circuit Diagram (13 Of 27)

G07570662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

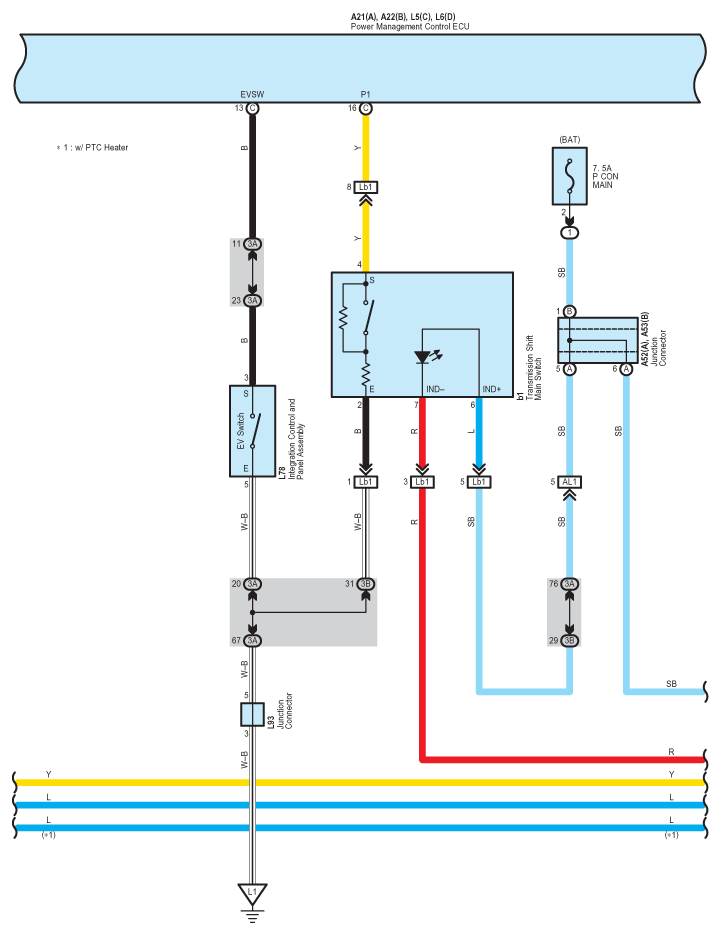

Fig 14: Hybrid System And Shift Control System - Circuit Diagram (14 Of 27)

G07570663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

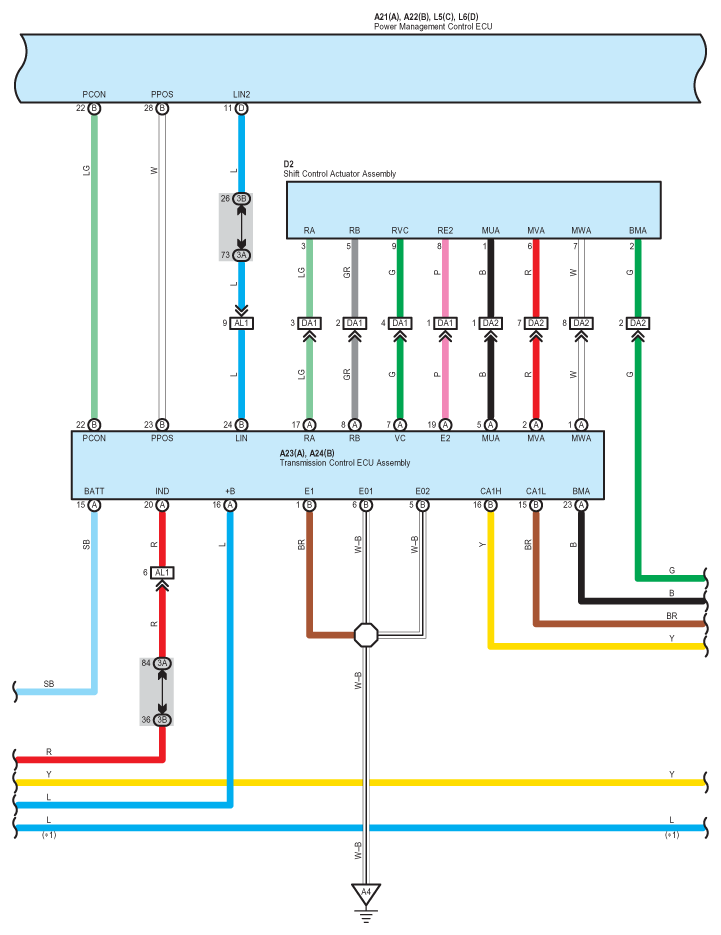

Fig 15: Hybrid System And Shift Control System - Circuit Diagram (15 Of 27)

G07570664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

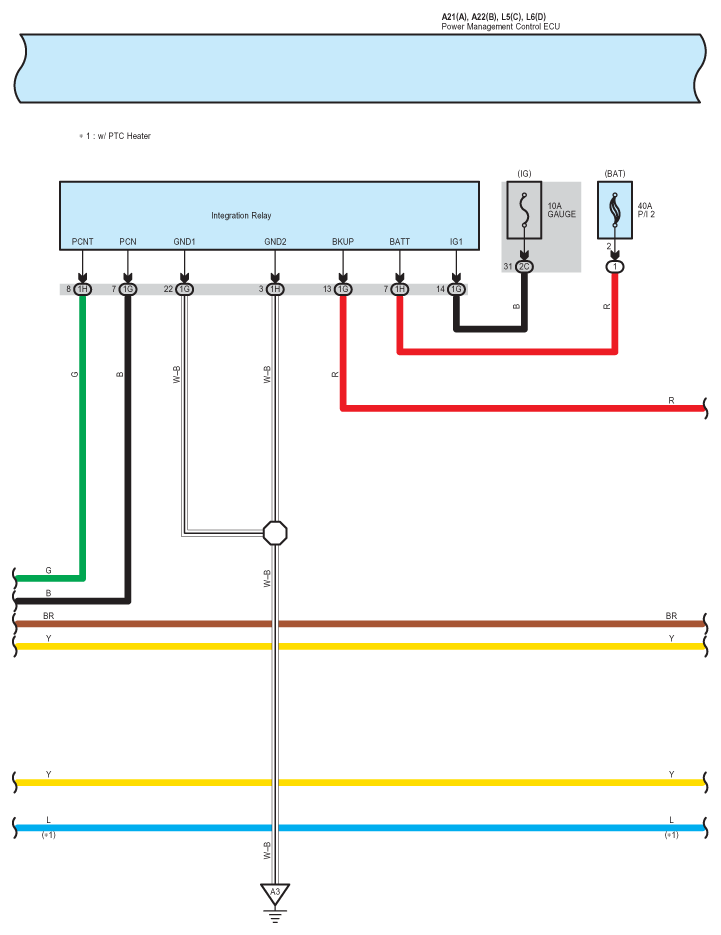

Fig 16: Hybrid System And Shift Control System - Circuit Diagram (16 Of 27)

G07570665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

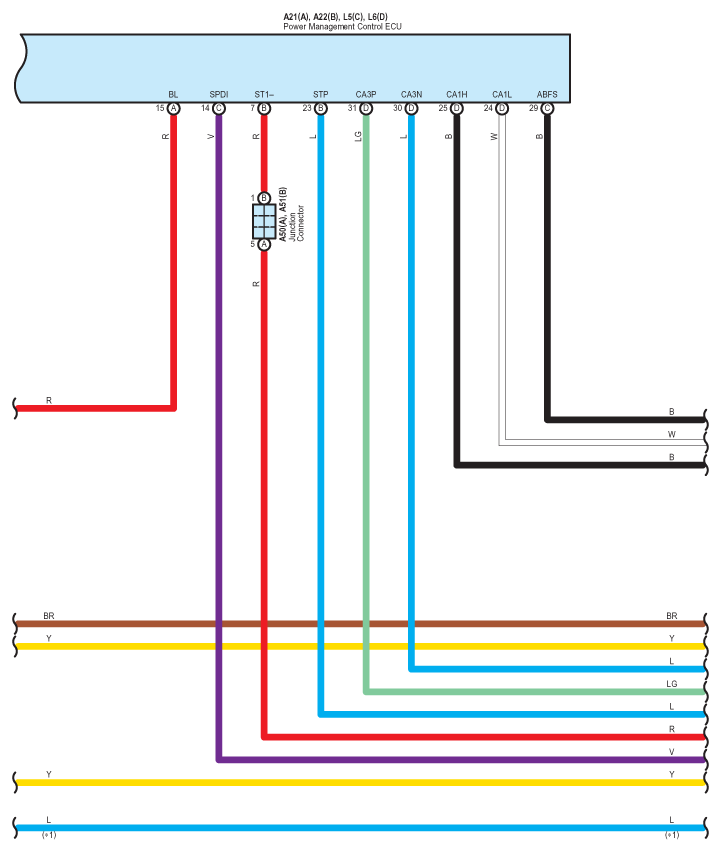

Fig 17: Hybrid System And Shift Control System - Circuit Diagram (17 Of 27)

G07570666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

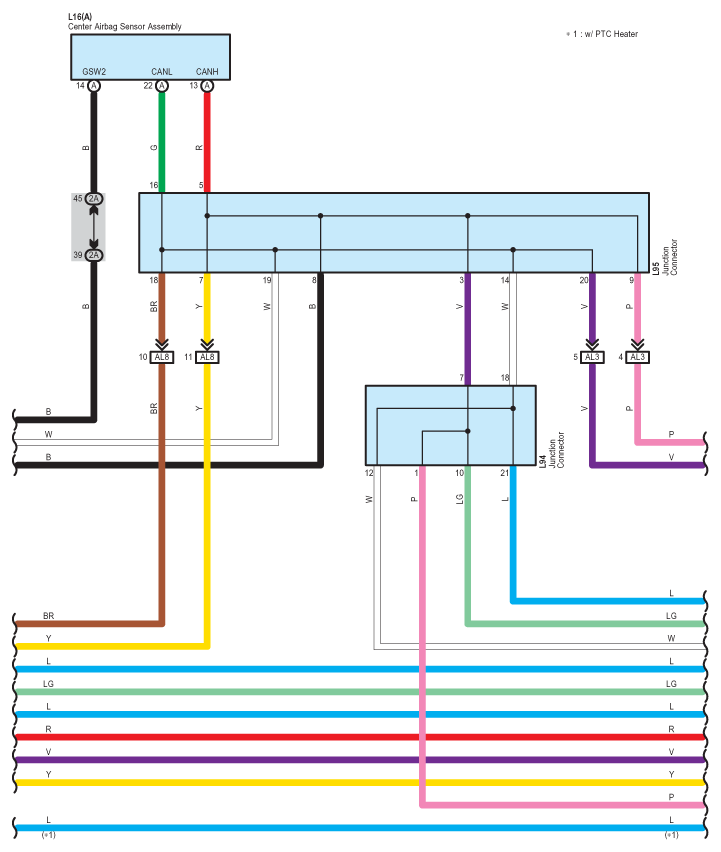

Fig 18: Hybrid System And Shift Control System - Circuit Diagram (18 Of 27)

G07570667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

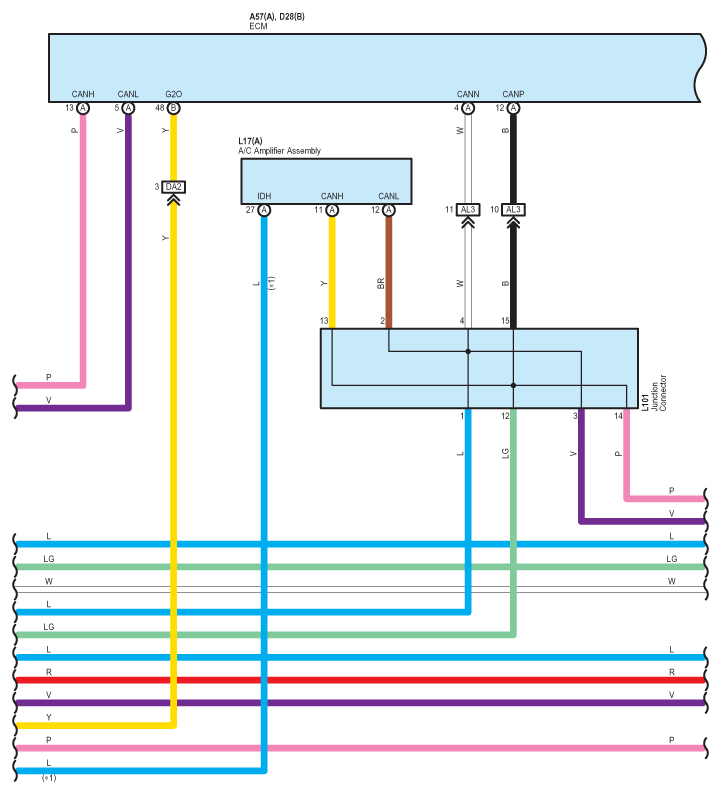

Fig 19: Hybrid System And Shift Control System - Circuit Diagram (19 Of 27)

G07570668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

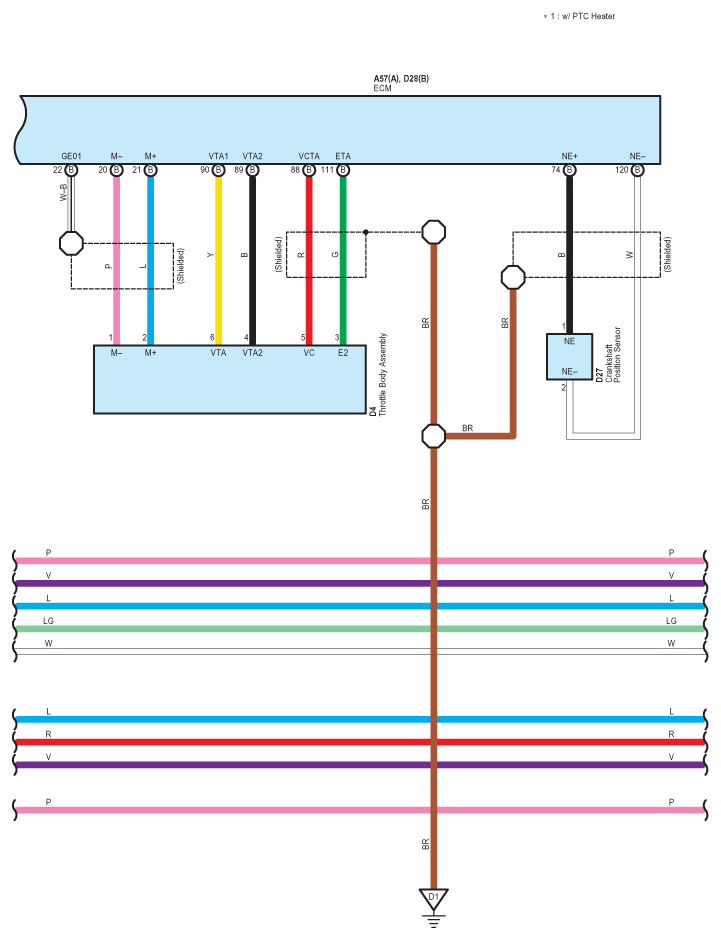

Fig 20: Hybrid System And Shift Control System - Circuit Diagram (20 Of 27)

G07570669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

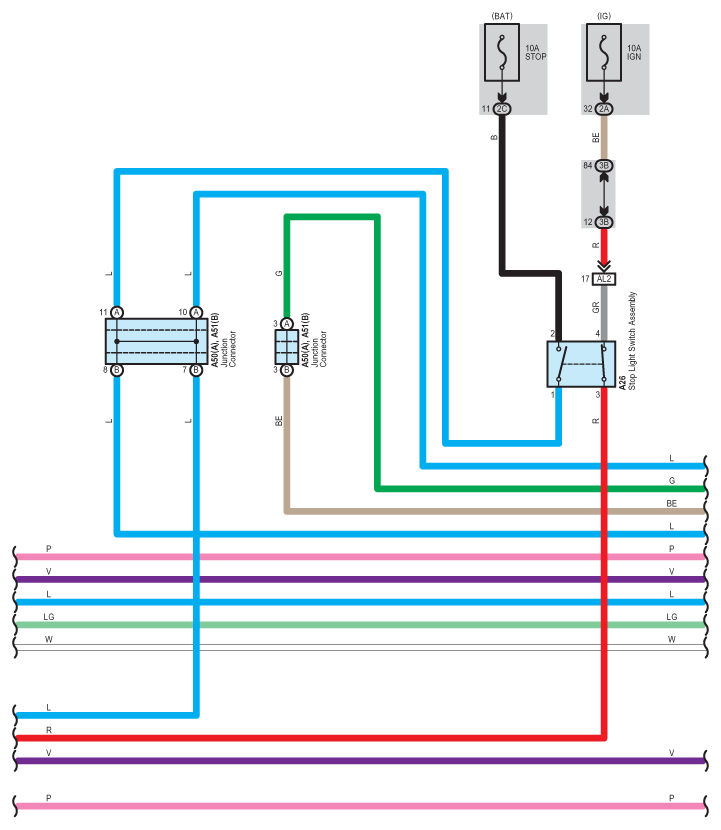

Fig 21: Hybrid System And Shift Control System - Circuit Diagram (21 Of 27)

G07570670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

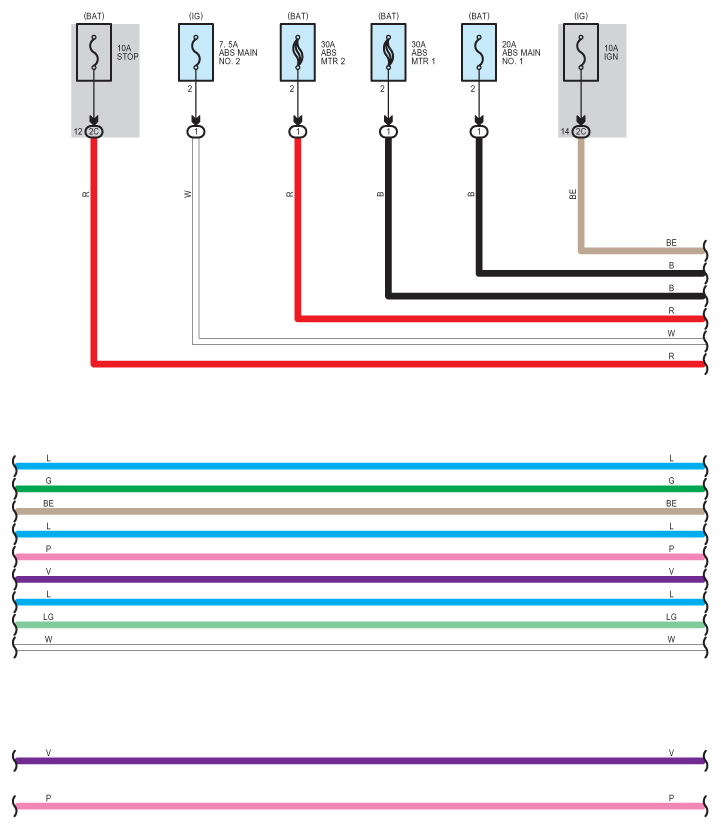

Fig 22: Hybrid System And Shift Control System - Circuit Diagram (22 Of 27)

G07570671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

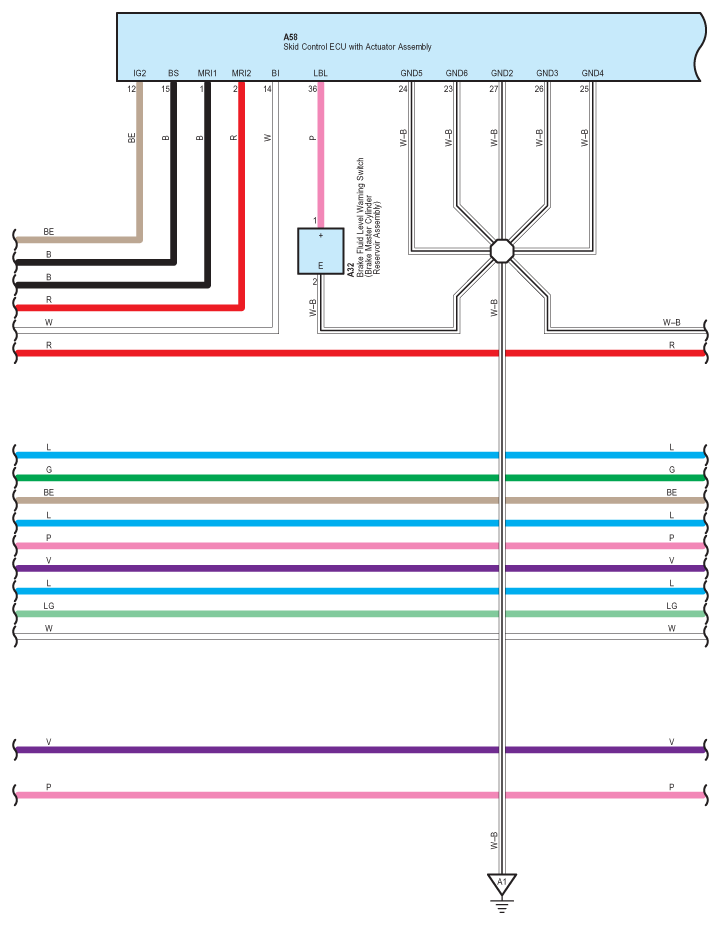

Fig 23: Hybrid System And Shift Control System - Circuit Diagram (23 Of 27)

G07570672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

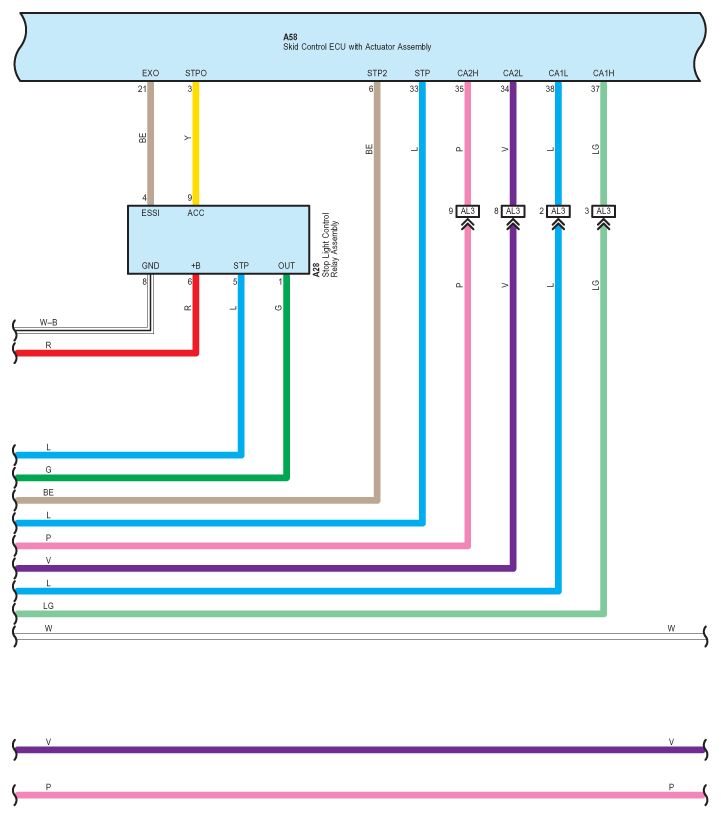

Fig 24: Hybrid System And Shift Control System - Circuit Diagram (24 Of 27)

G07570673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

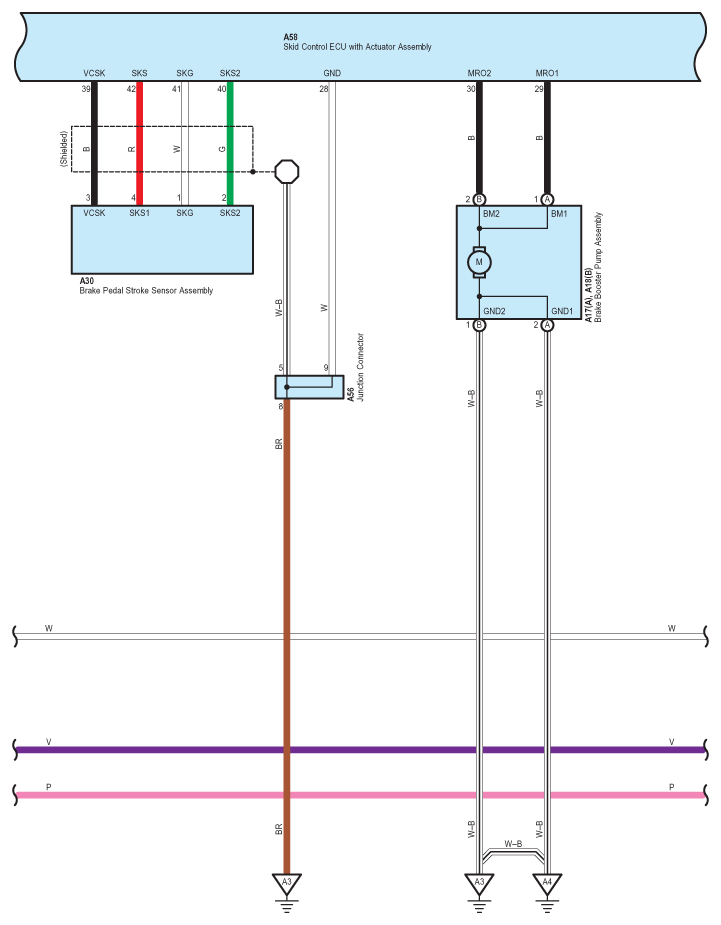

Fig 25: Hybrid System And Shift Control System - Circuit Diagram (25 Of 27)

G07570674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

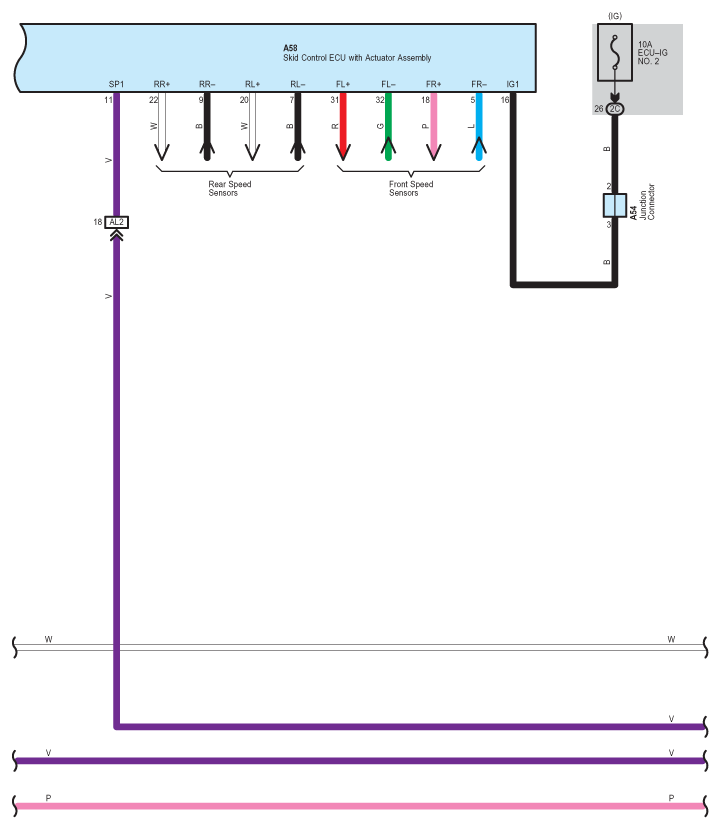

Fig 26: Hybrid System And Shift Control System - Circuit Diagram (26 Of 27)

G07570675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

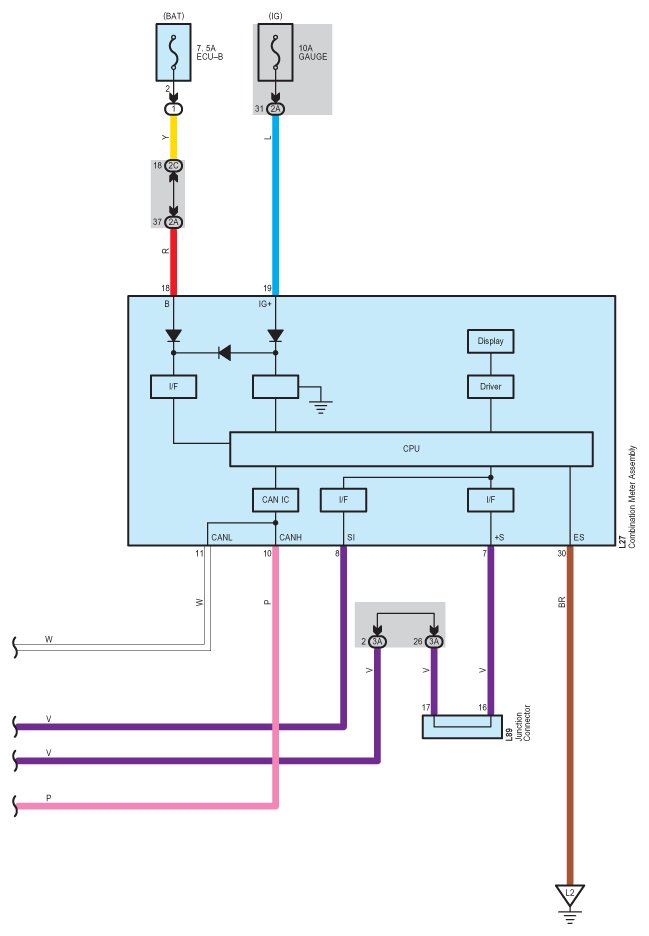

Fig 27: Hybrid System And Shift Control System - Circuit Diagram (27 Of 27)

G07570676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
