Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

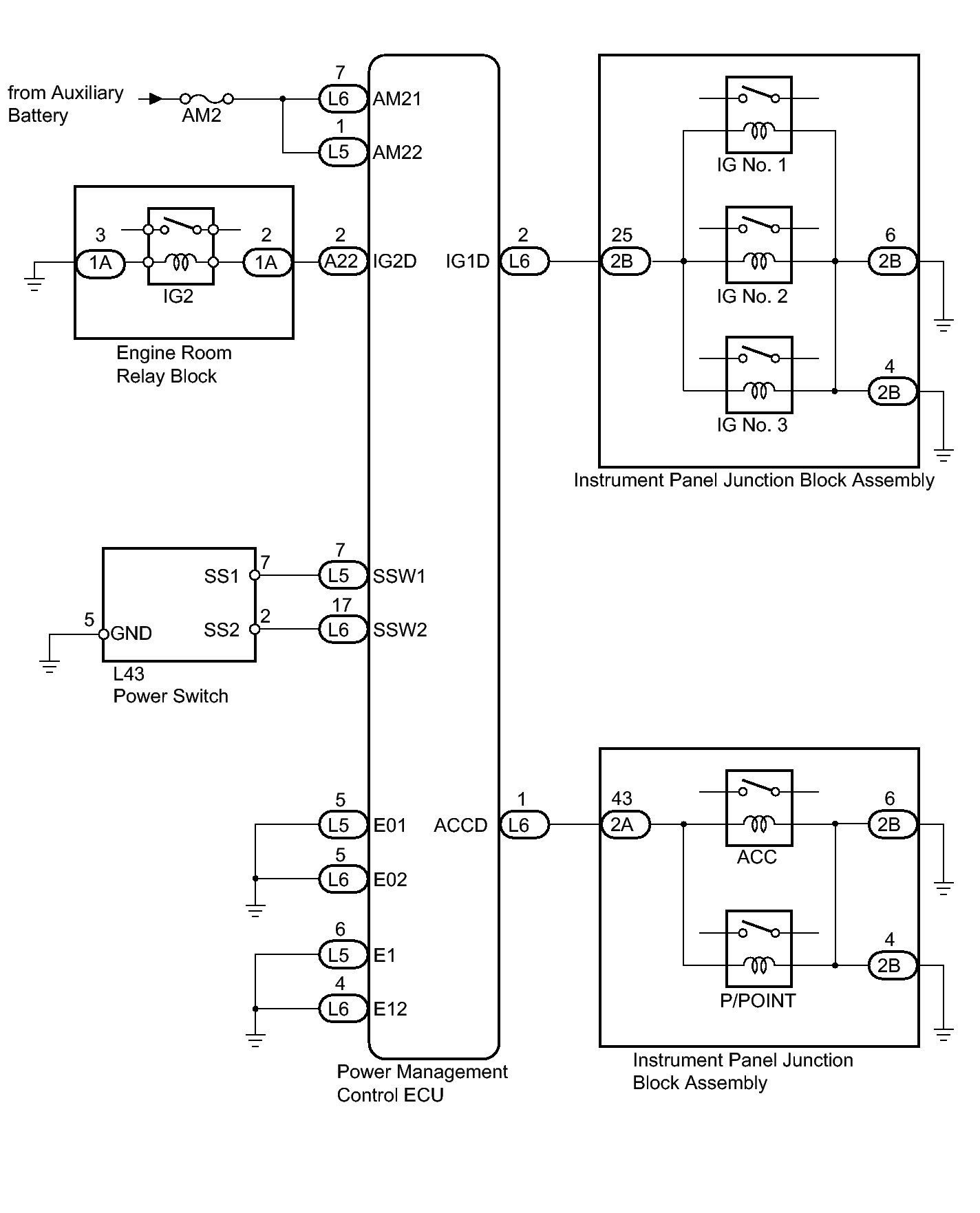

Fig 1: View Of Instrument Panel Junction Block Assembly Wiring Diagram
GTY215574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
