Power Source Circuit: Wiring Diagram

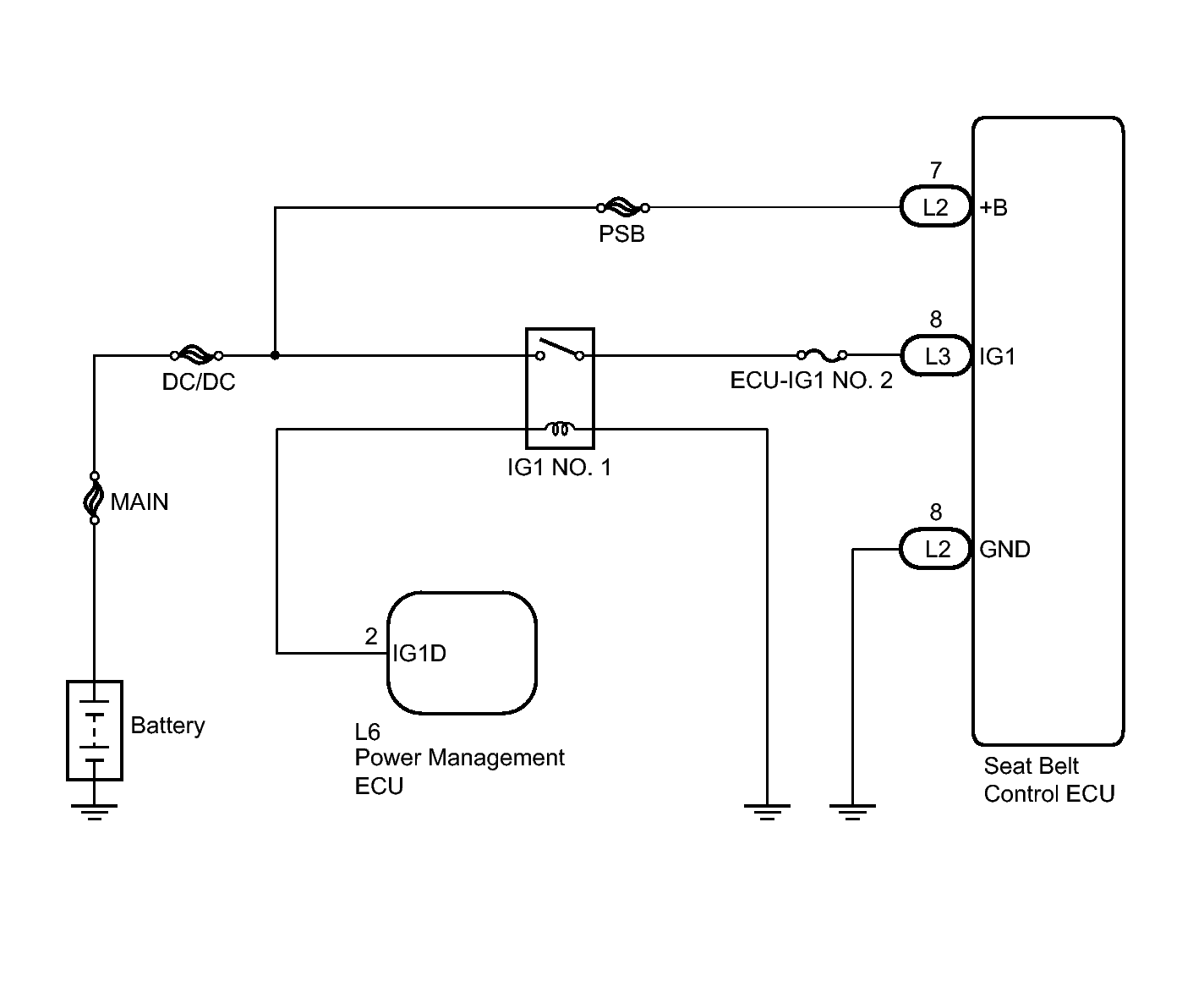

Fig 1: View Of Power Source Circuit Wiring Diagram
GTY229024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
