Air Fuel Ratio Sensor: Installation: Installation
WARNING: This page is about a different car, the 2010 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

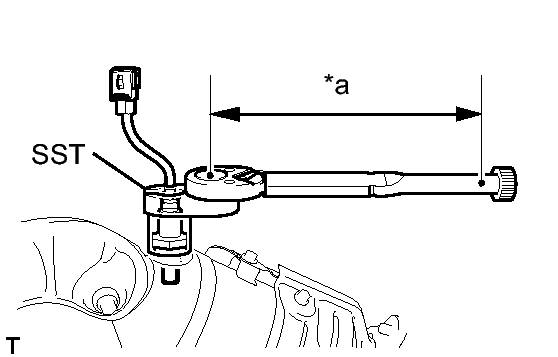

- INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
- Using SST, tighten the air fuel ratio sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*a Fulcrum Length - SST: 09224-00010
without SST
Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)
with SST
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
HINT:
- The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
- The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.). Refer toPRECAUTION .
- This torque value is effective when SST is parallel to the torque wrench.
- Using SST, tighten the air fuel ratio sensor.

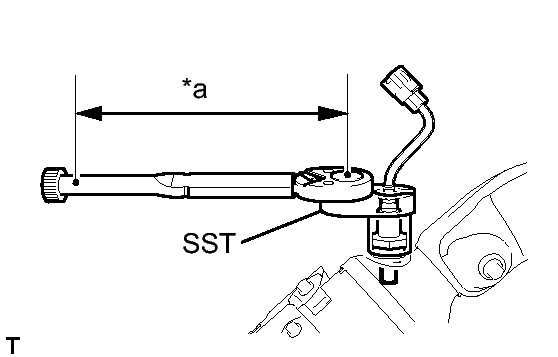

- INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
- Using SST, tighten the air fuel ratio sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*a Fulcrum Length - SST: 09224-00010
without SST
Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)
with SST
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
HINT:
- The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
- The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.). Refer toPRECAUTION .
- This torque value is effective when SST is parallel to the torque wrench.
- Using SST, tighten the air fuel ratio sensor.
- INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY
- Install the exhaust manifold. Refer toINSTALLATION .
