Knock Sensor: Installation: Installation

WARNING: This page is about a different car, the 2010 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL KNOCK SENSOR

Install the 2 sensors with the 2 bolts as shown in the illustration.

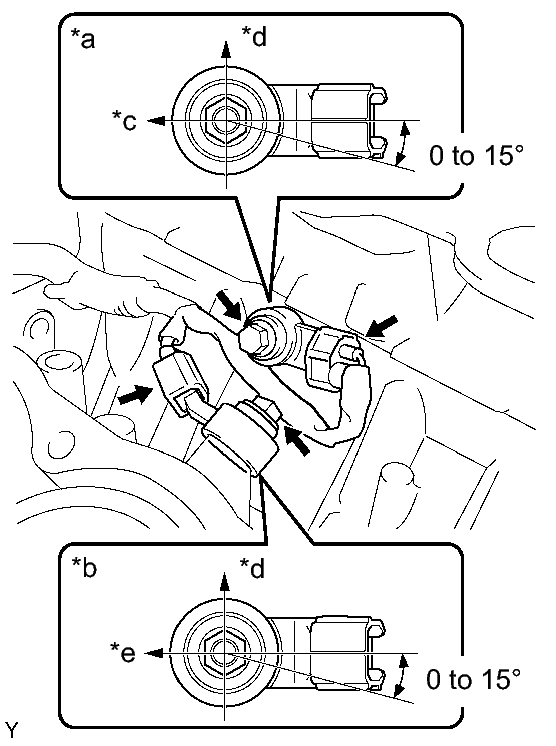

Fig 1: Identifying Knock Sensors & Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	for Bank 2:
*b	for Bank 1:
*c	Engine Rear
*d	Top
*e	Engine Front

Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

Connect the 2 sensor connectors.

INSTALL NO. 1 WATER OUTLET PIPE
1. Install the No. 1 water outlet pipe with the 2 nuts and bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the 4 wire harness clamps.
INSTALL CYLINDER HEAD SUB-ASSEMBLY (for Bank 1)
1. Install the cylinder head. Refer toINSTALLATION .
