Front Passenger Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

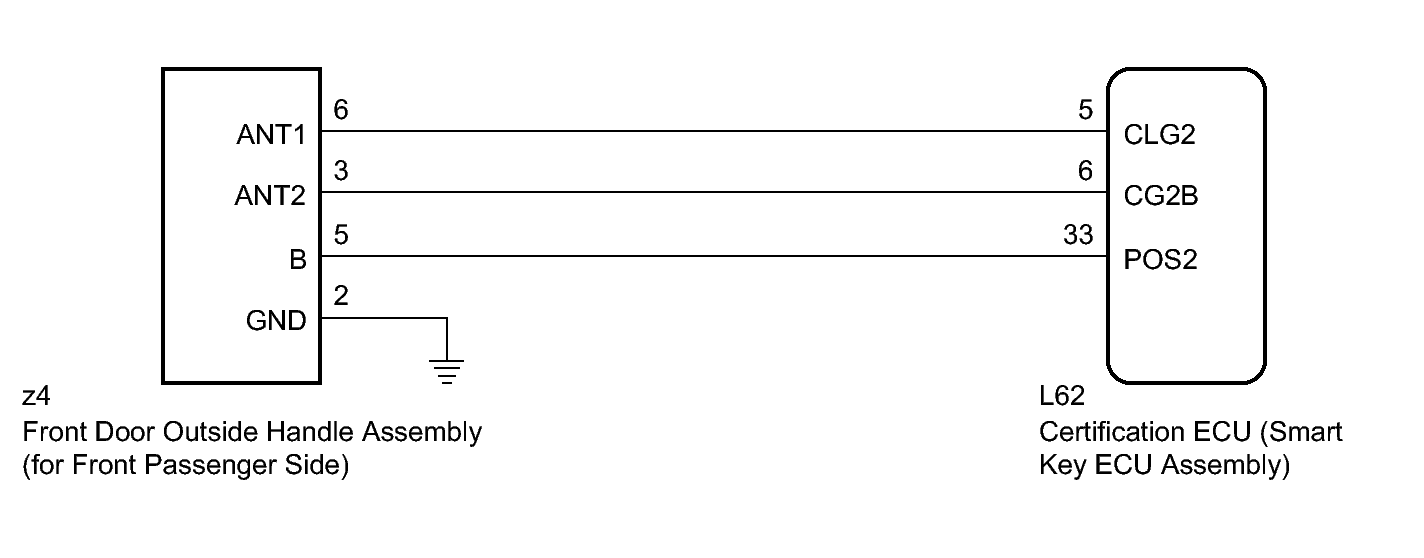

Fig 1: Front Passenger Side Door Entry Lock & Unlock Function Wiring Diagram
GTY215664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
