Steering Angle Sensor Communication Stop Mode: Wiring Diagram

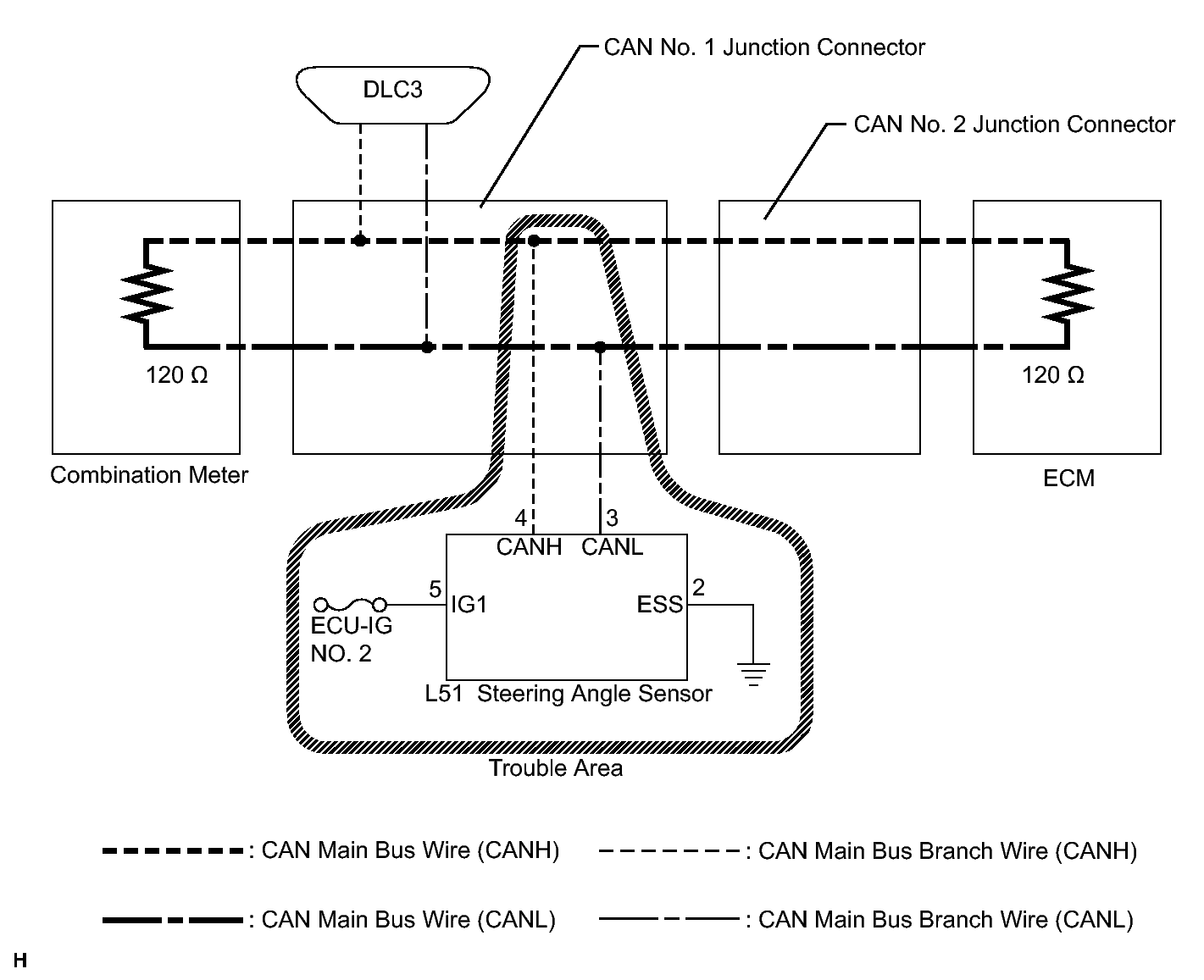

Fig 1: Identifying Steering Angle Sensor Wiring Diagram
GTY214322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
