Room Oscillator Does Not Recognize Key: Wiring Diagram

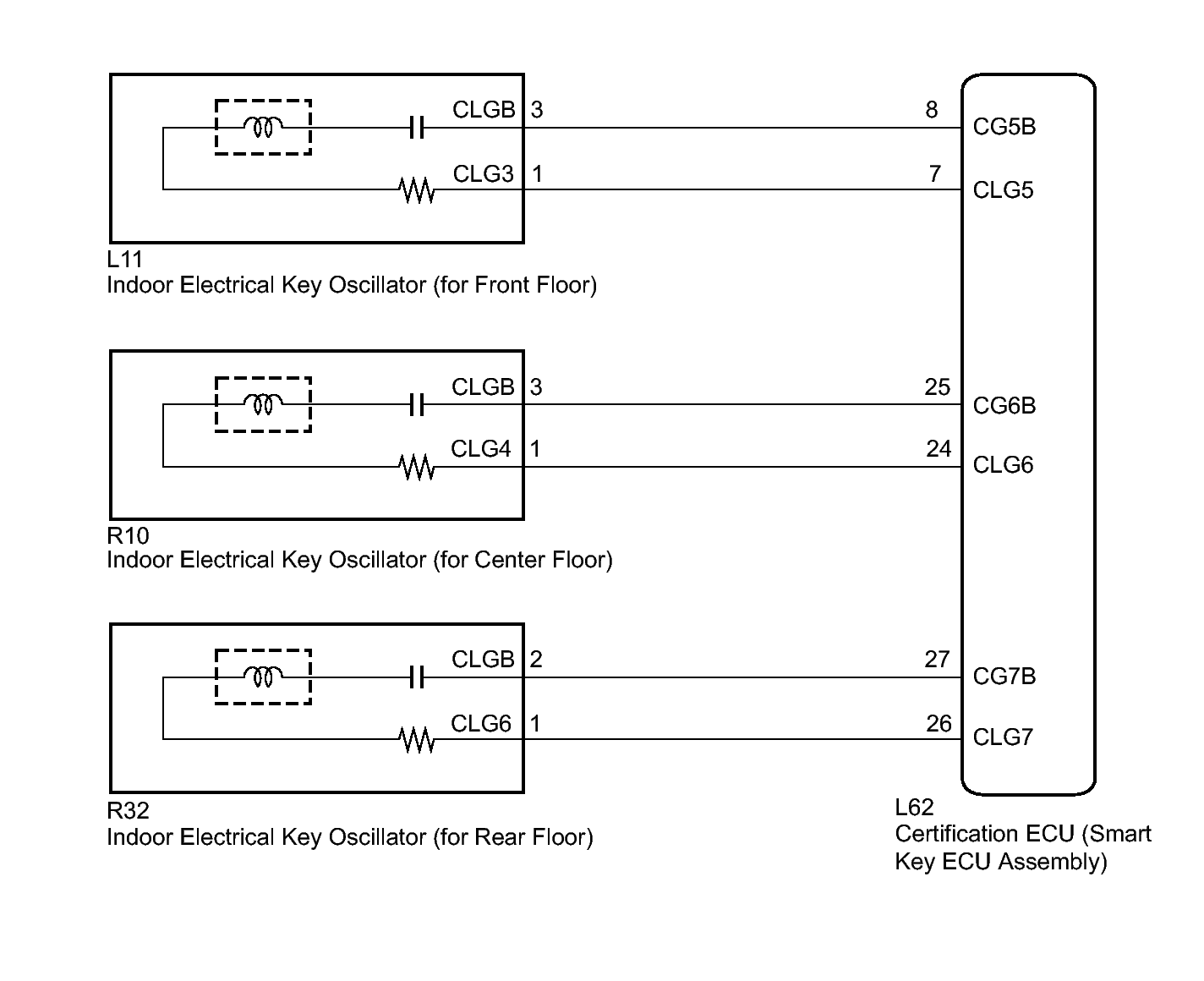

Fig 1: Room Oscillator Wiring Diagram
GTY224689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
