Audio System and Navigation System: Notes

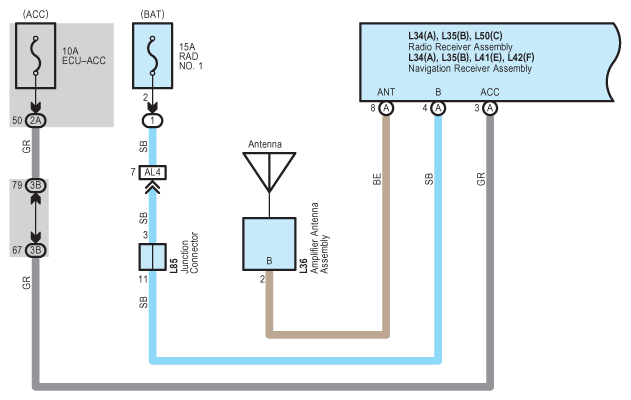

Fig 1: Audio System And Navigation System - Circuit Diagram (1 Of 9)
G07624788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

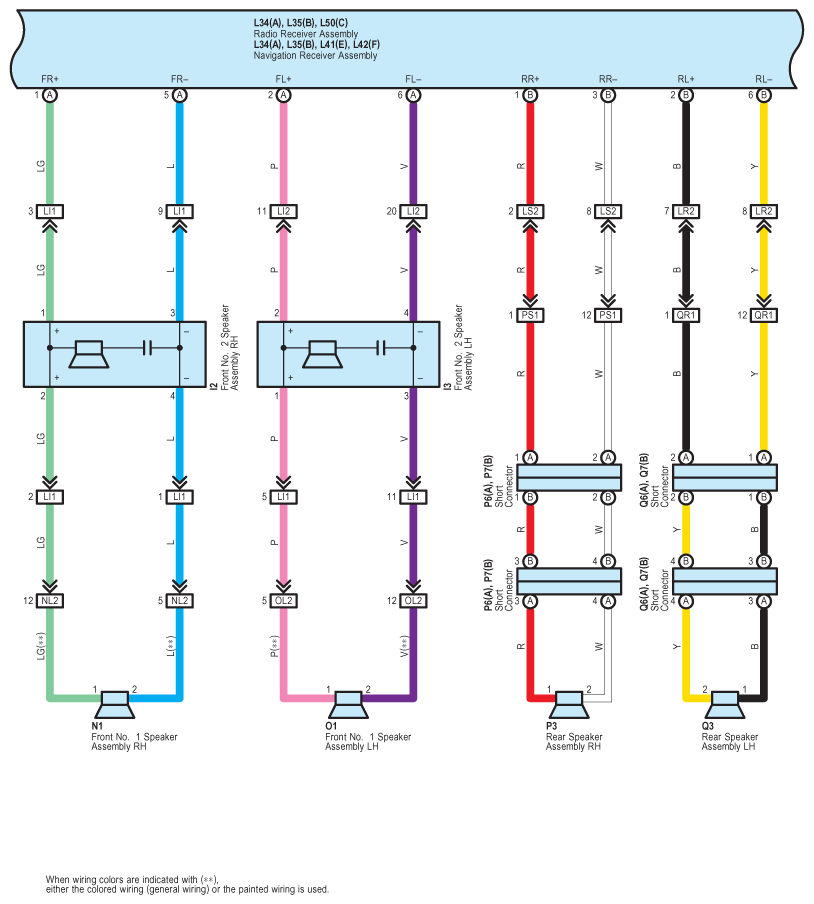

Fig 2: Audio System And Navigation System - Circuit Diagram (2 Of 9)
G07624789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

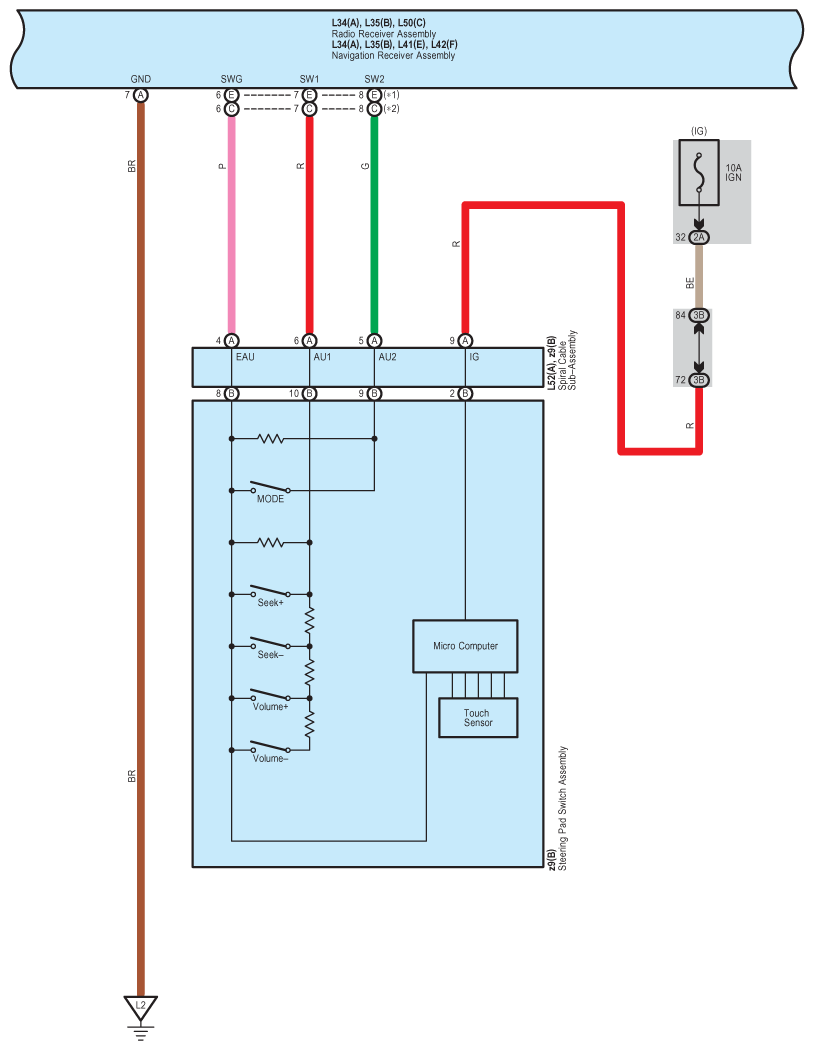

Fig 3: Audio System And Navigation System - Circuit Diagram (3 Of 9)
G07624790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

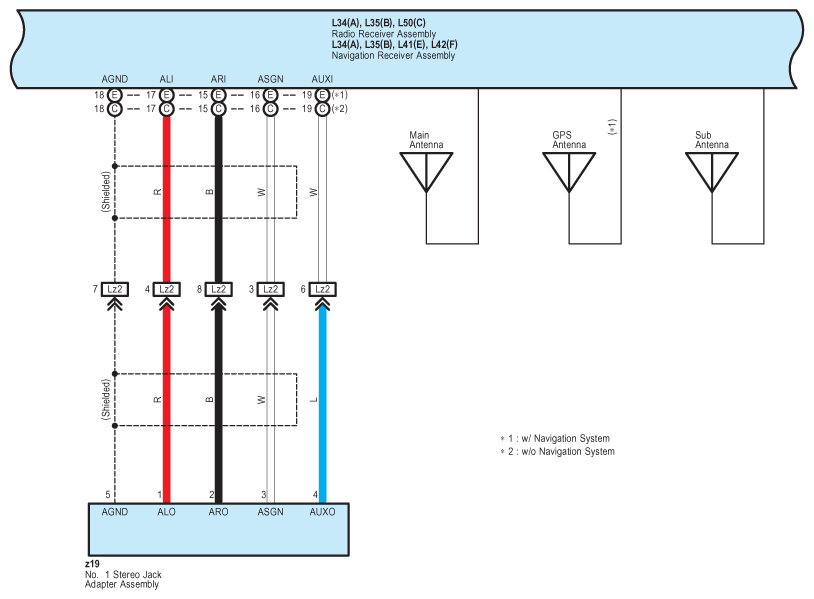

Fig 4: Audio System And Navigation System - Circuit Diagram (4 Of 9)
G07624791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

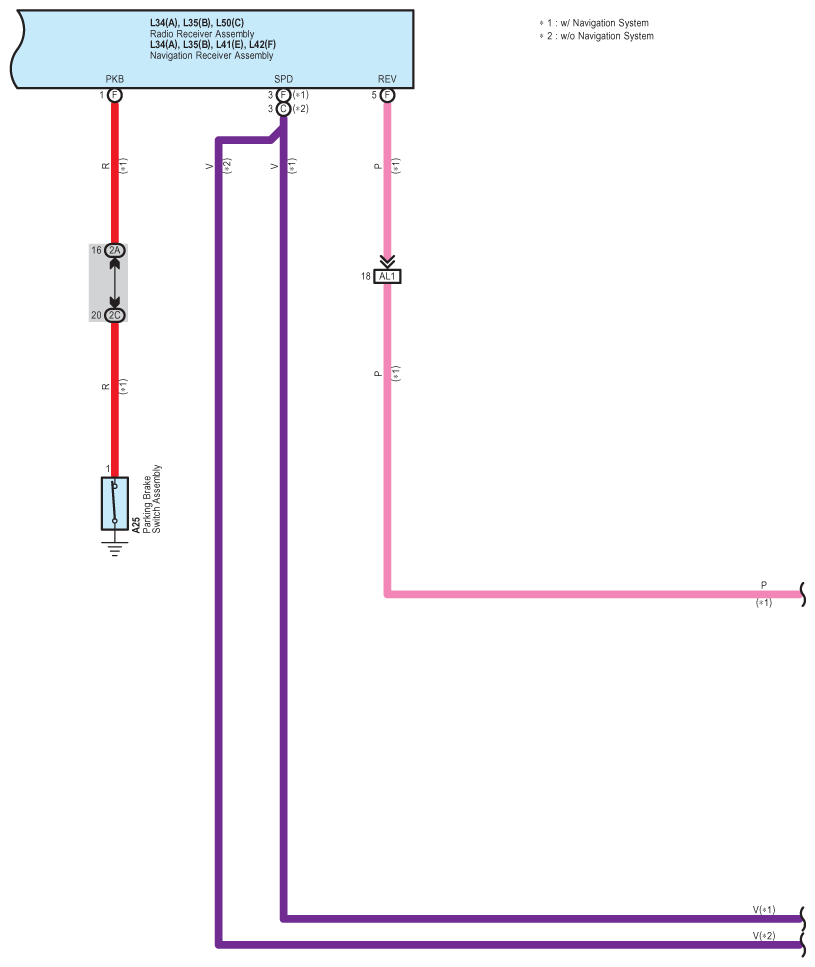

Fig 5: Audio System And Navigation System - Circuit Diagram (5 Of 9)
G07624792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

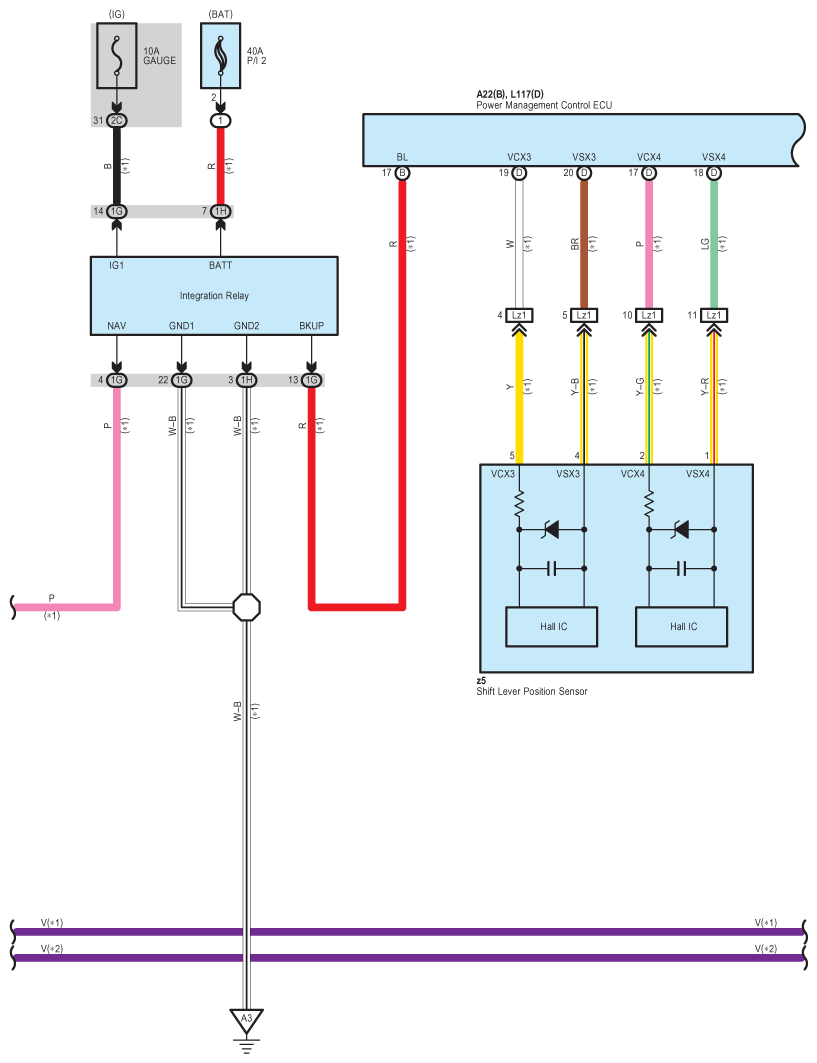

Fig 6: Audio System And Navigation System - Circuit Diagram (6 Of 9)
G07624793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

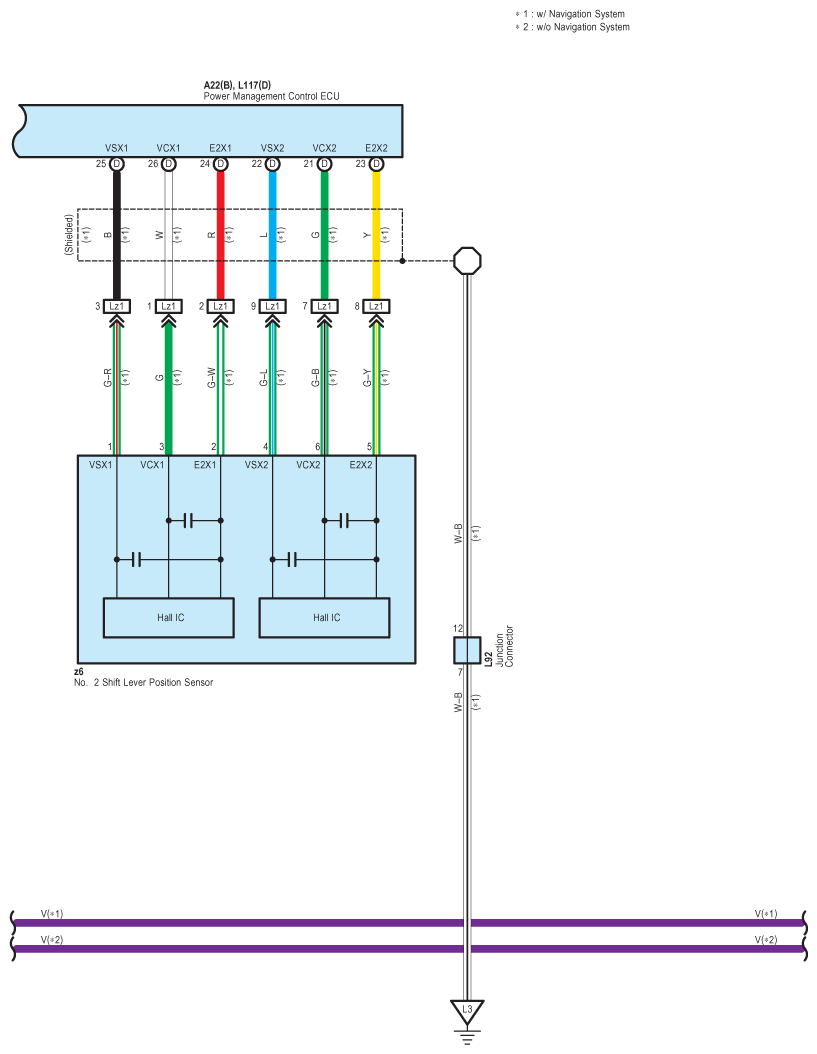

Fig 7: Audio System And Navigation System - Circuit Diagram (7 Of 9)
G07624794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

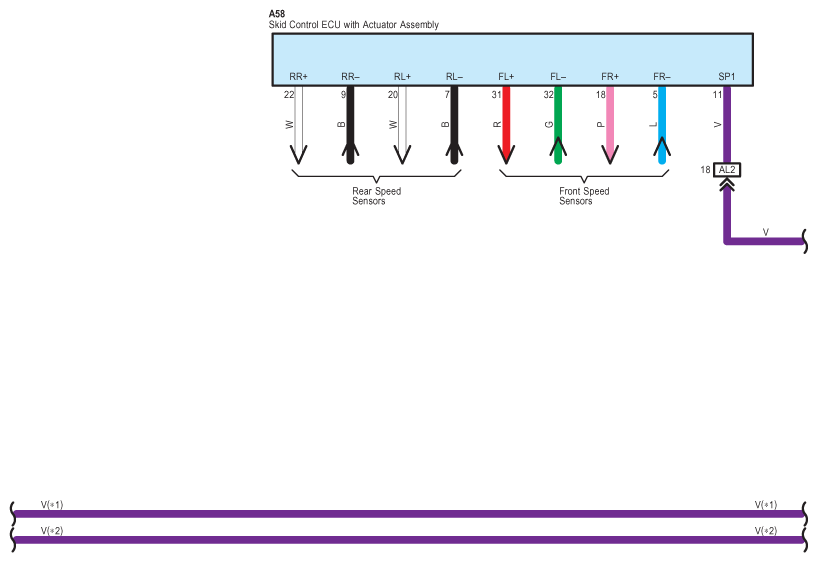

Fig 8: Audio System And Navigation System - Circuit Diagram (8 Of 9)
G07624795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

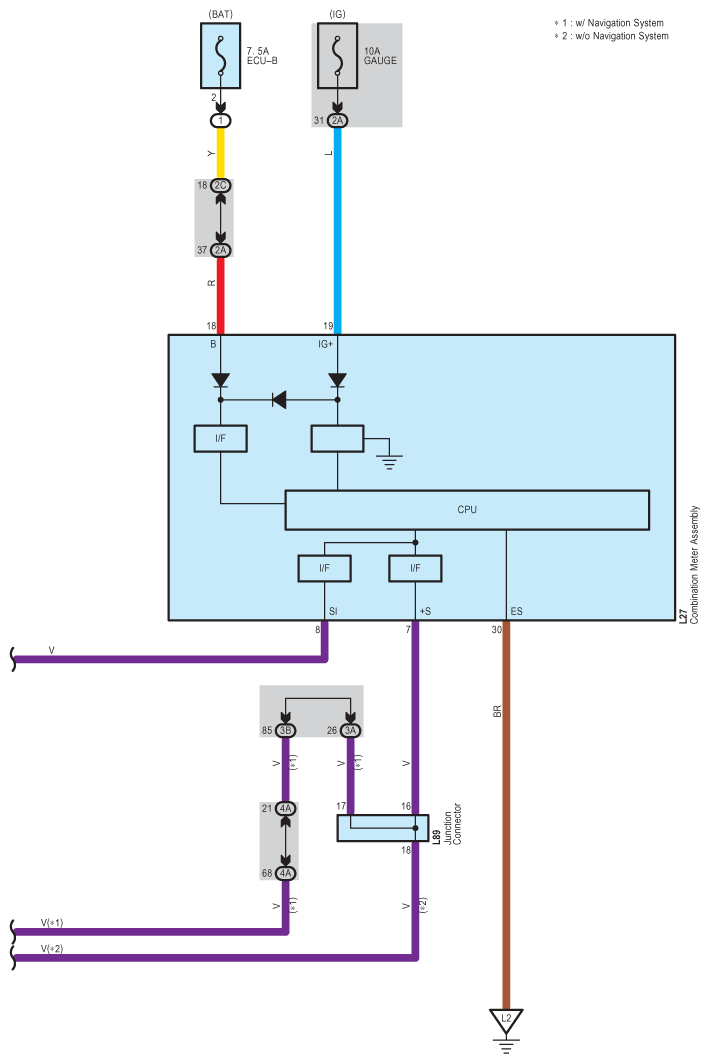

Fig 9: Audio System And Navigation System - Circuit Diagram (9 Of 9)
G07624796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
