Plug-in Hybrid System and Shift Control System: Notes

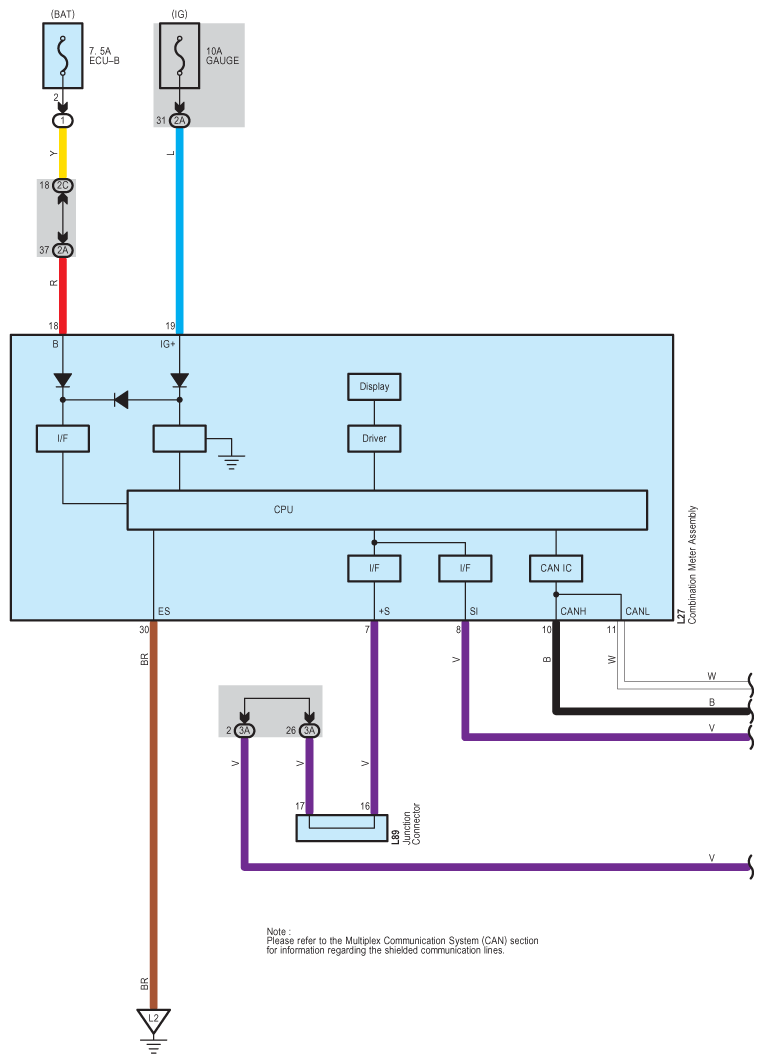

Fig 1: Plug-In Hybrid System And Shift Control System - Circuit Diagram (1 Of 50)

G07624611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

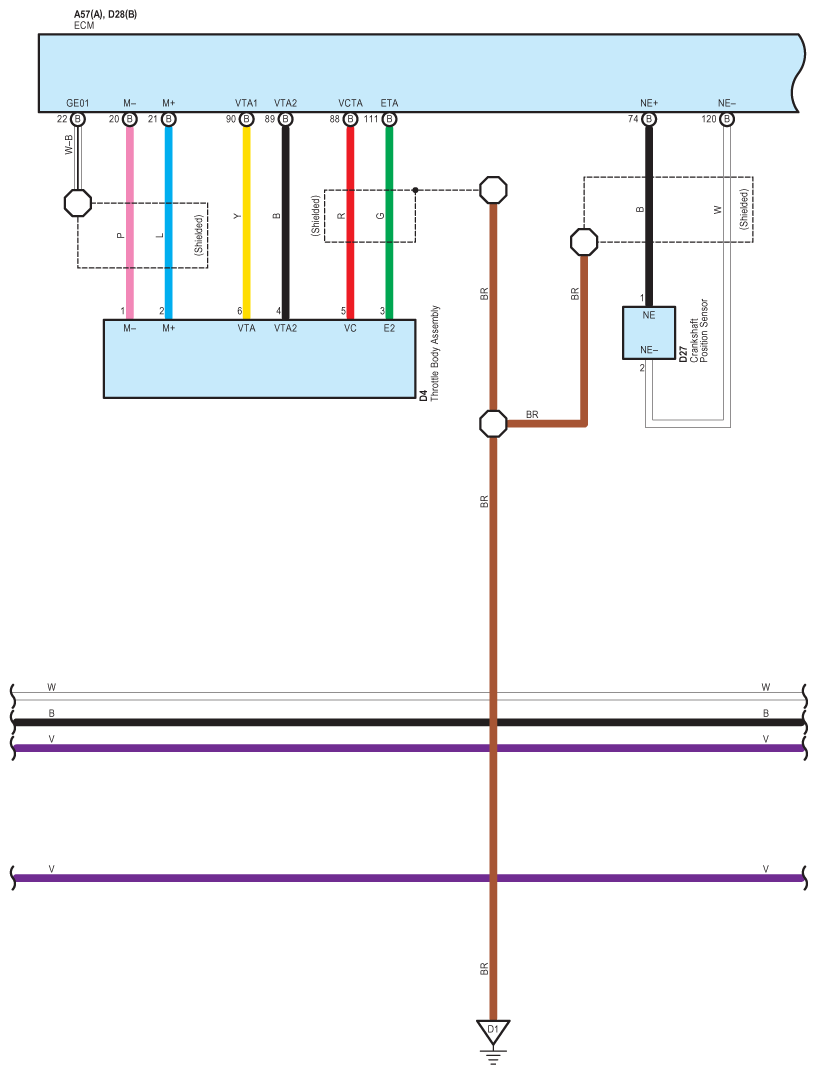

Fig 2: Plug-In Hybrid System And Shift Control System - Circuit Diagram (2 Of 50)

G07624612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

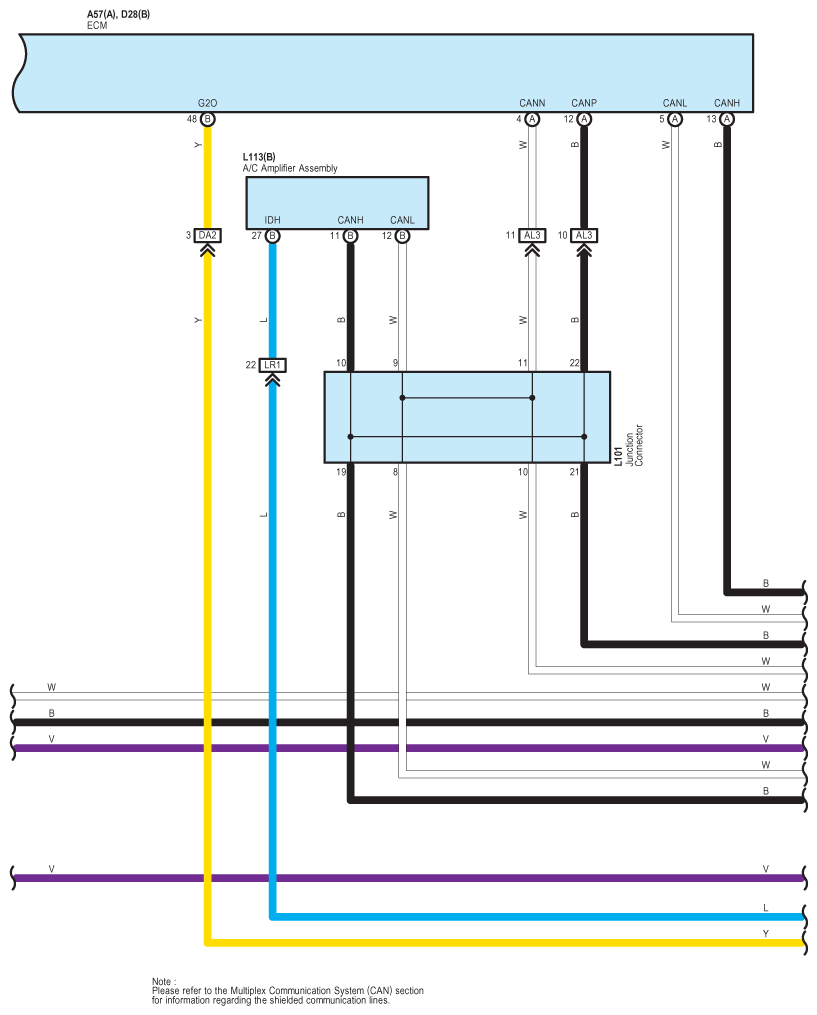

Fig 3: Plug-In Hybrid System And Shift Control System - Circuit Diagram (3 Of 50)

G07624613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

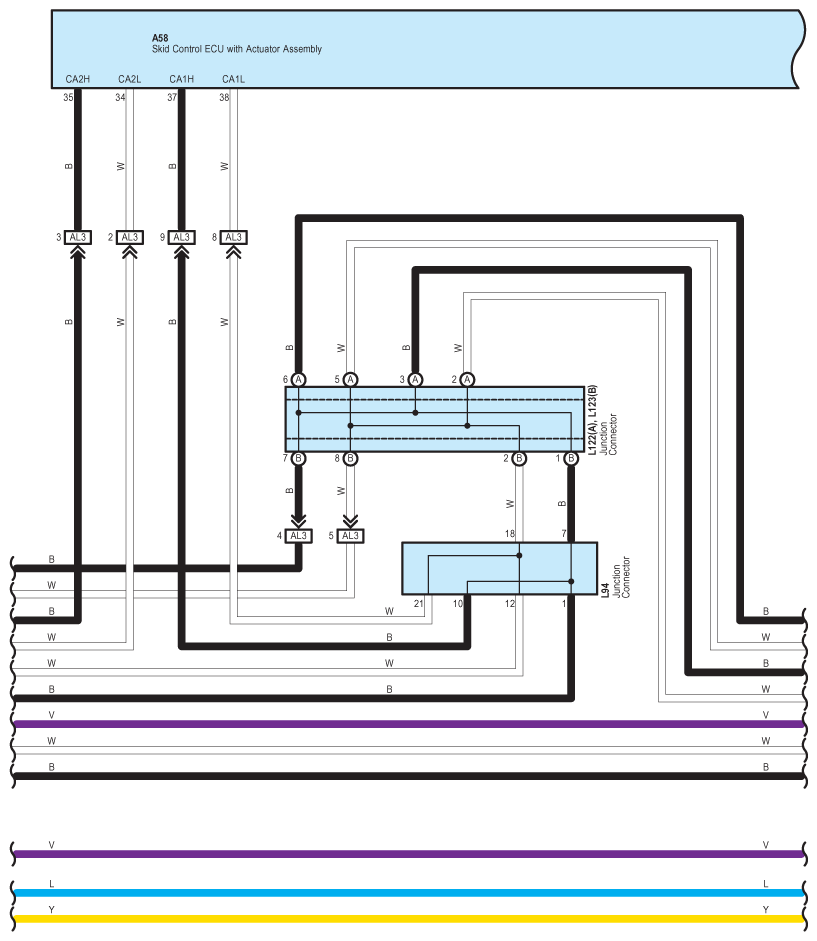

Fig 4: Plug-In Hybrid System And Shift Control System - Circuit Diagram (4 Of 50)

G07624614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

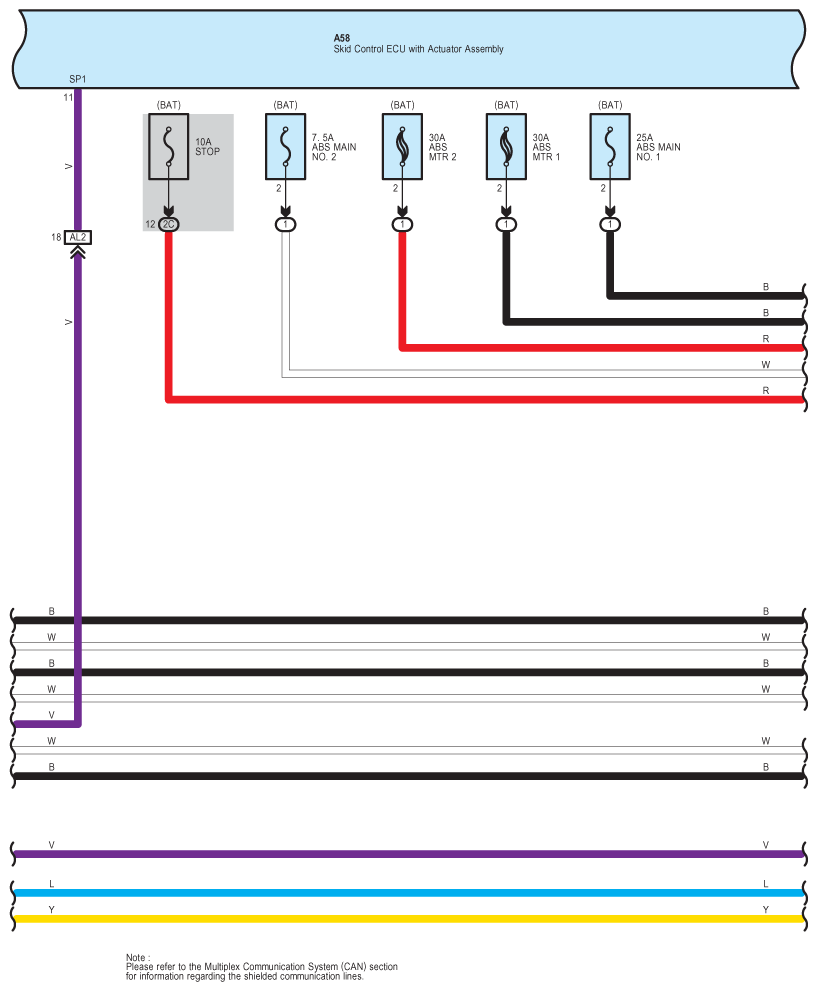

Fig 5: Plug-In Hybrid System And Shift Control System - Circuit Diagram (5 Of 50)

G07624615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

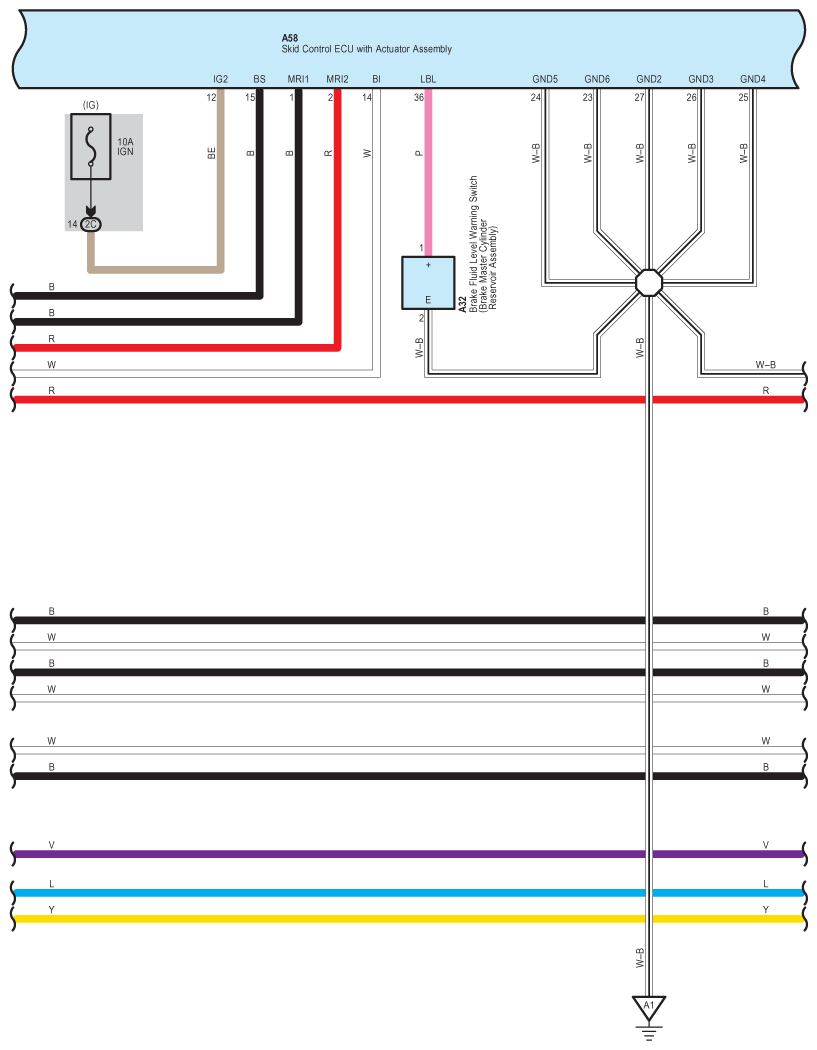

Fig 6: Plug-In Hybrid System And Shift Control System - Circuit Diagram (6 Of 50)

G07624616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

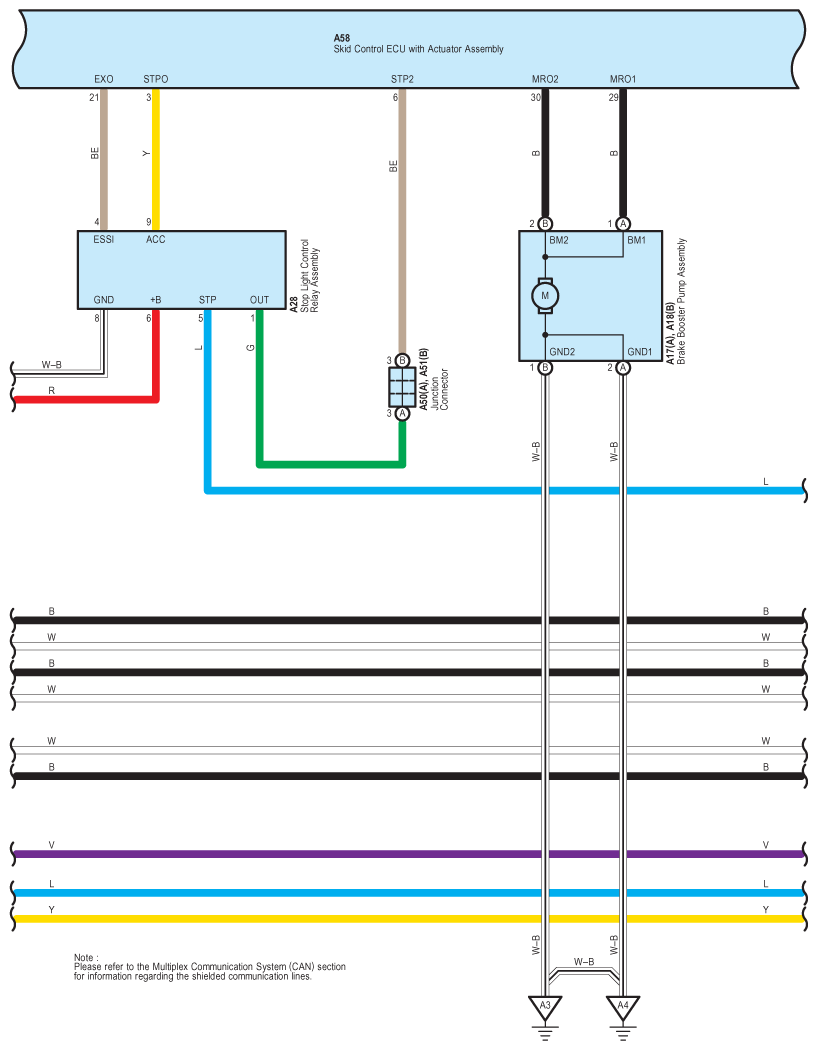

Fig 7: Plug-In Hybrid System And Shift Control System - Circuit Diagram (7 Of 50)

G07624617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

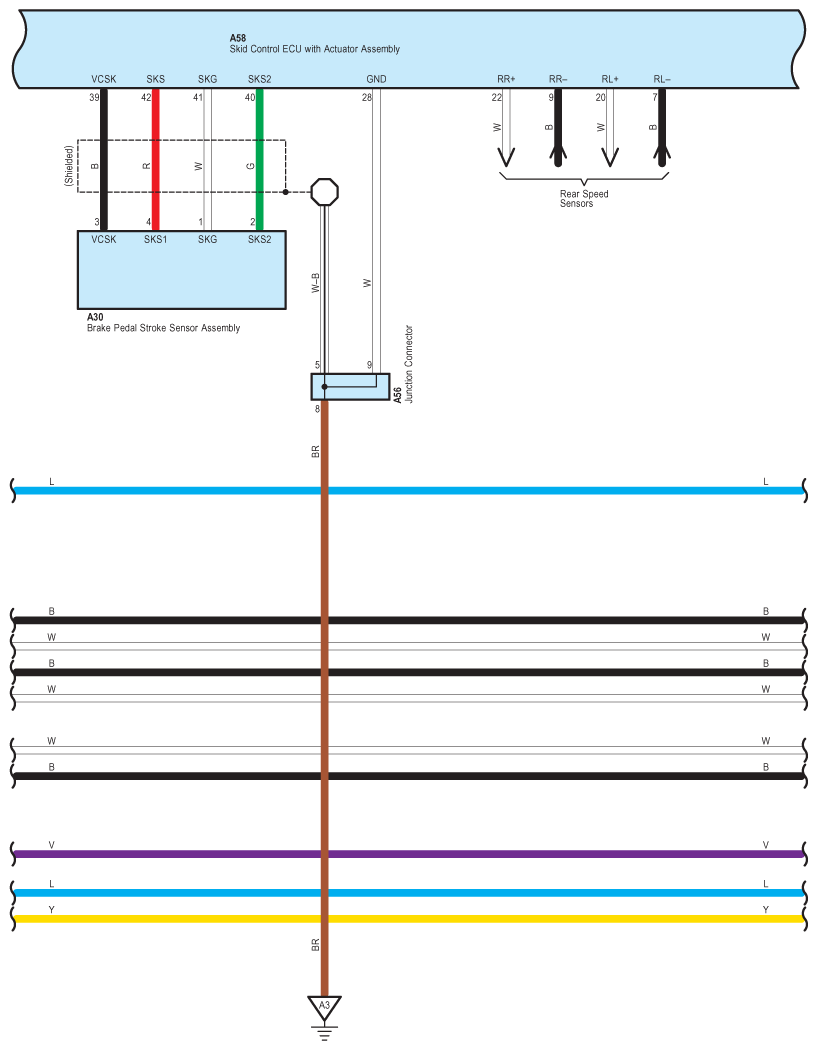

Fig 8: Plug-In Hybrid System And Shift Control System - Circuit Diagram (8 Of 50)

G07624618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

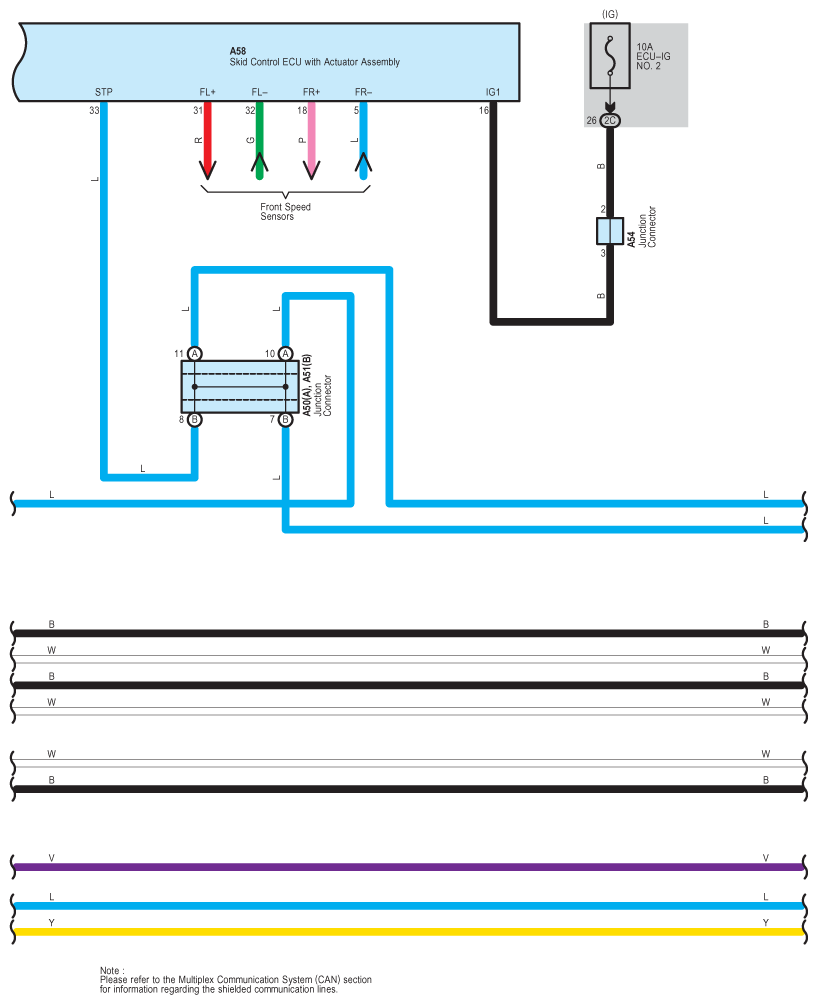

Fig 9: Plug-In Hybrid System And Shift Control System - Circuit Diagram (9 Of 50)

G07624619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

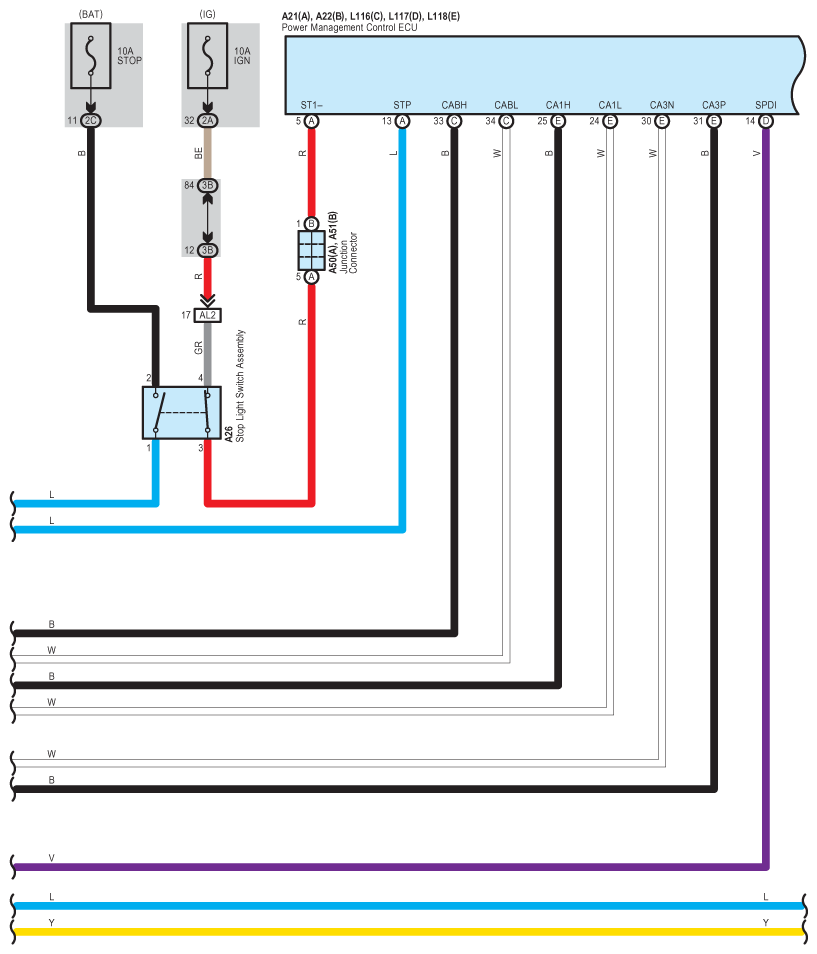

Fig 10: Plug-In Hybrid System And Shift Control System - Circuit Diagram (10 Of 50)

G07624620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

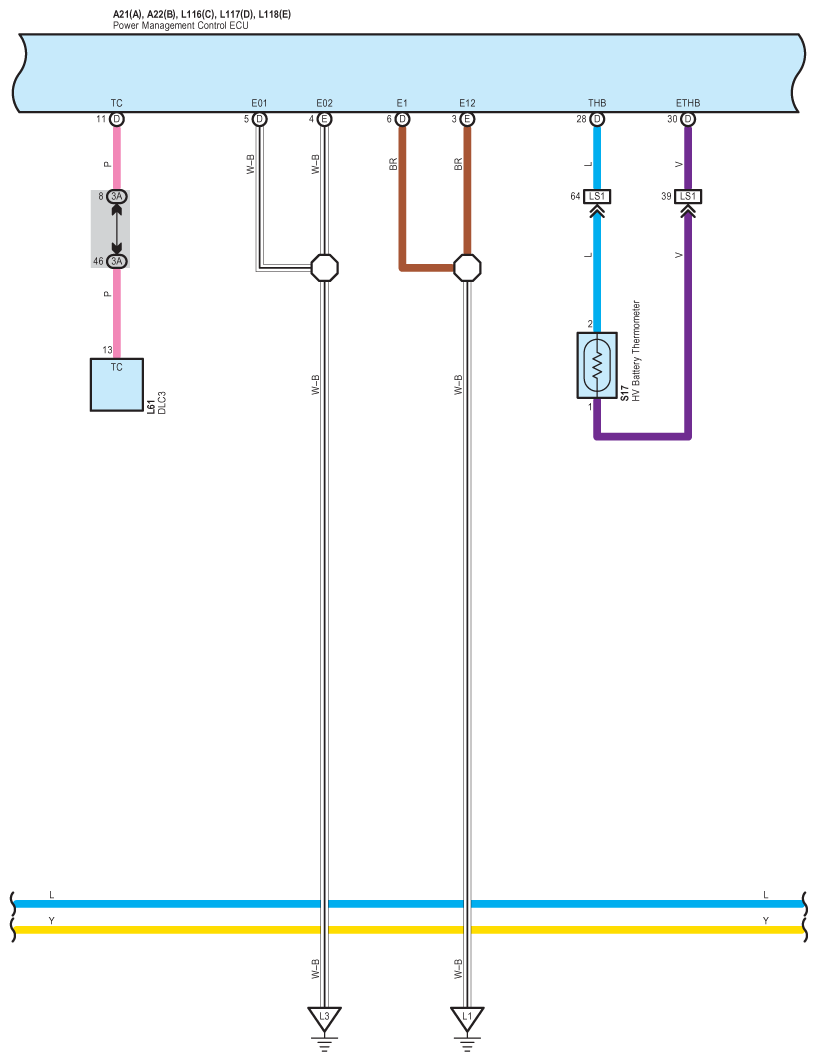

Fig 11: Plug-In Hybrid System And Shift Control System - Circuit Diagram (11 Of 50)

G07624621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

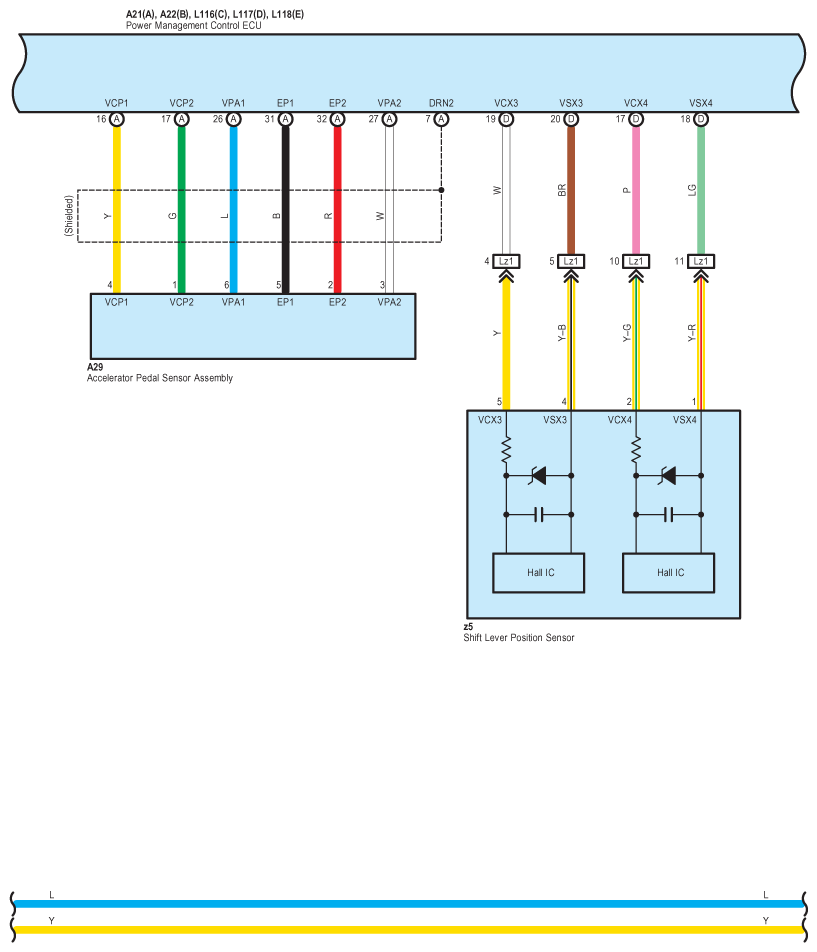

Fig 12: Plug-In Hybrid System And Shift Control System - Circuit Diagram (12 Of 50)

G07624622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

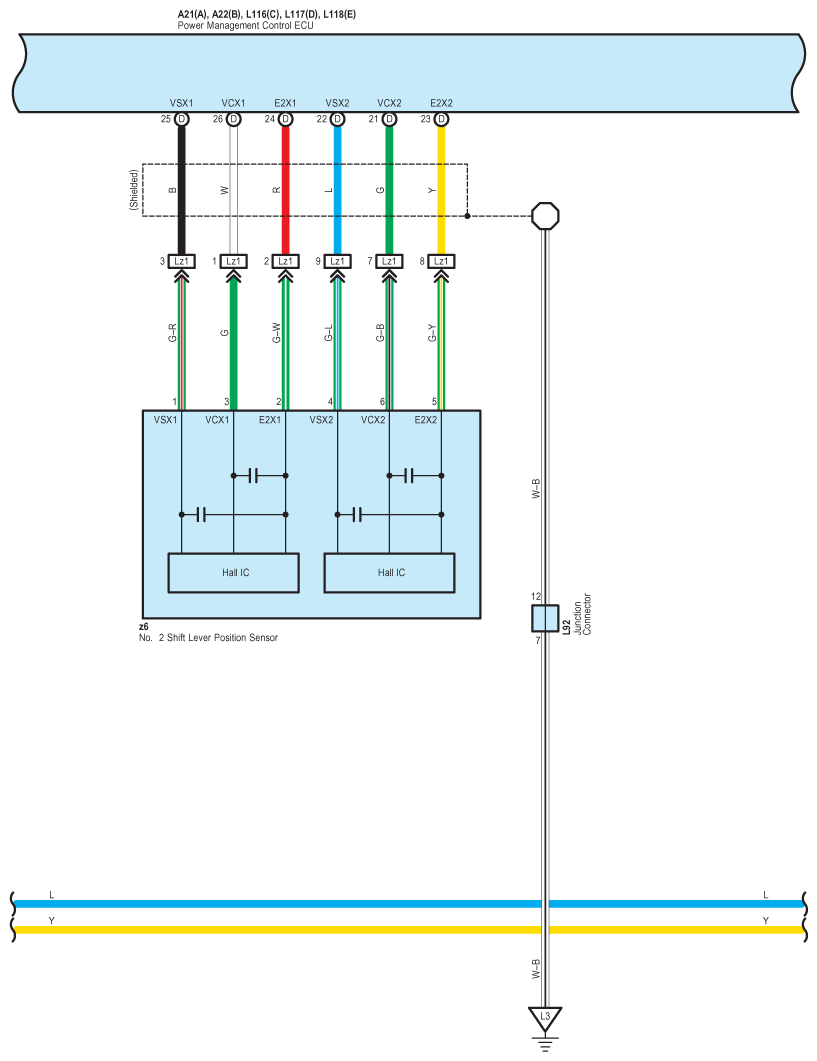

Fig 13: Plug-In Hybrid System And Shift Control System - Circuit Diagram (13 Of 50)

G07624623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

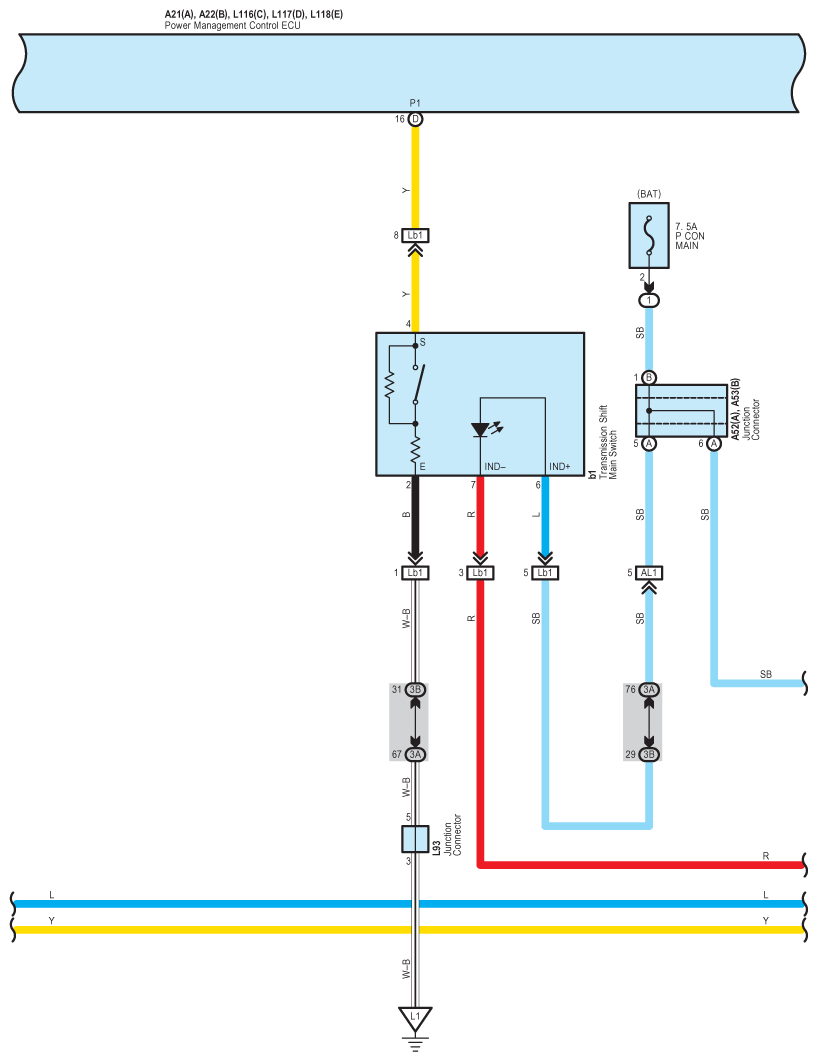

Fig 14: Plug-In Hybrid System And Shift Control System - Circuit Diagram (14 Of 50)

G07624624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

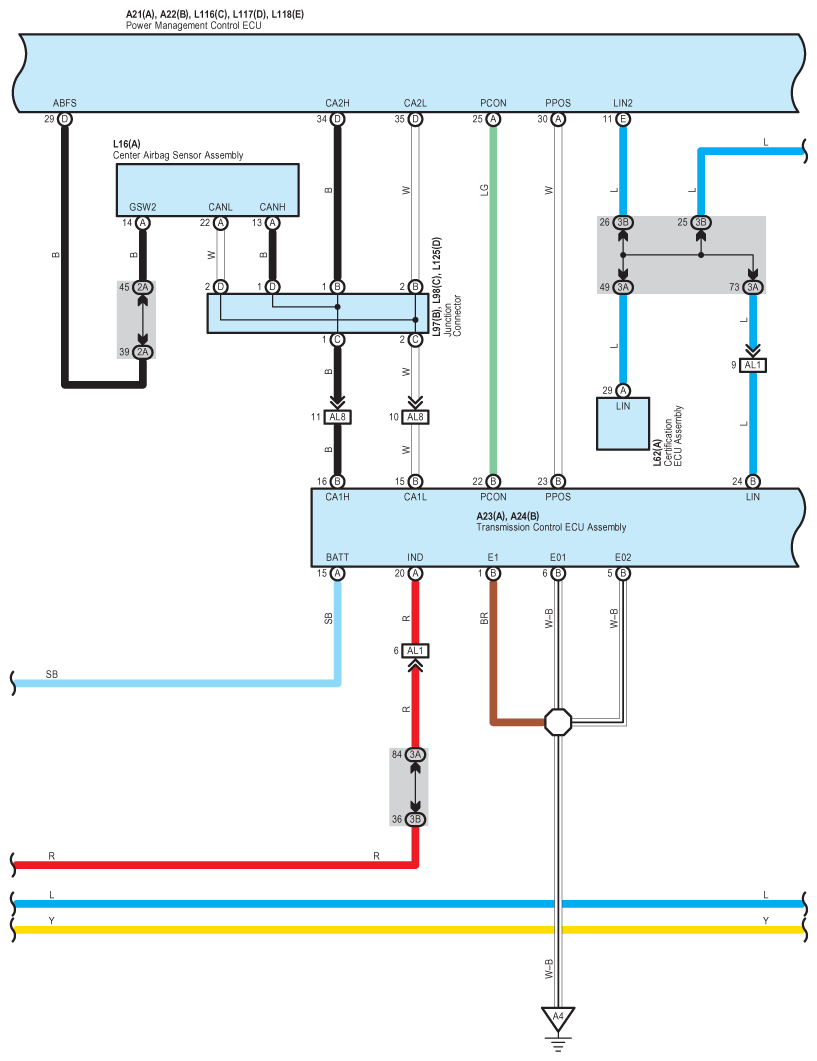

Fig 15: Plug-In Hybrid System And Shift Control System - Circuit Diagram (15 Of 50)

G07624625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

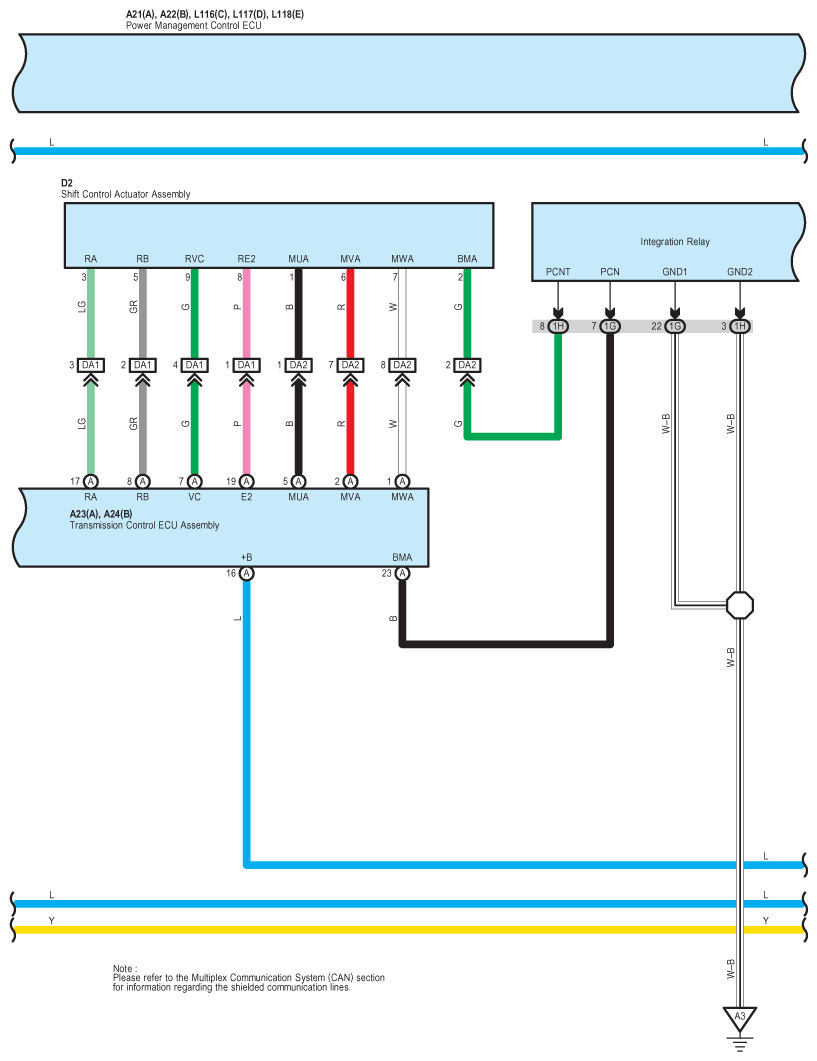

Fig 16: Plug-In Hybrid System And Shift Control System - Circuit Diagram (16 Of 50)

G07624626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

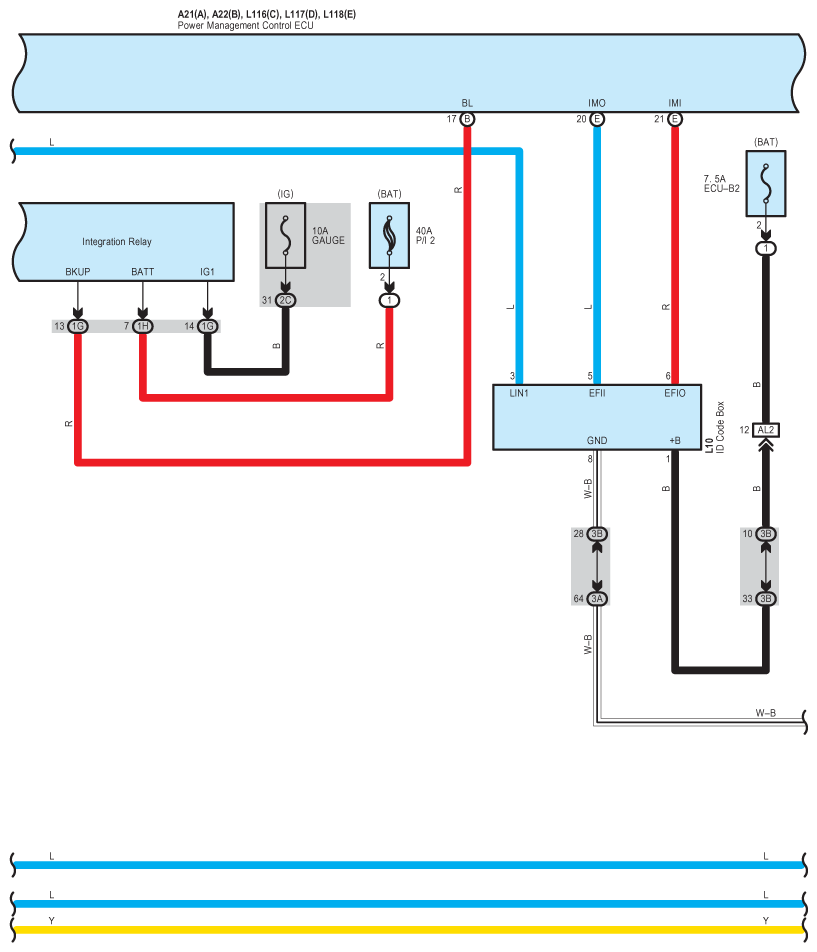

Fig 17: Plug-In Hybrid System And Shift Control System - Circuit Diagram (17 Of 50)

G07624627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

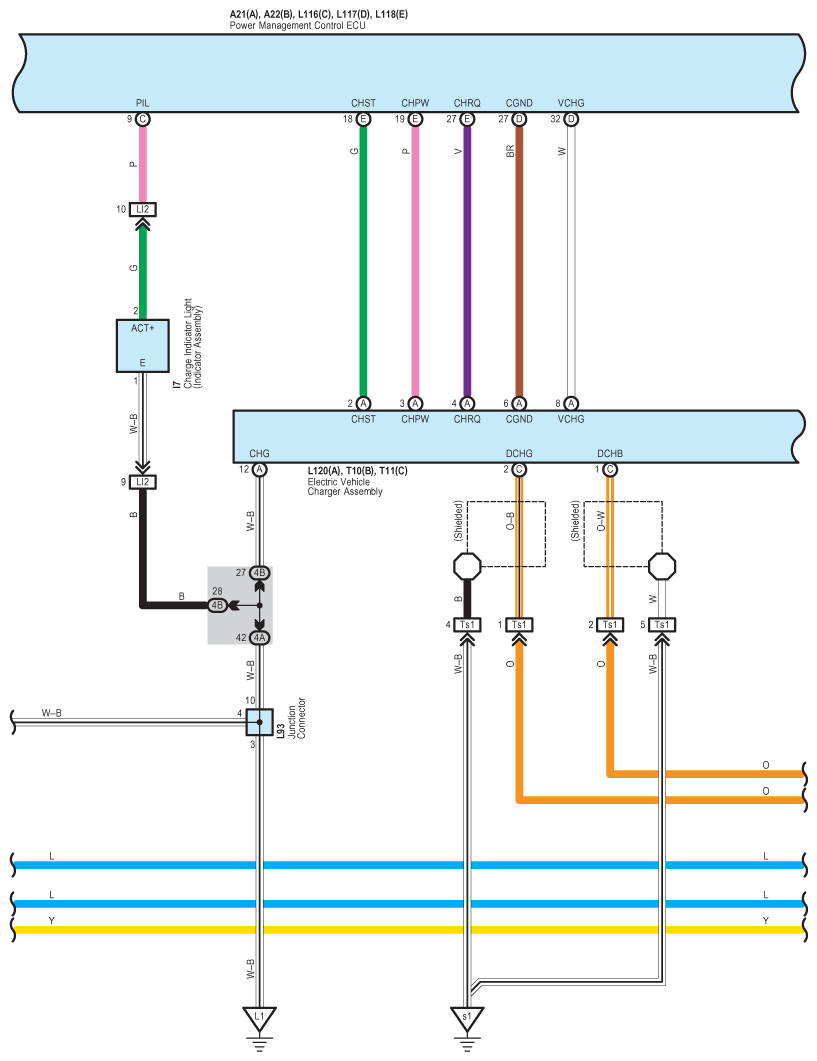

Fig 18: Plug-In Hybrid System And Shift Control System - Circuit Diagram (18 Of 50)

G07624628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

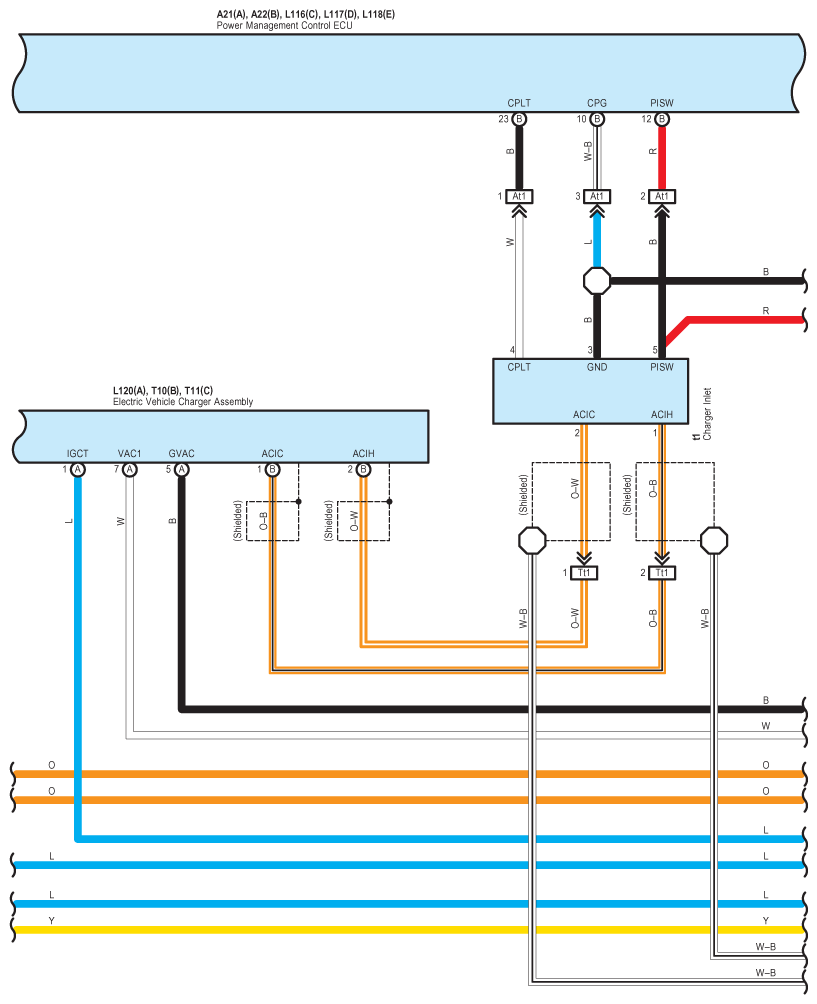

Fig 19: Plug-In Hybrid System And Shift Control System - Circuit Diagram (19 Of 50)

G07624629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

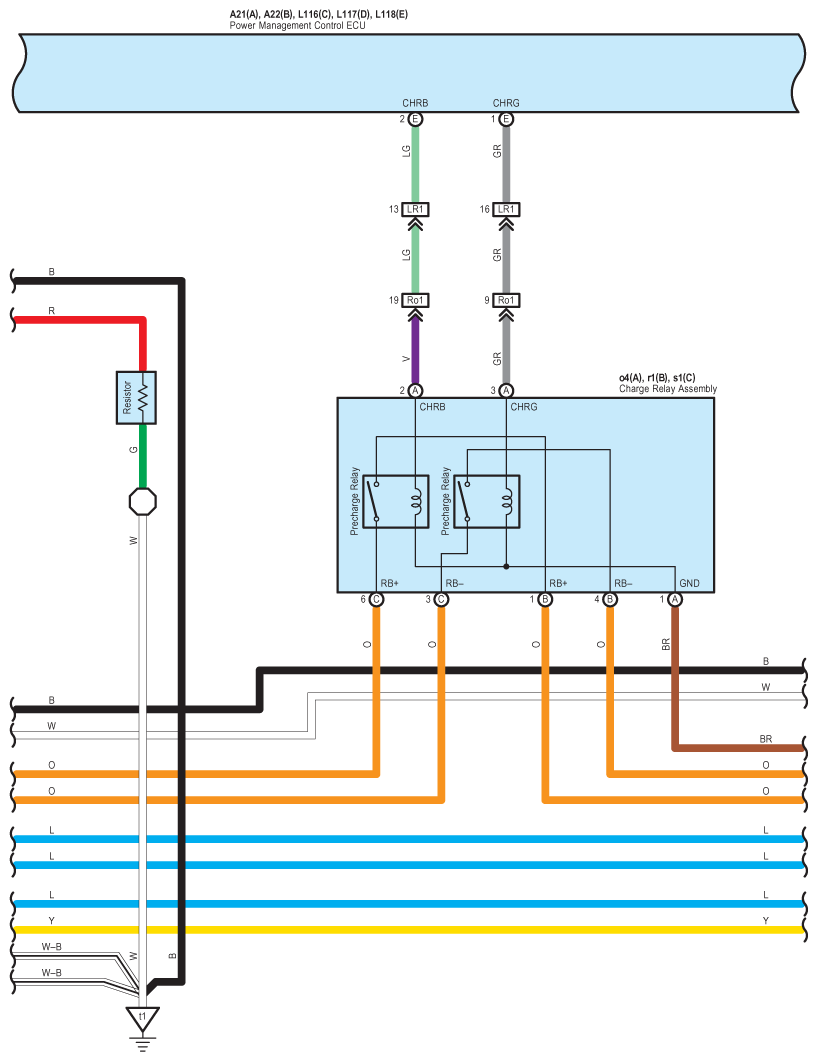

Fig 20: Plug-In Hybrid System And Shift Control System - Circuit Diagram (20 Of 50)

G07624630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

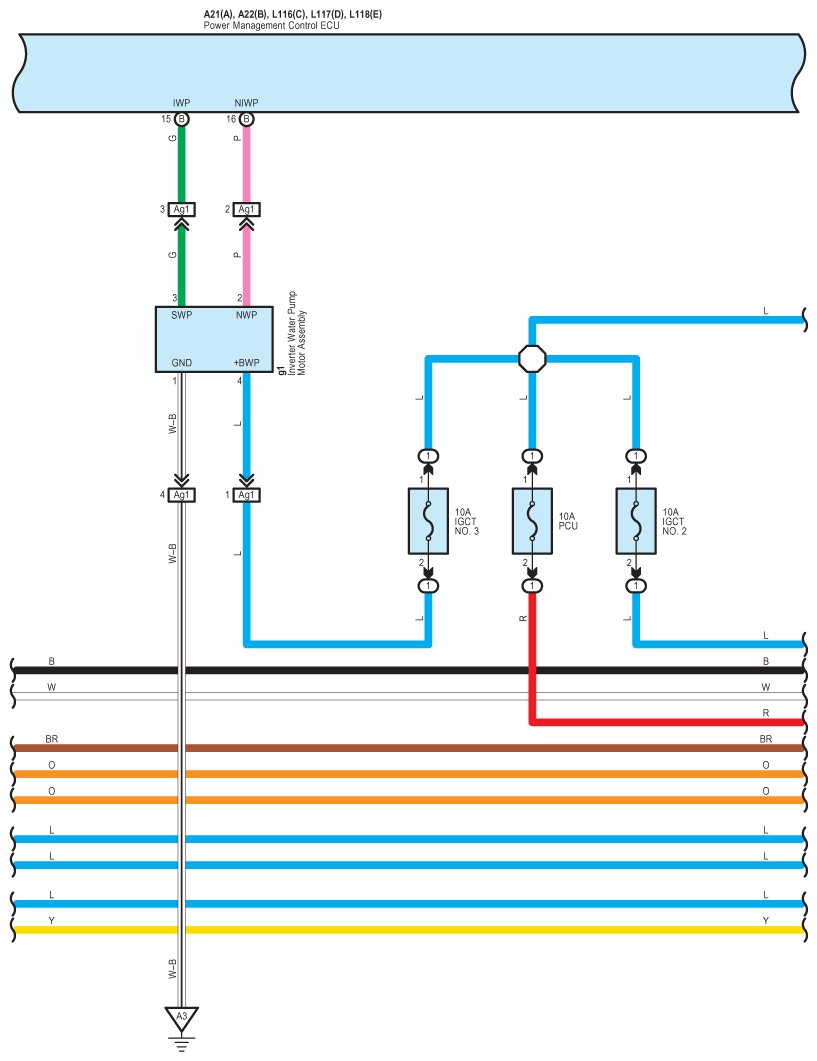

Fig 21: Plug-In Hybrid System And Shift Control System - Circuit Diagram (21 Of 50)

G07624631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

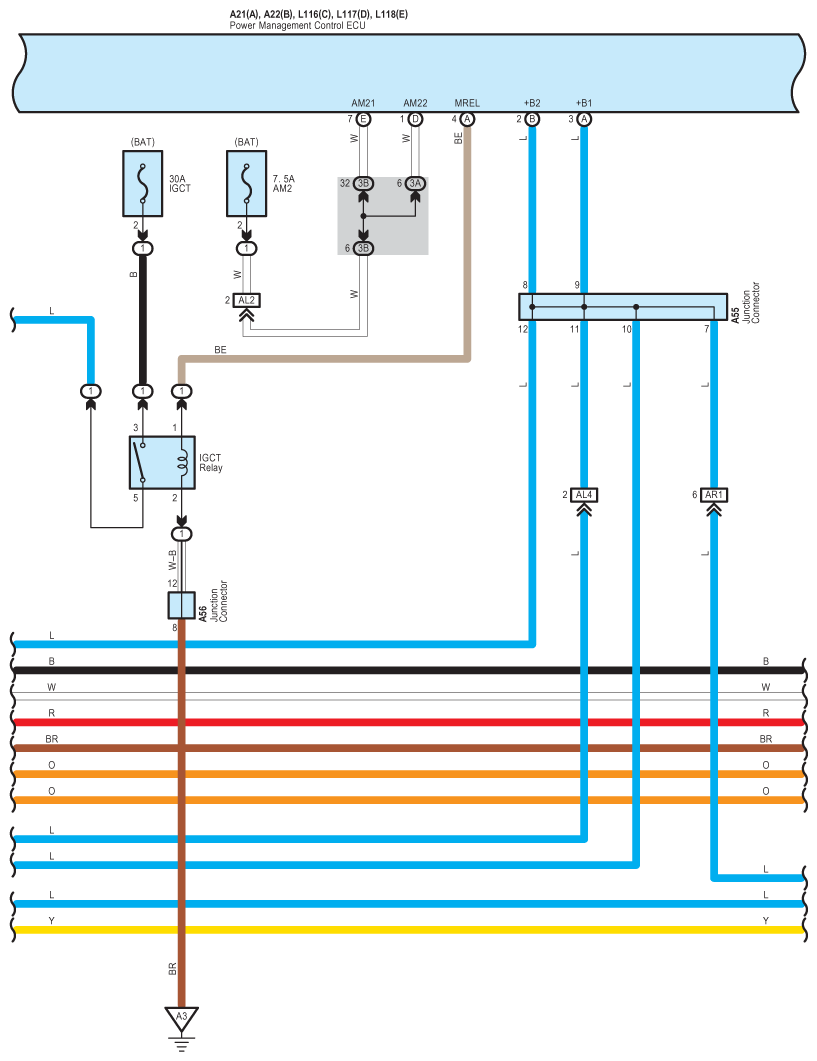

Fig 22: Plug-In Hybrid System And Shift Control System - Circuit Diagram (22 Of 50)

G07624632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

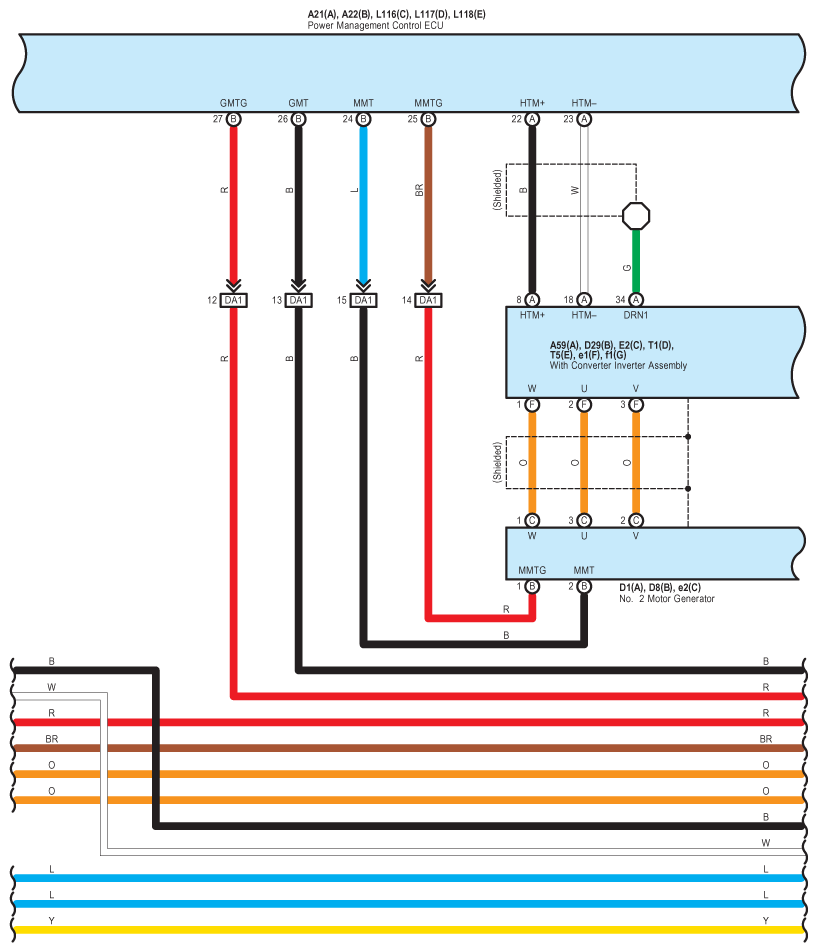

Fig 23: Plug-In Hybrid System And Shift Control System - Circuit Diagram (23 Of 50)

G07624633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

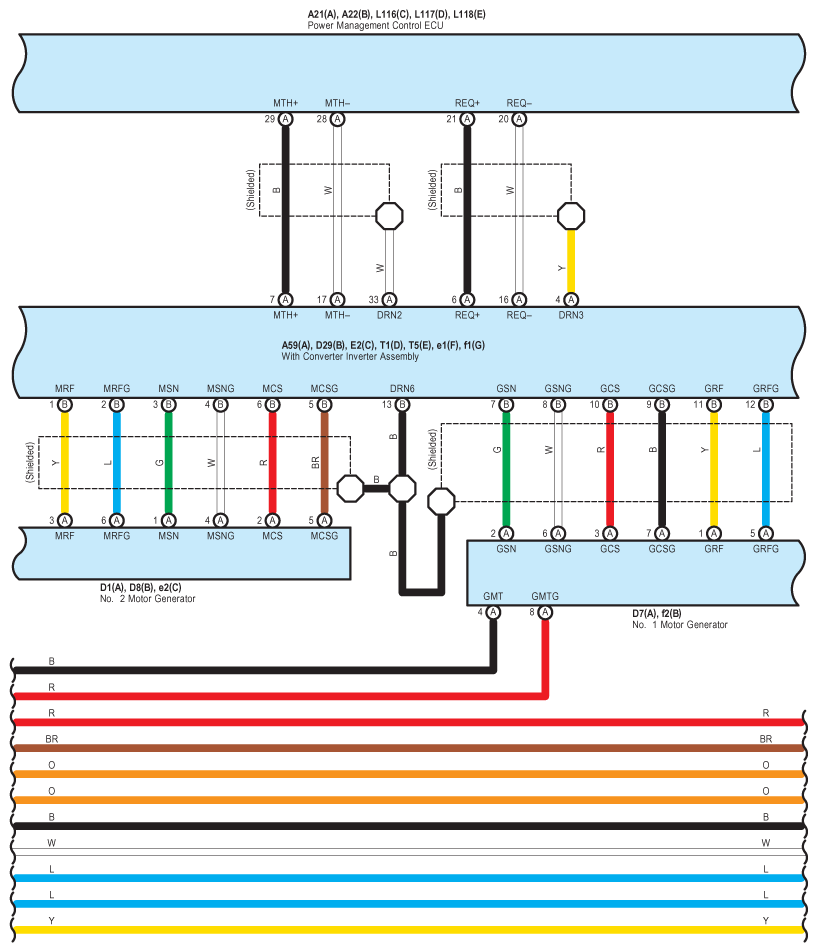

Fig 24: Plug-In Hybrid System And Shift Control System - Circuit Diagram (24 Of 50)

G07624634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

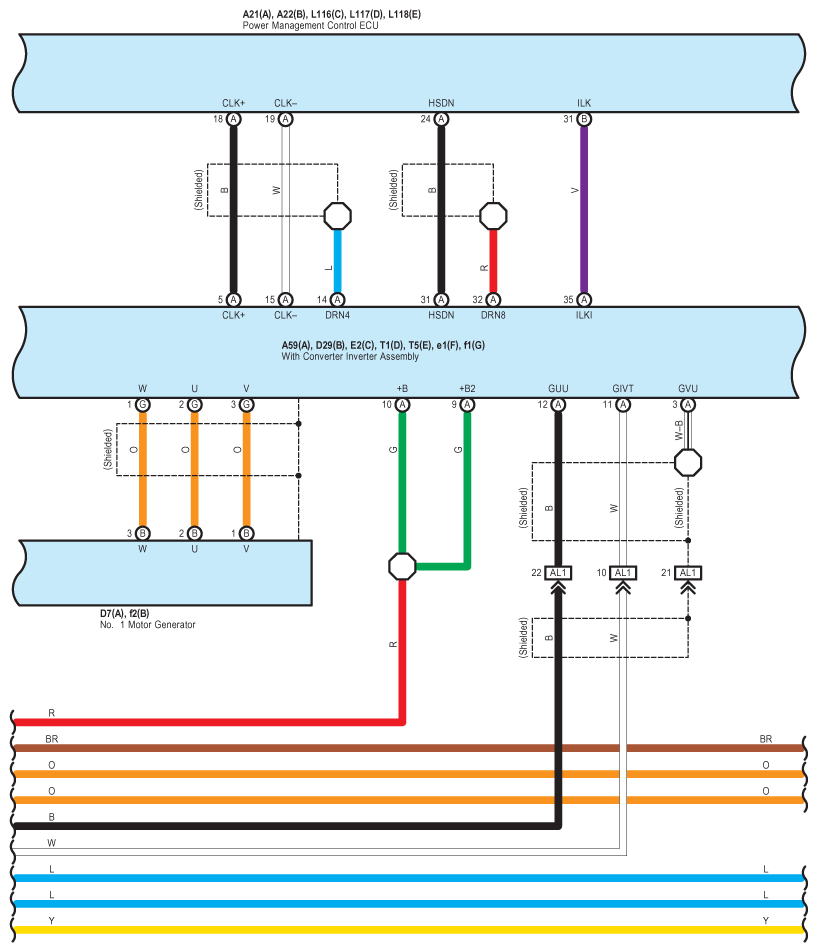

Fig 25: Plug-In Hybrid System And Shift Control System - Circuit Diagram (25 Of 50)

G07624635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

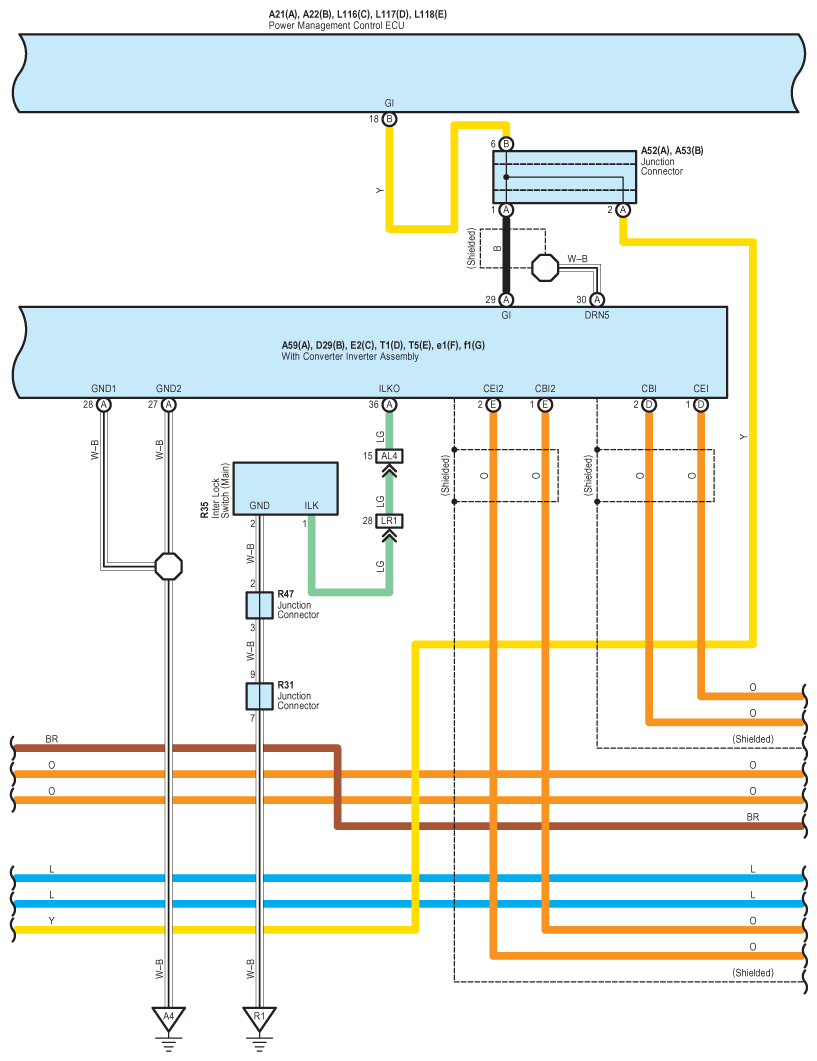

Fig 26: Plug-In Hybrid System And Shift Control System - Circuit Diagram (26 Of 50)

G07624636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

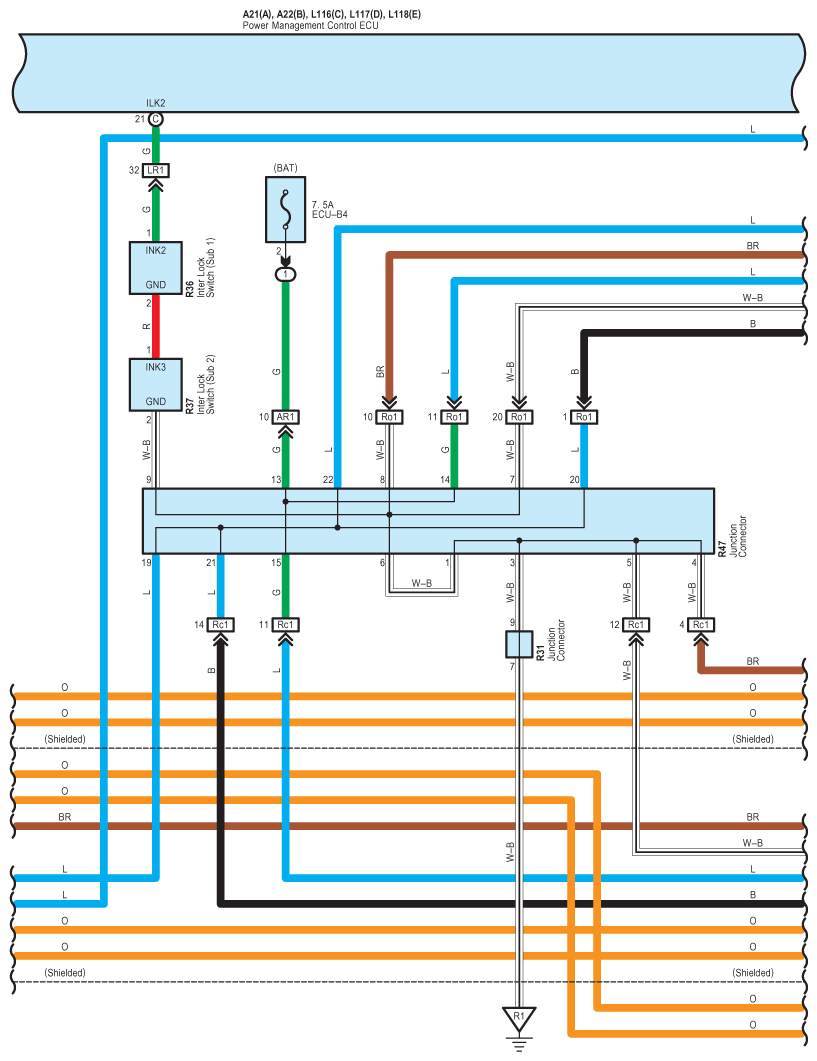

Fig 27: Plug-In Hybrid System And Shift Control System - Circuit Diagram (27 Of 50)

G07624637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

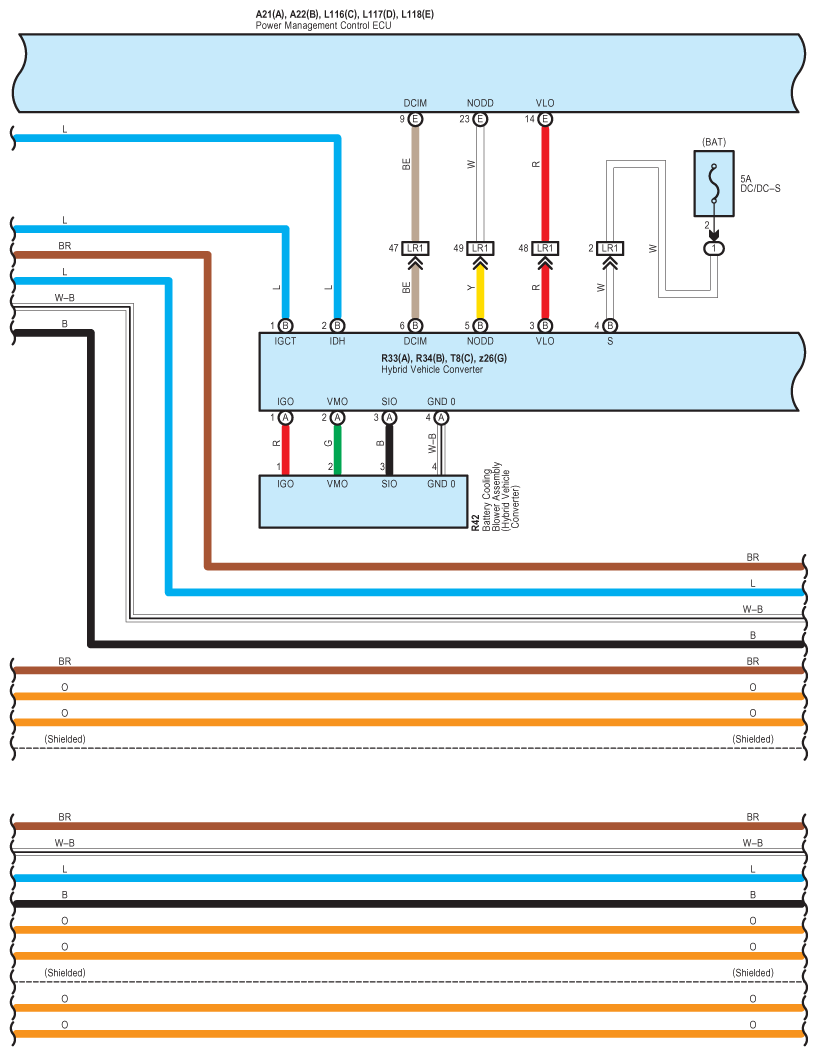

Fig 28: Plug-In Hybrid System And Shift Control System - Circuit Diagram (28 Of 50)

G07624638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

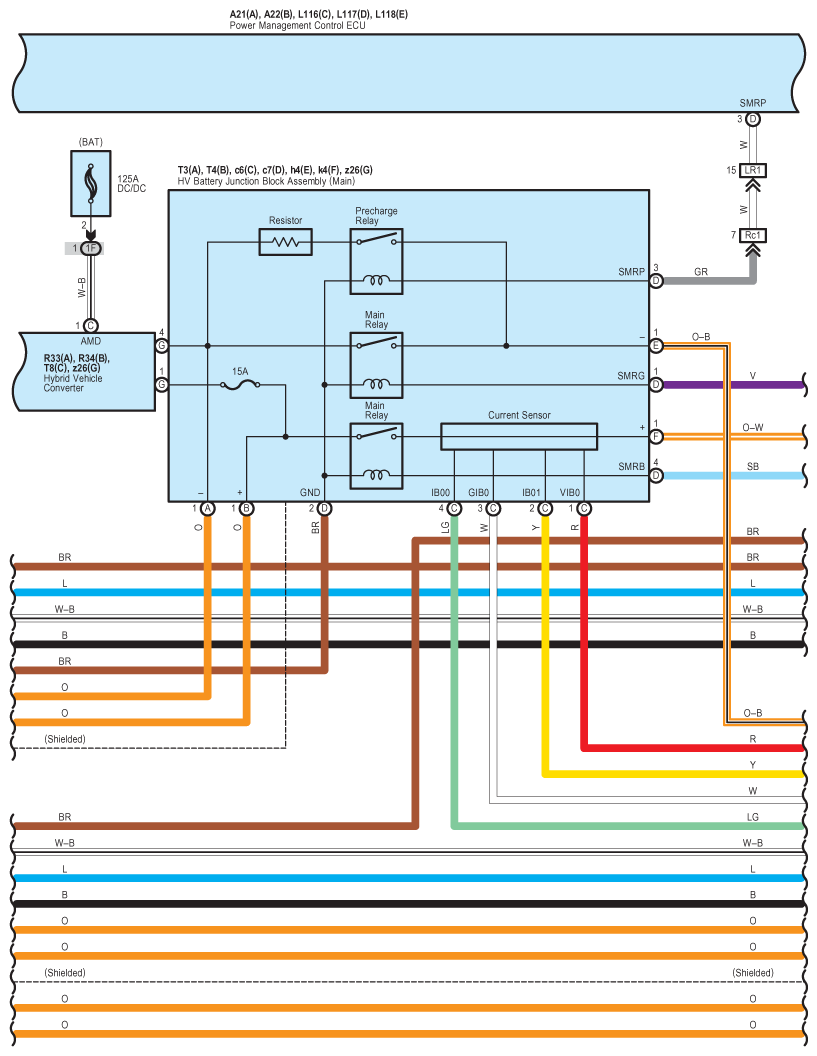

Fig 29: Plug-In Hybrid System And Shift Control System - Circuit Diagram (29 Of 50)

G07624639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

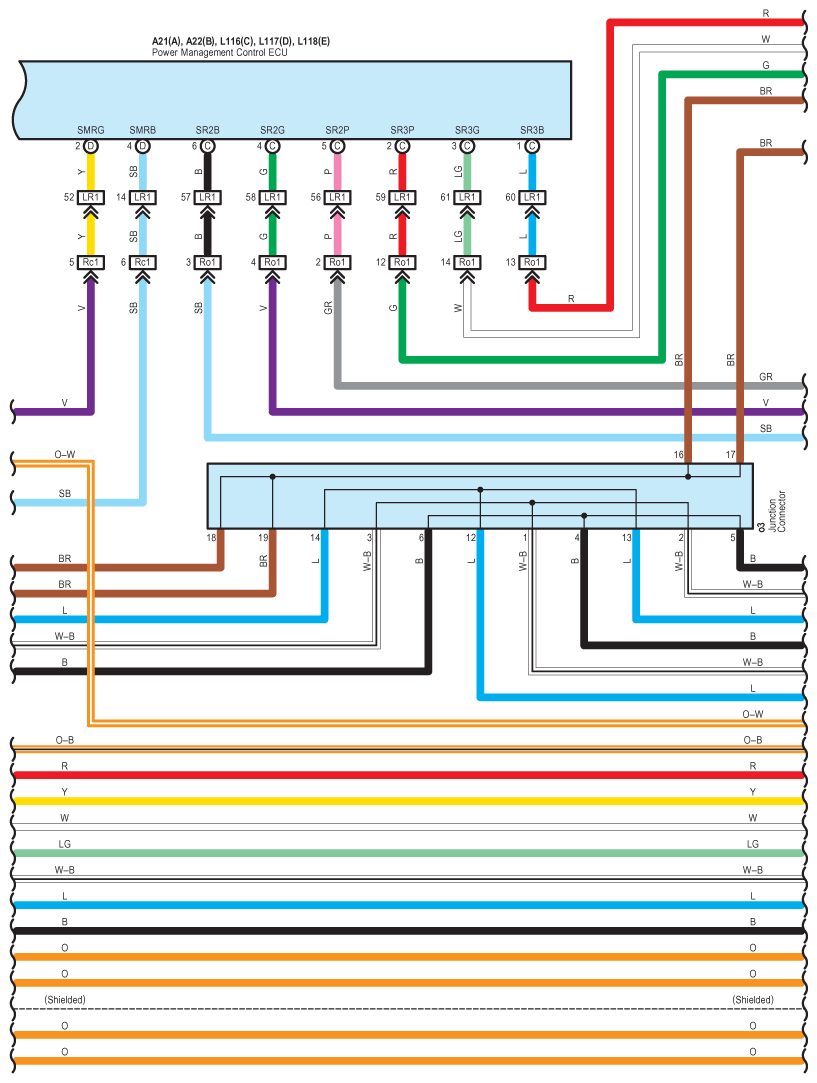

Fig 30: Plug-In Hybrid System And Shift Control System - Circuit Diagram (30 Of 50)

G07624640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

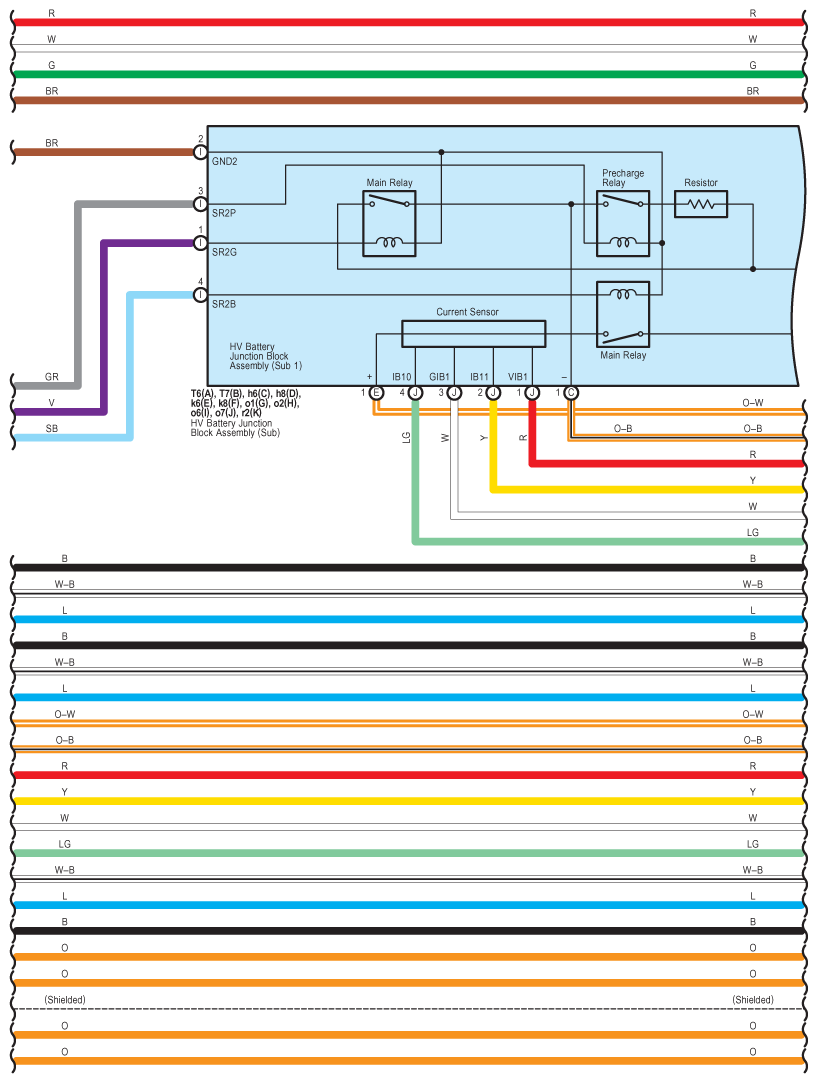

Fig 31: Plug-In Hybrid System And Shift Control System - Circuit Diagram (31 Of 50)

G07624641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

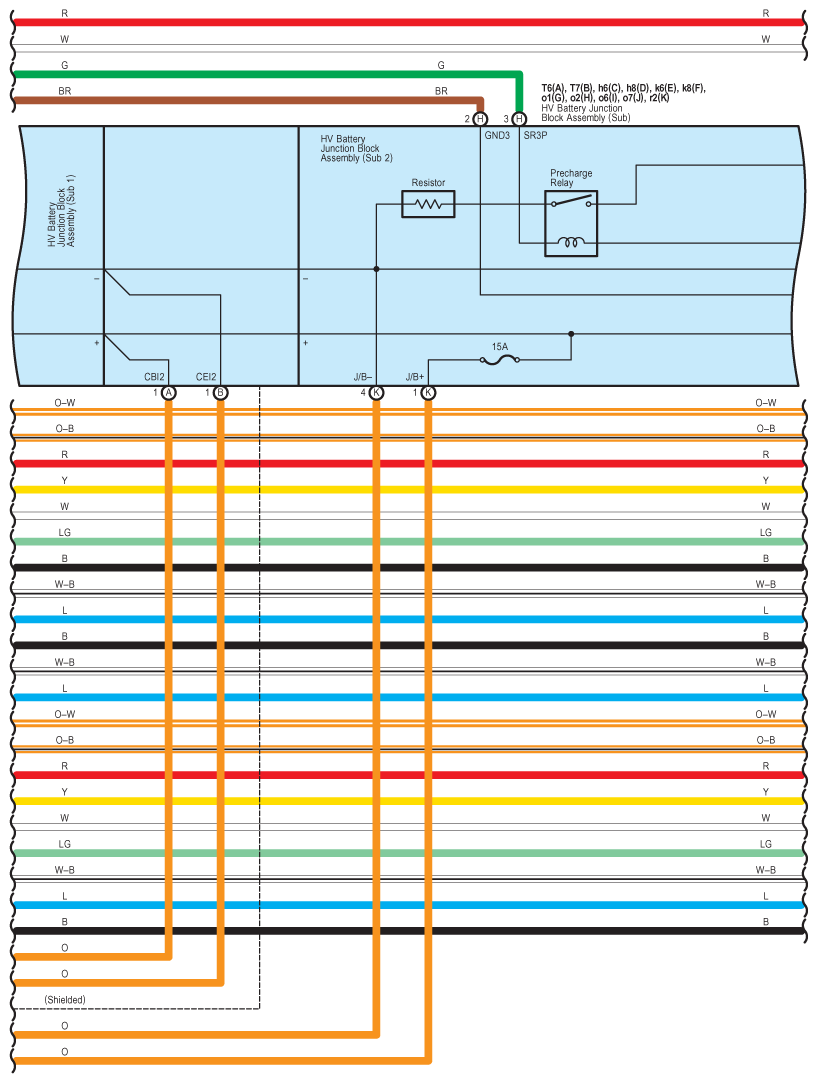

Fig 32: Plug-In Hybrid System And Shift Control System - Circuit Diagram (32 Of 50)

G07624642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

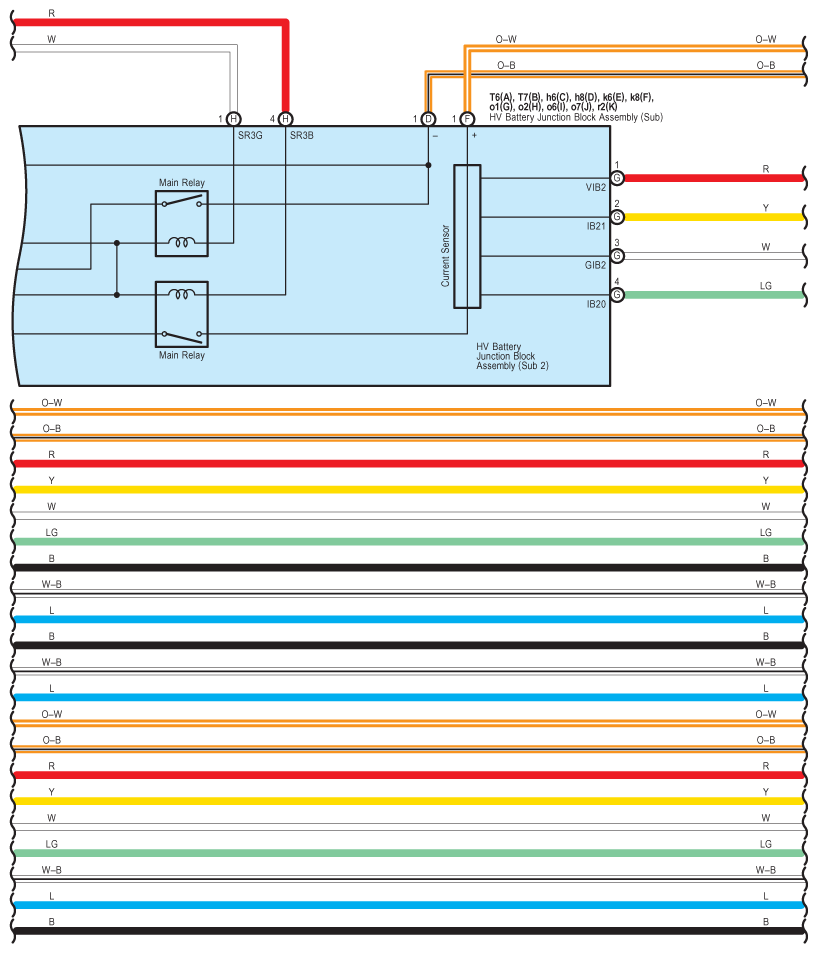

Fig 33: Plug-In Hybrid System And Shift Control System - Circuit Diagram (33 Of 50)

G07624643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

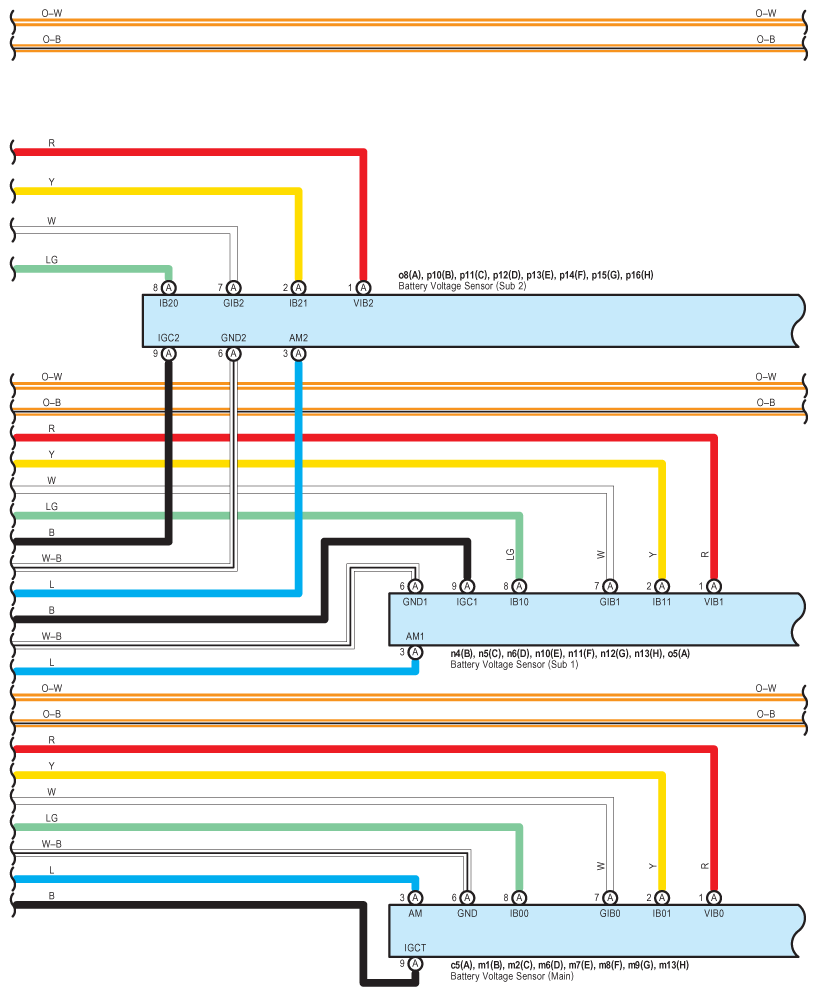

Fig 34: Plug-In Hybrid System And Shift Control System - Circuit Diagram (34 Of 50)

G07624644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

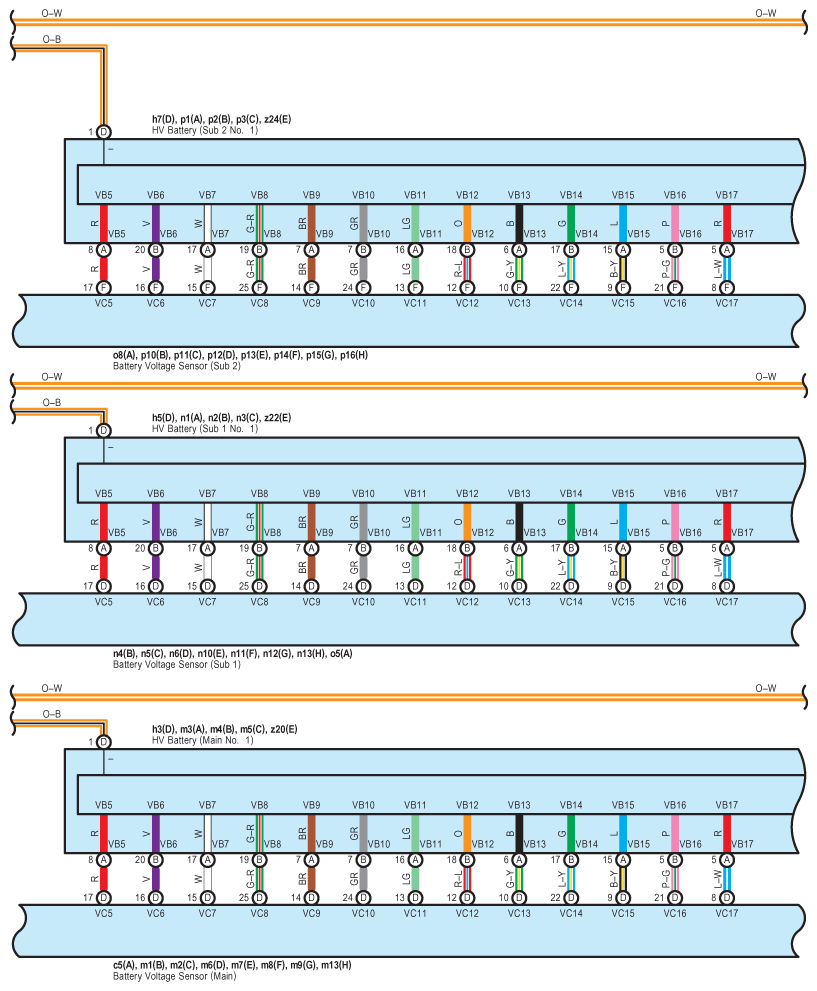

Fig 35: Plug-In Hybrid System And Shift Control System - Circuit Diagram (35 Of 50)

G07624645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

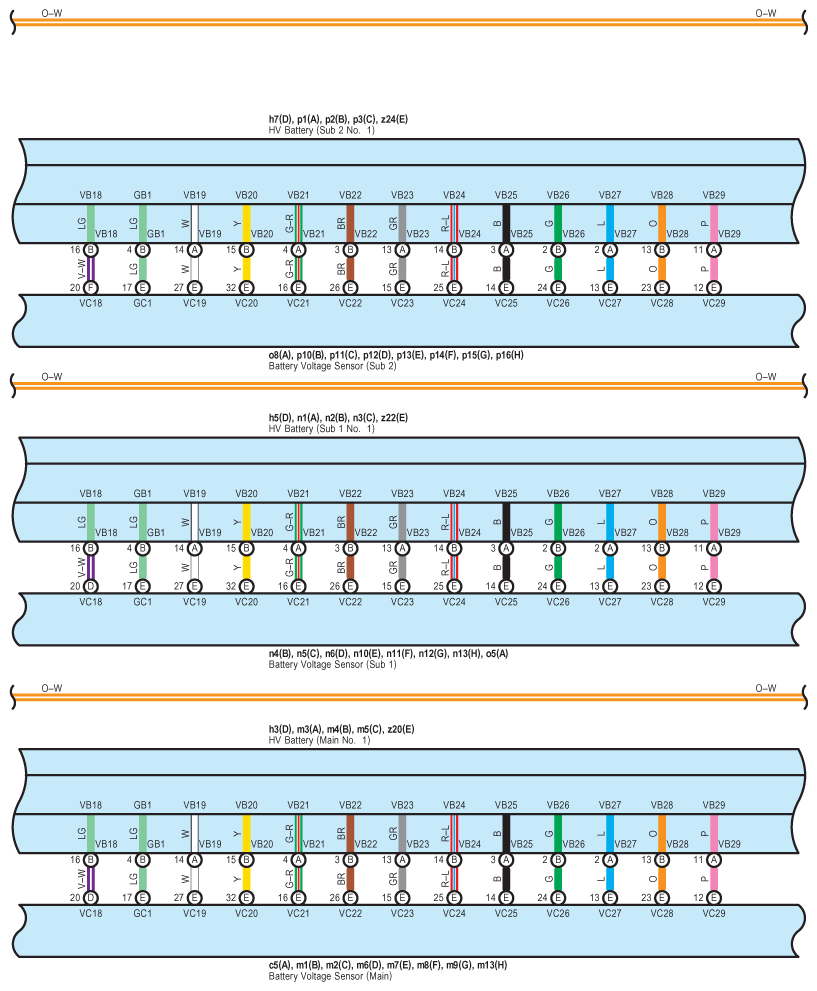

Fig 36: Plug-In Hybrid System And Shift Control System - Circuit Diagram (36 Of 50)

G07624646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 37: Plug-In Hybrid System And Shift Control System - Circuit Diagram (37 Of 50)

G07624647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

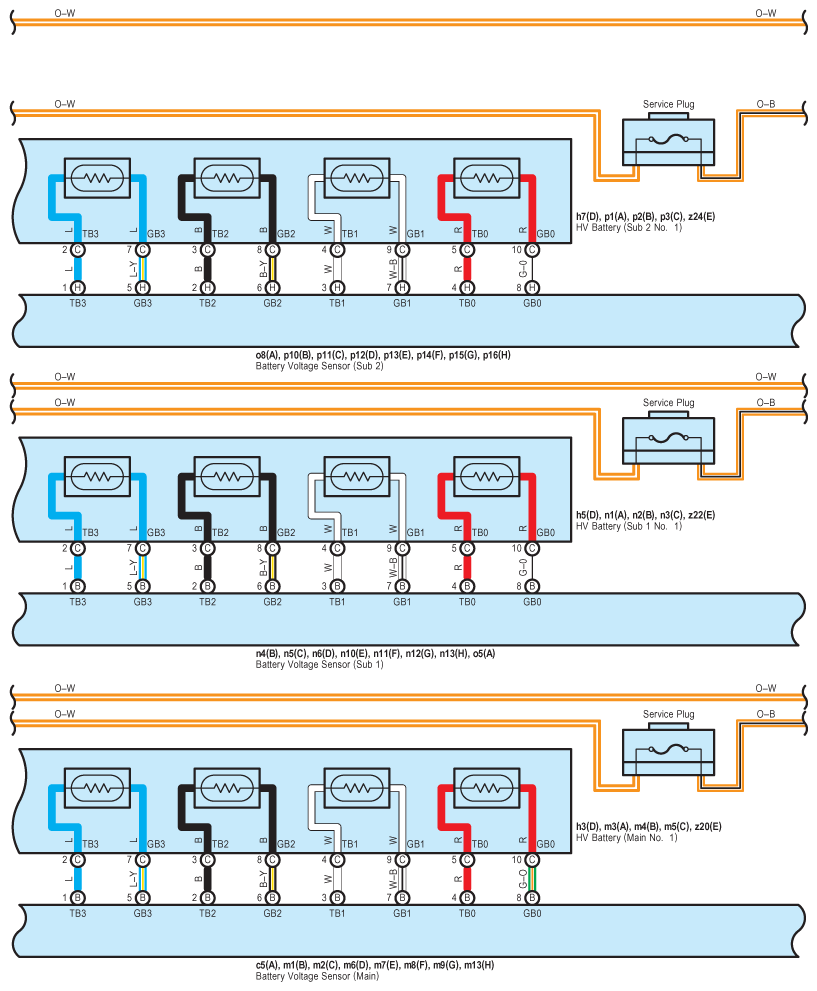

Fig 38: Plug-In Hybrid System And Shift Control System - Circuit Diagram (38 Of 50)

G07624648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

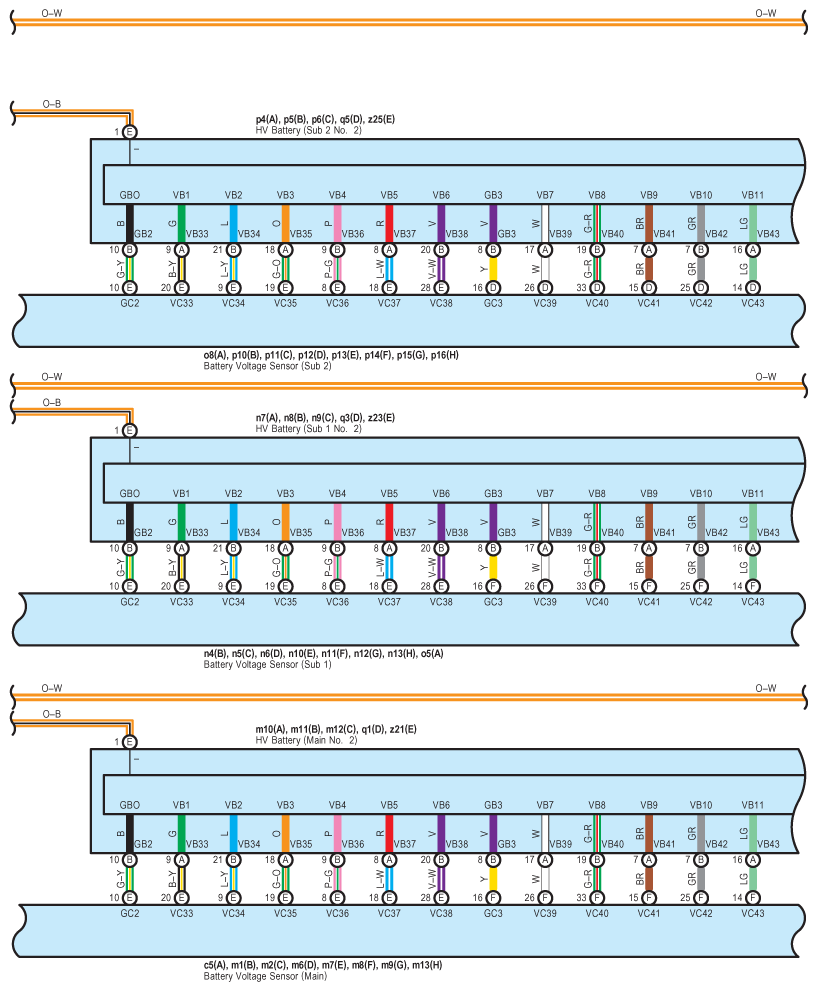

Fig 39: Plug-In Hybrid System And Shift Control System - Circuit Diagram (39 Of 50)

G07624649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

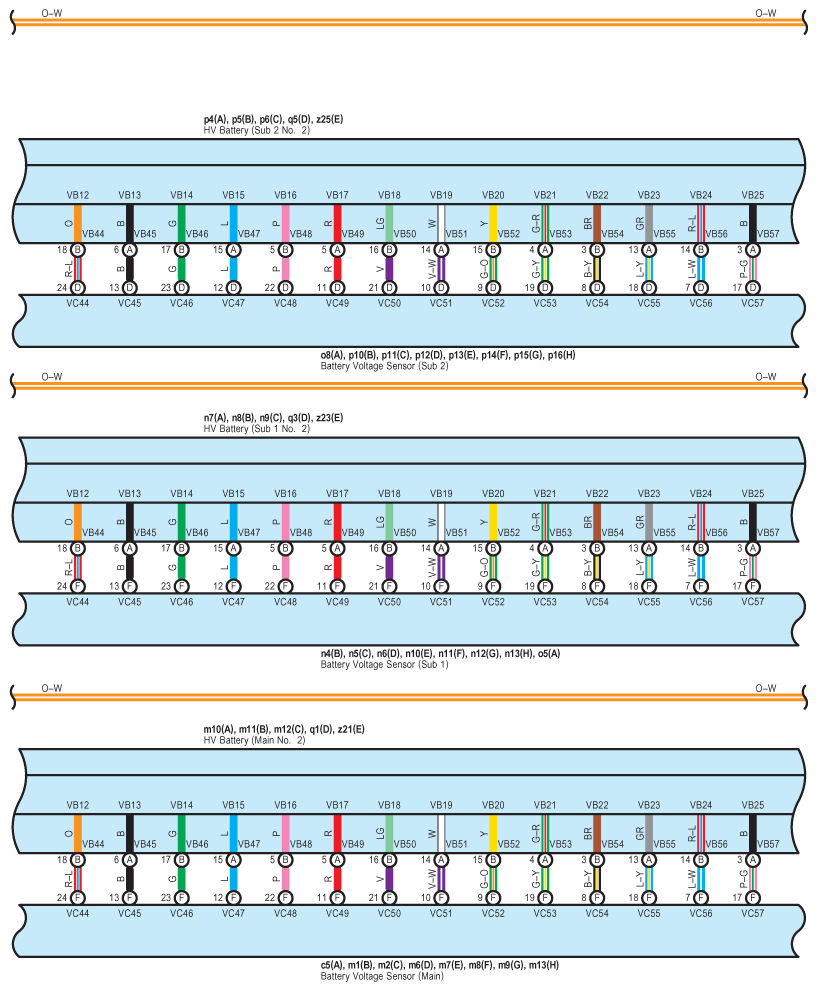

Fig 40: Plug-In Hybrid System And Shift Control System - Circuit Diagram (40 Of 50)

G07624650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

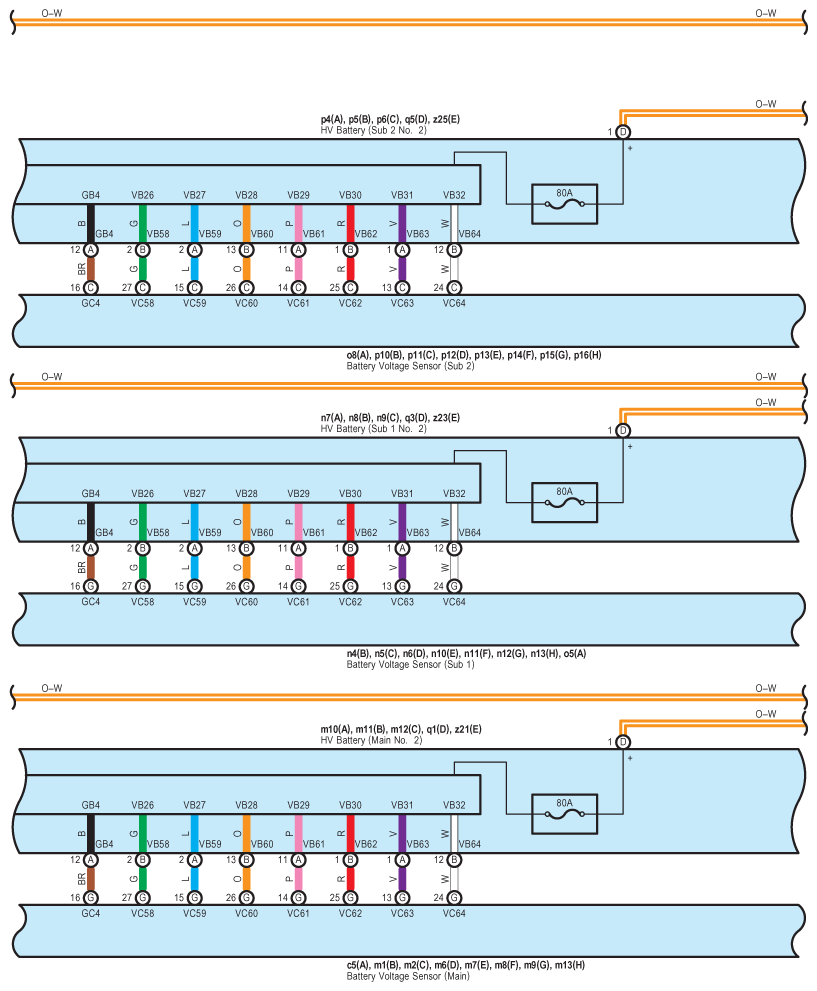

Fig 41: Plug-In Hybrid System And Shift Control System - Circuit Diagram (41 Of 50)

G07624651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

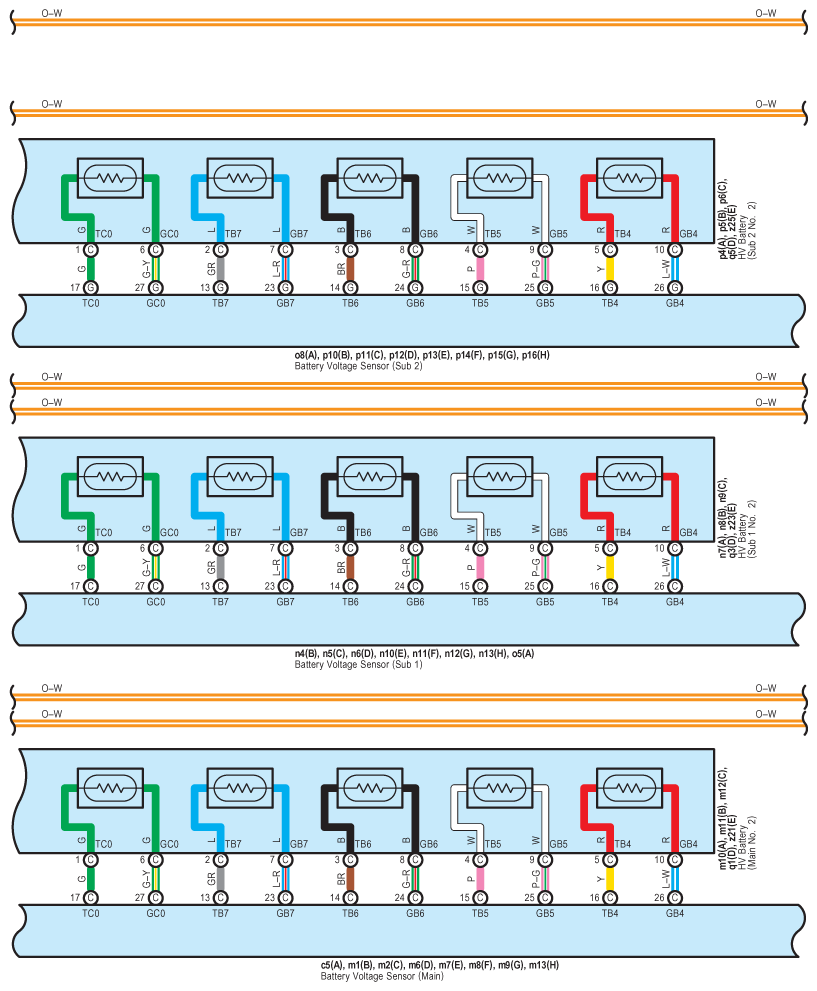

Fig 42: Plug-In Hybrid System And Shift Control System - Circuit Diagram (42 Of 50)

G07624652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

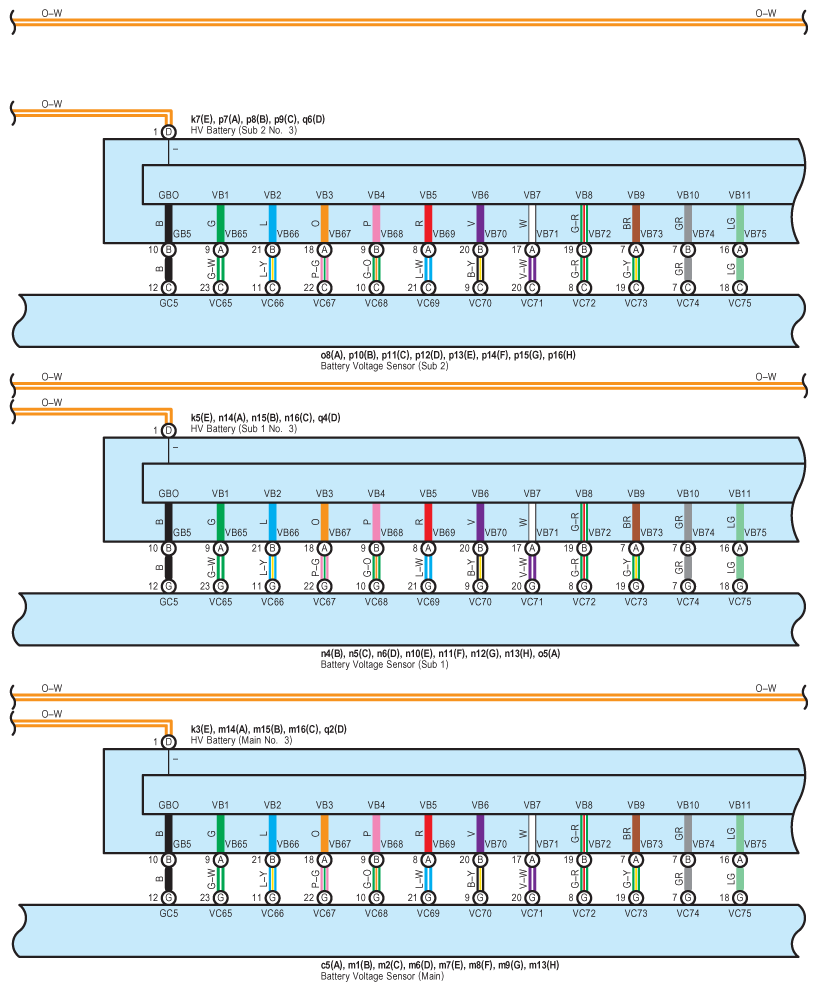

Fig 43: Plug-In Hybrid System And Shift Control System - Circuit Diagram (43 Of 50)

G07624653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

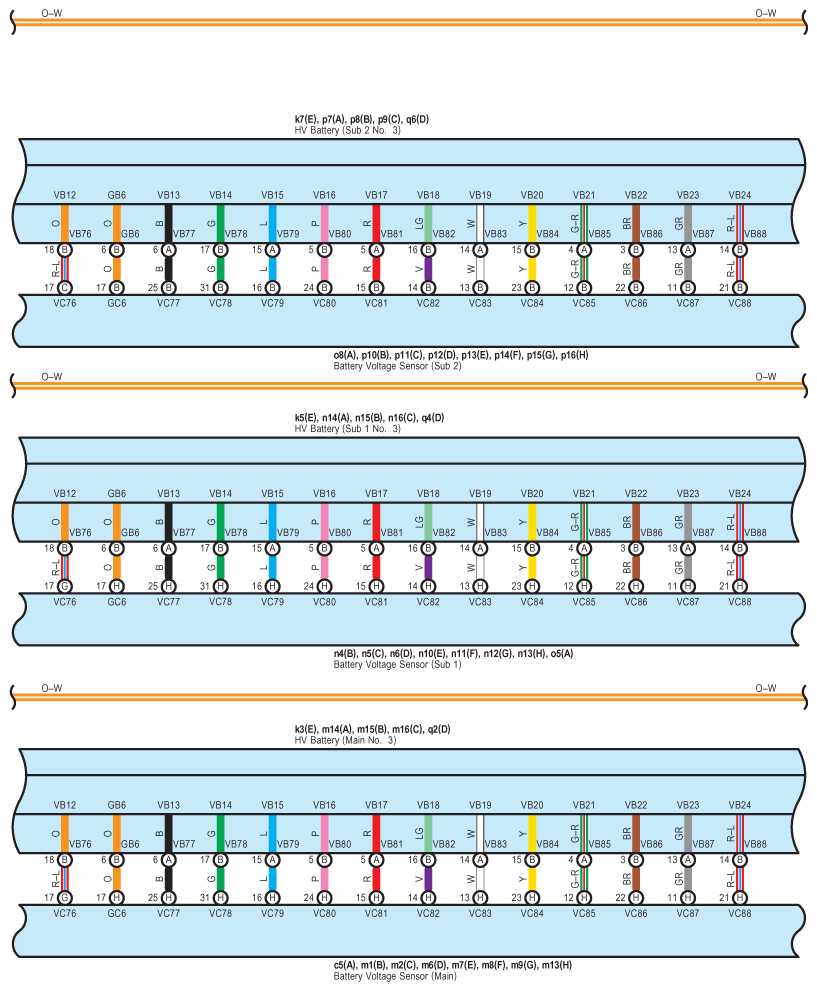

Fig 44: Plug-In Hybrid System And Shift Control System - Circuit Diagram (44 Of 50)

G07624654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

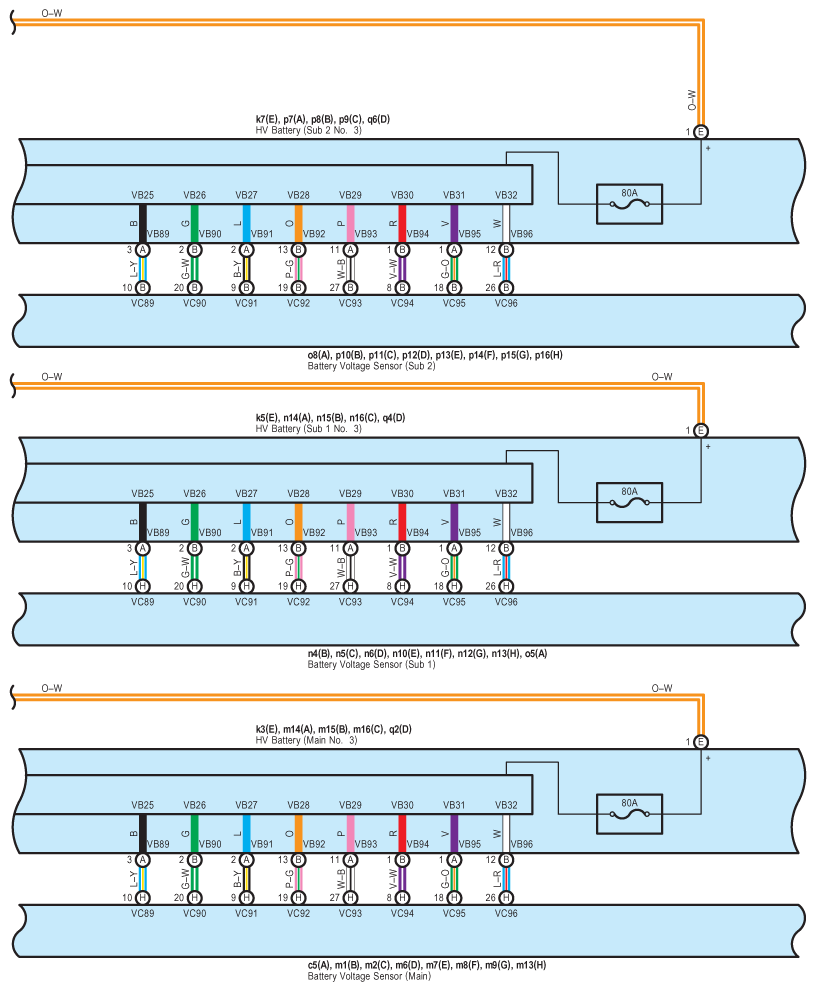

Fig 45: Plug-In Hybrid System And Shift Control System - Circuit Diagram (45 Of 50)

G07624655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

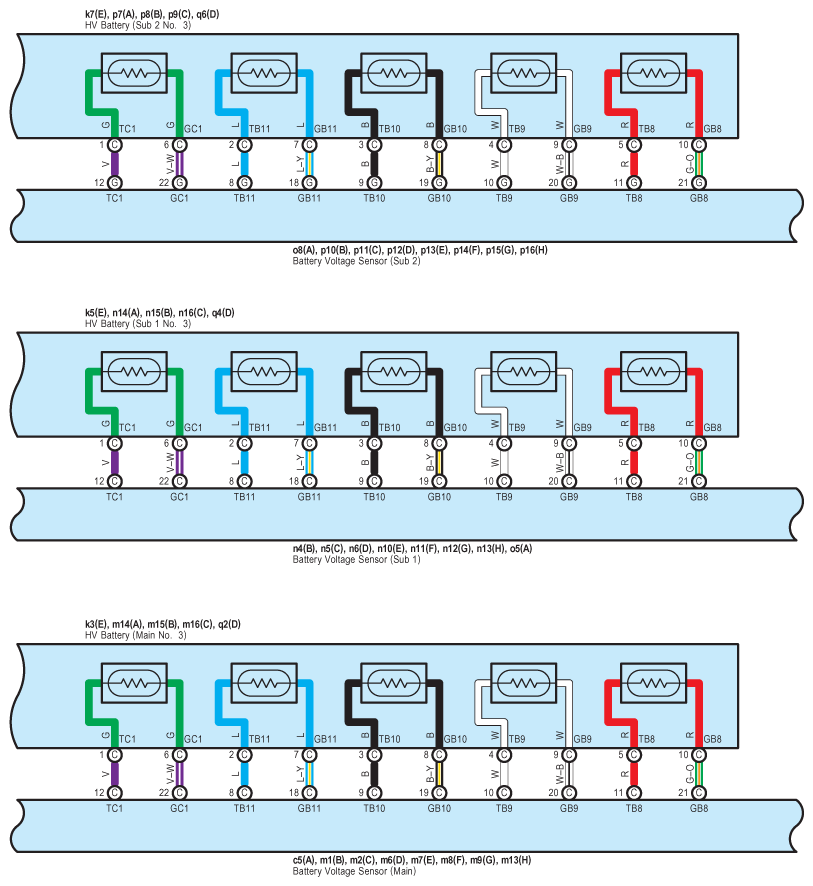

Fig 46: Plug-In Hybrid System And Shift Control System - Circuit Diagram (46 Of 50)

G07624656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

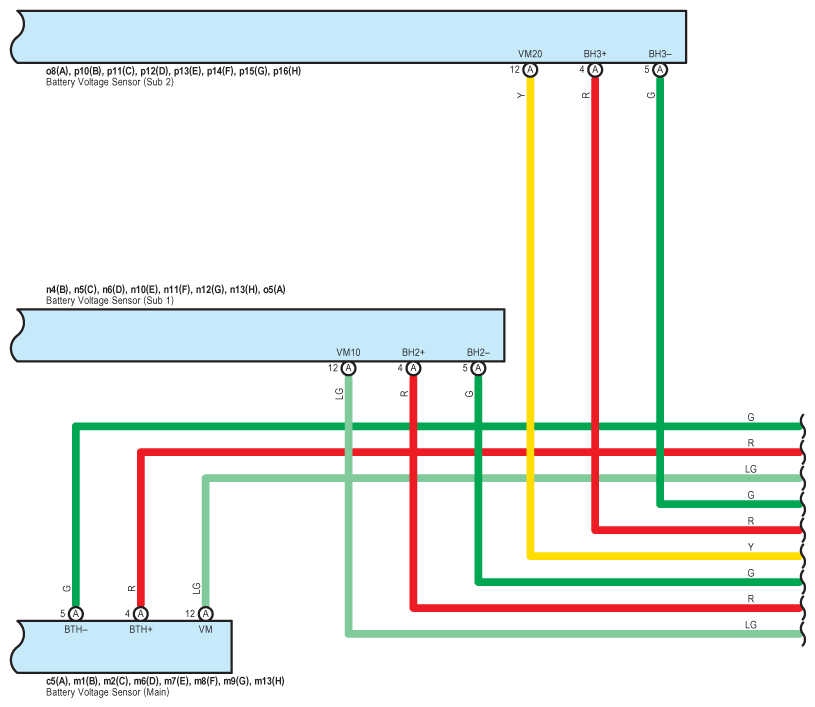

Fig 47: Plug-In Hybrid System And Shift Control System - Circuit Diagram (47 Of 50)

G07624657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

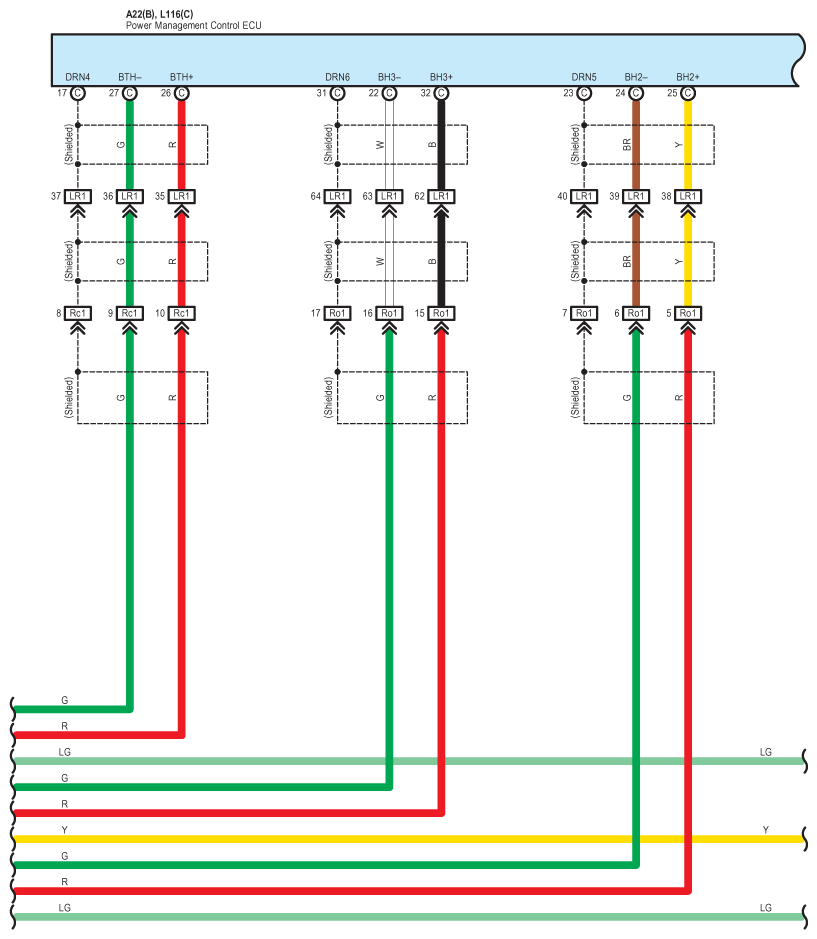

Fig 48: Plug-In Hybrid System And Shift Control System - Circuit Diagram (48 Of 50)

G07624658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

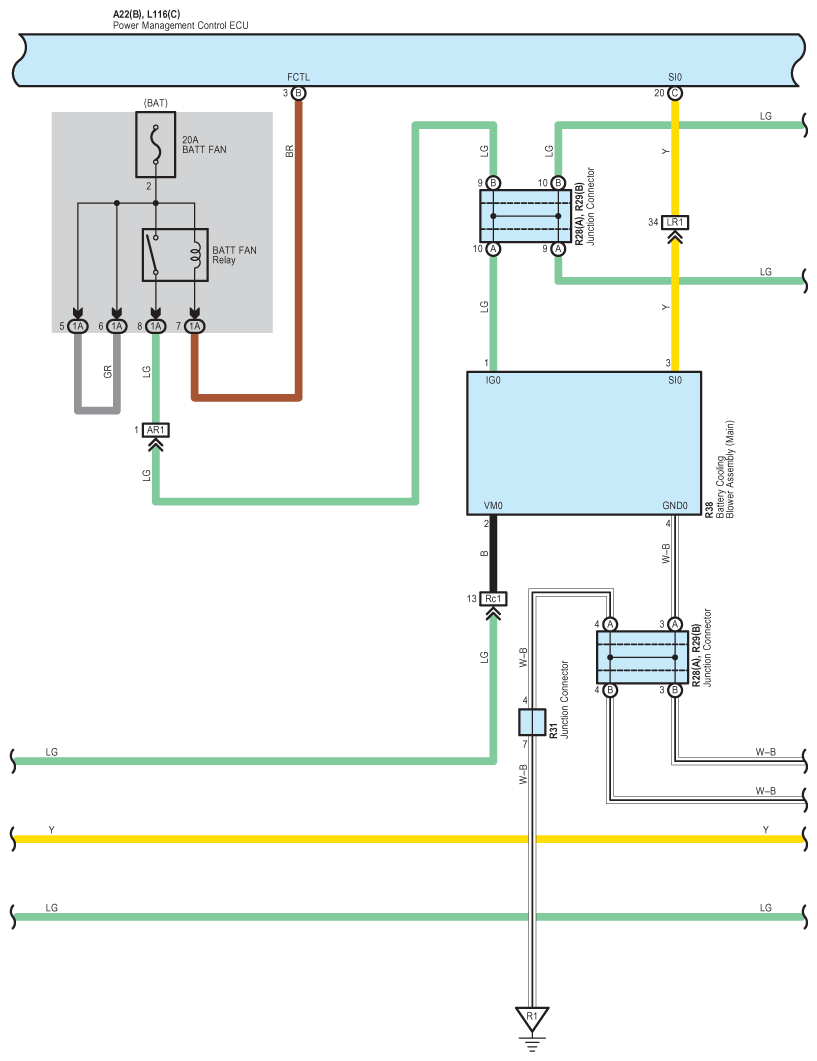

Fig 49: Plug-In Hybrid System And Shift Control System - Circuit Diagram (49 Of 50)

G07624659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

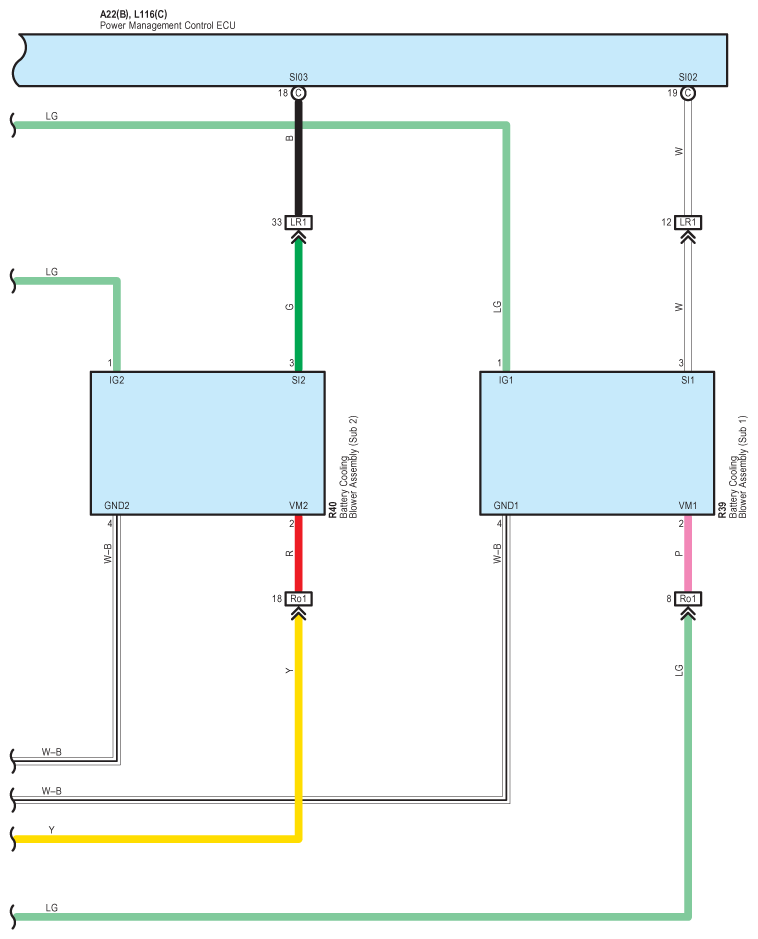

Fig 50: Plug-In Hybrid System And Shift Control System - Circuit Diagram (50 Of 50)

G07624660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
