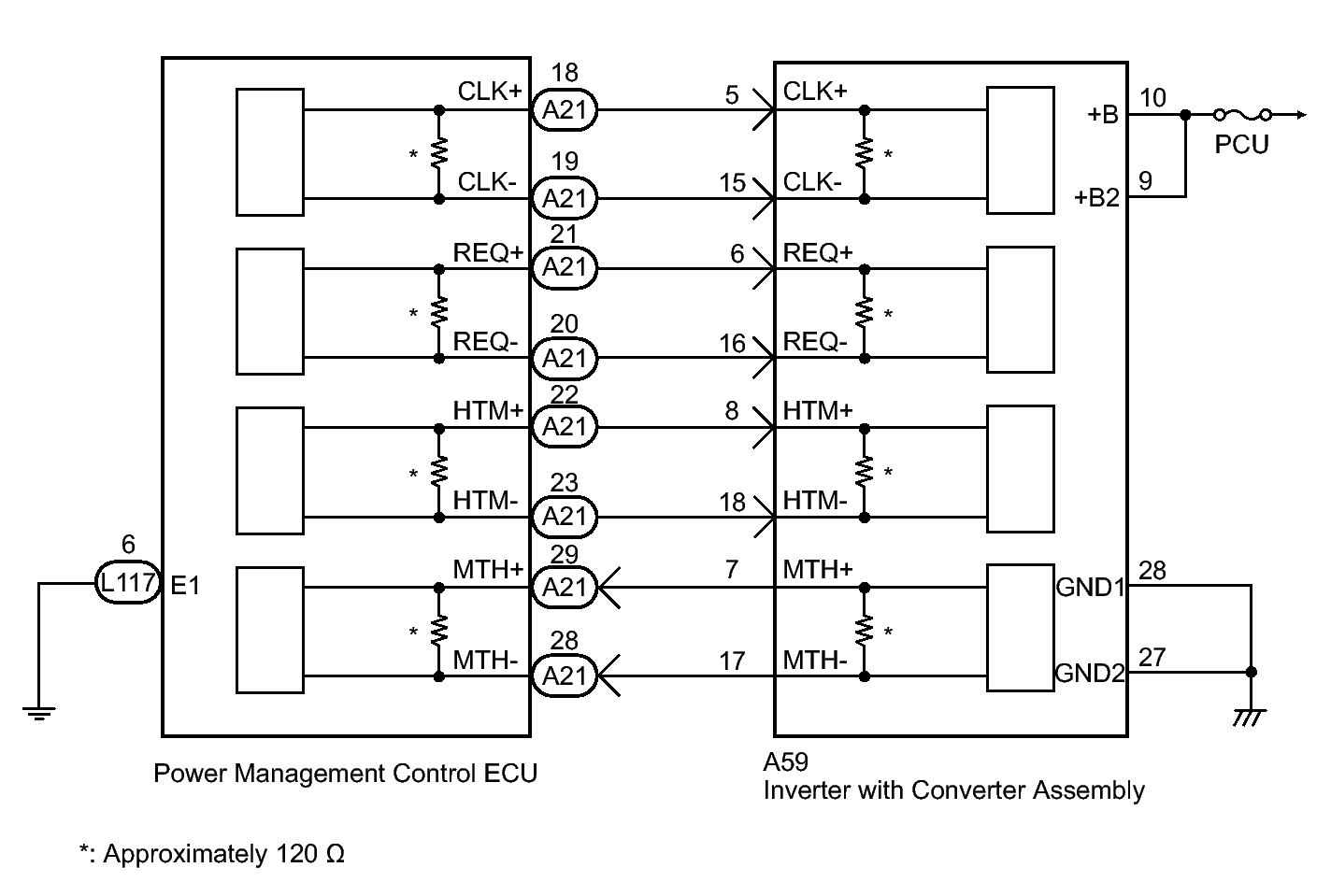

DTC U0110-159, U0110-656, U0110-657: Lost Communication with Driver Motor Control Module; Lost Communication with Driver Motor Control Module; Lost Communication with Driver Motor Control Module: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
