Engine Control, Cruise Control and Fuel Lid Opener: Notes

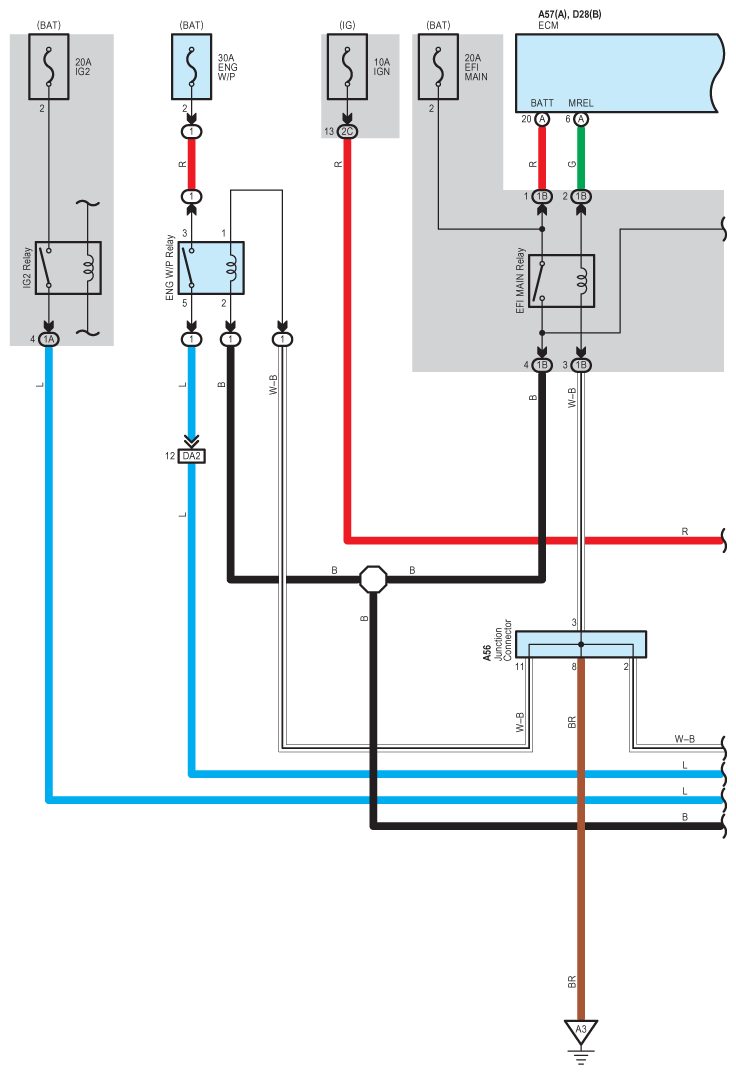

Fig 1: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (1 Of 23)

G07624682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

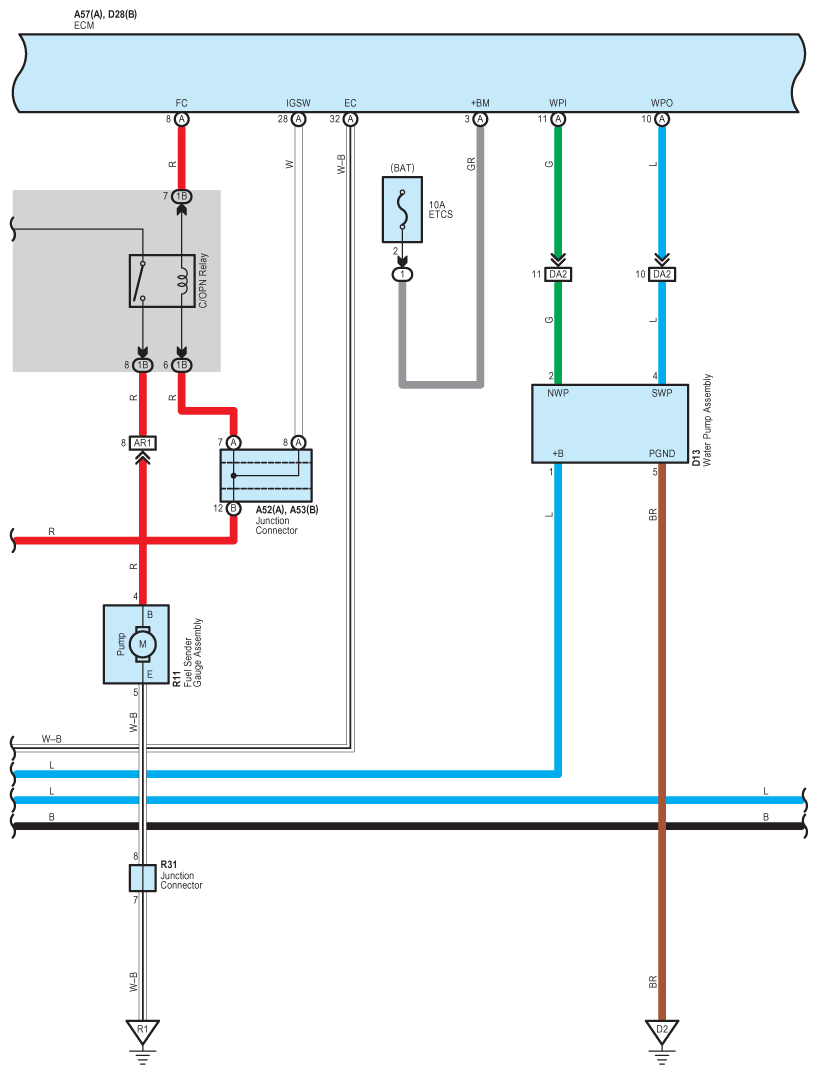

Fig 2: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (2 Of 23)

G07624683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

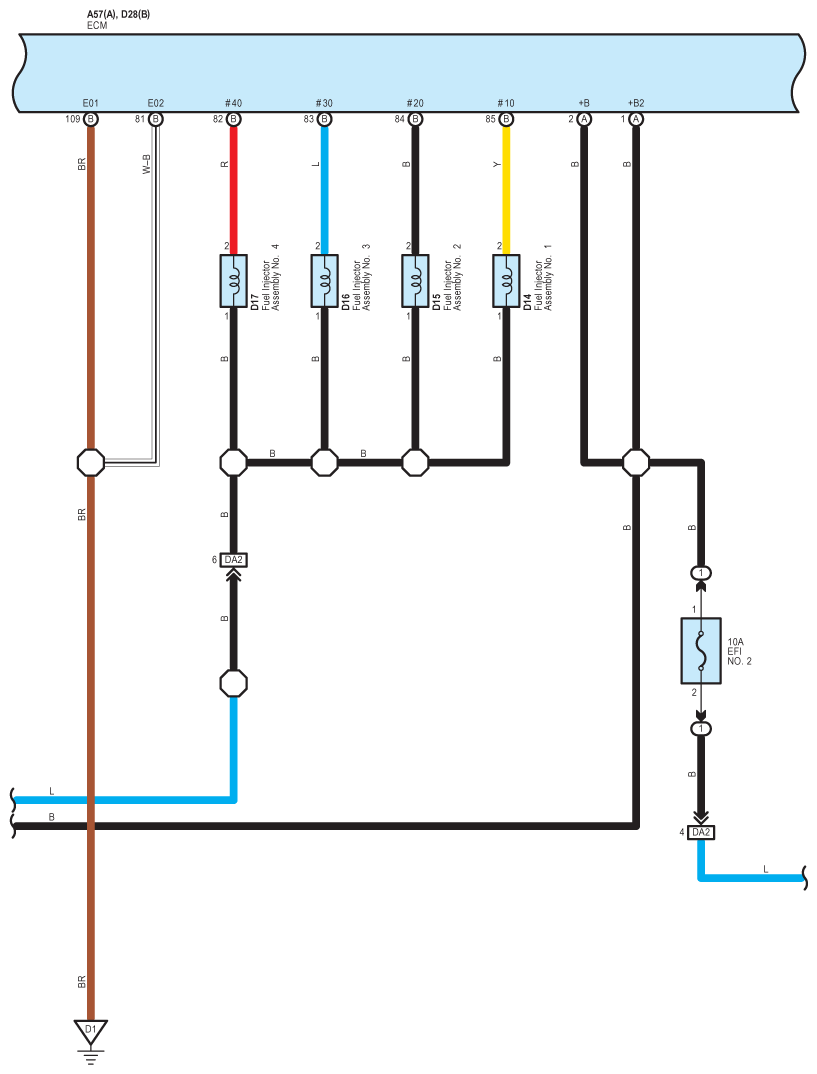

Fig 3: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (3 Of 23)

G07624684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

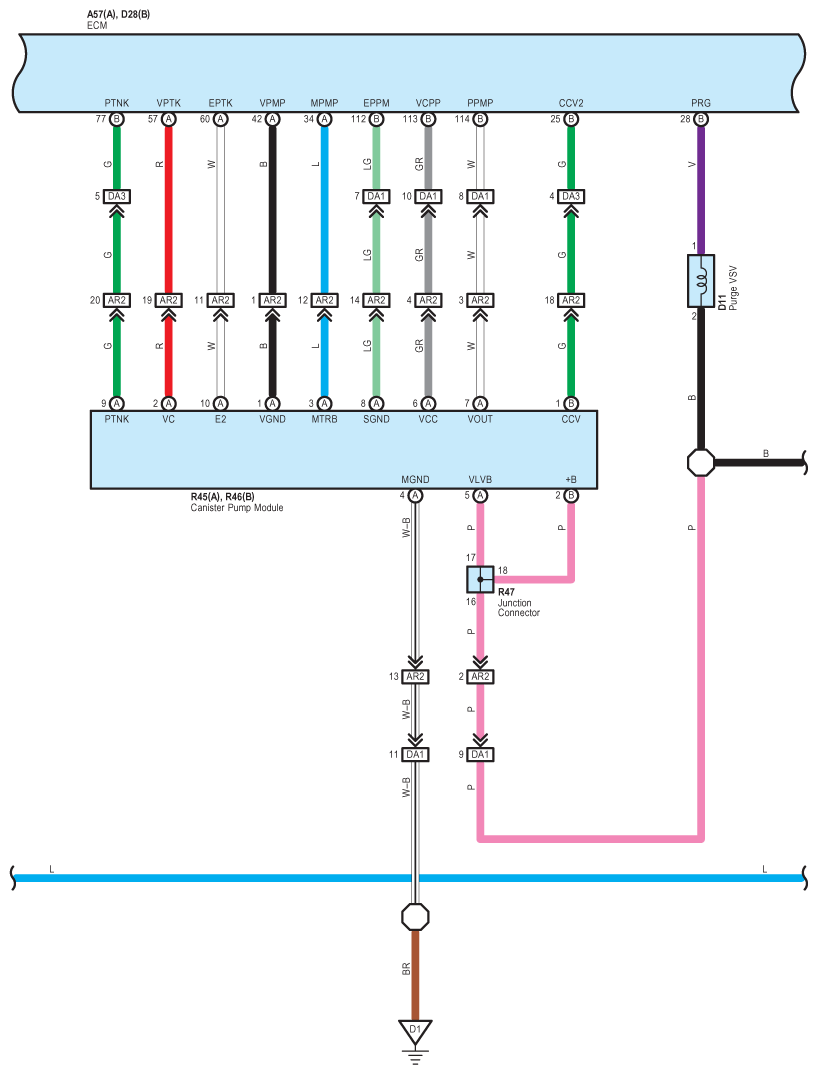

Fig 4: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (4 Of 23)

G07624685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

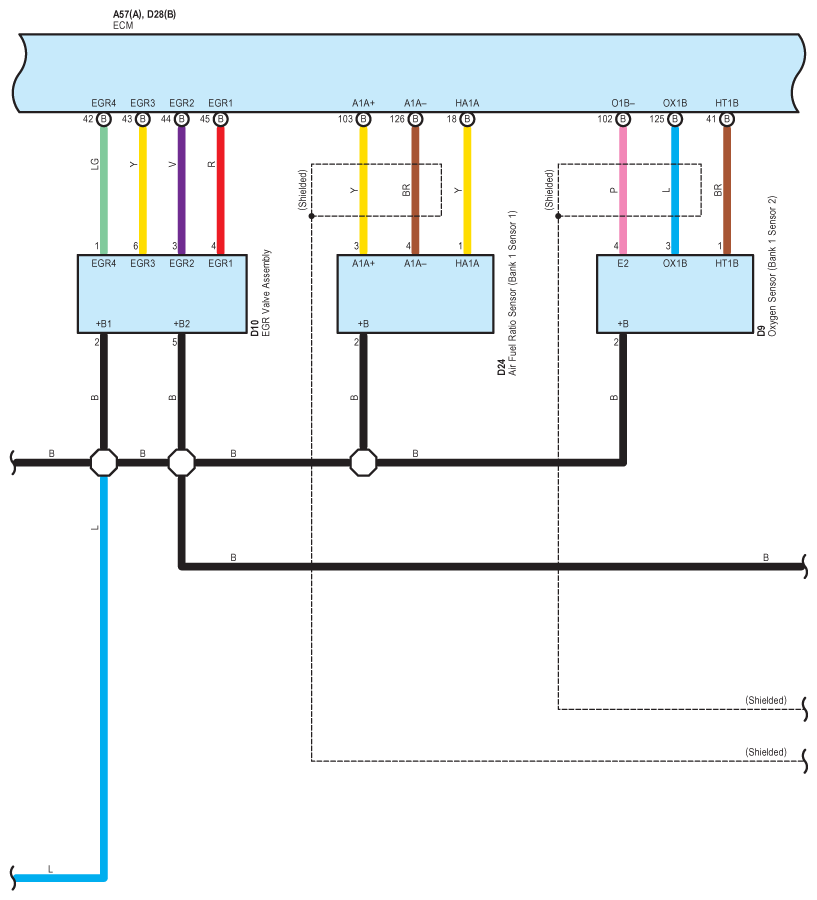

Fig 5: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (5 Of 23)

G07624686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

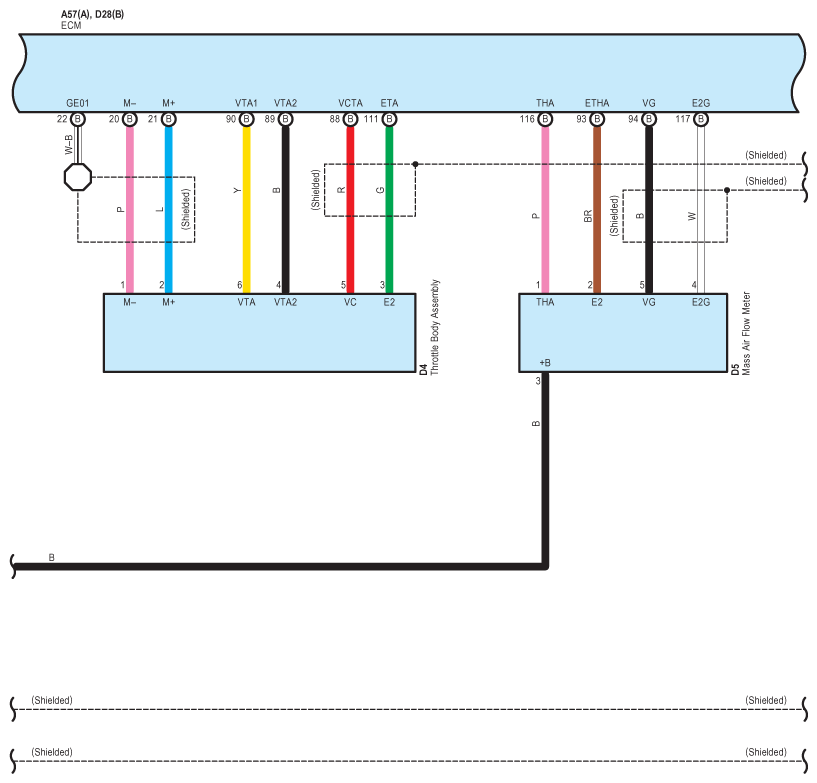

Fig 6: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (6 Of 23)

G07624687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

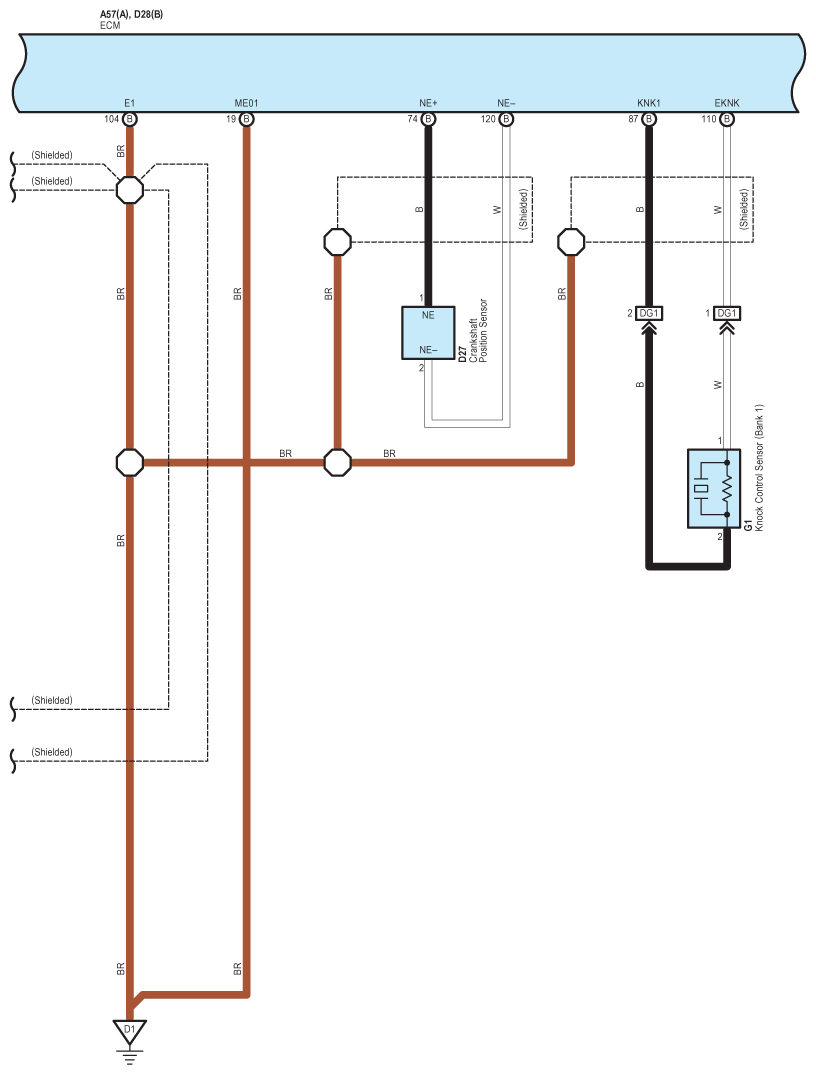

Fig 7: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (7 Of 23)

G07624688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

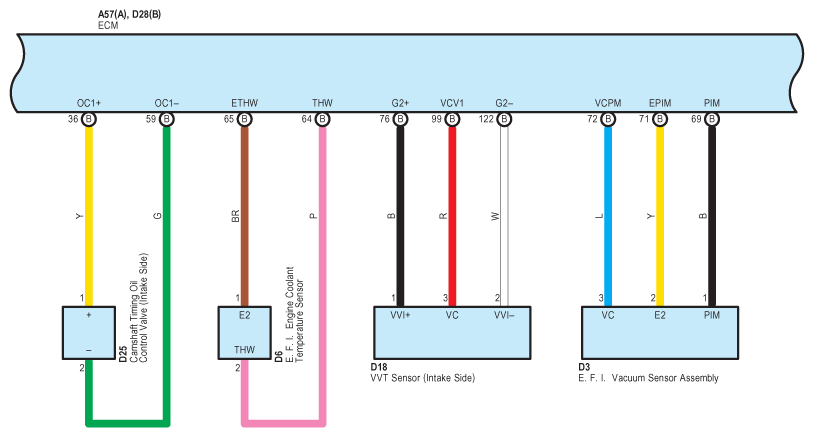

Fig 8: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (8 Of 23)

G07624689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

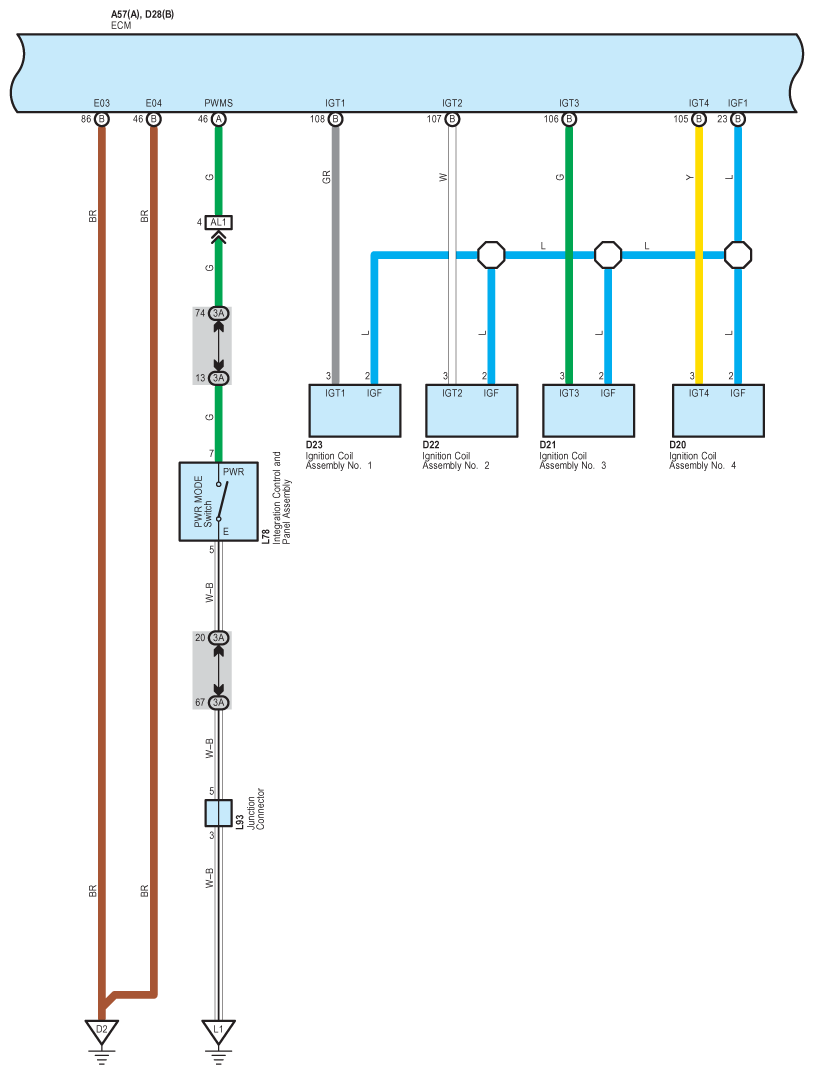

Fig 9: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (9 Of 23)

G07624690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

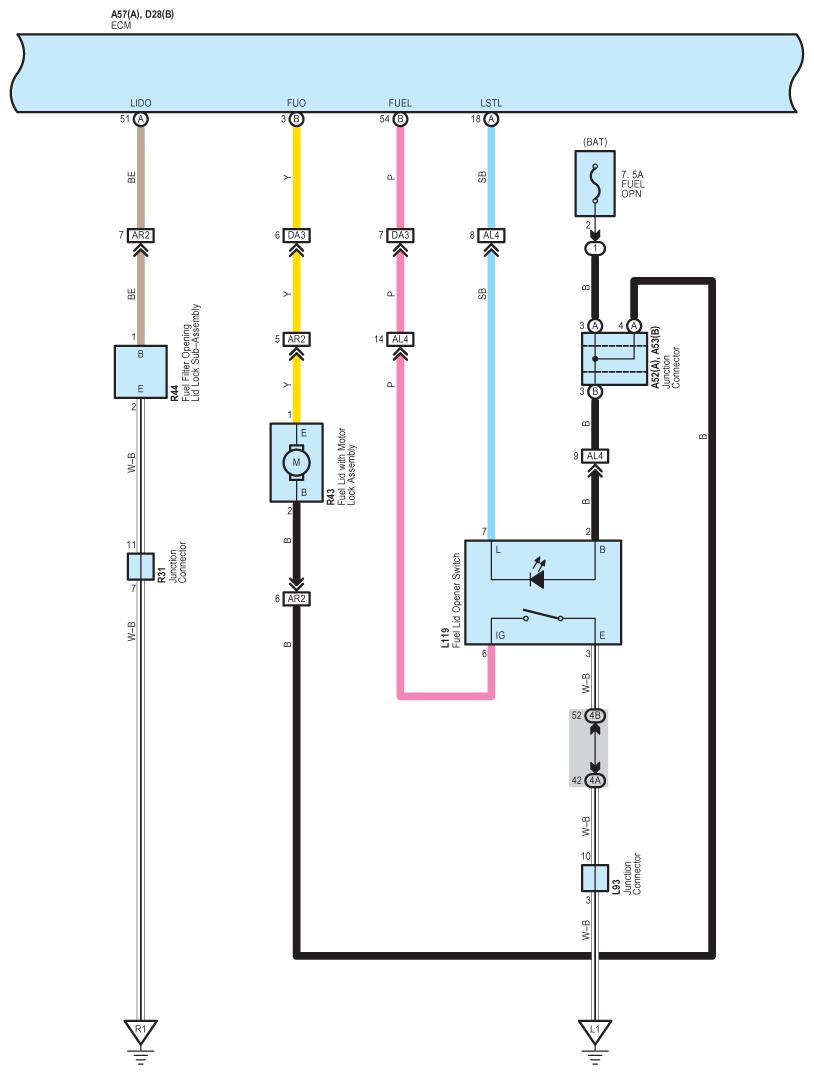

Fig 10: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (10 Of 23)

G07624691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

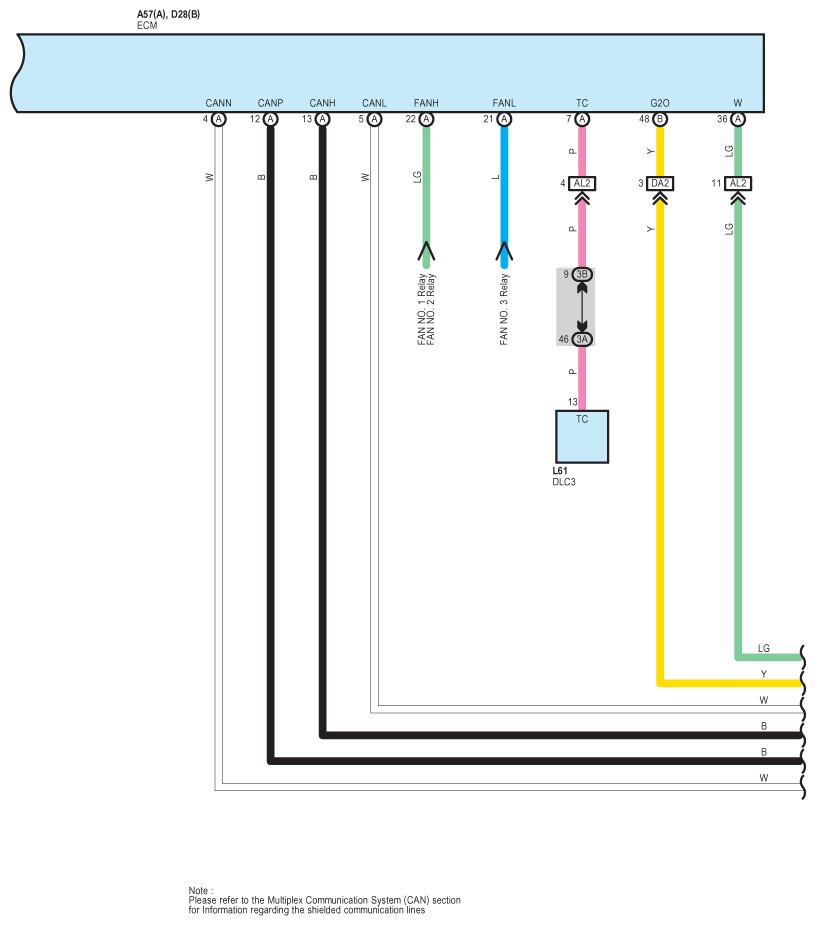

Fig 11: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (11 Of 23)

G07624692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

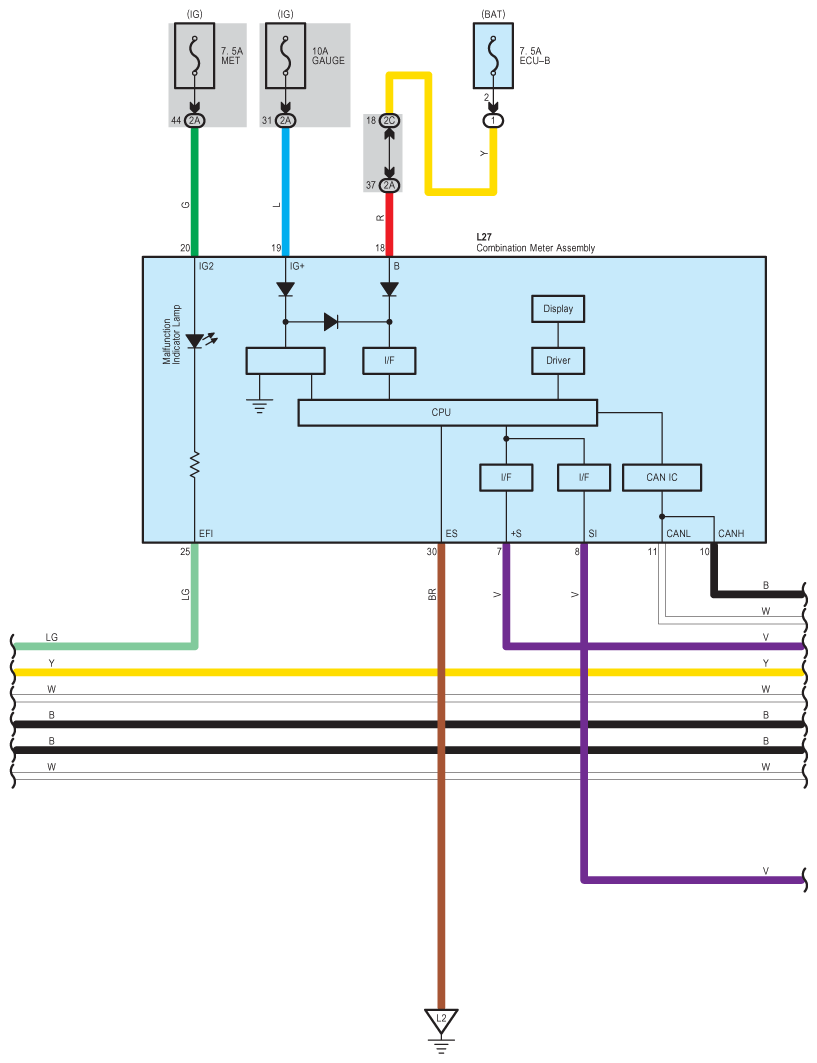

Fig 12: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (12 Of 23)

G07624693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

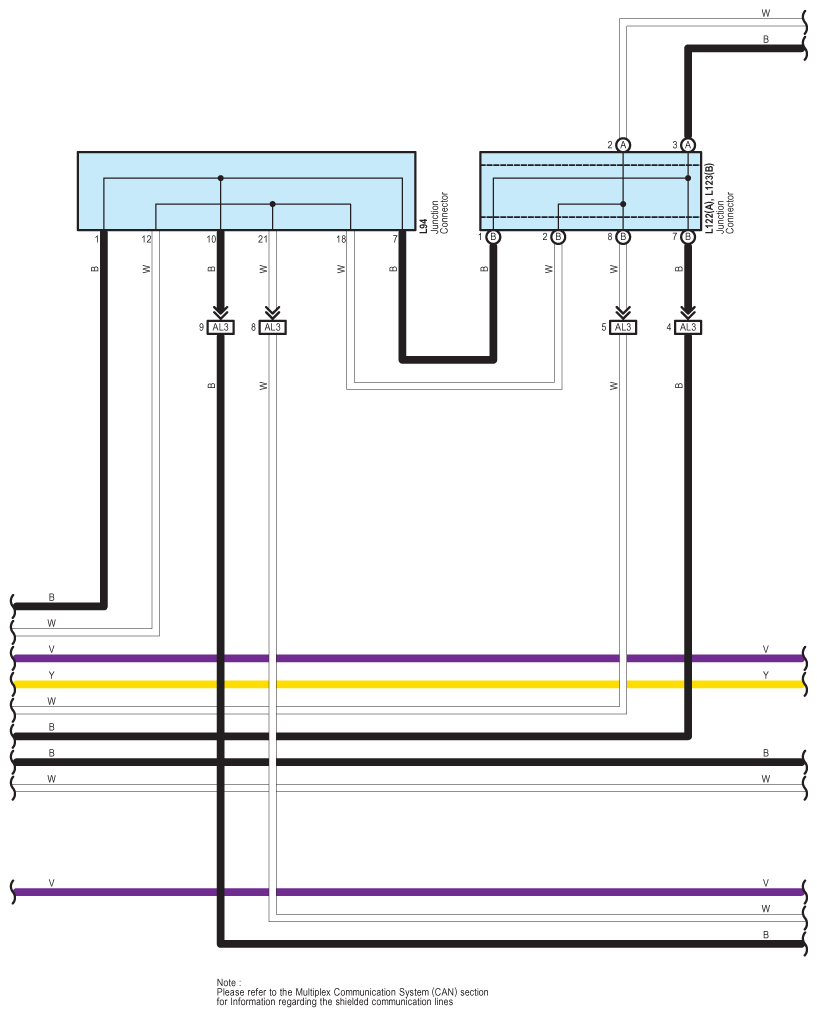

Fig 13: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (13 Of 23)

G07624694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

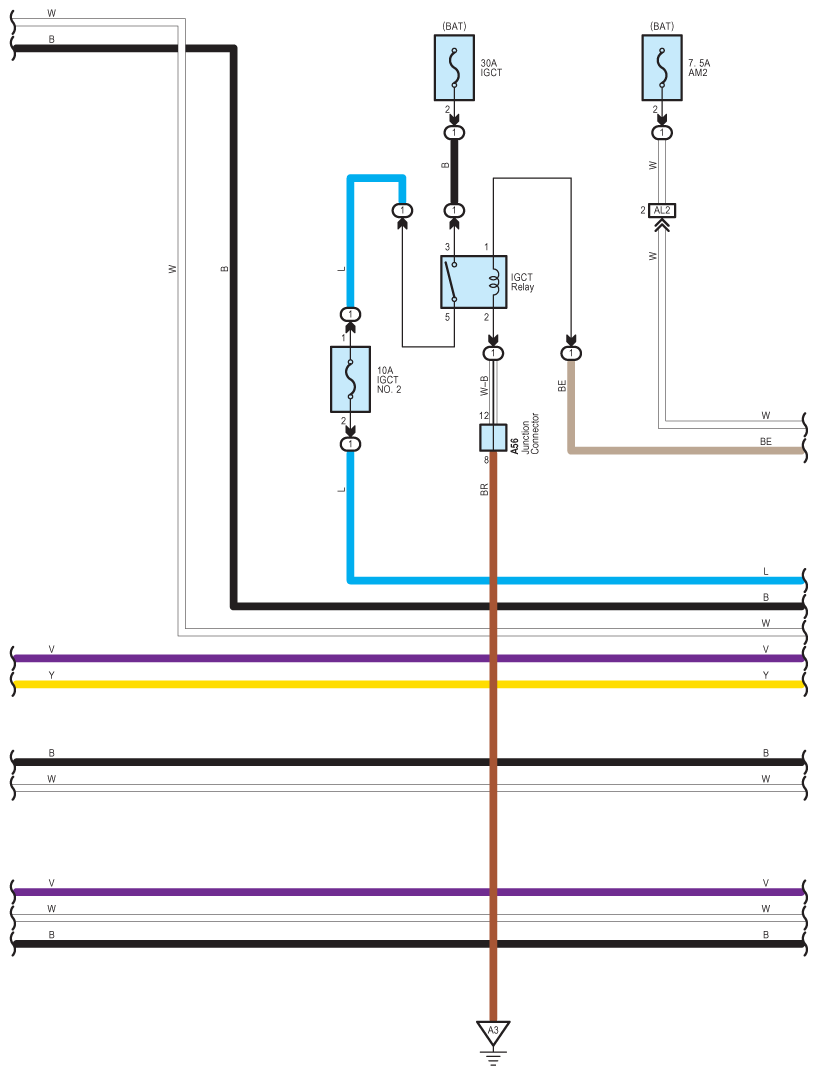

Fig 14: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (14 Of 23)

G07624695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

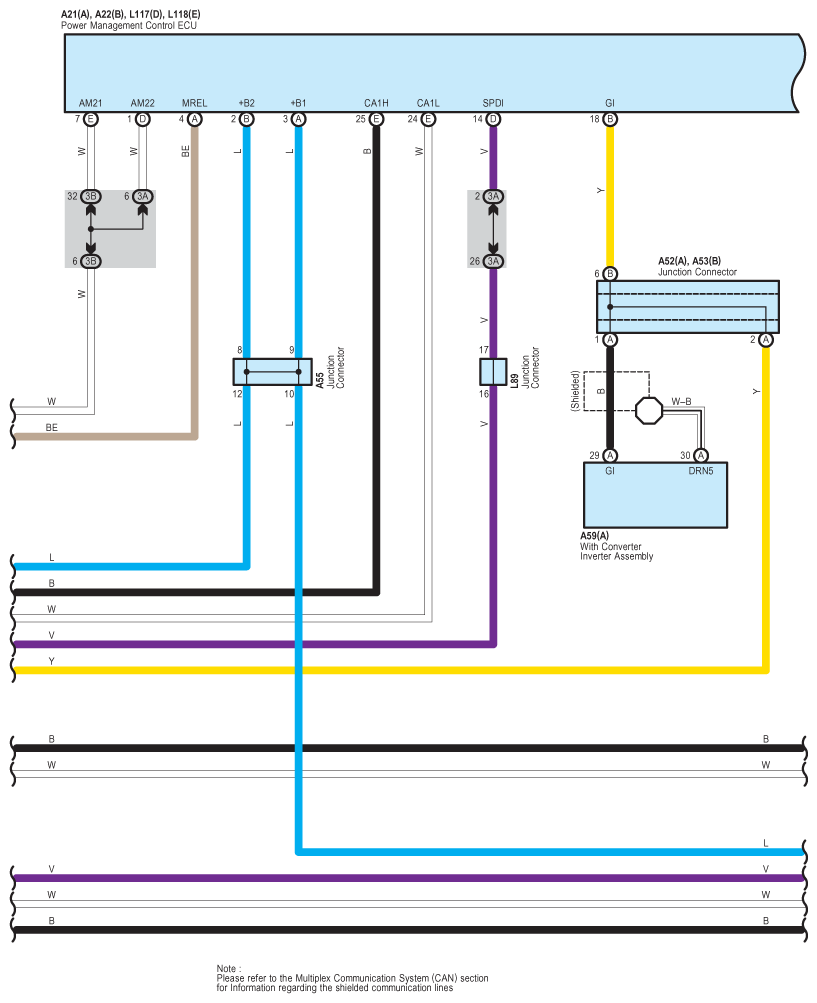

Fig 15: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (15 Of 23)

G07624696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

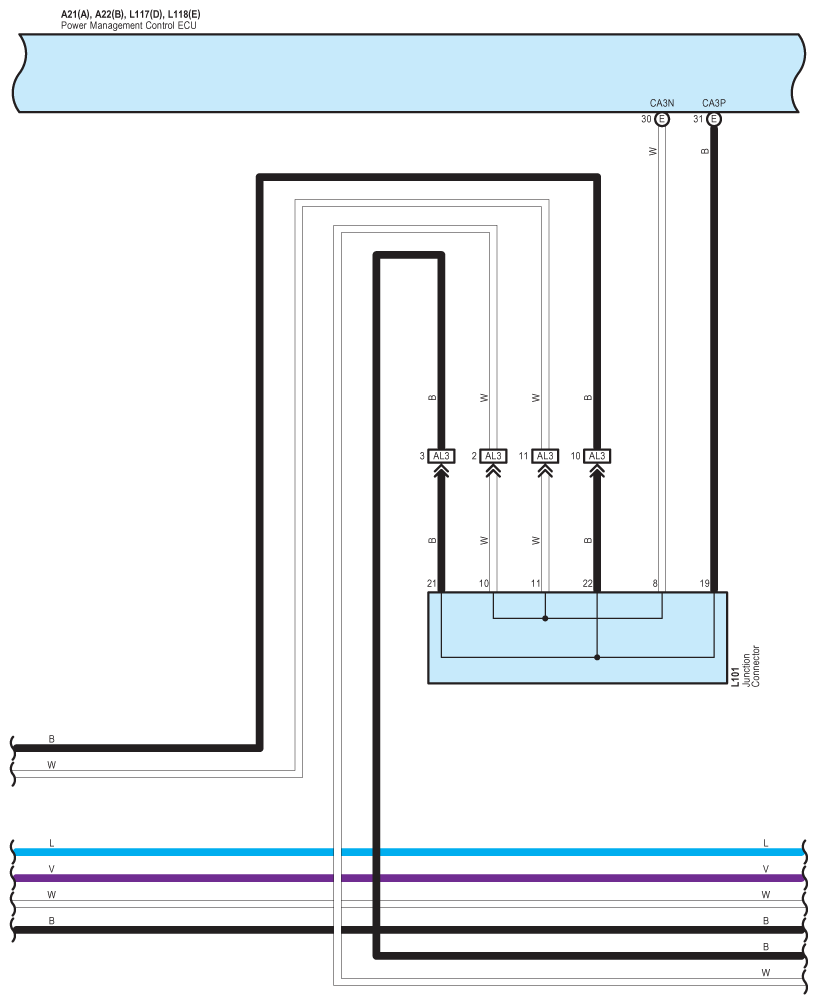

Fig 16: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (16 Of 23)

G07624697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

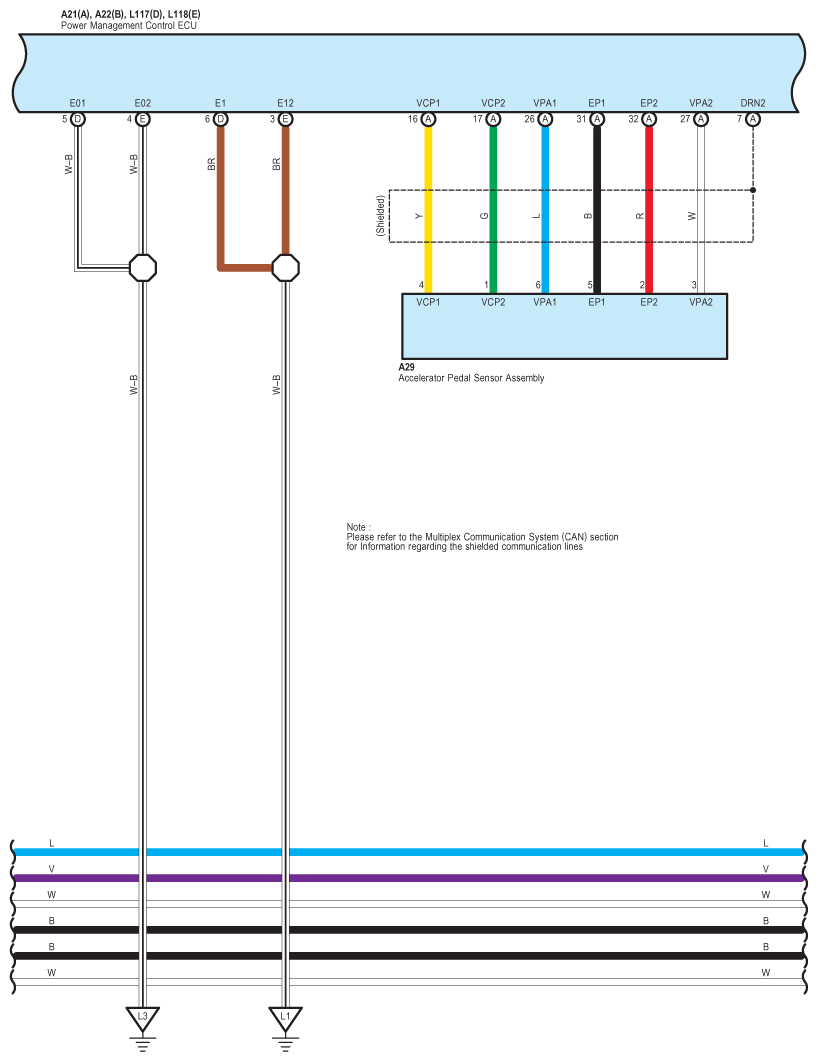

Fig 17: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (17 Of 23)

G07624698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

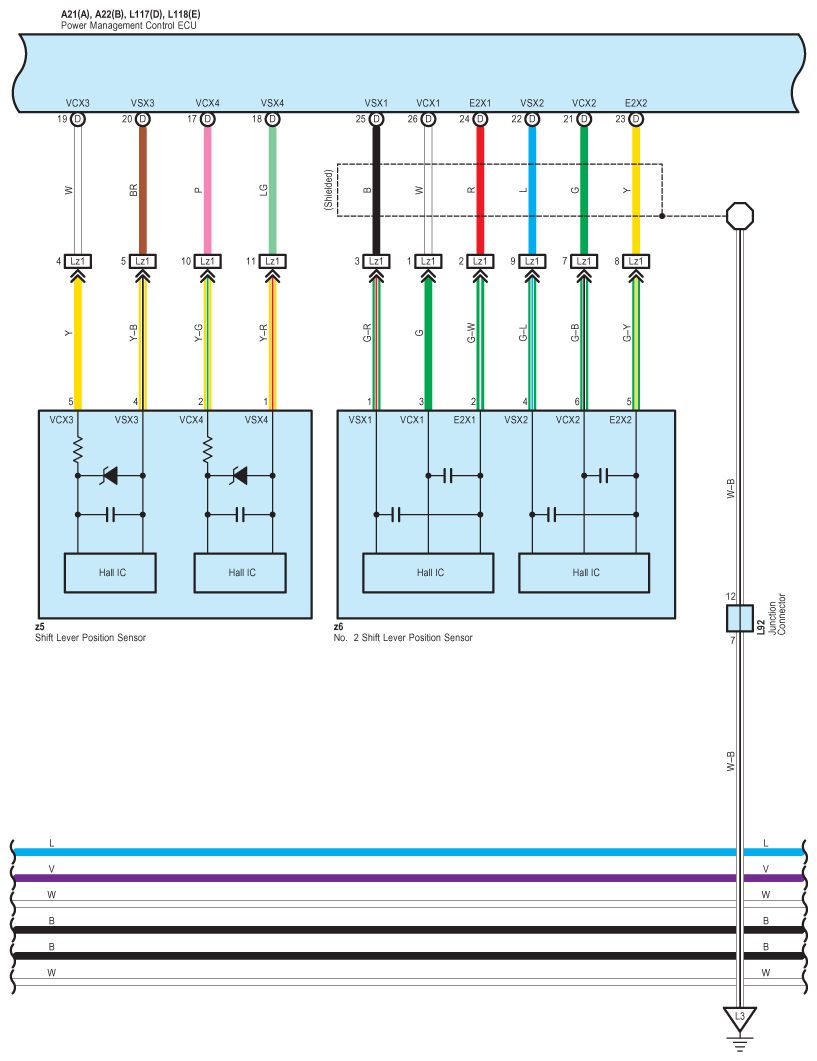

Fig 18: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (18 Of 23)

G07624699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

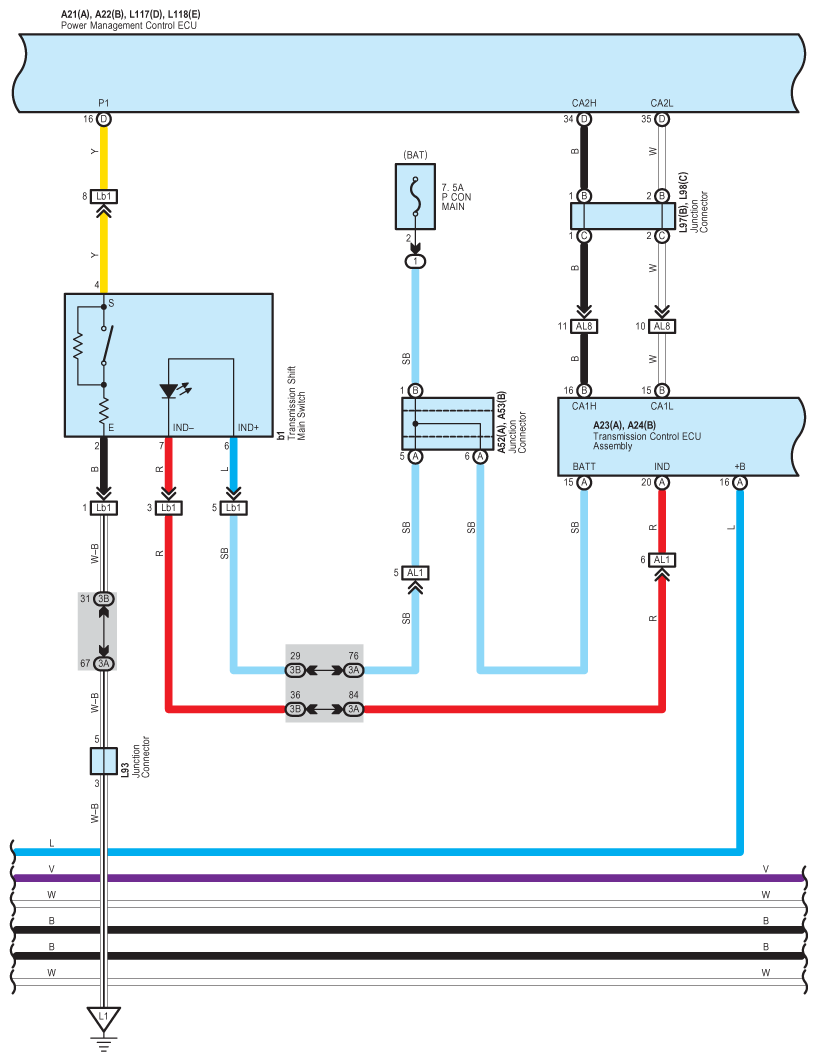

Fig 19: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (19 Of 23)

G07624700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

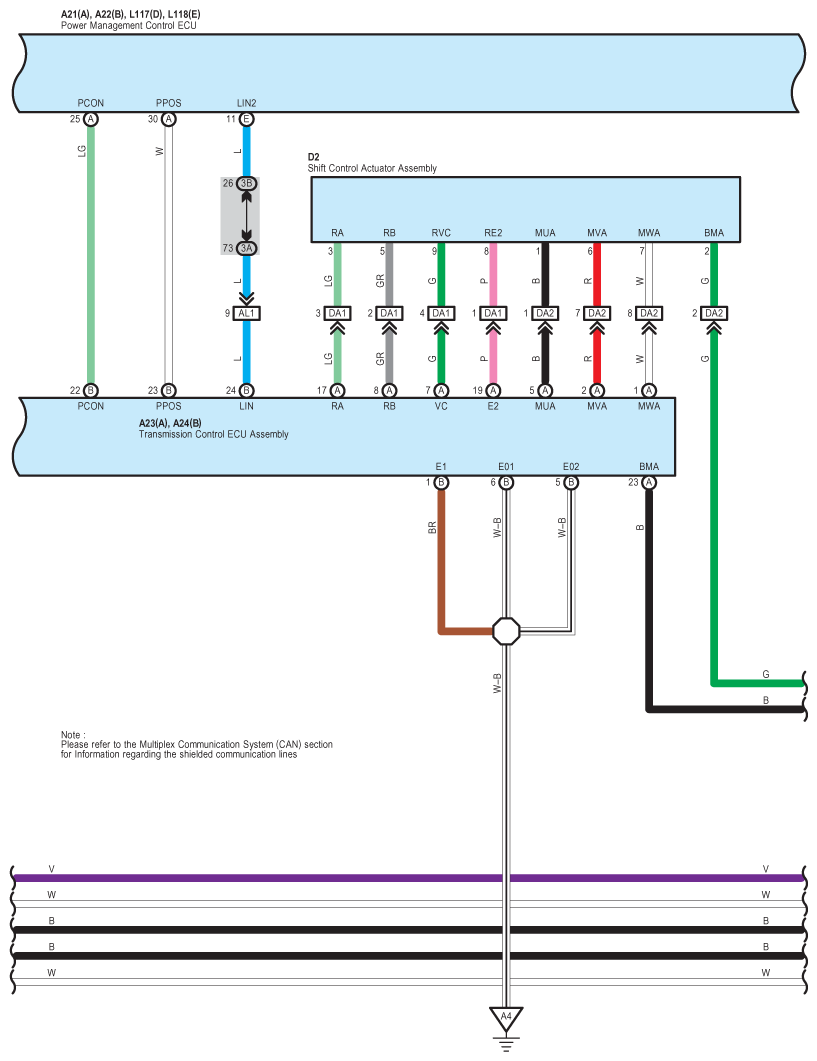

Fig 20: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (20 Of 23)

G07624701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

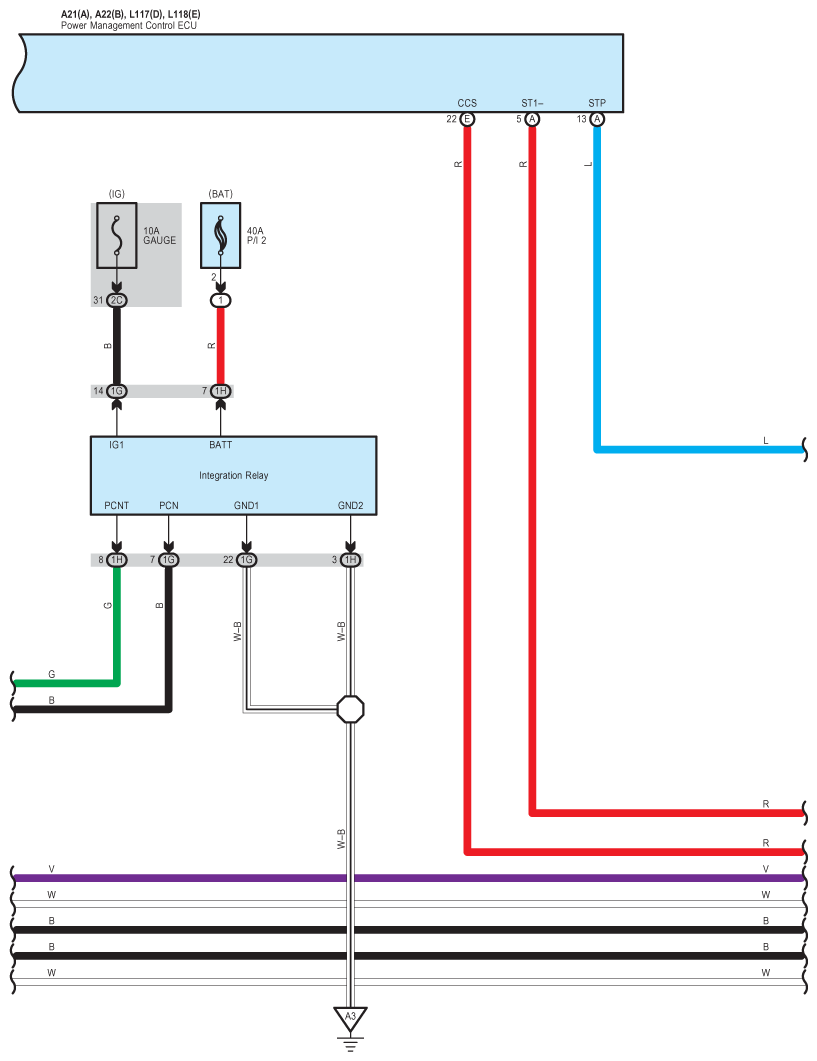

Fig 21: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (21 Of 23)

G07624702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

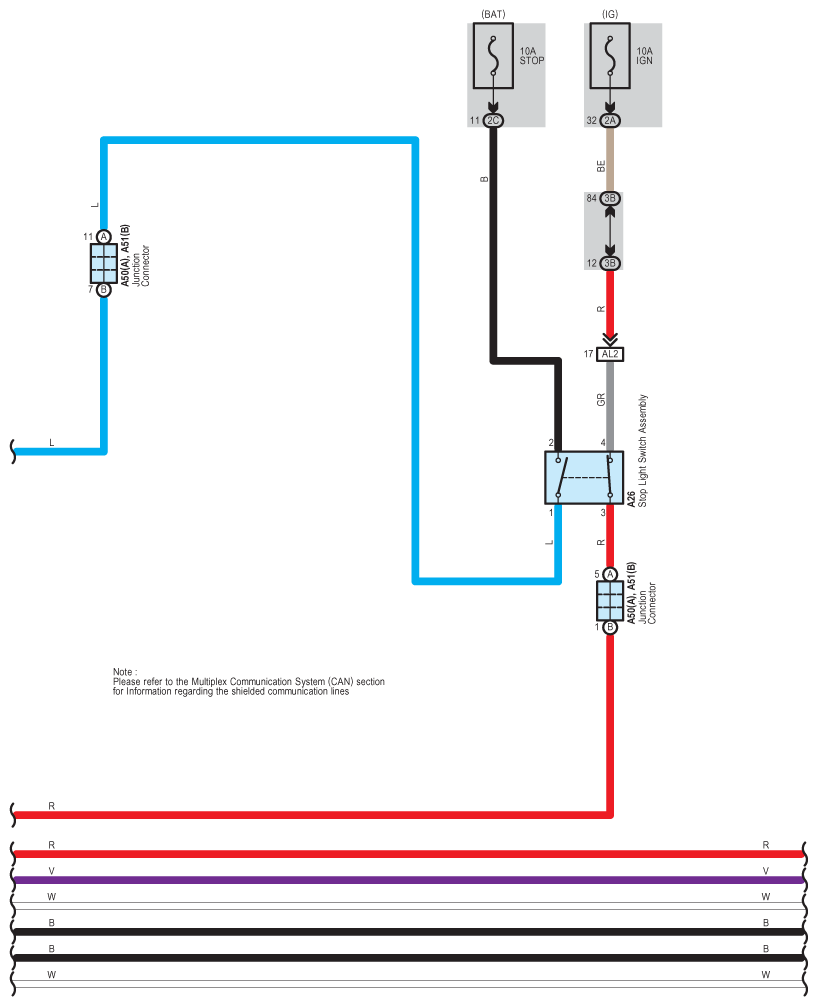

Fig 22: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (22 Of 23)

G07624703

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

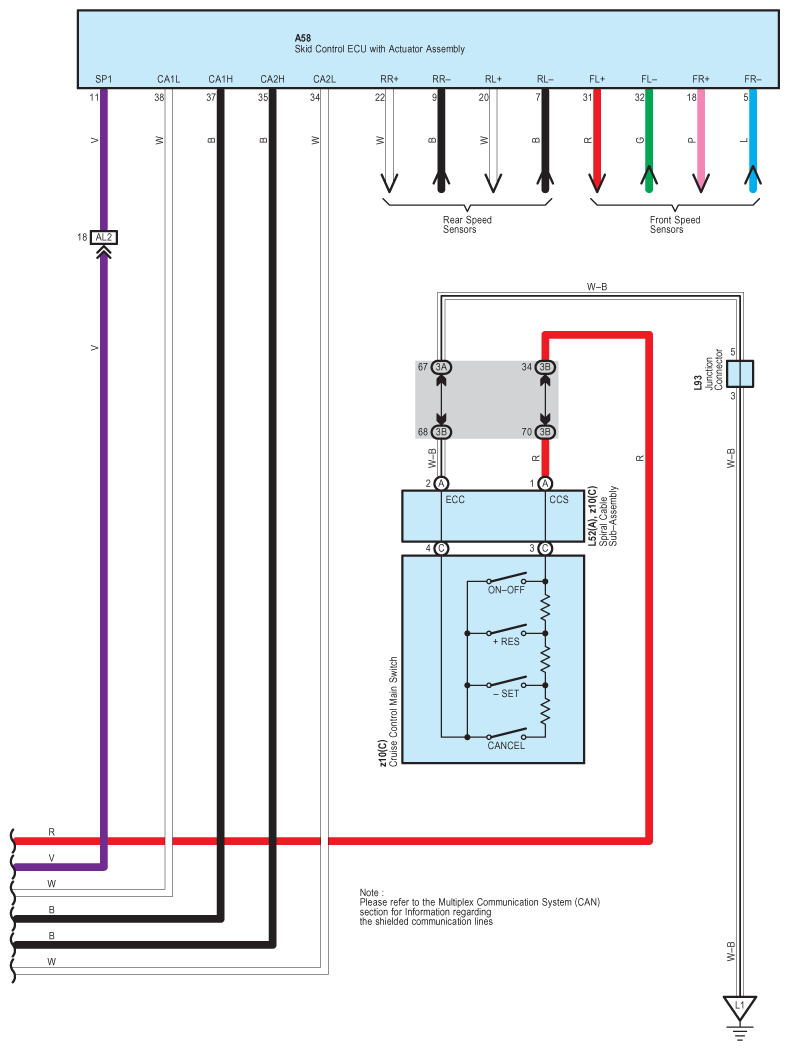

Fig 23: Engine Control, Cruise Control And Fuel Lid Opener - Circuit Diagram (23 Of 23)

G07624704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
