Remote Air Conditioning System: Notes

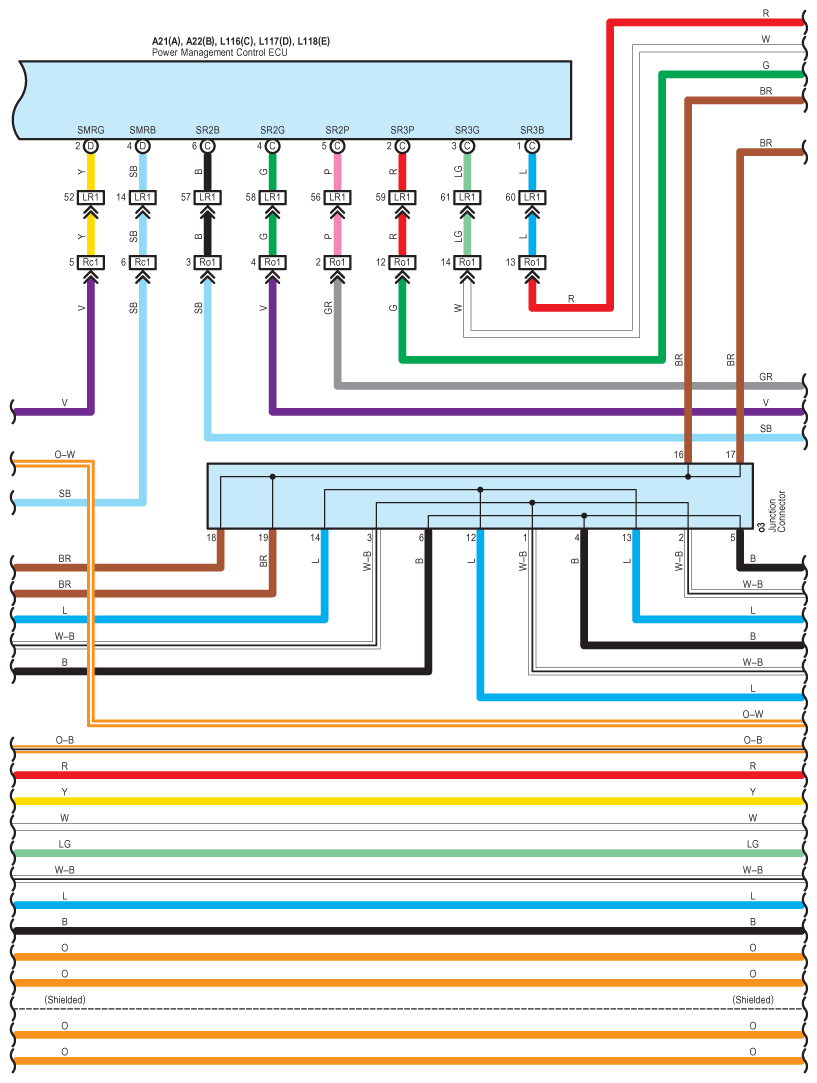

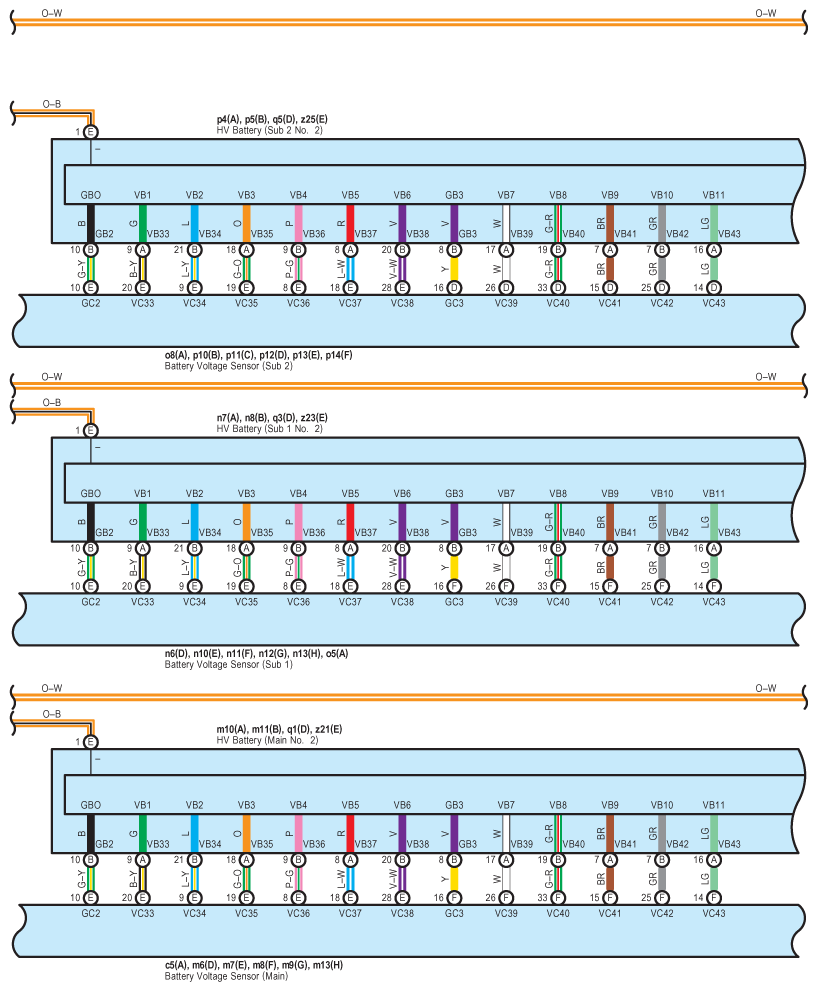

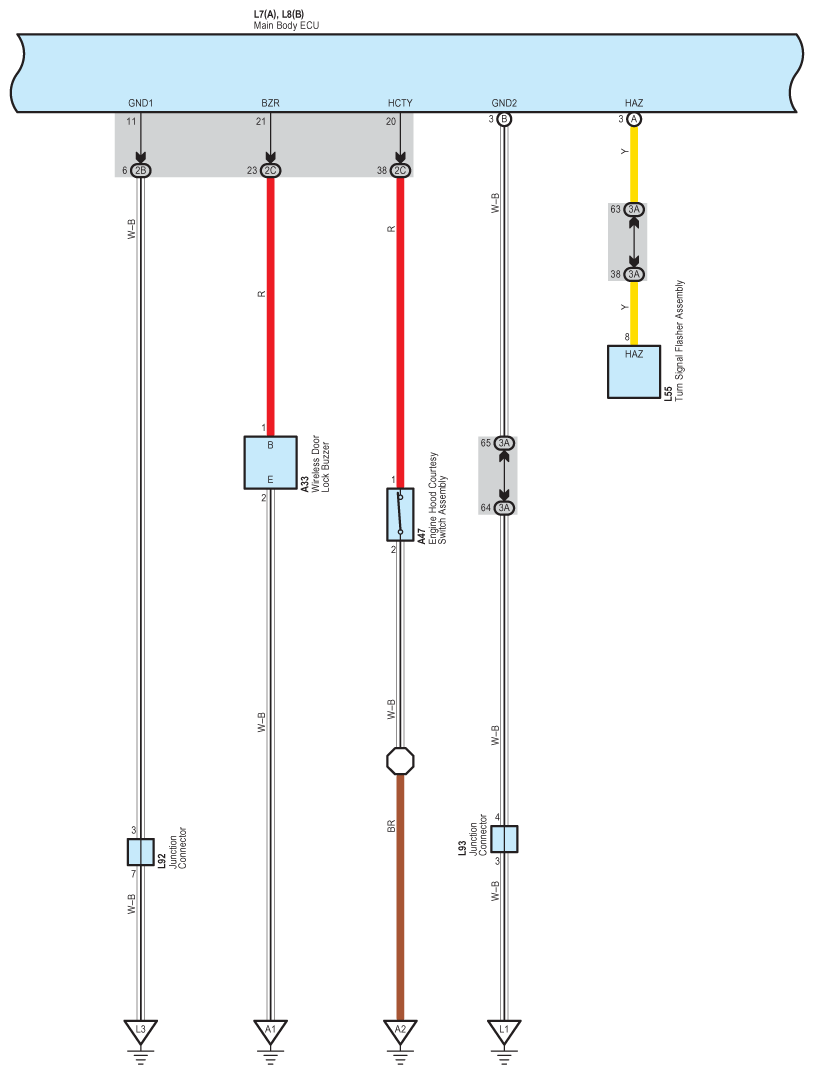

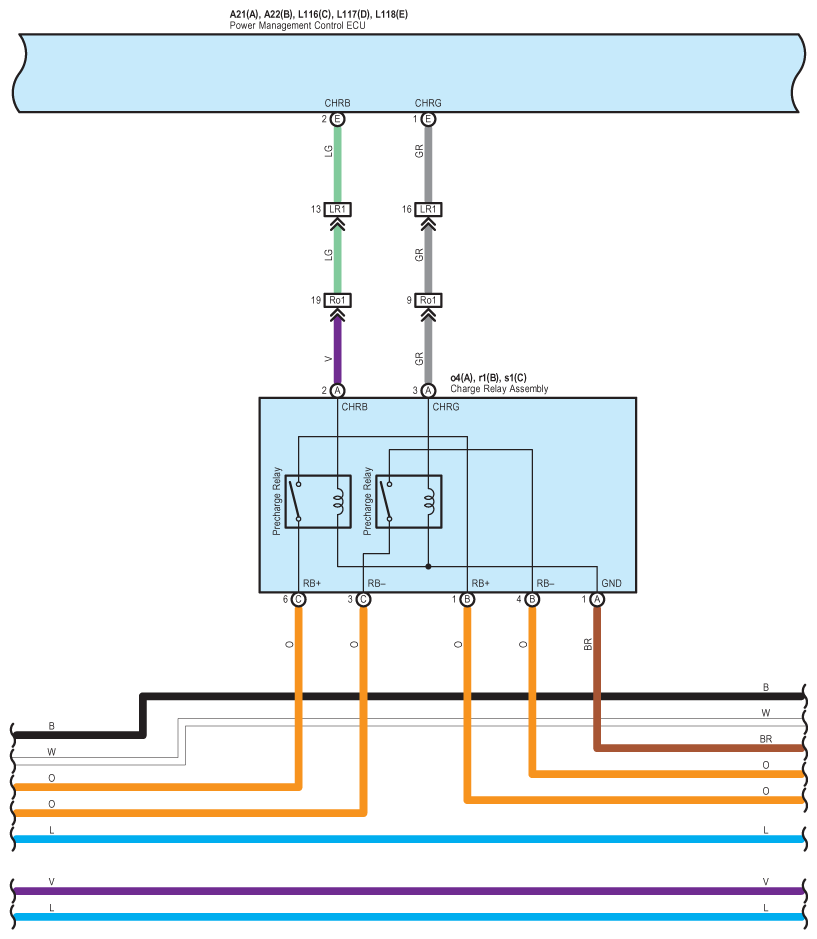

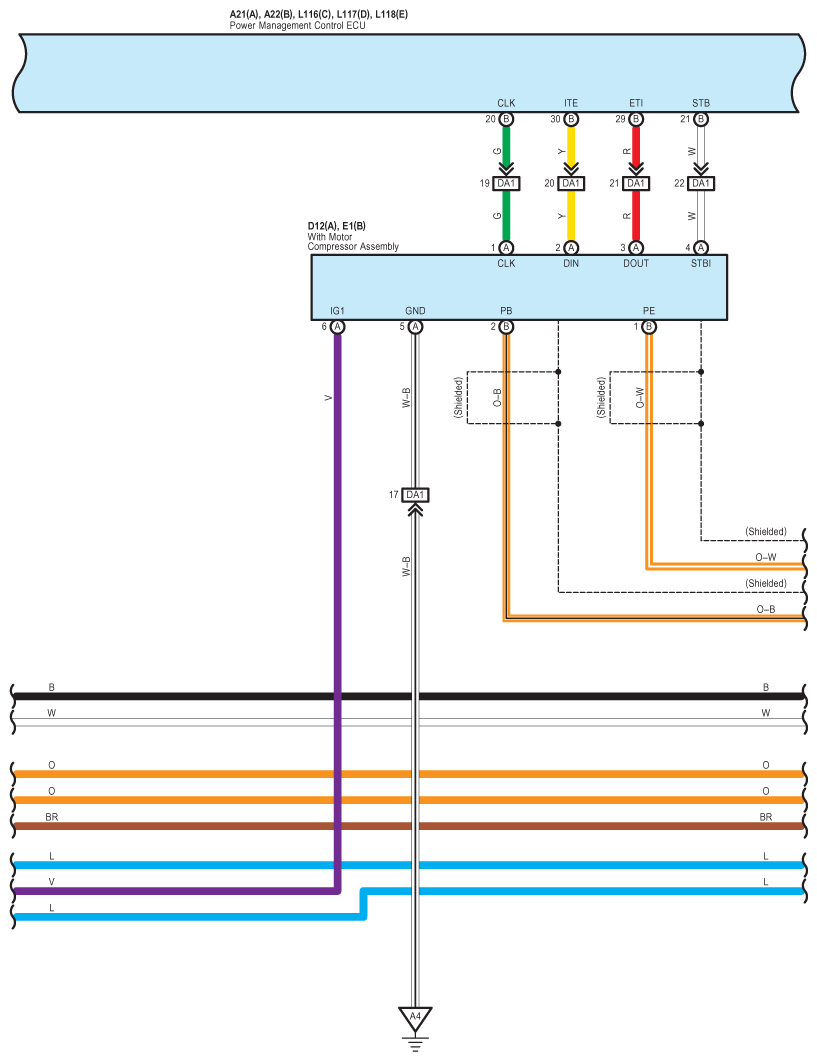

Fig 1: Remote Air Conditioning System - Circuit Diagram (1 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

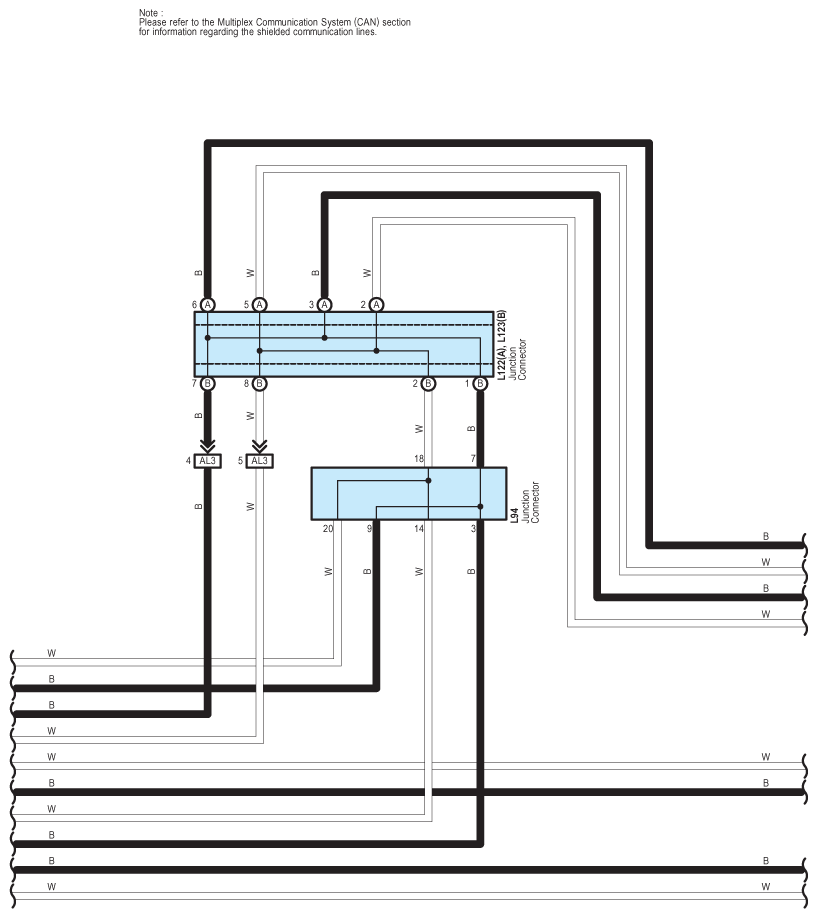

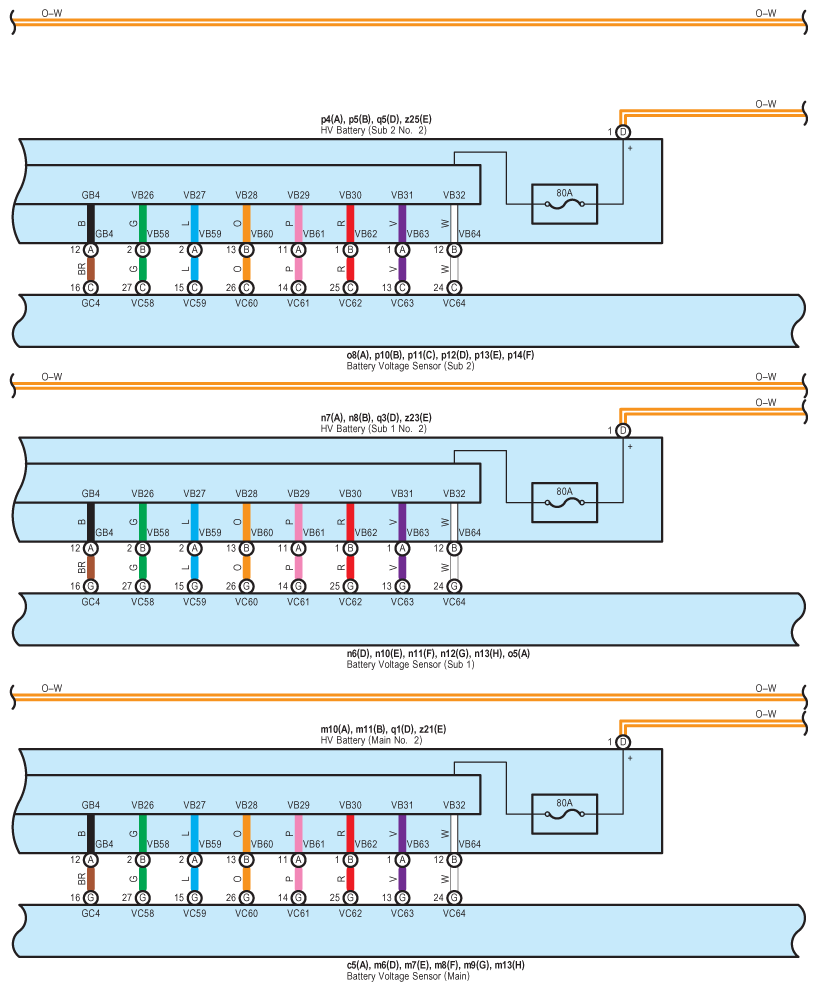

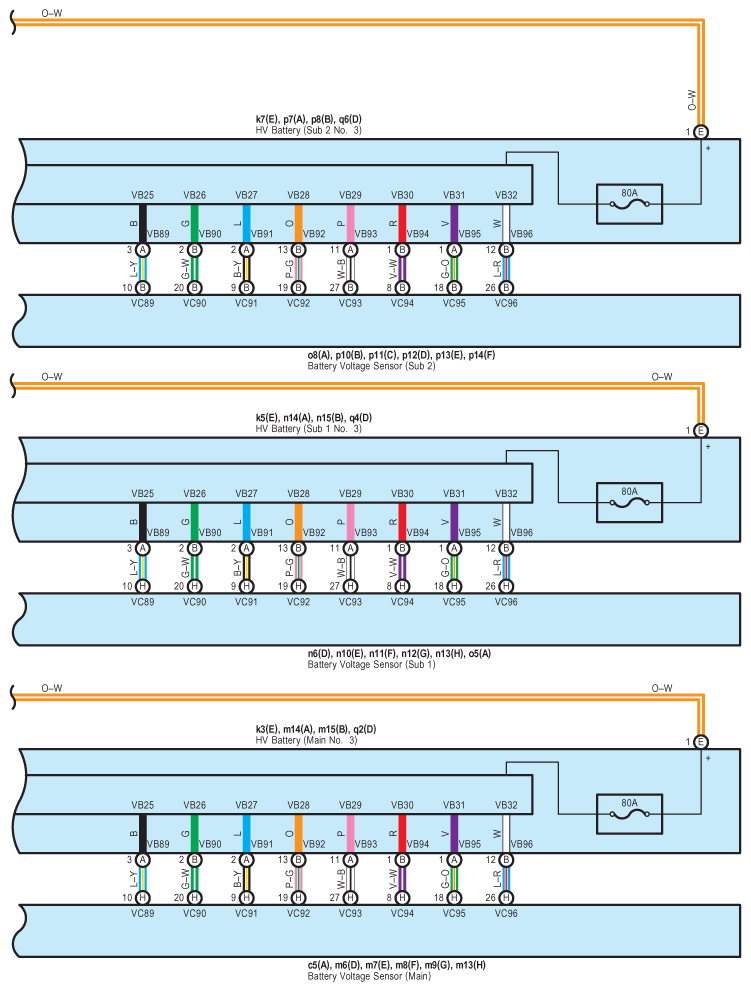

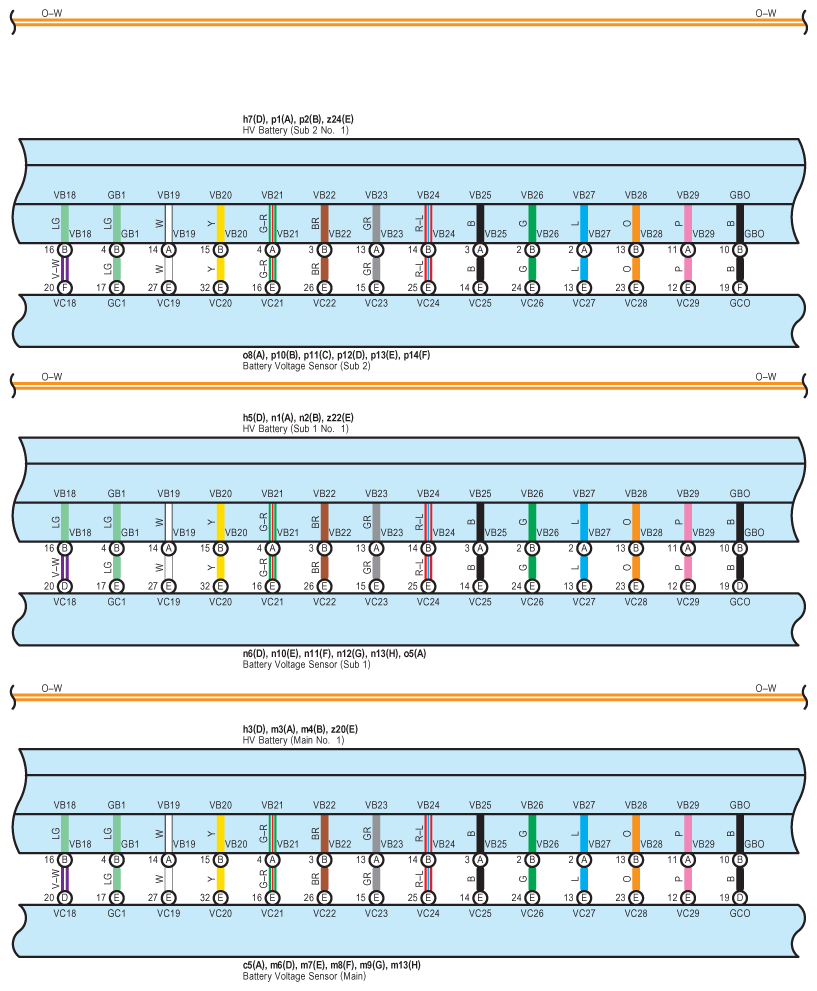

Fig 2: Remote Air Conditioning System - Circuit Diagram (2 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

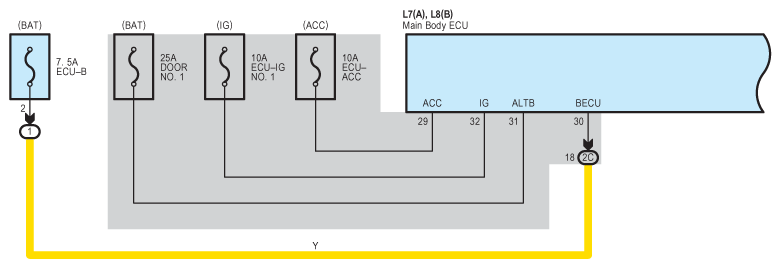

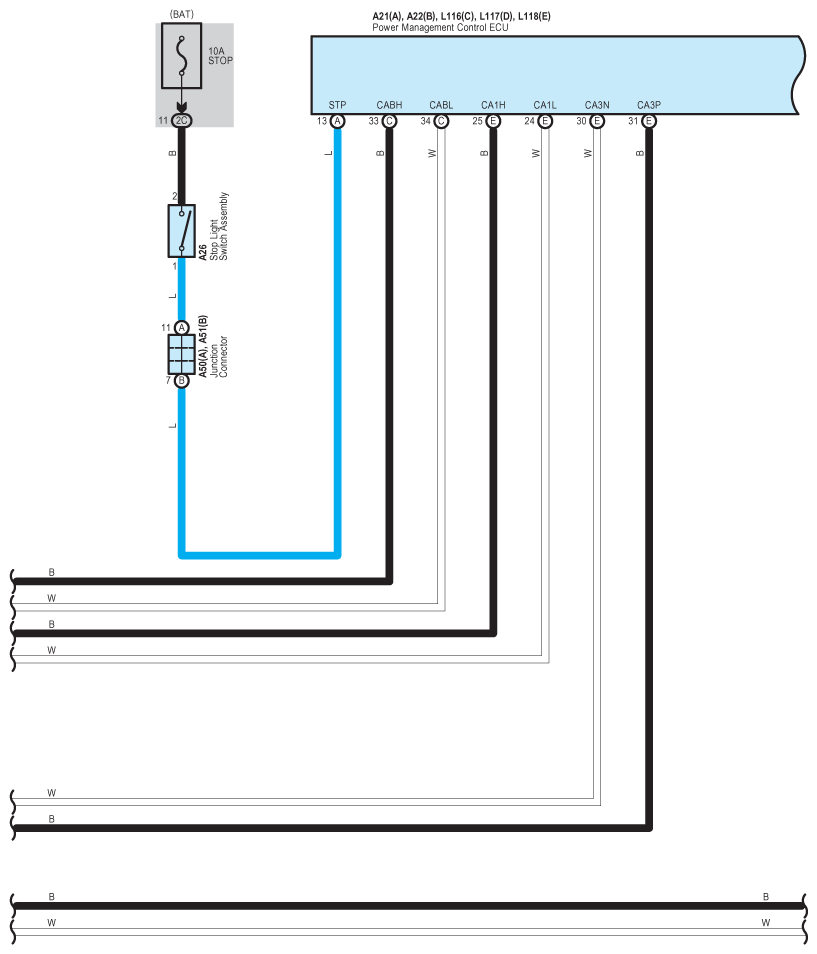

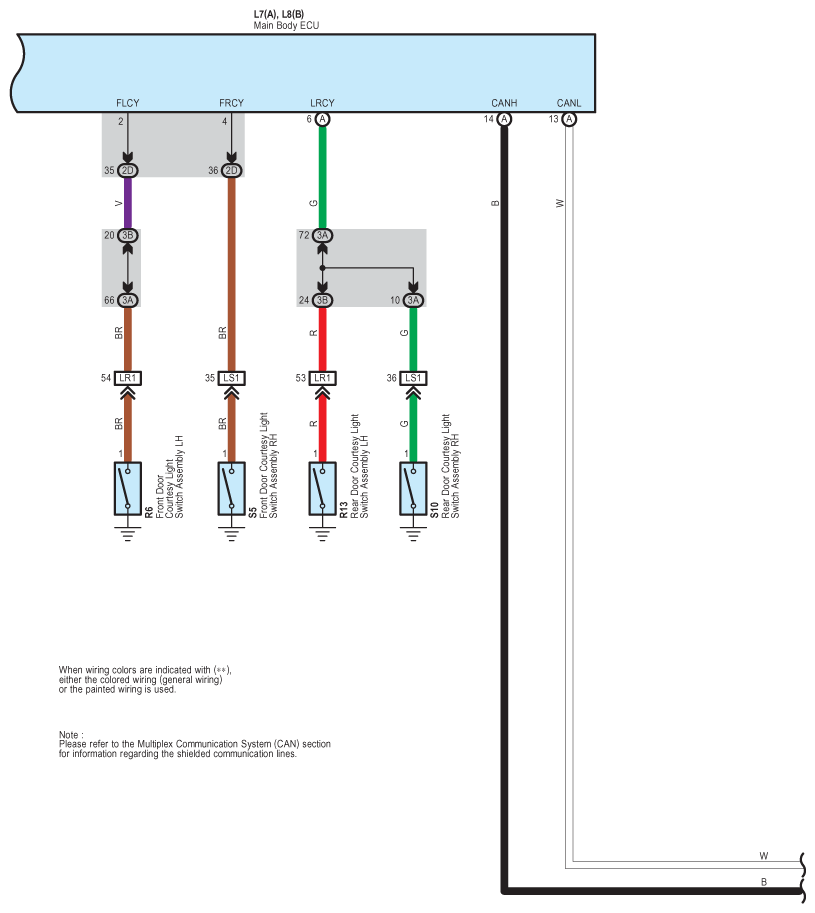

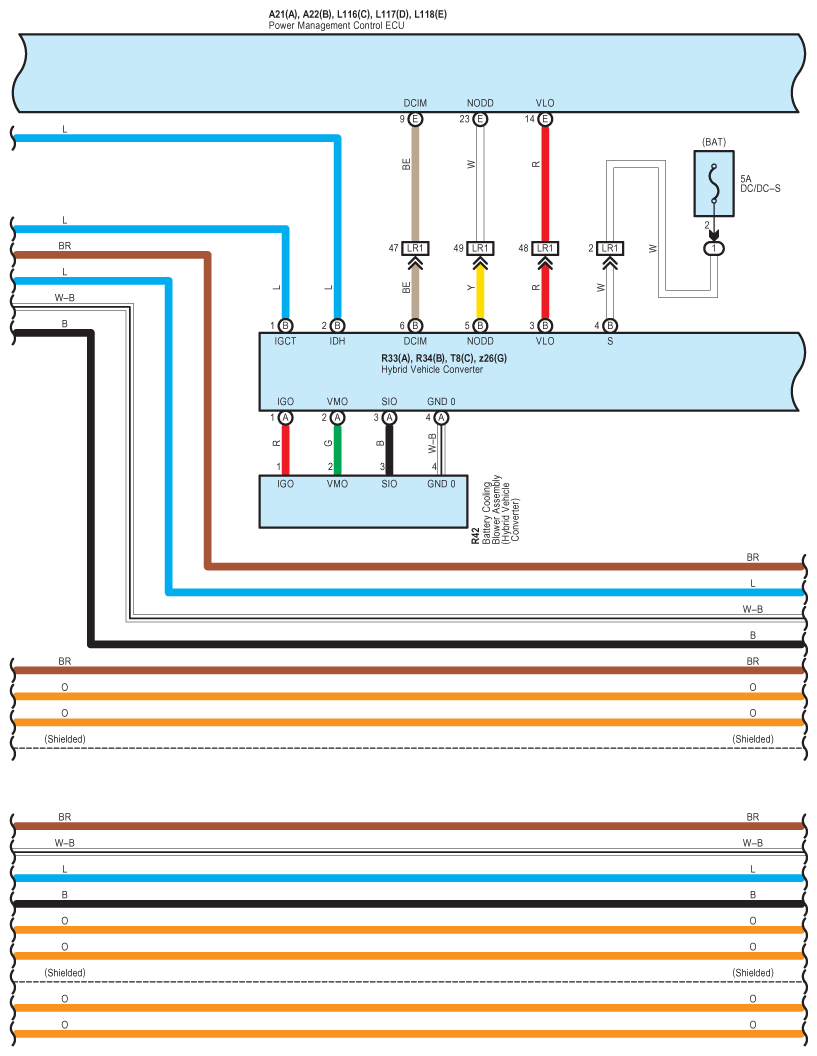

Fig 3: Remote Air Conditioning System - Circuit Diagram (3 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

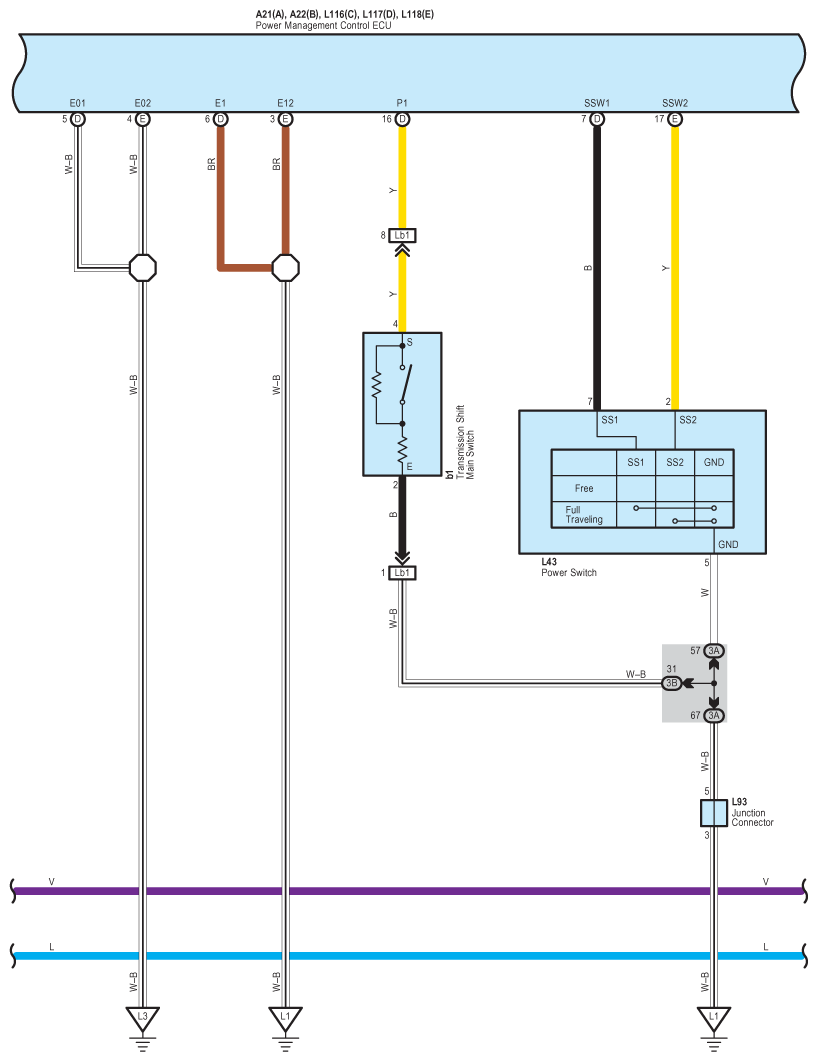

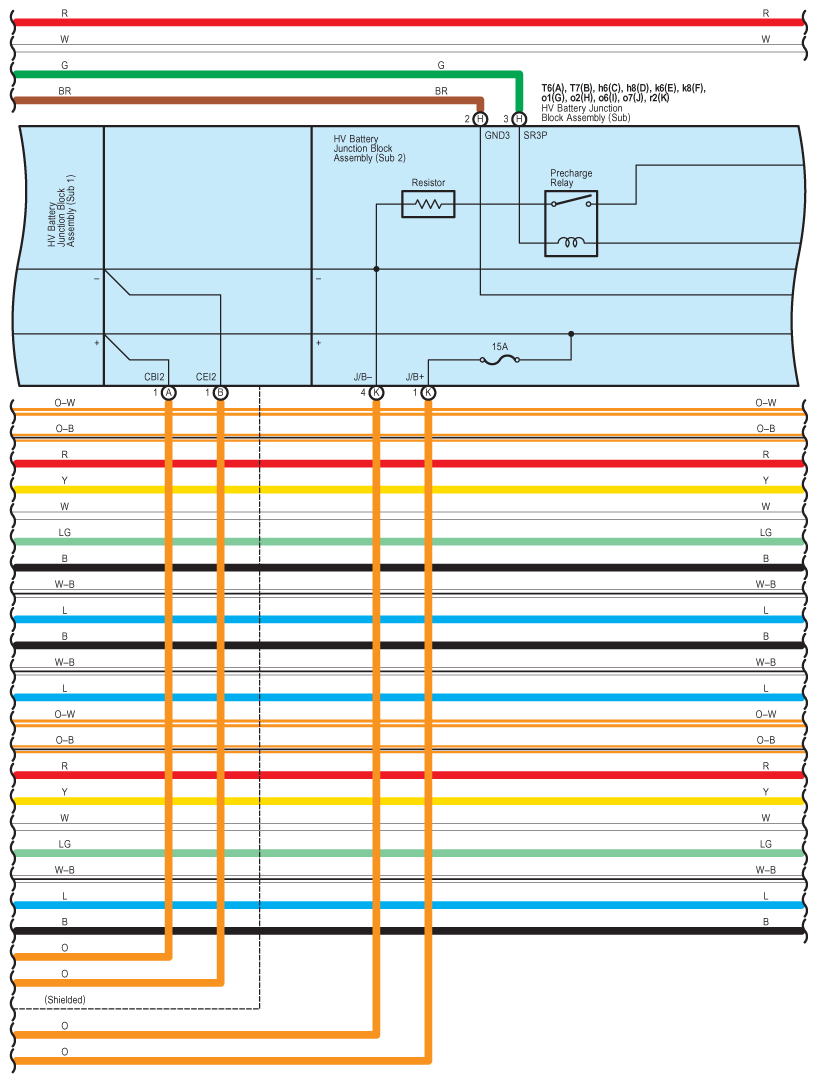

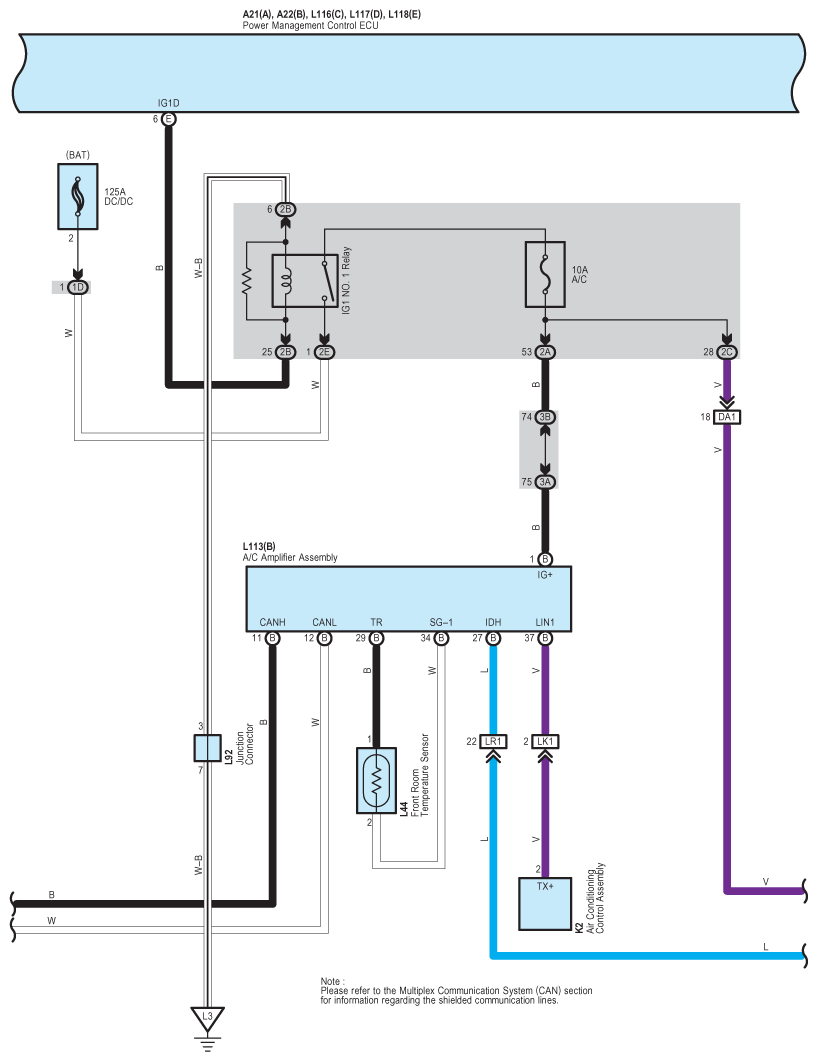

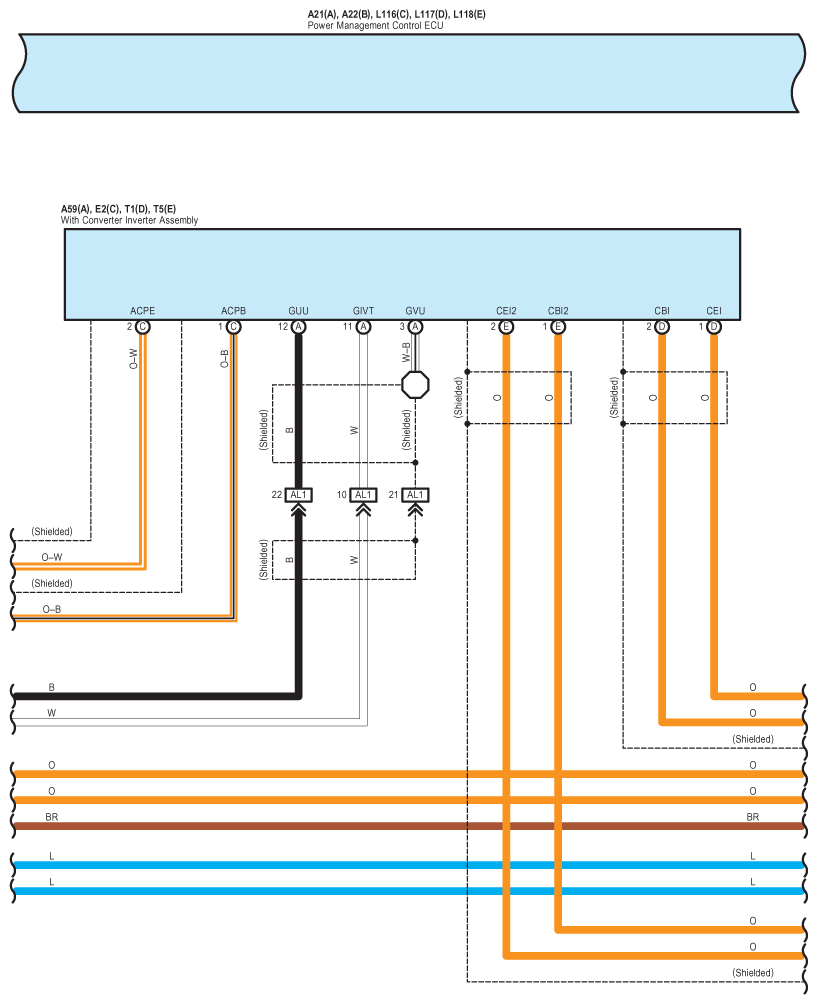

Fig 4: Remote Air Conditioning System - Circuit Diagram (4 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

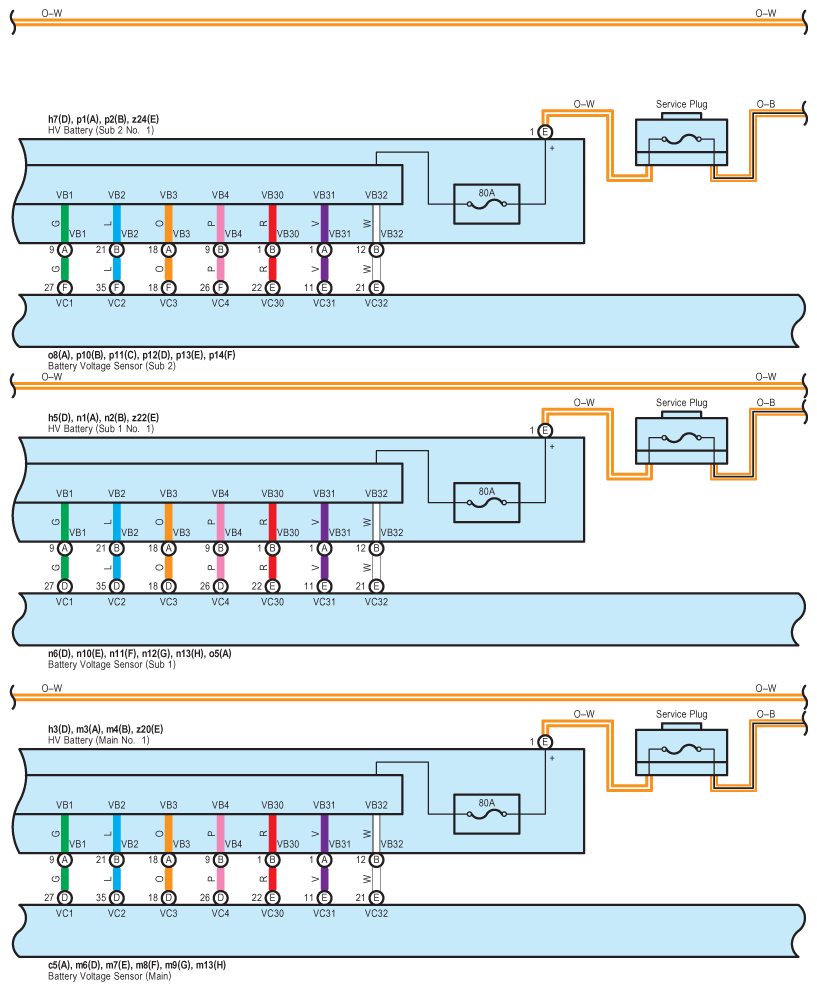

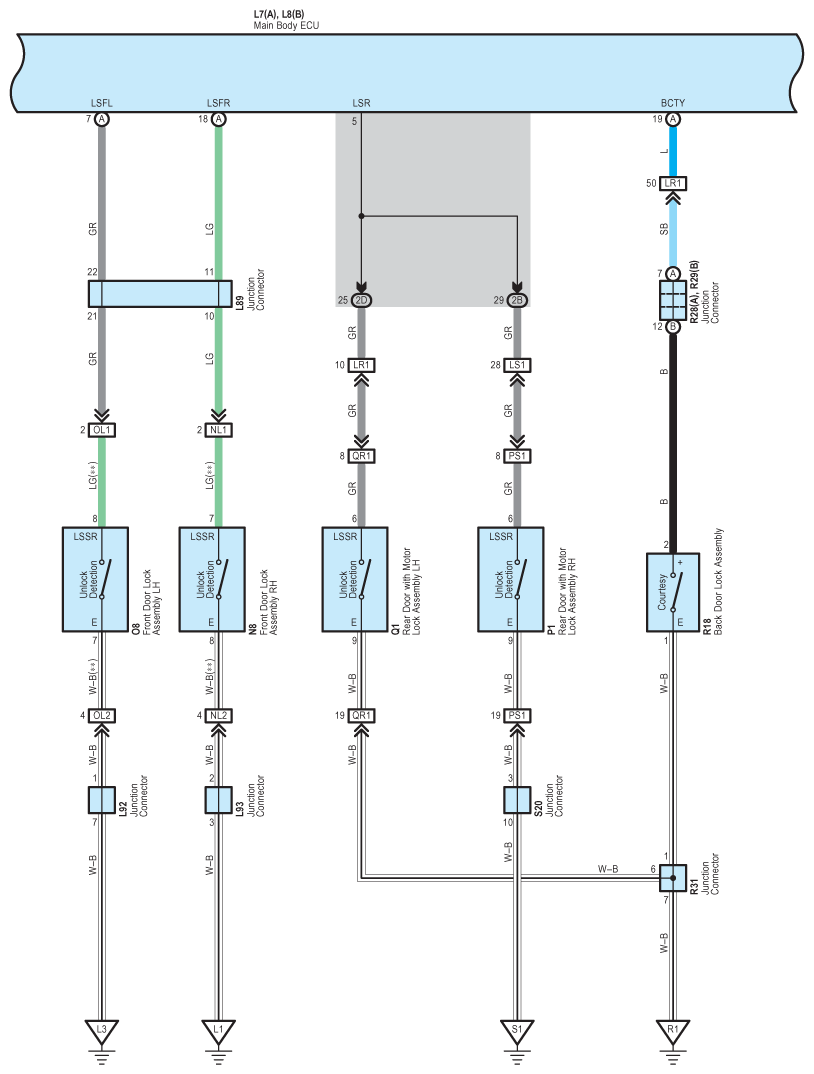

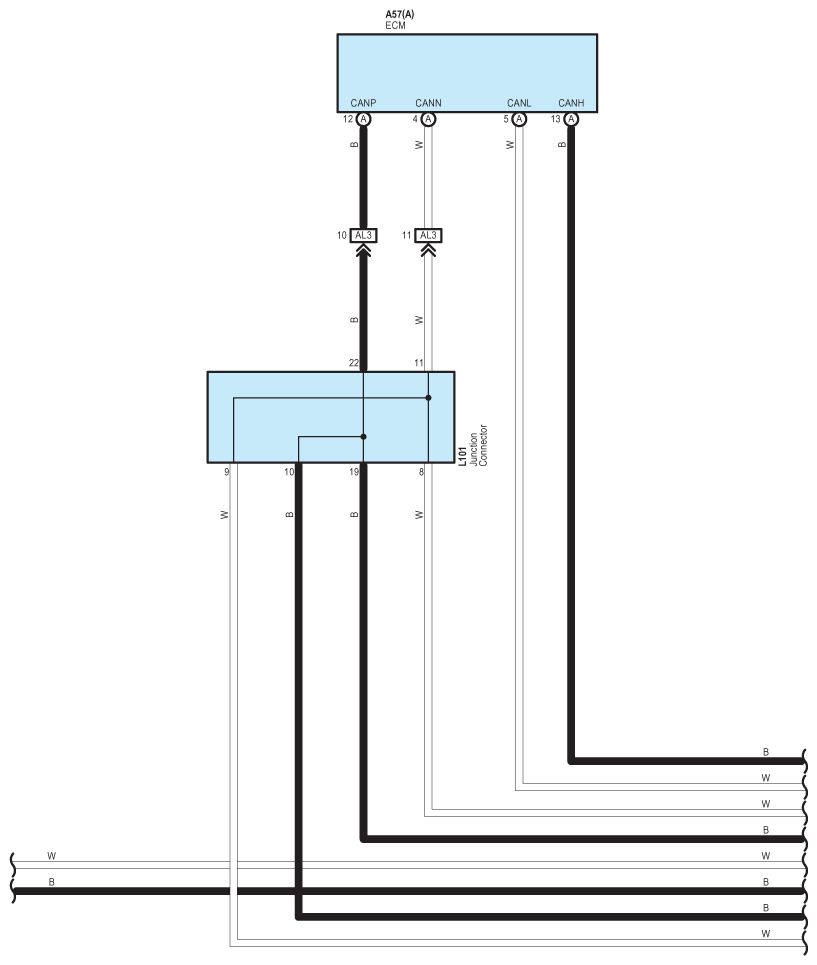

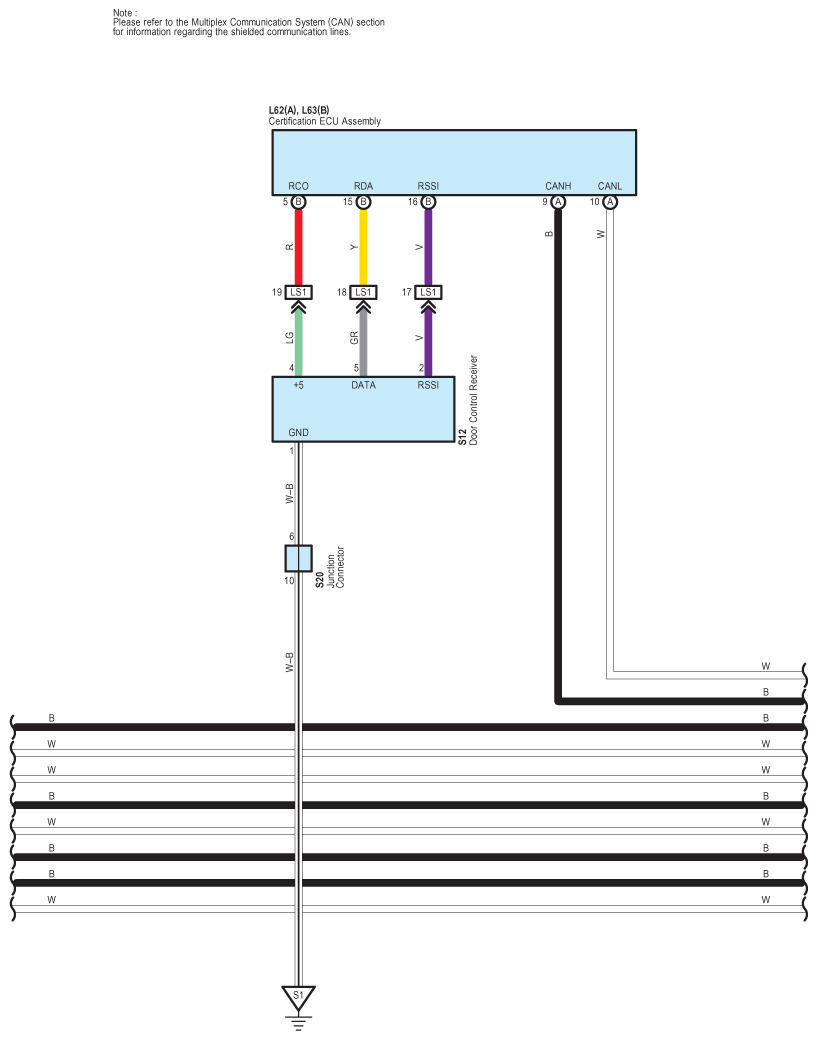

Fig 5: Remote Air Conditioning System - Circuit Diagram (5 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

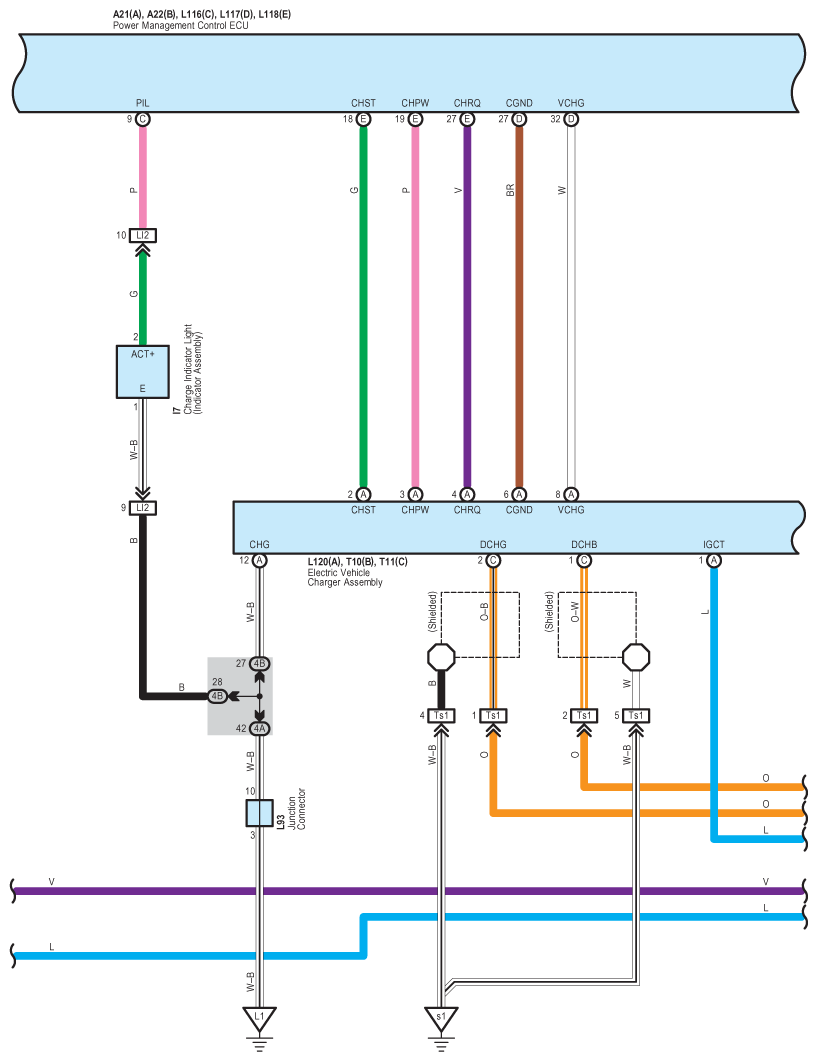

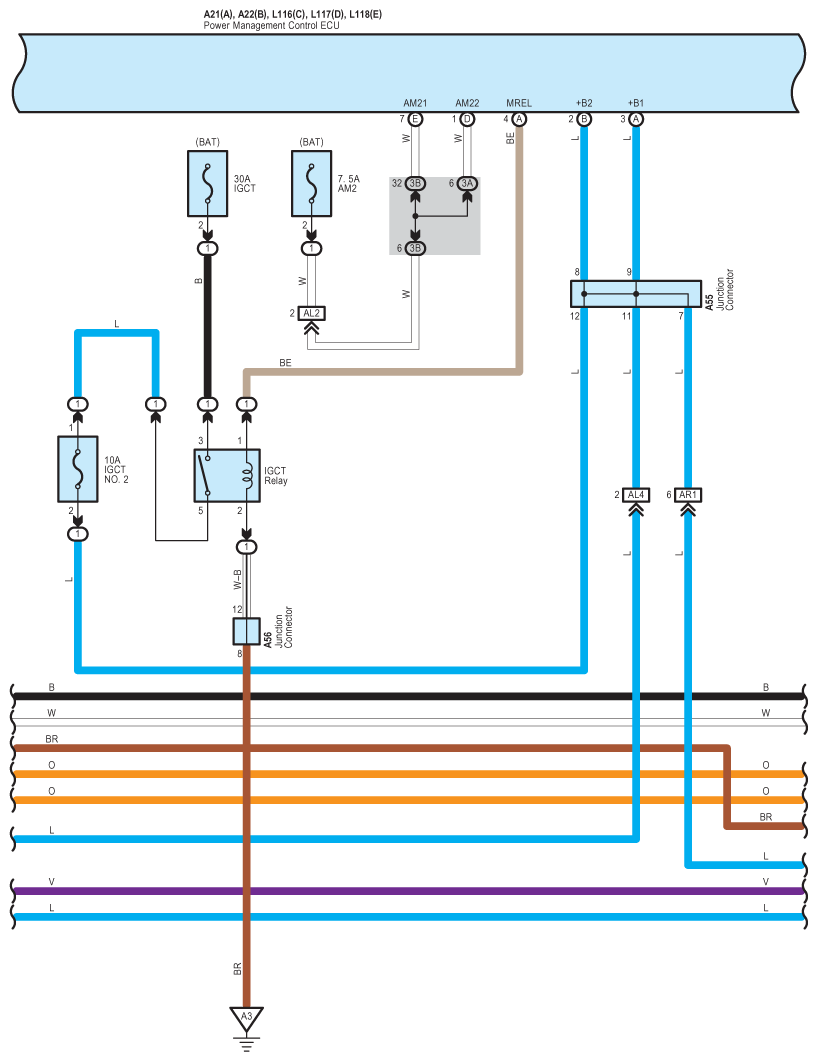

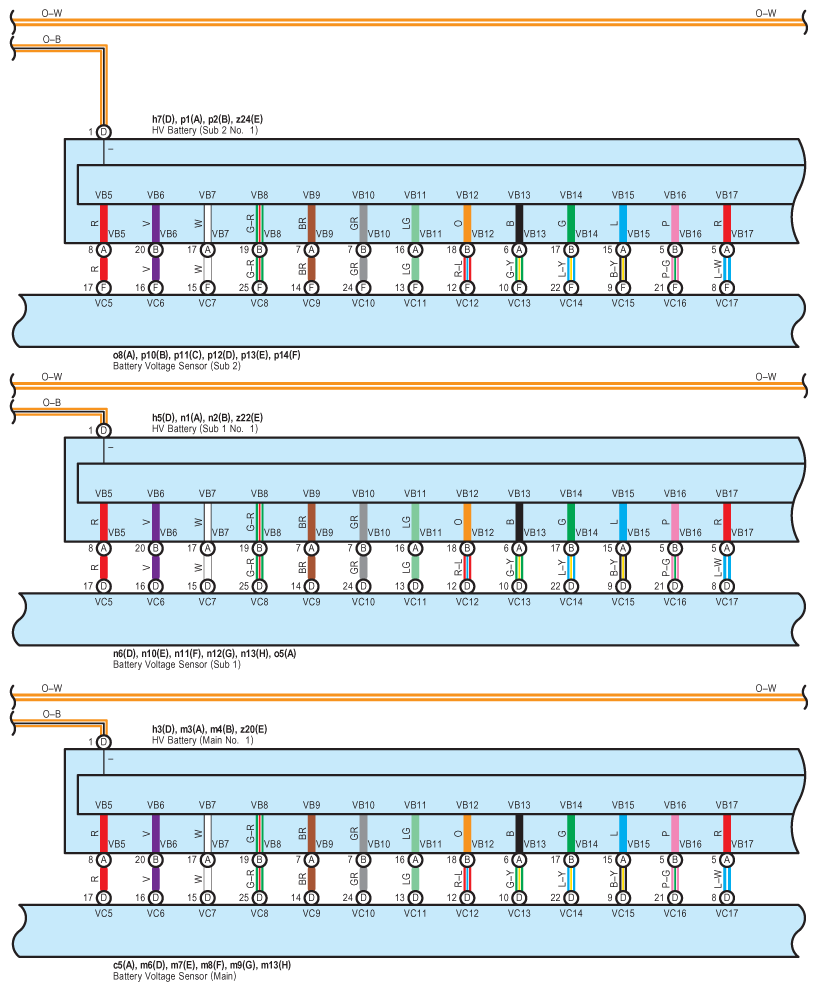

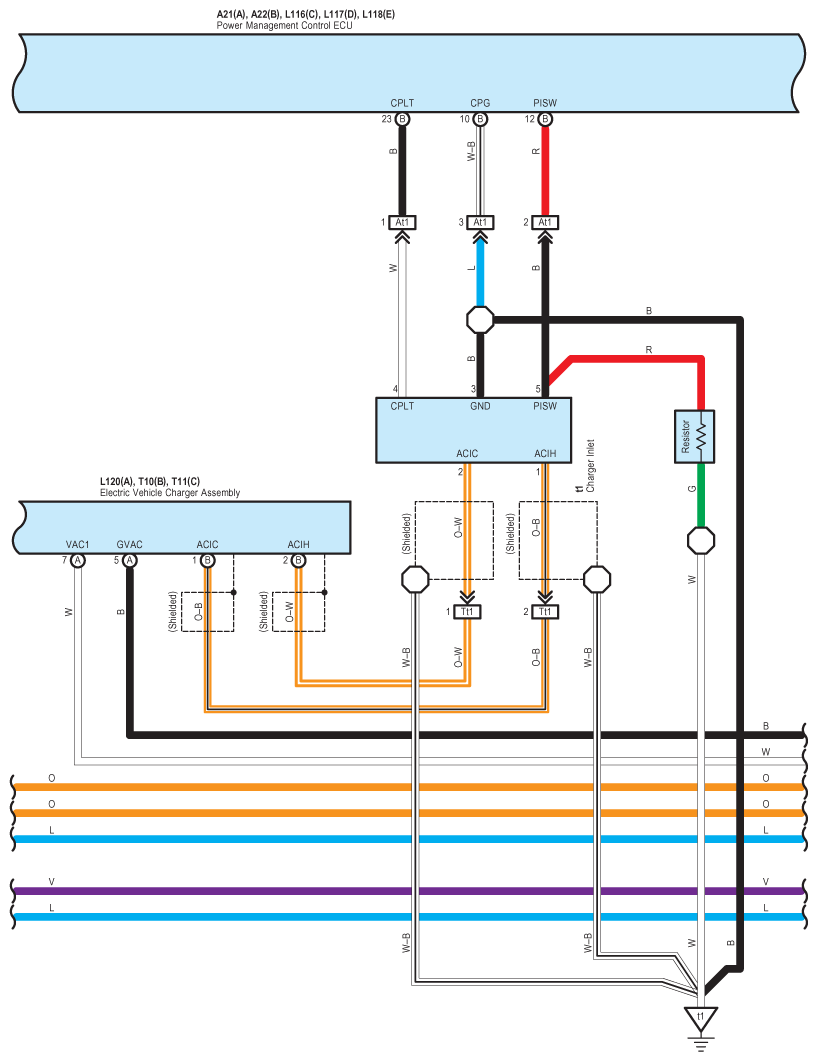

Fig 6: Remote Air Conditioning System - Circuit Diagram (6 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

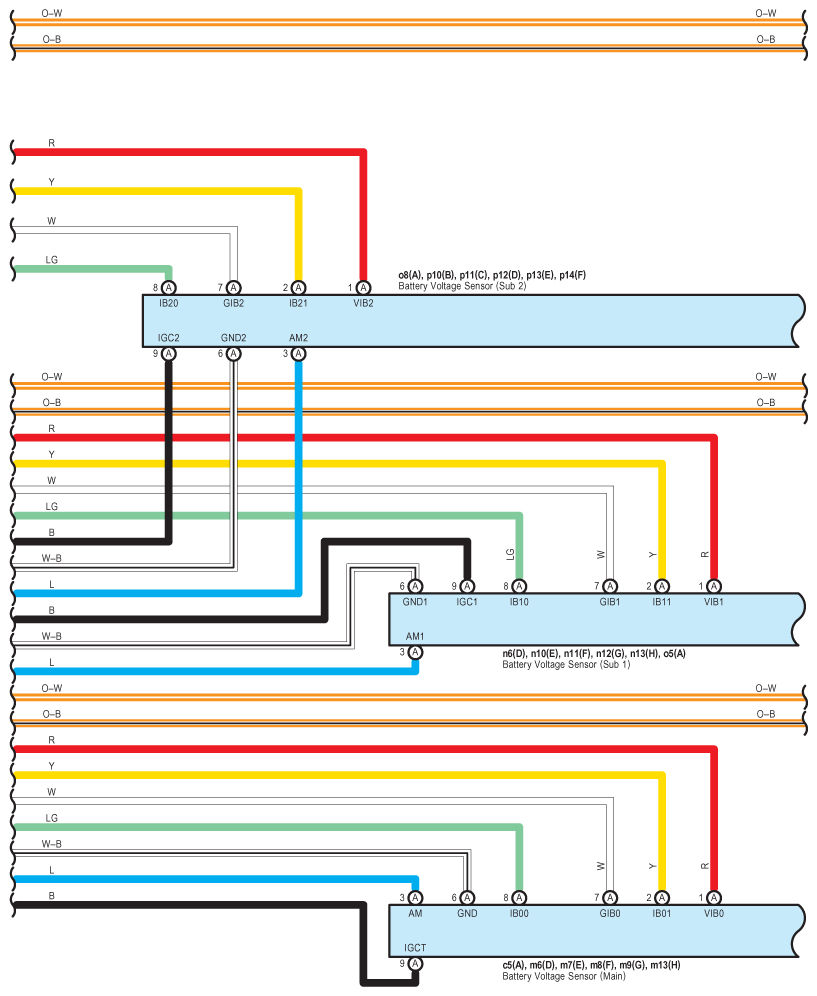

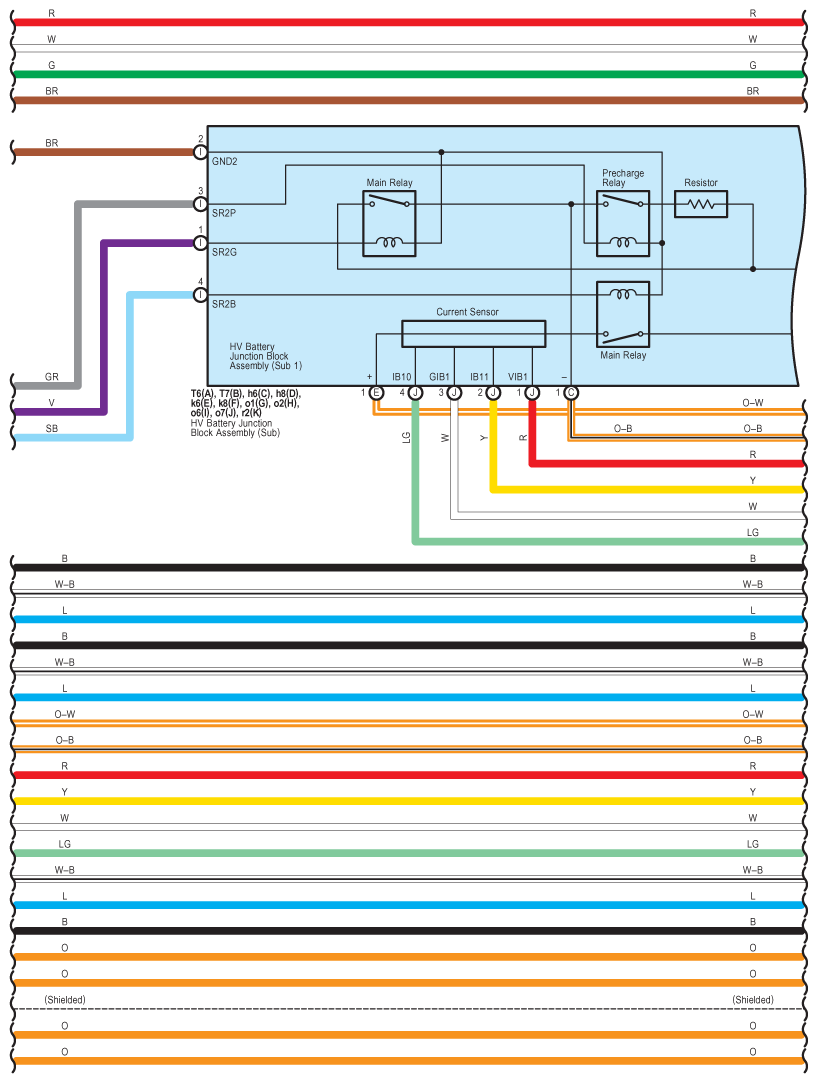

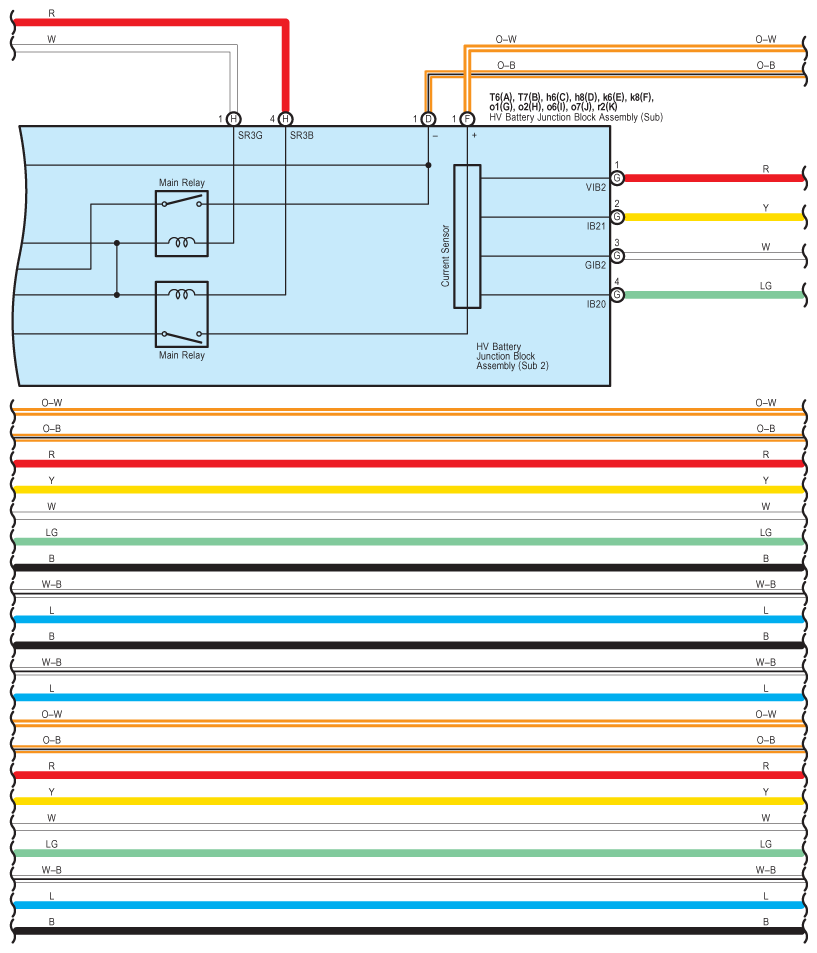

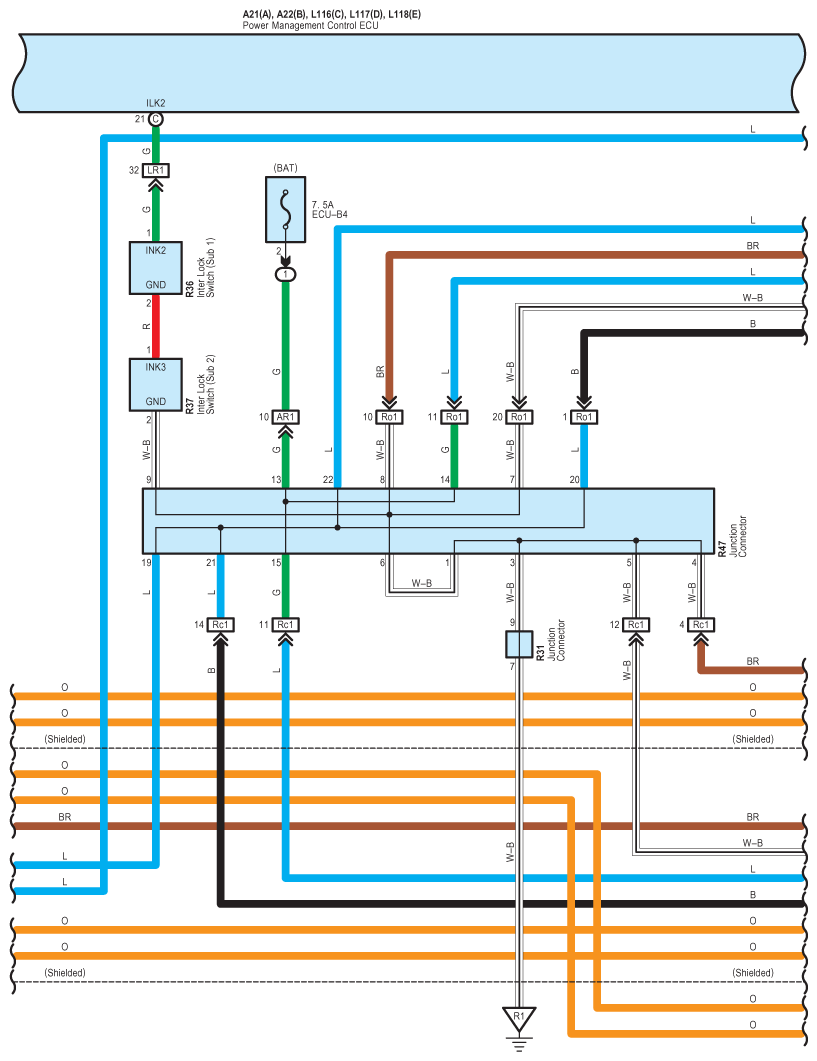

Fig 7: Remote Air Conditioning System - Circuit Diagram (7 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

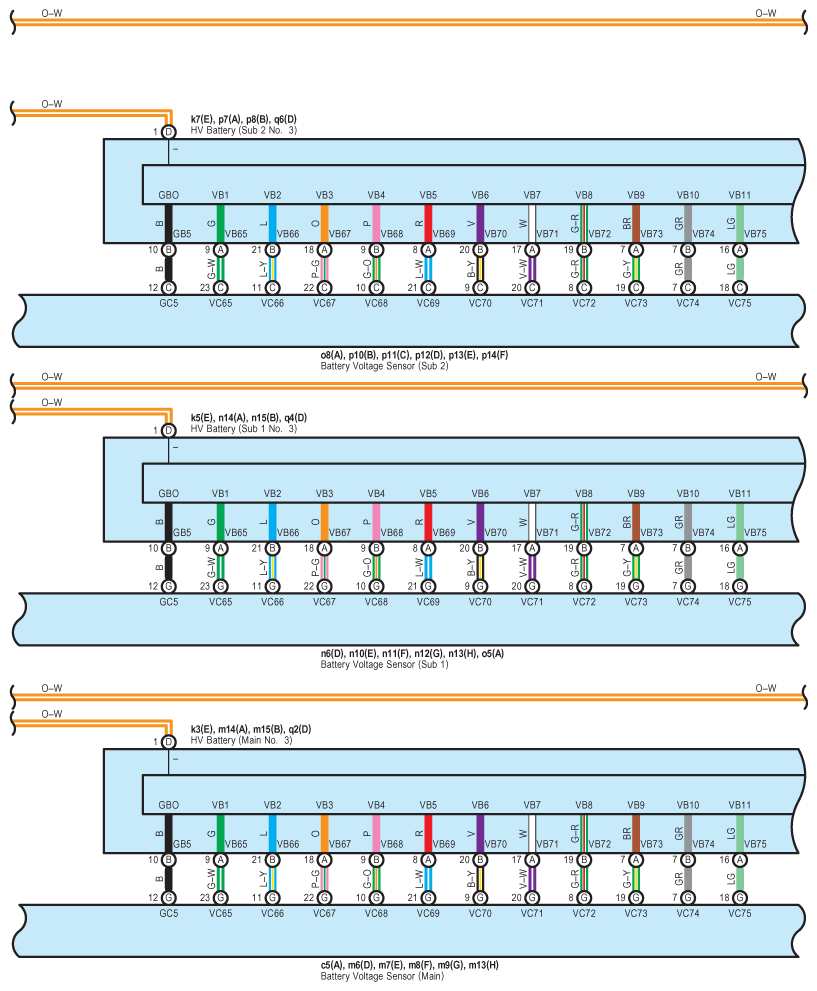

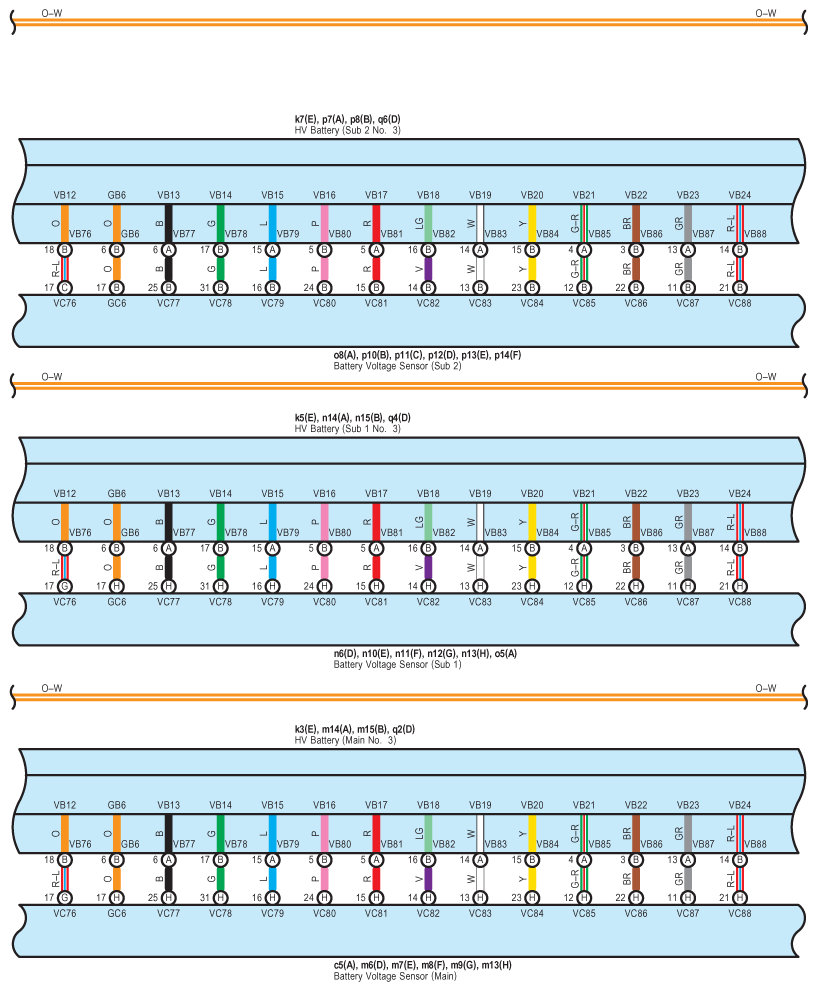

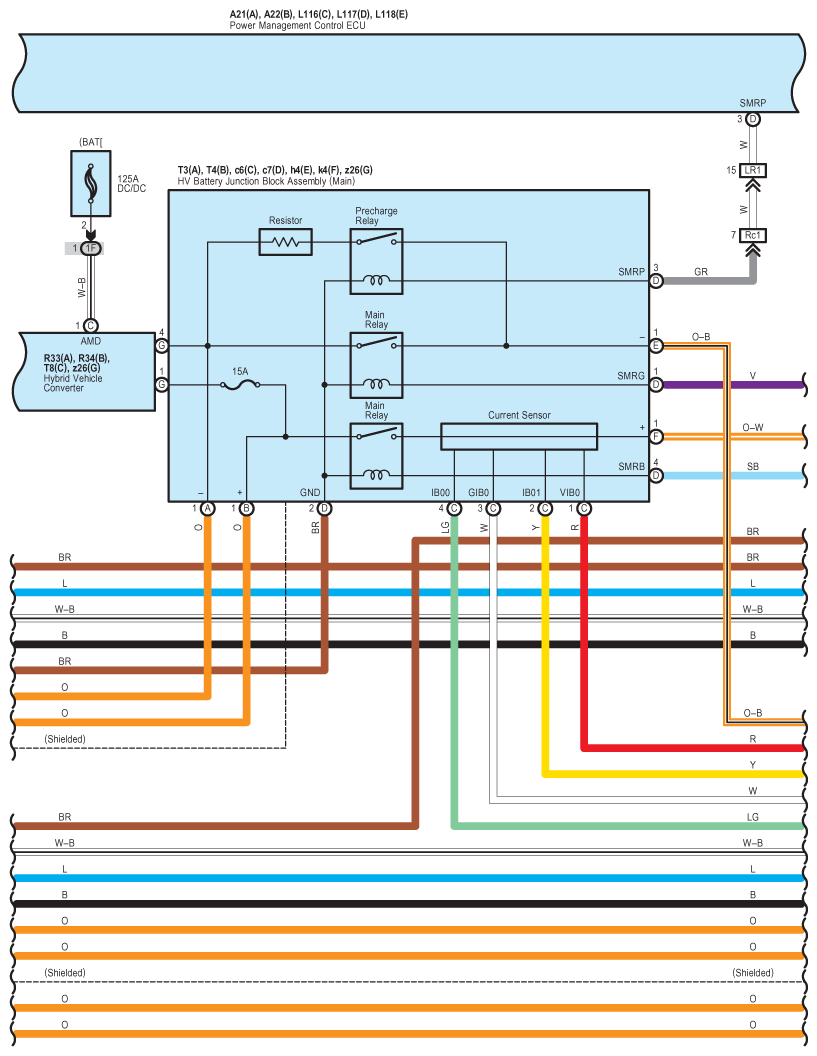

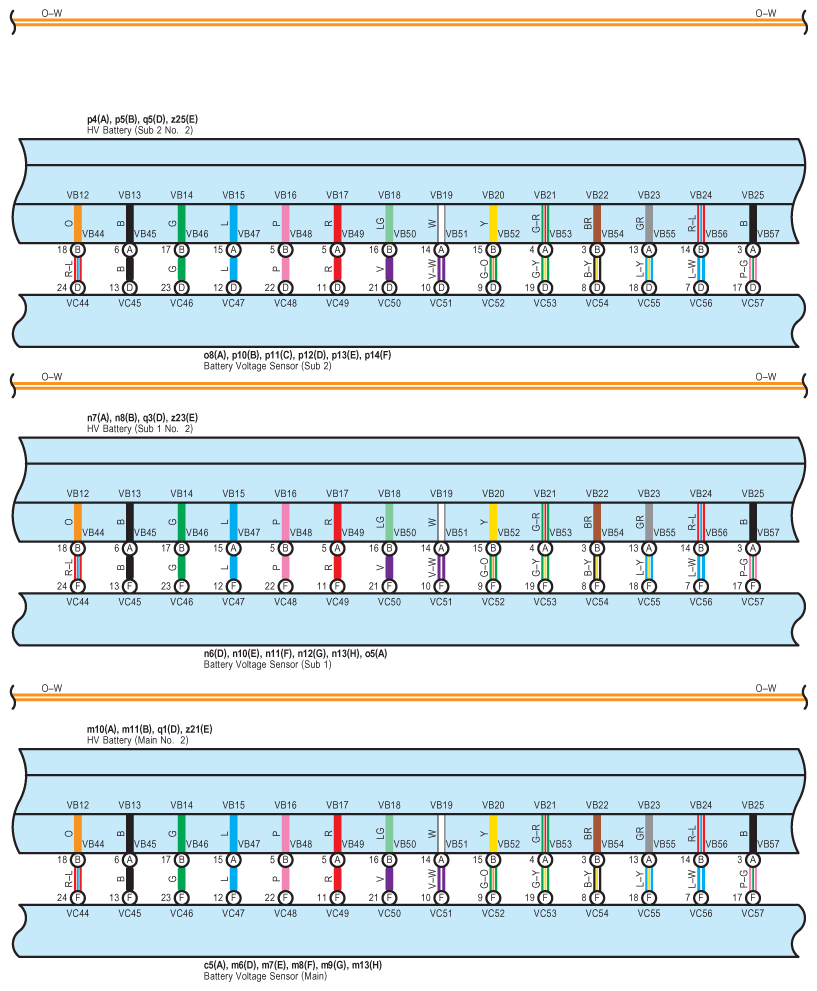

Fig 8: Remote Air Conditioning System - Circuit Diagram (8 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Remote Air Conditioning System - Circuit Diagram (9 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Remote Air Conditioning System - Circuit Diagram (10 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Remote Air Conditioning System - Circuit Diagram (11 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Remote Air Conditioning System - Circuit Diagram (12 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Remote Air Conditioning System - Circuit Diagram (13 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Remote Air Conditioning System - Circuit Diagram (14 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Remote Air Conditioning System - Circuit Diagram (15 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Remote Air Conditioning System - Circuit Diagram (16 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Remote Air Conditioning System - Circuit Diagram (17 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Remote Air Conditioning System - Circuit Diagram (18 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Remote Air Conditioning System - Circuit Diagram (19 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Remote Air Conditioning System - Circuit Diagram (20 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Remote Air Conditioning System - Circuit Diagram (21 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Remote Air Conditioning System - Circuit Diagram (22 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 23: Remote Air Conditioning System - Circuit Diagram (23 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 24: Remote Air Conditioning System - Circuit Diagram (24 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 25: Remote Air Conditioning System - Circuit Diagram (25 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 26: Remote Air Conditioning System - Circuit Diagram (26 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 27: Remote Air Conditioning System - Circuit Diagram (27 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 28: Remote Air Conditioning System - Circuit Diagram (28 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 29: Remote Air Conditioning System - Circuit Diagram (29 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 30: Remote Air Conditioning System - Circuit Diagram (30 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 31: Remote Air Conditioning System - Circuit Diagram (31 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 32: Remote Air Conditioning System - Circuit Diagram (32 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 33: Remote Air Conditioning System - Circuit Diagram (33 Of 33)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
