DTC B2284: Brake Signal Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

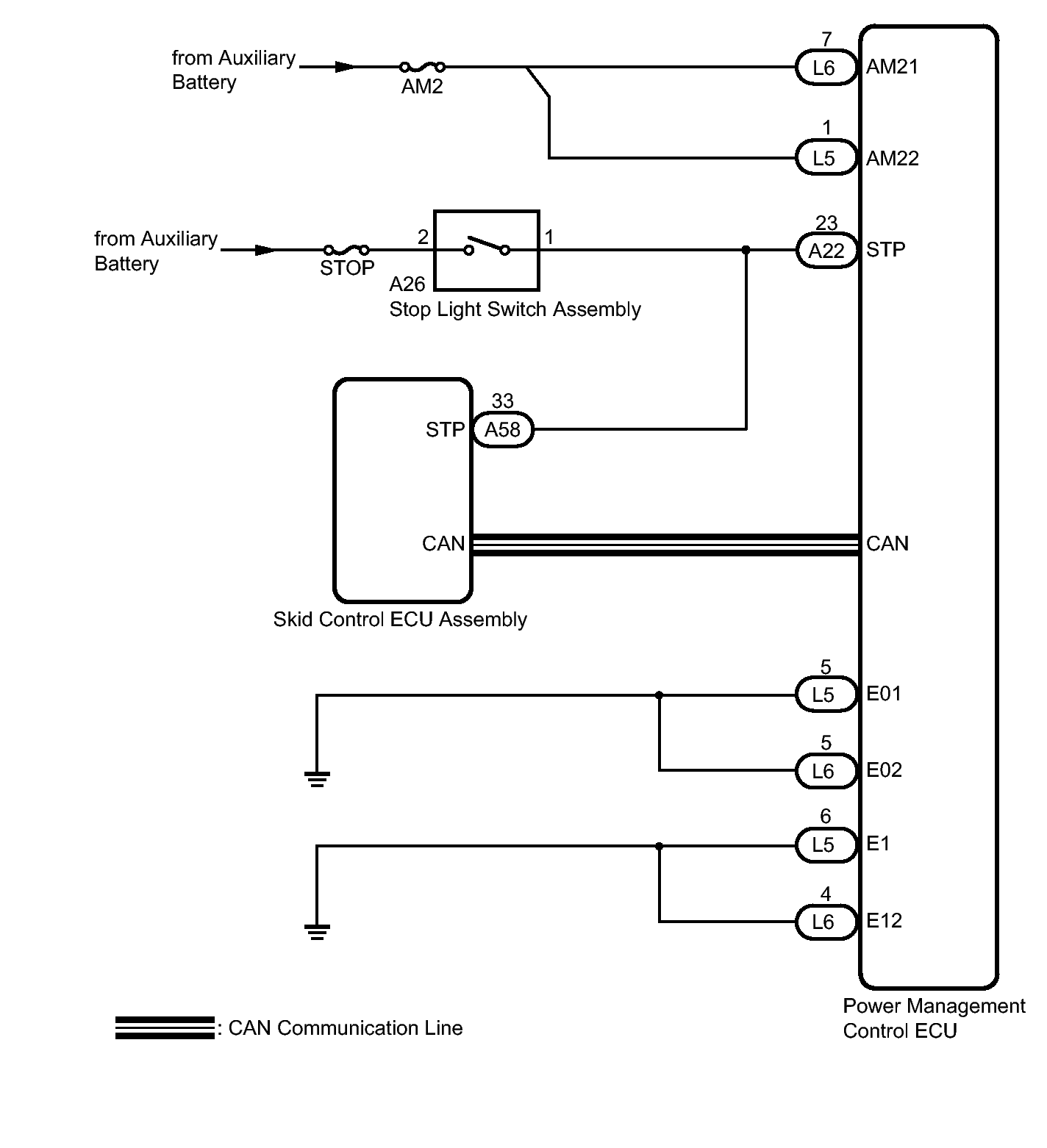

Fig 1: View Of Power Management Control ECU Wiring Diagram
GTY227488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
