Section 118 (Smart Key System (Entry Function) (Diagnostics - Introduction) (Except PHV))
>>
SMART KEY SYSTEM (for Entry Function)
>>
Parts Location
>>
Illustration
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

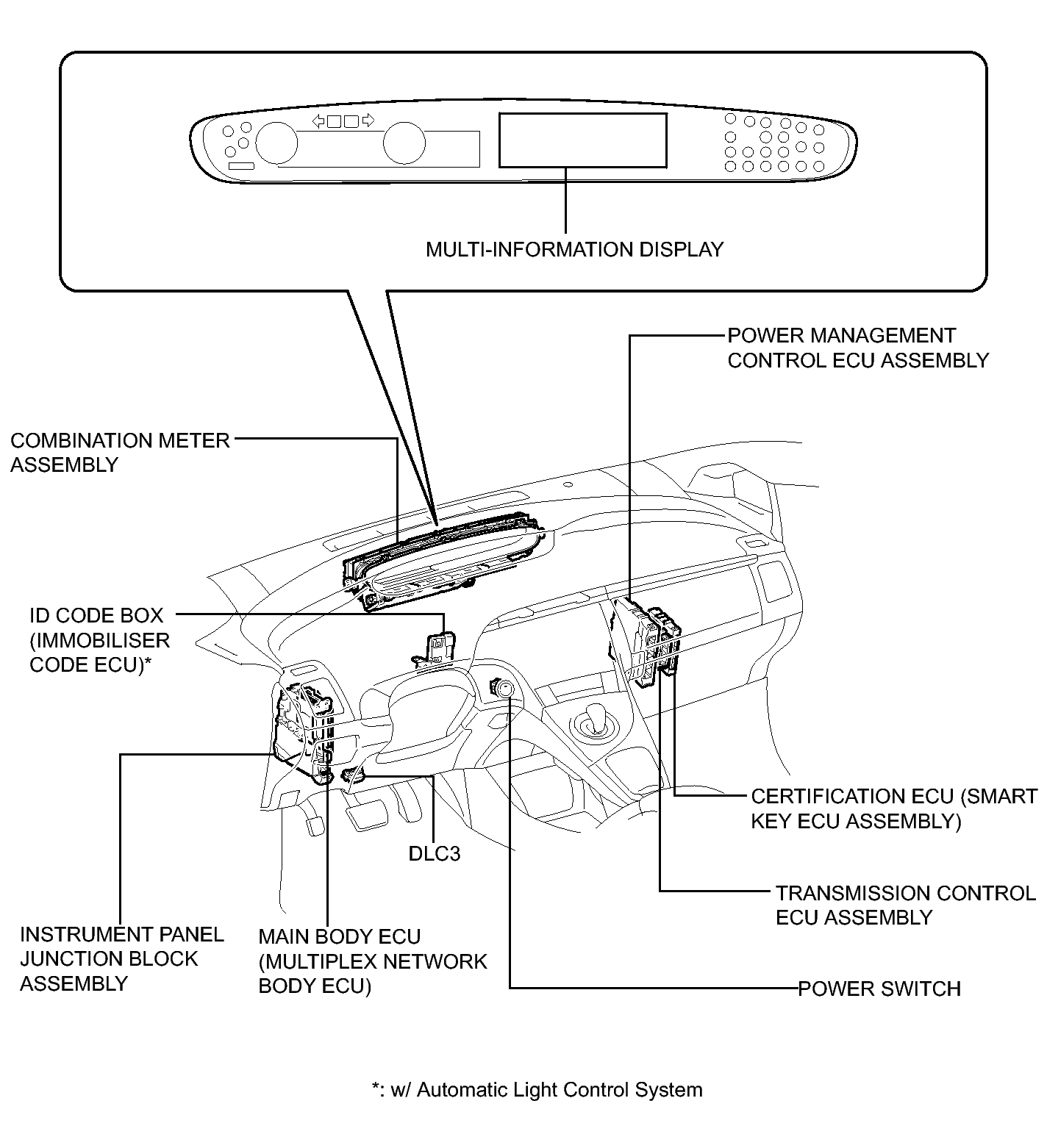

Fig 1: Identifying Smart Key System Parts Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Smart Key System Parts Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Smart Key System Parts Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
