Camshaft Position Sensor: Components: Illustration

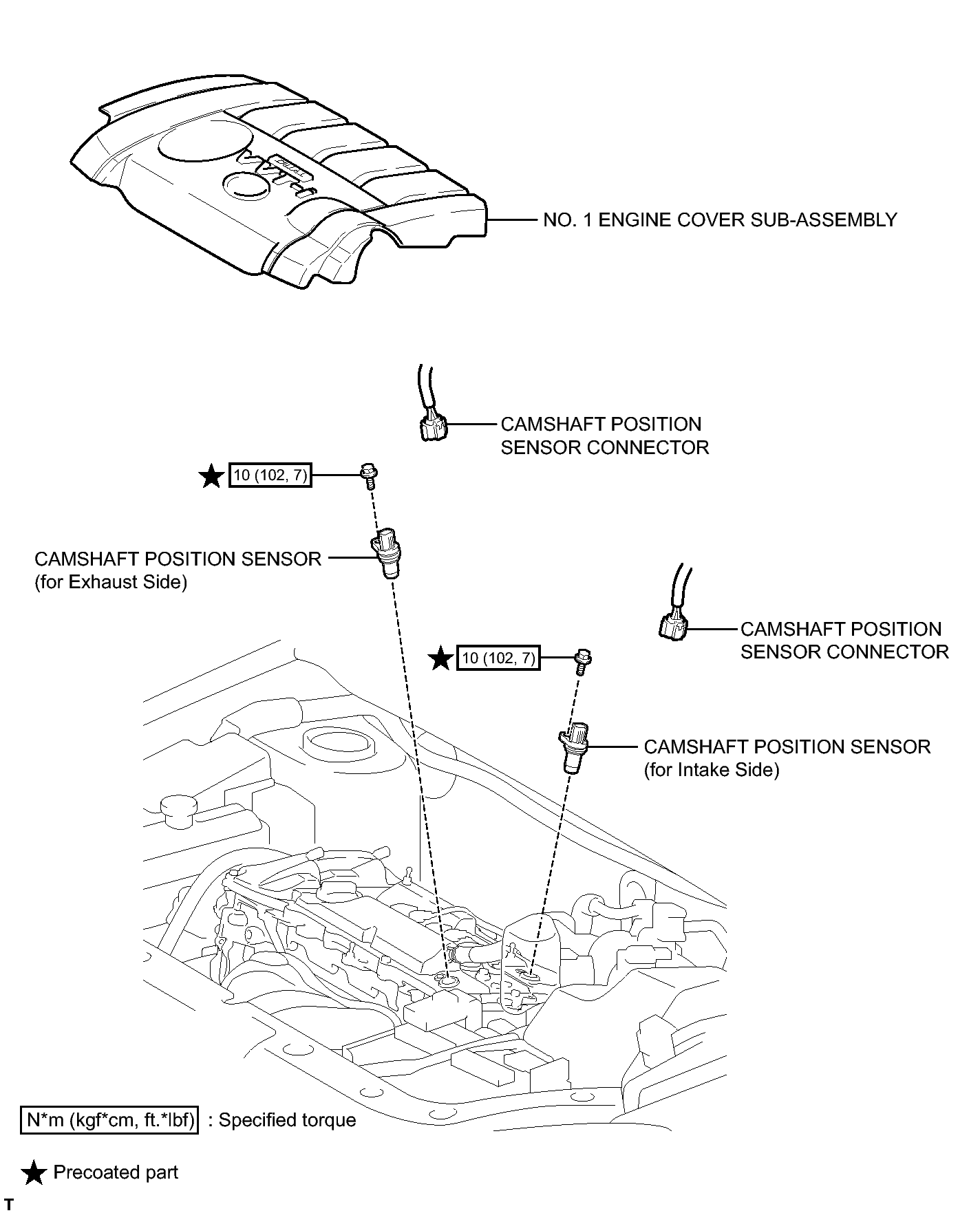

Fig 1: Identifying Camshaft Position Sensor Replacement Components And Torque Specifications
GTY238539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
