On-Vehicle Inspection

  1. INSPECT IG1 RELAY
    1. Remove the IG1 relay from the instrument panel junction block.
    2. Measure the resistance according to the value(s) in the table below.

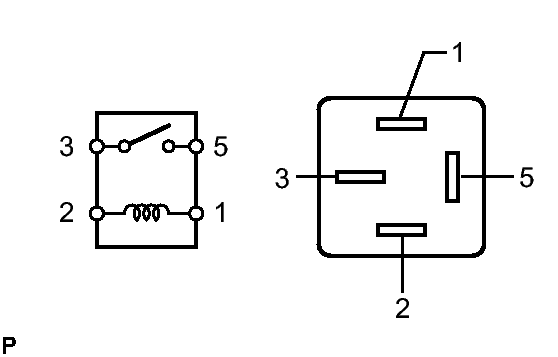

      Fig 1: IG1 Relay Circuit Diagram
      GTY219184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage is not applied to terminals 1 and 2 10 kΩ or higher
      3 - 5 Battery voltage is applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the IG1 relay.

    3. Install the IG1 relay to the instrument panel junction block.
