Throttle Body: Components: Illustration

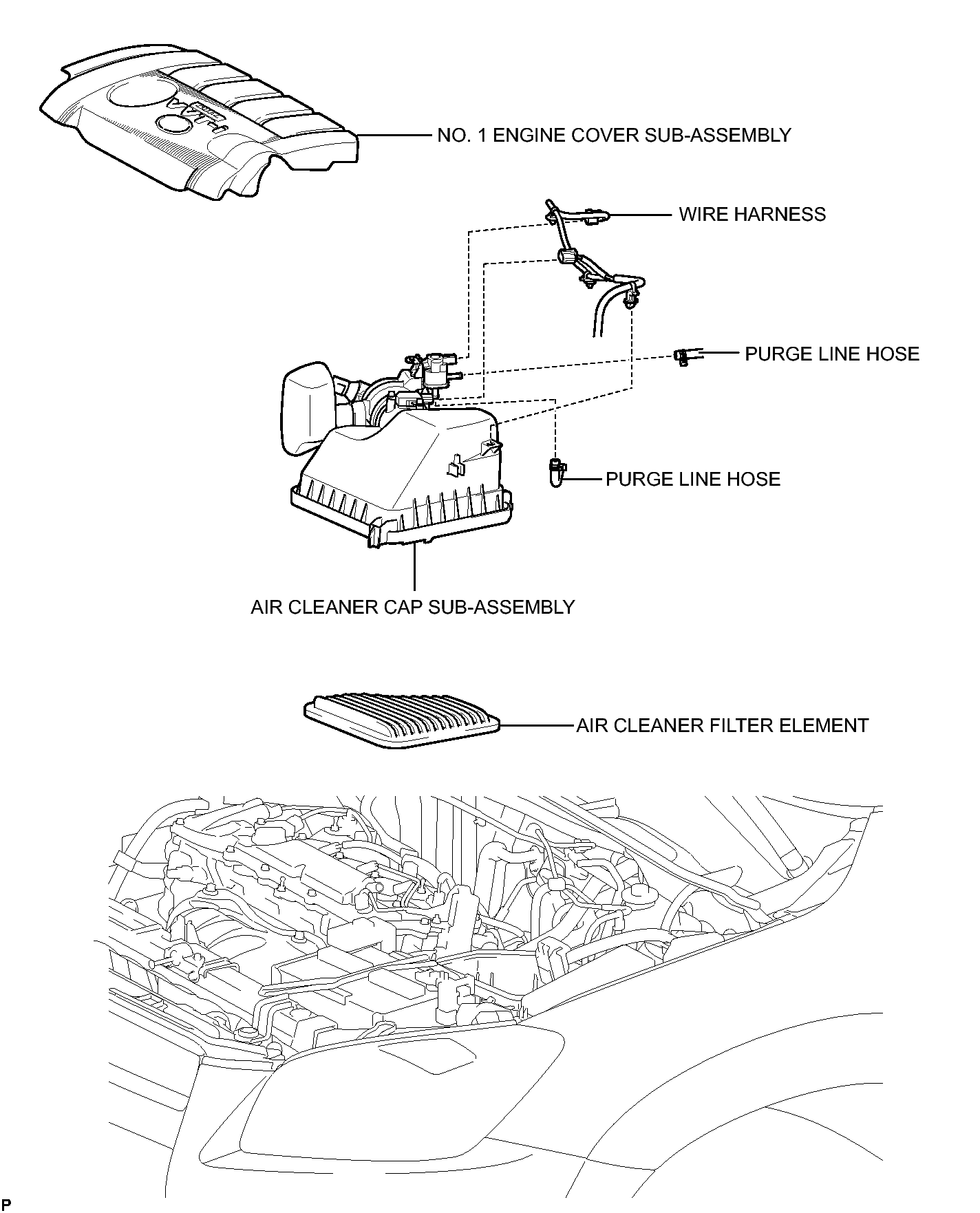

Fig 1: Identifying Throttle Body Replacement Components (1 Of 2)
GTY238505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

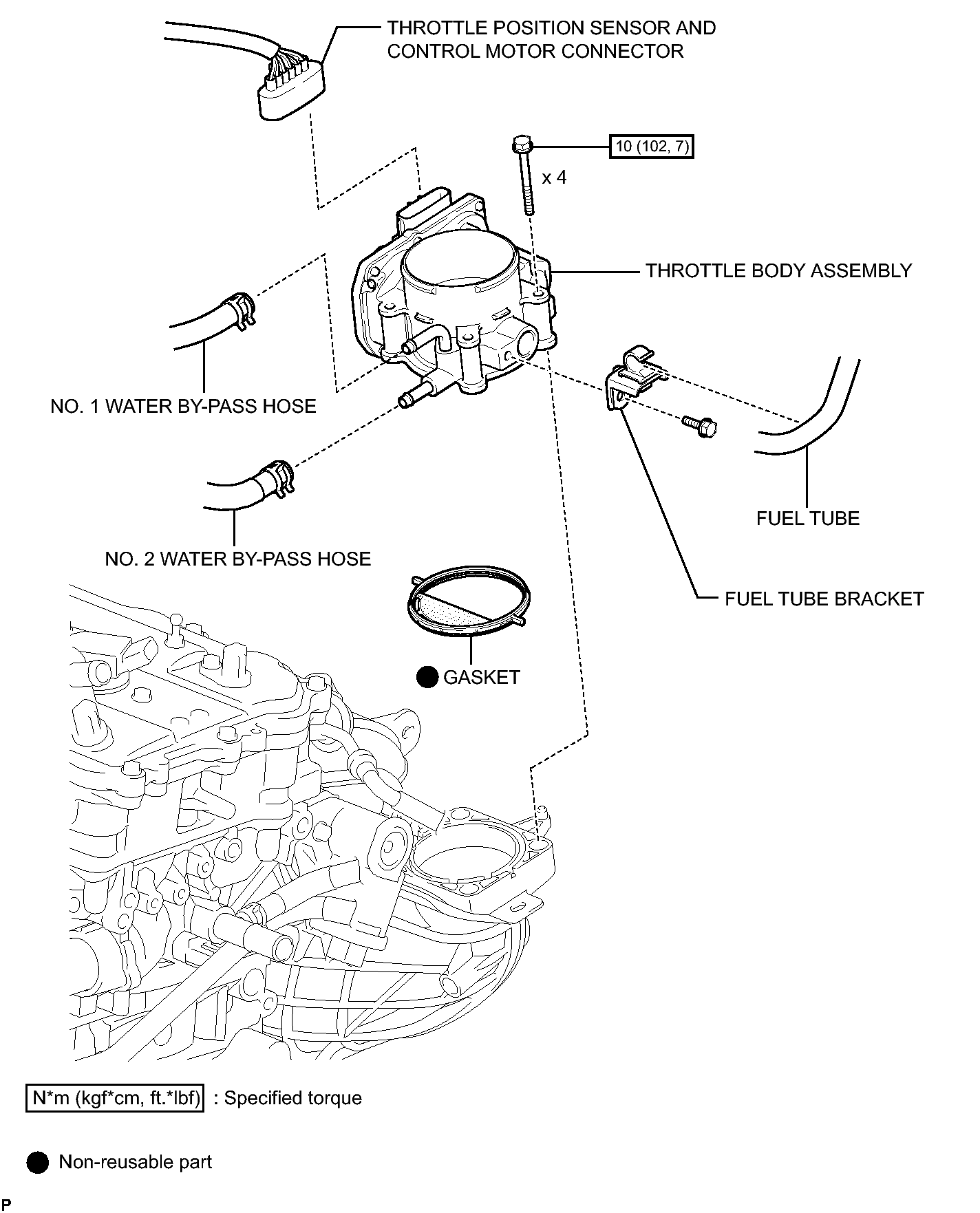

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 2)
GTY233854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
