Back Door Entry Lock and Unlock Functions do not Operate: Procedure
- CHECK POWER DOOR LOCK OPERATION
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK
.
OK
Door locks operate normally.
NG → See step 6
OK: Go to next step
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK
.
- CHECK WAVE ENVIRONMENT
- Bring the electrical key transmitter approximately 0.3 m (0.984 ft.) from the electrical key antenna (outside luggage) and perform an entry back door unlock function check. Refer to OPERATION CHECK
.NOTE:
If the key is brought within 0.2 m (0.656 ft.) of the rear bumper, communication may not possible.
HINT:
If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
OK
Entry function operates normally.
NG → See step 3
OK → AFFECTED BY WAVE INTERFERENCE
- Bring the electrical key transmitter approximately 0.3 m (0.984 ft.) from the electrical key antenna (outside luggage) and perform an entry back door unlock function check. Refer to OPERATION CHECK
.
- CHECK ELECTRICAL KEY ANTENNA IN KEY DIAGNOSTIC MODE
- Check the following antenna in the key diagnostic mode. Refer to SYSTEM DESCRIPTION
.
- Check the electrical key antenna (outside luggage).
When the electrical key transmitter is brought within 0.7 to 1.0 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage), check that the wireless door lock buzzer sounds.
OK
Wireless door lock buzzer sounds.
- Check the electrical key antenna (outside luggage).
NG → See step 4
OK → See step 7
- Check the following antenna in the key diagnostic mode. Refer to SYSTEM DESCRIPTION
.
- CHECK HARNESS AND CONNECTOR (ELECTRICAL KEY ANTENNA - CERTIFICATION ECU)
- Disconnect the N21 antenna connector.
- Disconnect the F78 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N21-1 (CLG5) - F78-19 (CLG8) Always Below 1 Ω N21-2 (CLGB) - F78-20 (CG8B) Always Below 1 Ω F78-19 (CLG8) - Body ground Always 10 kΩ or higher F78-20 (CG8B) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step

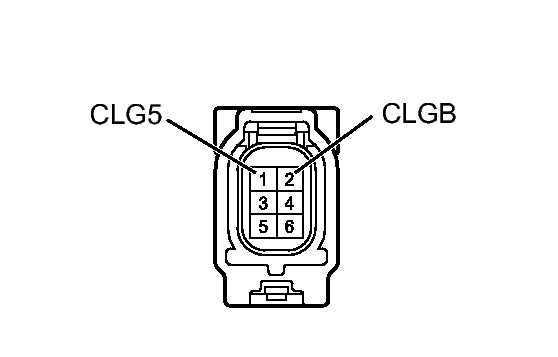

- INSPECT ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE)
- Remove the electrical key antenna (outside luggage). Refer to REMOVAL .
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 (CLG5) - 2 (CLGB) Always Below 1 Ω
NG → See step 8
OK → See step 9
- GO TO POWER DOOR LOCK CONTROL SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
- REPLACE CERTIFICATION ECU. Refer to REMOVAL
- REPLACE ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE). Refer to REMOVAL
- REPLACE CERTIFICATION ECU. Refer to REMOVAL
