Driver Side Door Entry Lock and Unlock Functions do not Operate: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK .

   OK

   Door locks operate normally.

NG → See step   7

OK: Go to next step

1. Bring the electrical key transmitter approximately 0.3 m (0.984 ft.) from the door outside handle (for driver side) and perform a driver side door entry lock and unlock operation check. Refer to OPERATION CHECK .
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the driver side door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   Entry function operates normally.

NG → See step   3

OK → AFFECTED BY WAVE INTERFERENCE

1. Disconnect the M1 handle connector.
2. Disconnect the F79 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M1-3 (ANT2) - F79-4 (CG1B)	Always	Below 1 Ω
   M1-6 (ANT1) - F79-3 (CLG1)	Always	Below 1 Ω
   M1-5 (B) - F79-32 (POS1)	Always	Below 1 Ω
   M1-2 (GND) - Body ground	Always	Below 1 Ω
   F79-4 (CG1B) - Body ground	Always	10 kΩ or higher
   F79-3 (CLG1) - Body ground	Always	10 kΩ or higher
   F79-32 (POS1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the M1 handle connector.

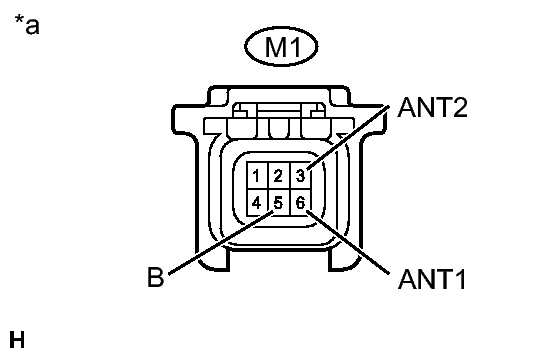

   Fig 1: Identifying M1 Handle Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   M1-3 (ANT2) - M1-6 (ANT1)	Engine switch off, all doors closed, key not in cabin and transmitter lock switch not pressed → pressed	No pulse generation → Pulse generation
   M1-5 (B) - Body ground	Engine switch off → on (IG)	9 to 14 V → Below 2 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Front Door Outside Handle Assembly [for Driver Side])

NG → See step   8

OK: Go to next step

1. Temporarily replace the front door outside handle assembly (for driver side) with a new or normally functioning one. Refer to DISASSEMBLY .

NEXT: Go to next step

1. Check that the entry functions operate normally. Refer to OPERATION CHECK .

   OK

   Entry functions operate normally.

NG → See step   8

OK → END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY IS DEFECTIVE)
