Engine Control System (2GR-FE) (Service Information): ECM: Components: Illustration

Fig 1: Identifying ECM Replacement Components With Torque Specifications (1 Of 2)
GTY238589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

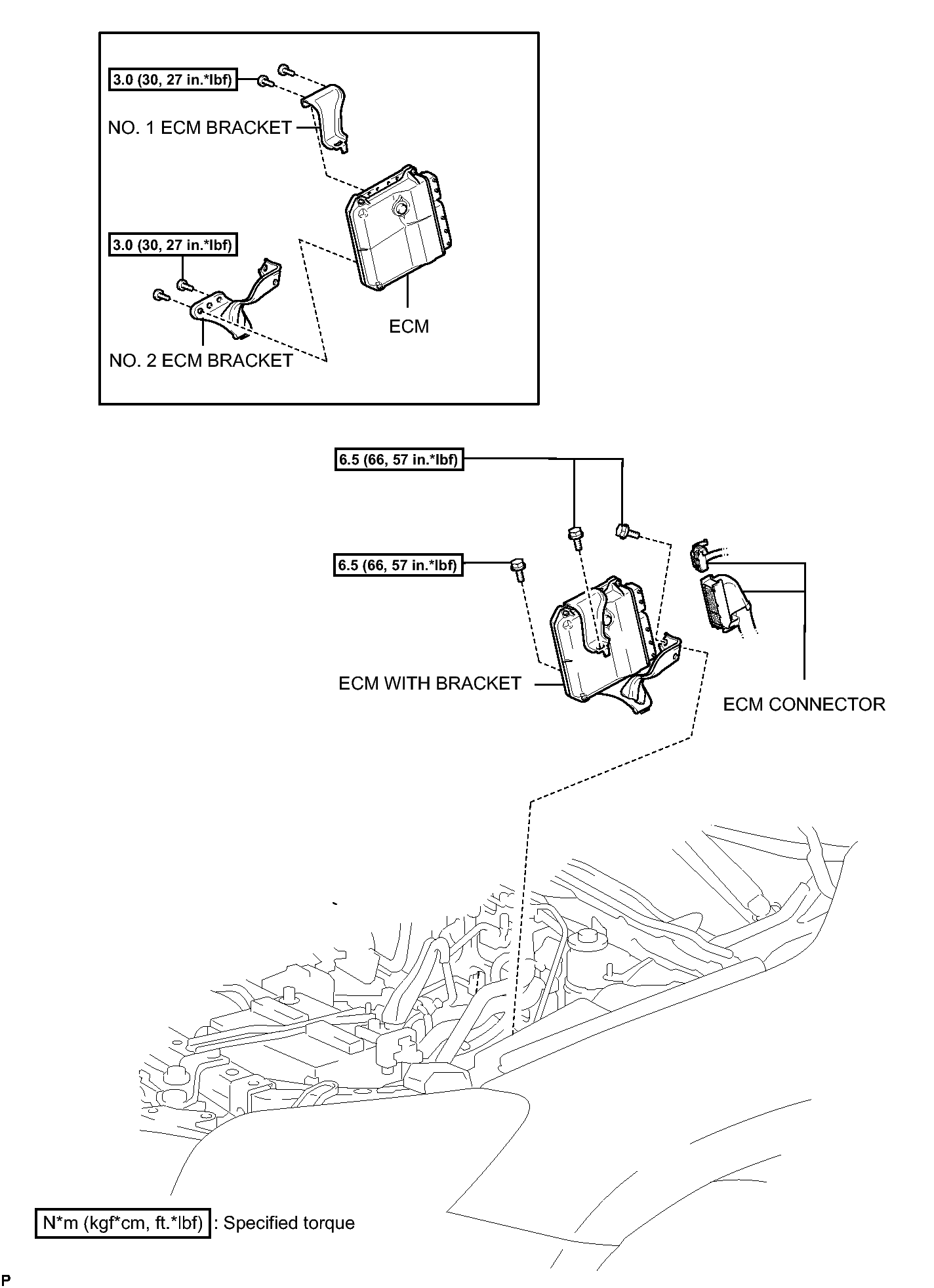

Fig 1: Identifying ECM Replacement Components With Torque Specifications (2 Of 2)
GTY237411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
