Accelerator Pedal Rod: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY
    1. Install the accelerator pedal sensor with the 2 bolts.

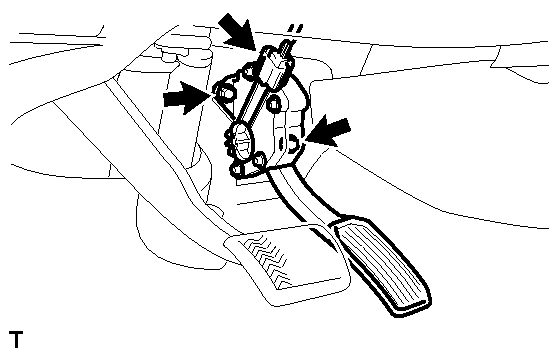

      Fig 1: Locating Bolts And Accelerator Pedal Sensor
      GTY238546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Connect the accelerator pedal sensor connector.
