Manual Up / Down and Auto Down Function does not Operate on Driver Side: Procedure

1. Remove the fuse from the driver side J/B.
2. Check the resistance.

   Standard resistance

   Below 1 Ω

OK → REPLACE FUSE

NG: Go to next step

1. Turn the ignition switch ON.

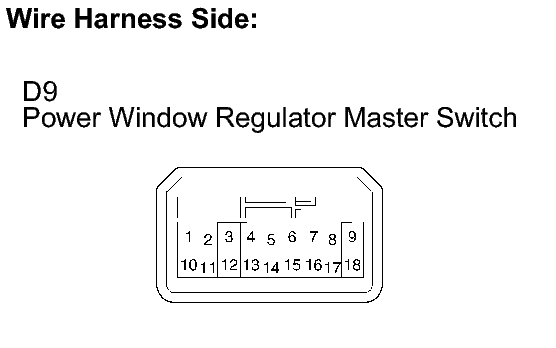

   Fig 1: Identifying D9 Power Window Regulator Master Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the voltage between the terminal of the wire harness side connector and the body ground.

   Standard voltage

   Terminal No.	Condition	Specified Condition
   D9-7 (BW) - Body ground	Ignition switch ON	10 to 14 V

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR (P/W FUSE - MASTER SWITCH)

OK: Go to next step

1. Remove the master switch.

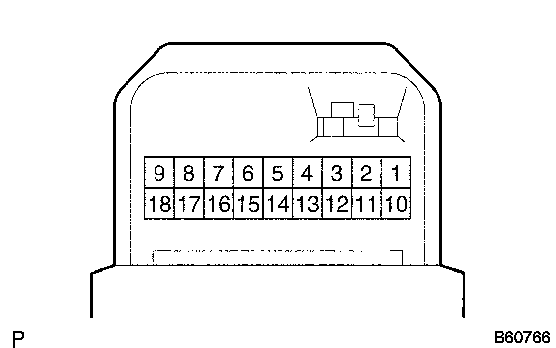

   Fig 2: Identifying Power Window Master Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the resistance between the terminals of the master switch when the AUTO (driver side) switch is operated, as shown in the table below.

   Standard resistance

   Terminal No.	AUTO Switch	Specified Condition
   1 - 9, 4 - 7	UP	Below 1 Ω
   1 - 4 - 9	OFF
   1 - 4, 7 - 9	DOWN

NG → REPLACE POWER WINDOW MASTER SWITCH

OK: Go to next step

1. Disconnect the D9 master switch connector.

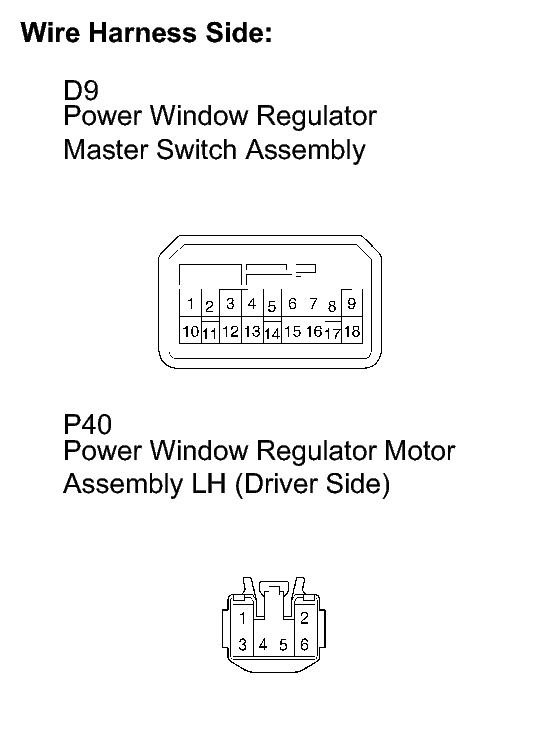

   Fig 3: Identifying D9 Master Switch And P40 Motor Connector (Driver Side) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the P40 motor connector.
3. Check the resistance between the wire harness side connectors.

   Standard resistance

   Terminal No.	Specified Condition
   D9-9 (DD) - P40-1 (DOWN)	Below 1 Ω
   D9-4 (DU) - P40-2 (UP)

4. Check the resistance between the D9 master switch connector and body ground.

   Standard resistance

   Terminal No.	Specified Condition
   D9-9 (DD) - Body ground	10 kΩ or higher
   D9-4 (DU) - Body ground

5. Reference:
   Fig 4: Identifying Power Window Regulator & Motor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Check operation of the power window motor (driver side).

   1. Remove the motor.
   2. Apply battery voltage to connector terminals 1 and 2.
   3. Check that the motor smoothly rotates.
      NOTE:

      Do not apply battery voltage to any terminals except terminals 1 and 2.

      Standard

      Terminal No.	Specified Condition
      Battery positive (+) → 1 Battery negative (-) → 2	Motor gear rotates counterclockwise
      Battery positive (+) → 2 Battery negative (-) → 1	Motor gear rotates clockwise

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER SIDE)
