Manual Up / Down and Auto Down Function does not Operate on Passenger Side Only: Wiring Diagram

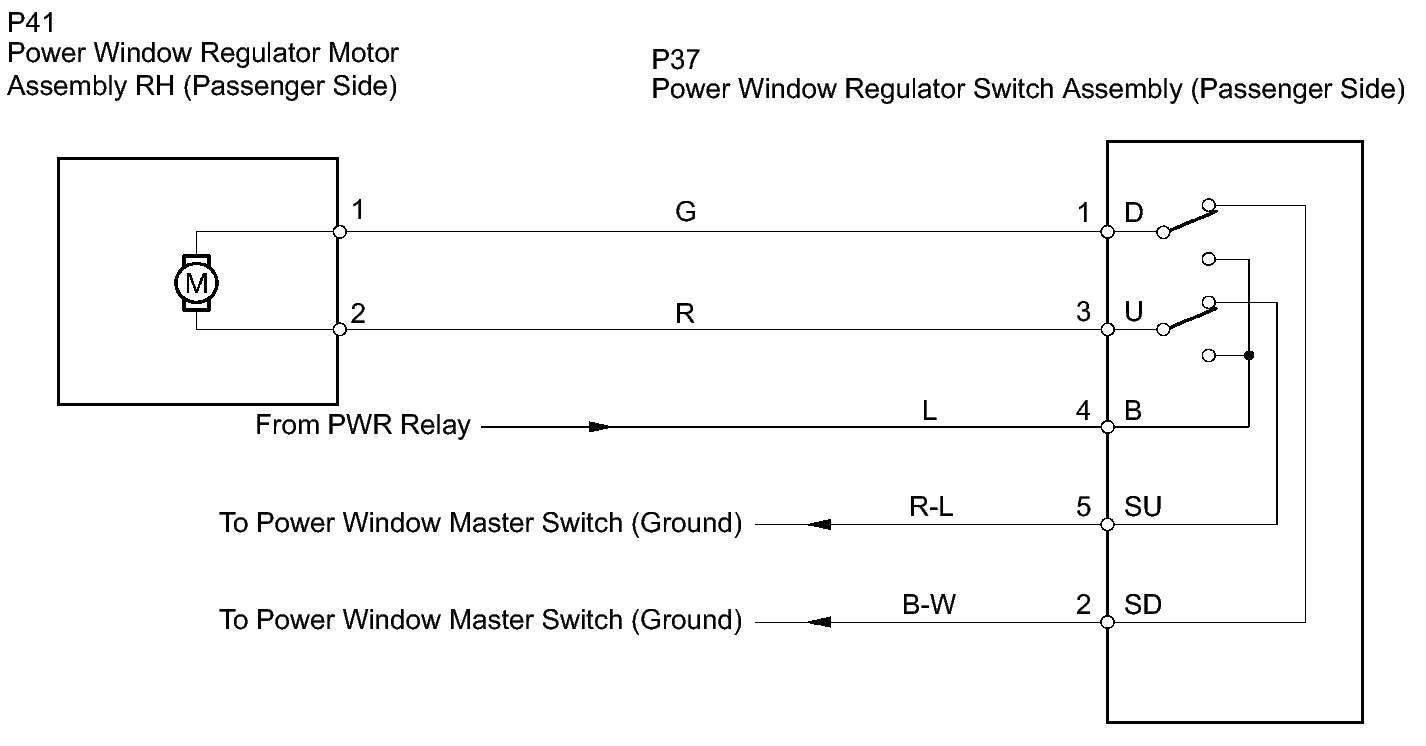

Fig 1: Power Window Regulator Switch Assembly - Wiring Diagram
GTY238706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
