Power Window can be Operated After Ignition Switch is Turned OFF Even if Operative Conditions are not Met: Wiring Diagram

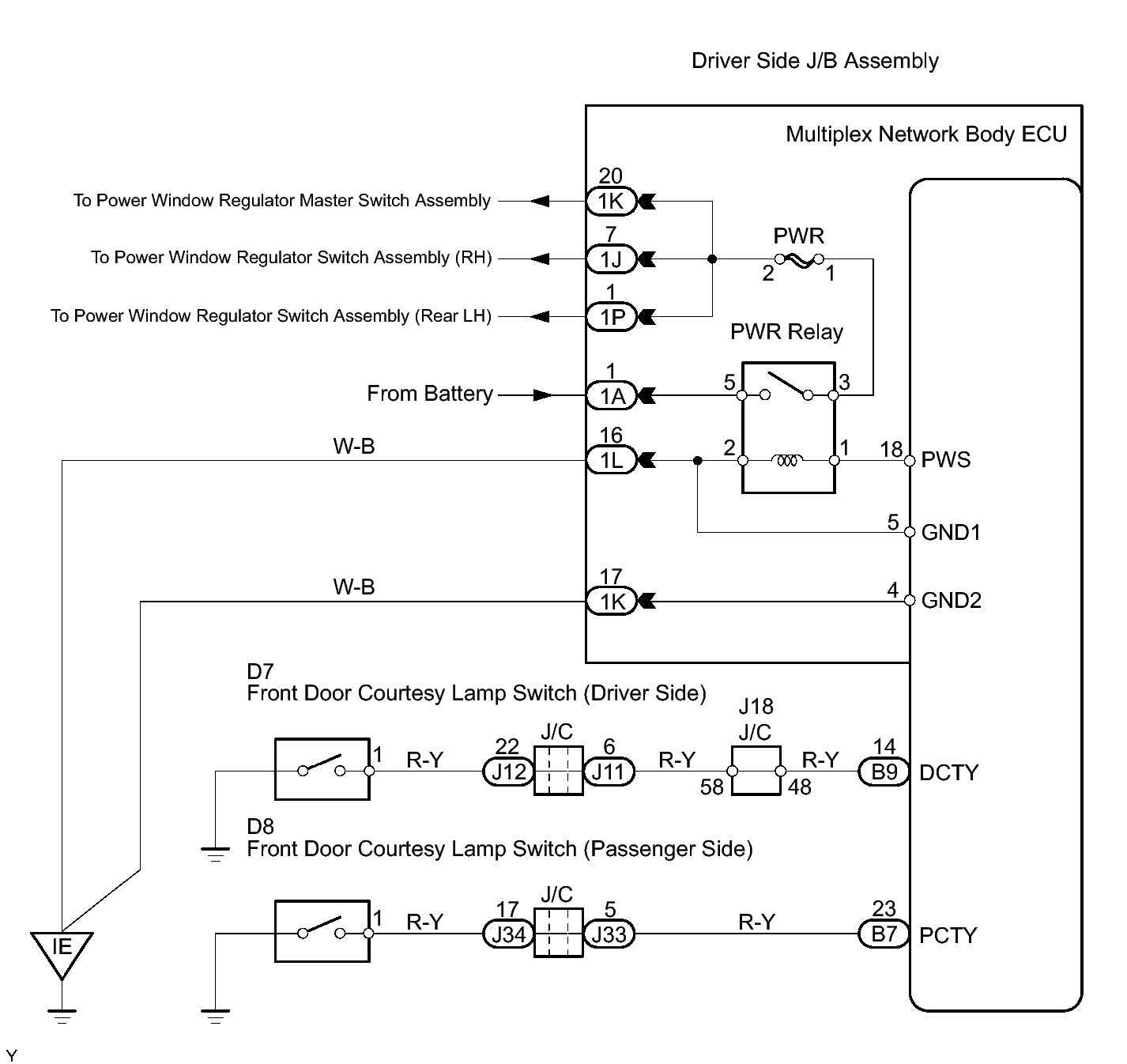

Fig 1: Multiplex Network Body ECU - Wiring Diagram
GTY238695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
