Automatic Air Conditioning (Front): Notes

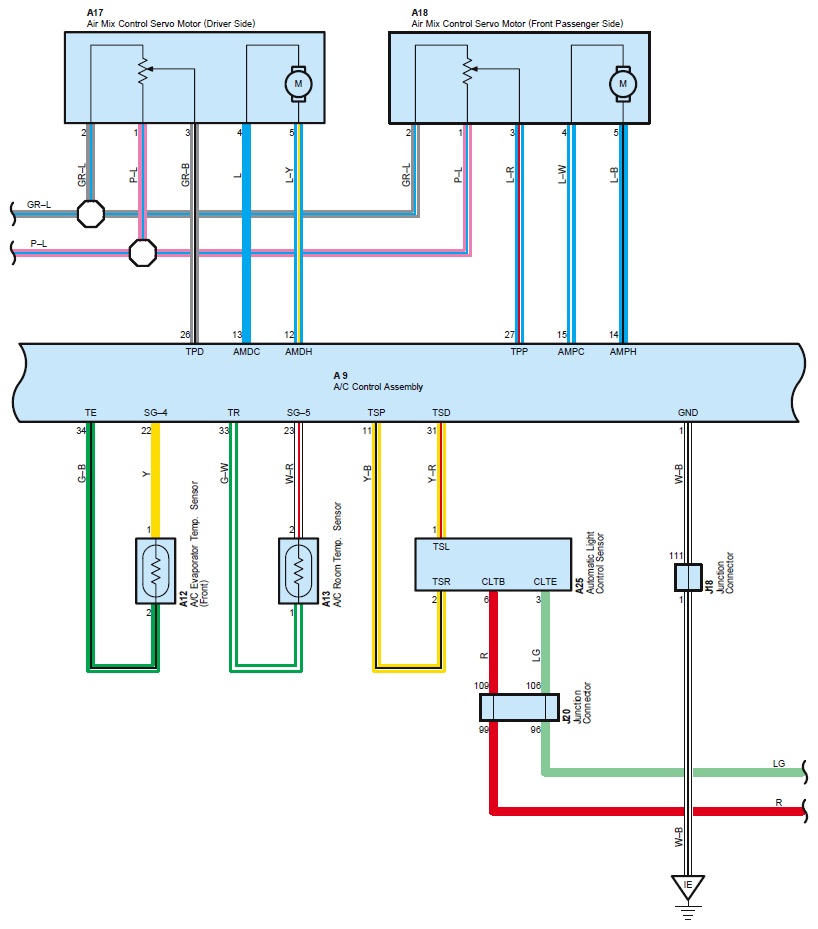

Fig 1: Automatic Air Conditioning (Front) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

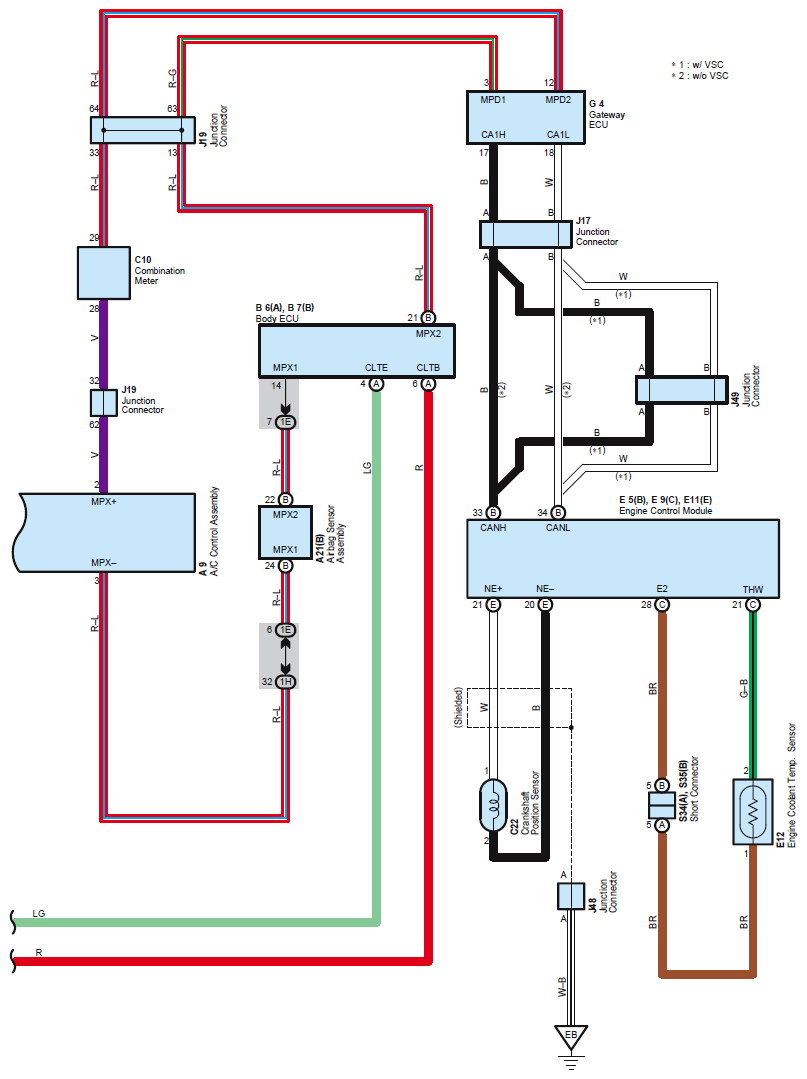

Fig 2: Automatic Air Conditioning (Front) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

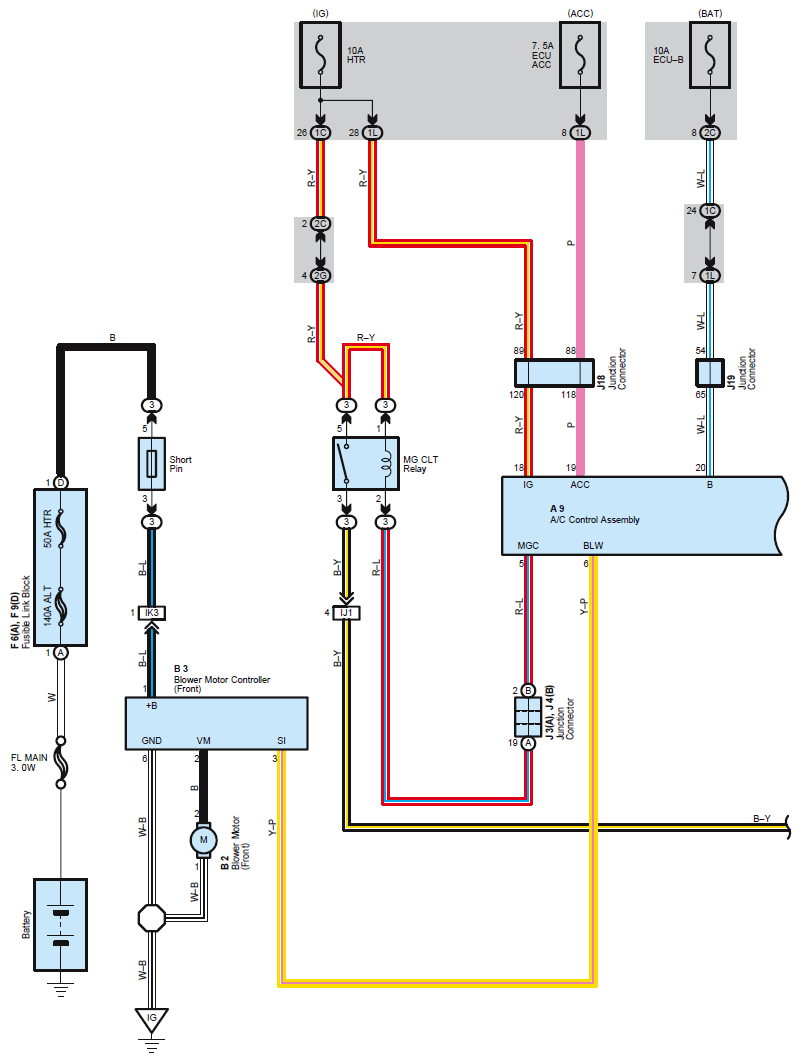

Fig 3: Automatic Air Conditioning (Front) - Circuit Diagram (3 Of 4)

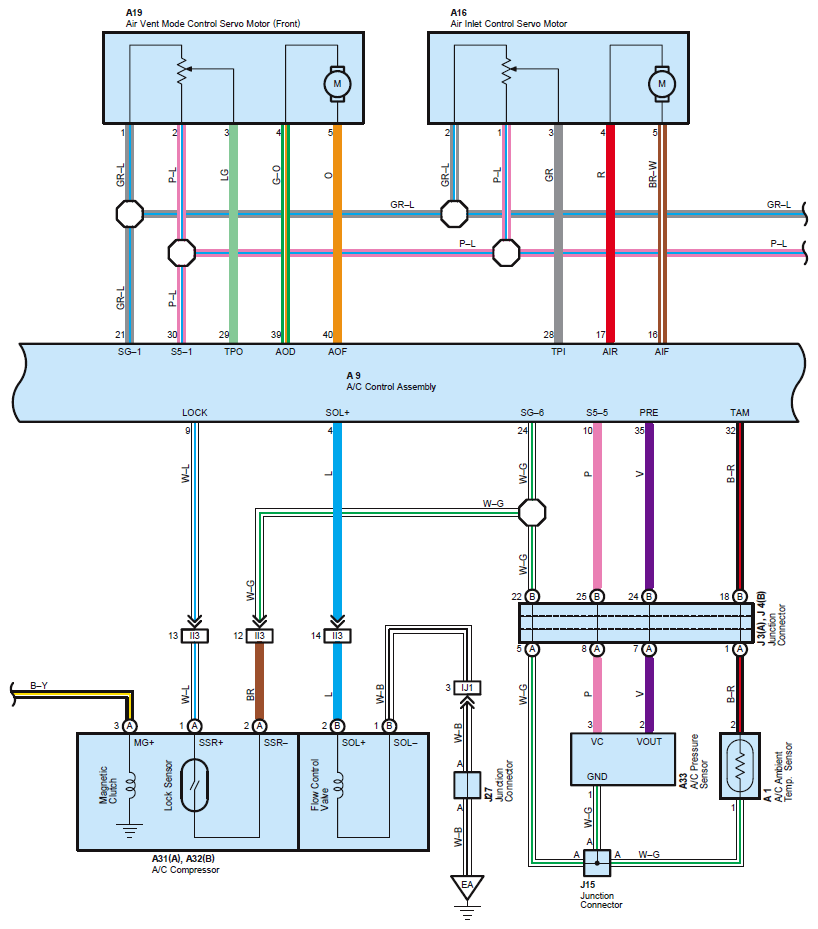

Fig 4: Automatic Air Conditioning (Front) - Circuit Diagram (4 Of 4)
