Back Door Closer: Notes

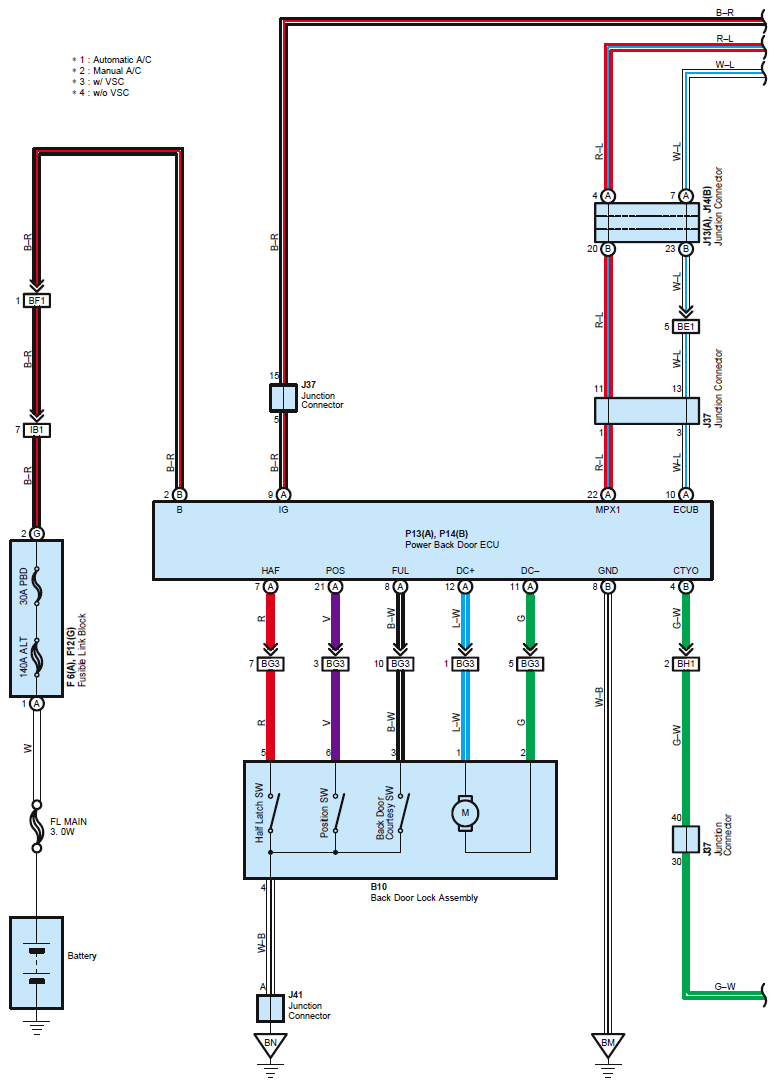

Fig 1: Back Door Closer - Circuit Diagram (1 Of 4)
G07596419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

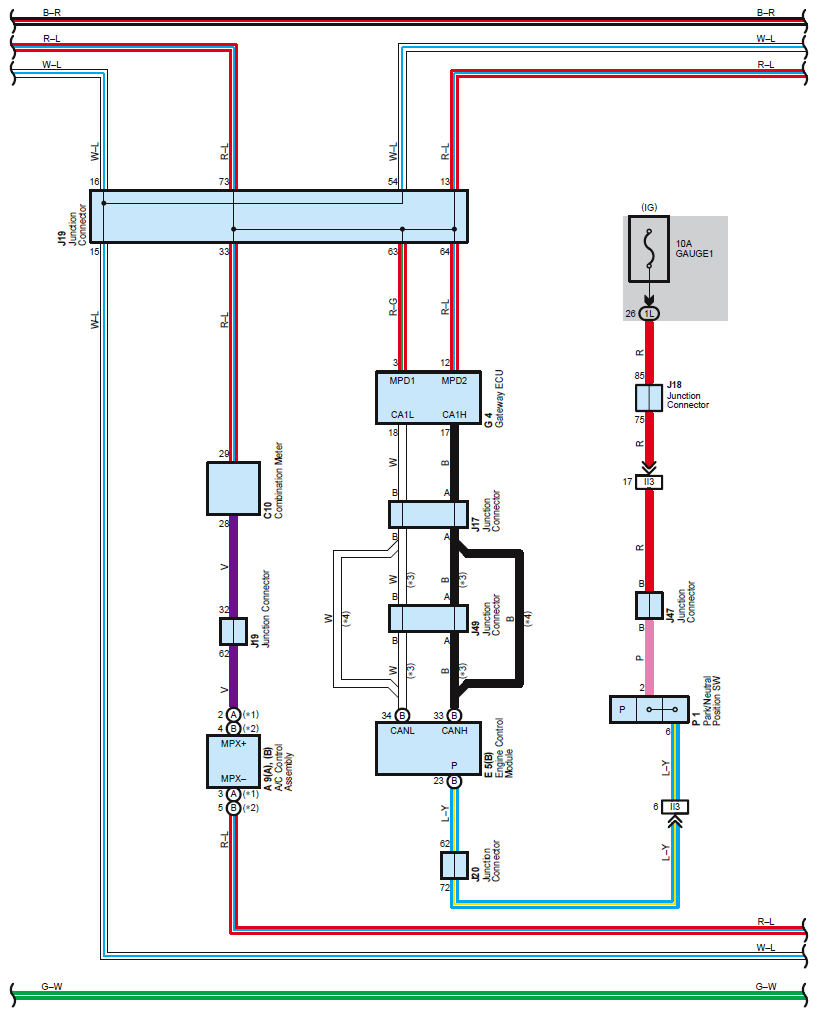

Fig 2: Back Door Closer - Circuit Diagram (2 Of 4)
G07596420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

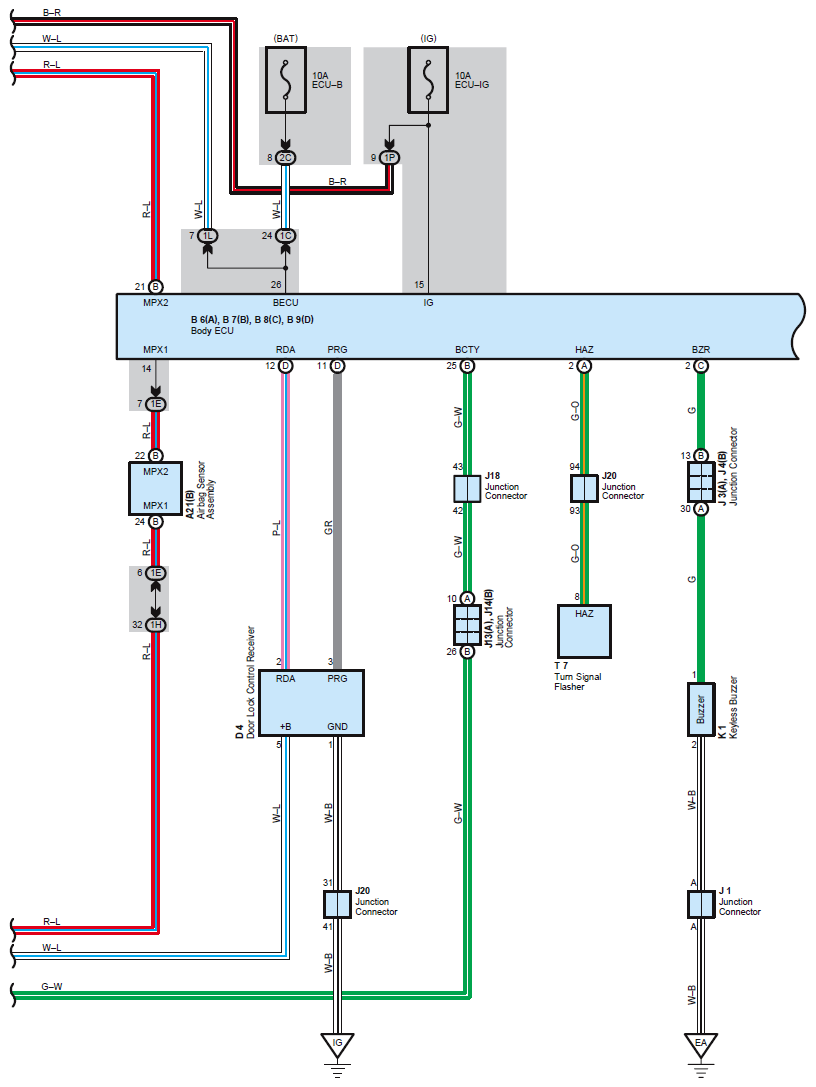

Fig 3: Back Door Closer - Circuit Diagram (3 Of 4)
G07596421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

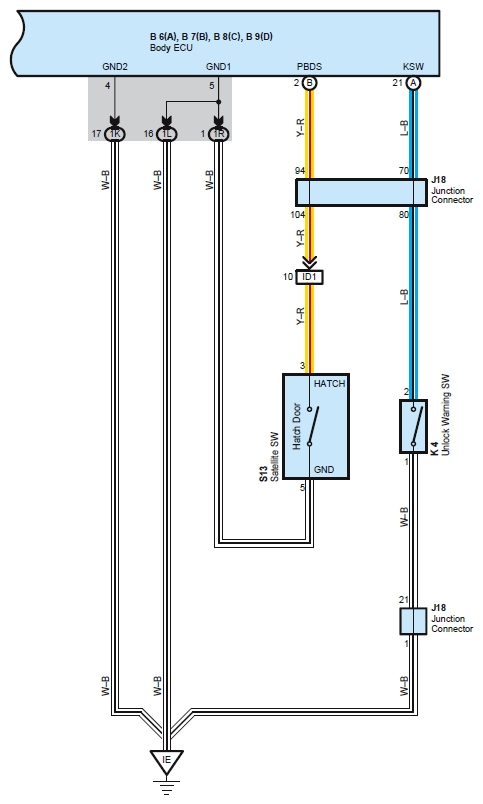

Fig 4: Back Door Closer - Circuit Diagram (4 Of 4)
G07596422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
