Multiple Communication System (BEAN Bus)

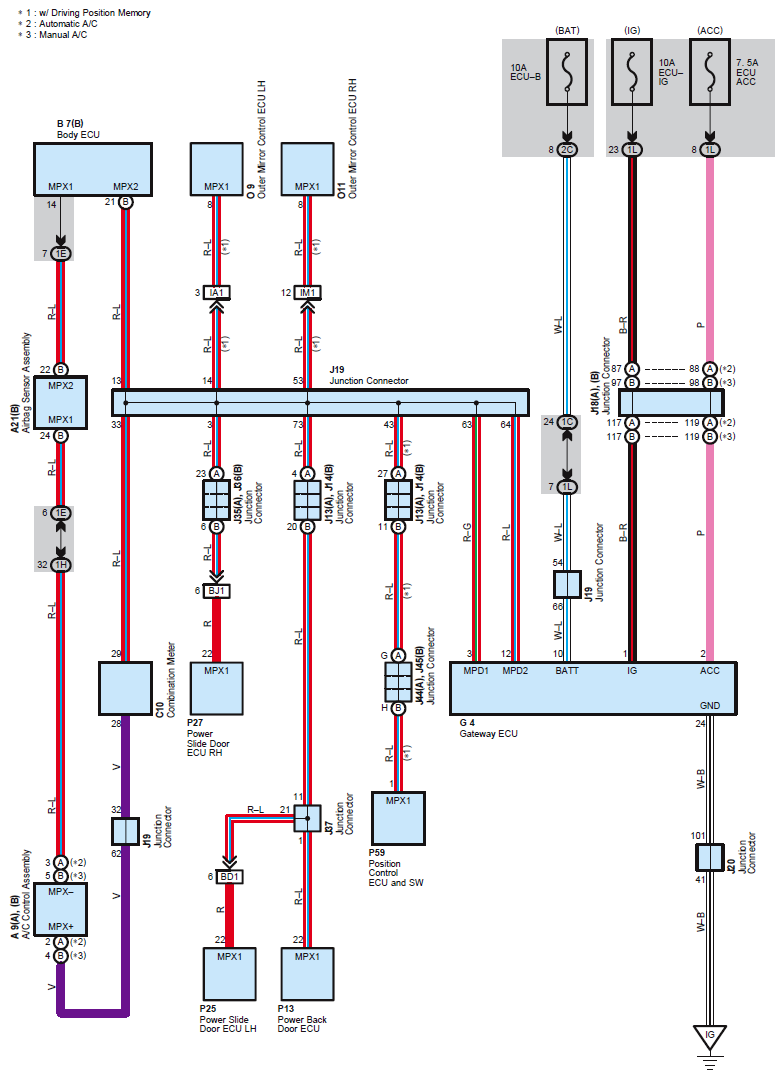

Fig 1: Multiple Communication System (BEAN Bus) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
