Engine Coolant Temperature Sensor: Removal: Removal

  1. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 3
  2. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 19
  3. REMOVE NO. 2 AIR CLEANER INLET  . Refer to REMOVAL - Step 20
  4. REMOVE NO. 1 AIR CLEANER INLET  . Refer to REMOVAL - Step 21
  5. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  See step  7
  6. REMOVE AIR CLEANER CASE SUB-ASSEMBLY  . Refer to REMOVAL - Step 24
  7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Remove the engine coolant temperature sensor connector.

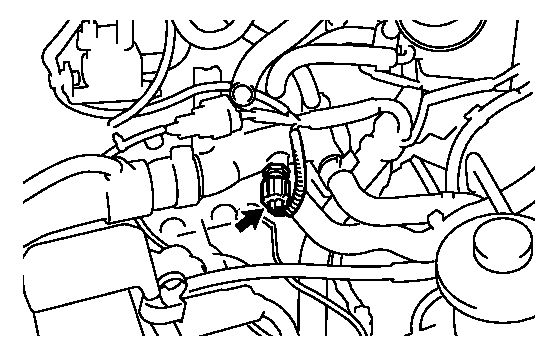

      Fig 1: Locating Engine Coolant Temperature Sensor
      GTY237809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor.
