Terminals Of Ecu

WARNING: This page is about a different car, the 2010 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. OCCUPANT CLASSIFICATION ECU

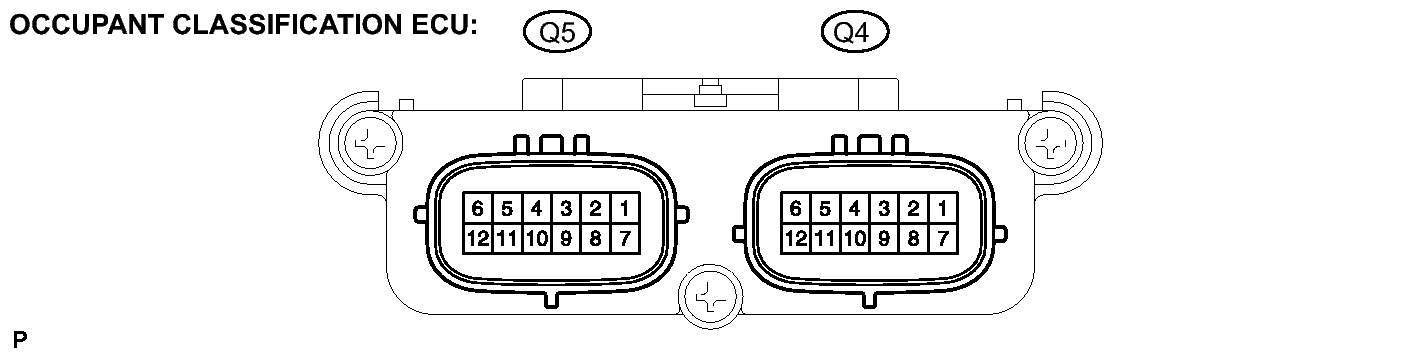

    Fig 1: Identifying Occupant Classification ECU (Q5 & Q4) Connector Terminals
    GTY210161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specification
    +B (Q4-1) -
    GND (Q4-3)    		 W-R - W-B Power source (ECU-B Fuse) Always 11 to 14 V
    DIA (Q4-2) -
    GND (Q4-3)    		 R-Y - W-B Diagnosis (DLC3) Ignition switch on Pulse generation
    GND (Q4-3) -
    Body ground    		 W-B - Body ground Ground Always Below 1 Ω
    FSR- (Q4-4) -
    GND (Q4-3)    		 B - W-B Center airbag sensor assembly communication line (-) Always Below 1 Ω
    BGND (Q4-5) -
    GND (Q4-3)    		 GR - W-B Passenger side buckle switch ground line Always Below 1 Ω
    IG (Q4-7) -
    GND (Q4-3)    		 B-O - W-B Power source (IG2 Fuse) Ignition switch on 11 to 14 V
    FSR+ (Q4-8) -
    FSR- (Q4-4)    		 W - B Center airbag sensor assembly communication line Ignition switch on Pulse generation
    BSW (Q4-9) -
    BGND (Q4-5)    		 L - GR Passenger side buckle switch line Buckle switch ON
    Buckle switch OFF    		 Pulse generation
    SGD1 (Q5-1) -
    GND (Q4-3)    		 G - W-B Occupant classification sensor front LH ground line Always Below 1 Ω
    SGD2 (Q5-2) -
    GND (Q4-3)    		 O - W-B Occupant classification sensor front RH ground line Always Below 1 Ω
    SGD3 (Q5-3) -
    GND (Q4-3)    		 W - W-B Occupant classification sensor rear LH ground line Always Below 1 Ω
    SGD4 (Q5-4) -
    GND (Q4-3)    		 BR - W-B Occupant classification sensor rear RH ground line Always Below 1 Ω
    SVC1 (Q5-11) -
    SGD1 (Q5-1)    		 R - G Occupant classification sensor front LH power supply line Ignition switch on, a load is applied to occupant classification sensor front LH 4.5 to 5.1 V
    SVC2 (Q5-12) -
    SGD2 (Q5-2)    		 W - O Occupant classification sensor front RH power supply line Ignition switch on, a load is applied to occupant classification sensor front RH 4.5 to 5.1 V
    SVC3 (Q5-5) -
    SGD3 (Q5-3)    		 GR - W Occupant classification sensor rear LH power supply line Ignition switch on, a load is applied to occupant classification sensor rear LH 4.5 to 5.1 V
    SVC4 (Q5-6) -
    SGD4 (Q5-4)    		 V - BR Occupant classification sensor rear RH power supply line Ignition switch on, a load is applied to occupant classification sensor rear RH 4.5 to 5.1 V
    SIG1 (Q5-7) -
    SGD1 (Q5-1)    		 BR - G Occupant classification sensor front LH signal line Ignition switch on, a load is applied to occupant classification sensor front LH 0.2 to 4.7 V
    SIG2 (Q5-8) -
    SGD2 (Q5-2)    		 L - O Occupant classification sensor front RH signal line Ignition switch on, a load is applied to occupant classification sensor front RH 0.2 to 4.7 V
    SIG3 (Q5-9) -
    SGD3 (Q5-3)    		 Y - W Occupant classification sensor rear LH signal line Ignition switch on, a load is applied to occupant classification sensor rear LH 0.2 to 4.7 V
    SIG4 (Q5-10) -
    SGD4 (Q5-4)    		 B - BR Occupant classification sensor rear RH signal line Ignition switch on, a load is applied to occupant classification sensor rear RH 0.2 to 4.7 V
