Engine Control System (Service Information): ECM: Installation: Installation

INSTALL ECM
1. Install the ECM with the 2 nuts.

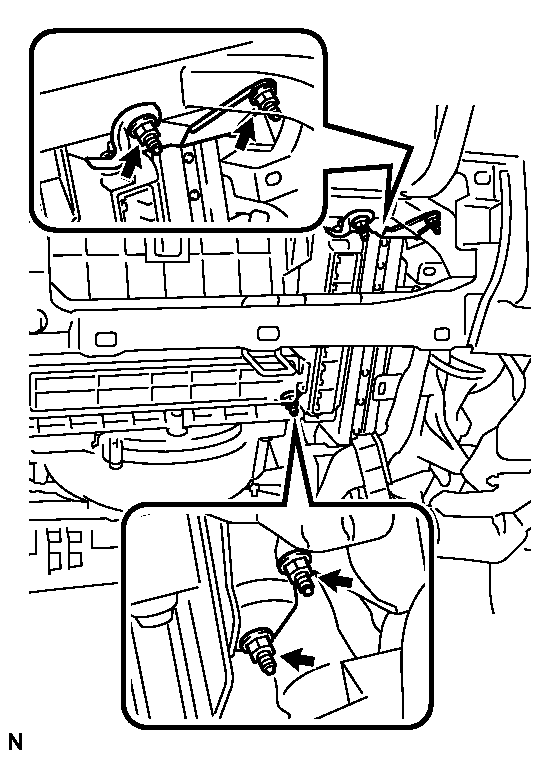

  Fig 1: Identifying ECM Connectors And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Connect the 5 ECM connectors.
INSTALL ECM (with 10 speakers system)
1. Install the ECM and stereo components amplifier with the 4 nuts.

  Fig 2: Locating ECM And Stereo Components Amplifier Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Connect the 5 ECM connectors and 2 stereo components amplifier connectors.
INSTALL NO. 2 INSTRUMENT PANEL BOX
1. Install the No. 2 instrument panel box.

  Fig 3: Locating Claws And Clips On Instrument Panel Box No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
1. Install the glove compartment door sub-assembly frontward to install it.

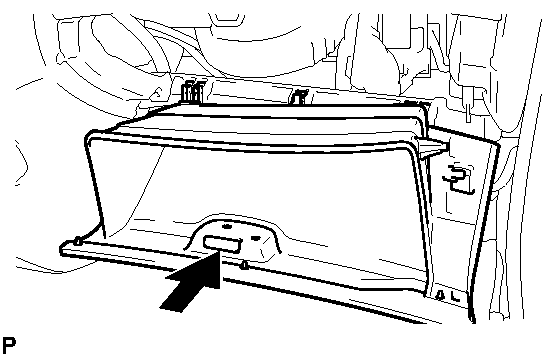

  Fig 4: Installing Glove Compartment Door Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push the right side wall and then push the left wall to install the stoppers.

  Fig 5: Identifying Glove Compartment Door & Stoppers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM REGISTRATION
1. When replacing the ECM, perform distance control ECU recognition in ECM. Refer to INSTALLATION - Step 2 .
