Engine Control System (Service Information): ECM: Removal: Removal

REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
1. Push the right side wall and then push the left wall to release the stoppers.

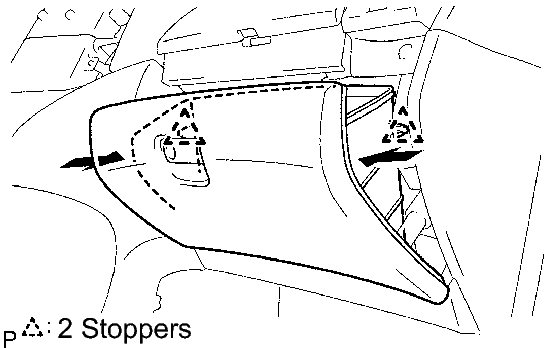

  Fig 1: Identifying Glove Compartment Door & Stoppers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the glove compartment door sub-assembly rearward to remove it.

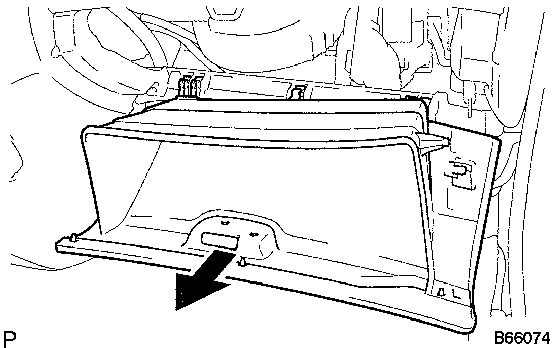

  Fig 2: Removing Glove Compartment Door Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 INSTRUMENT PANEL BOX
1. Disengage the 2 claws and 4 clips, and remove the No. 2 instrument panel box.

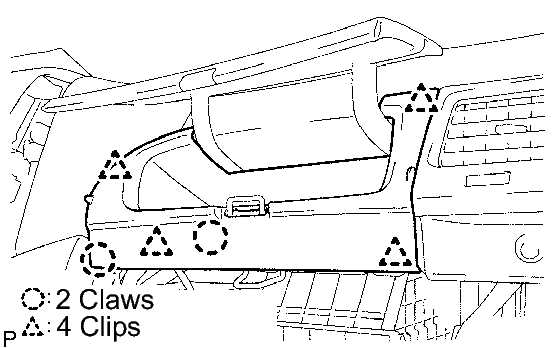

  Fig 3: Locating Claws And Clips On Instrument Panel Box No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM
1. Disconnect the 5 ECM connectors.

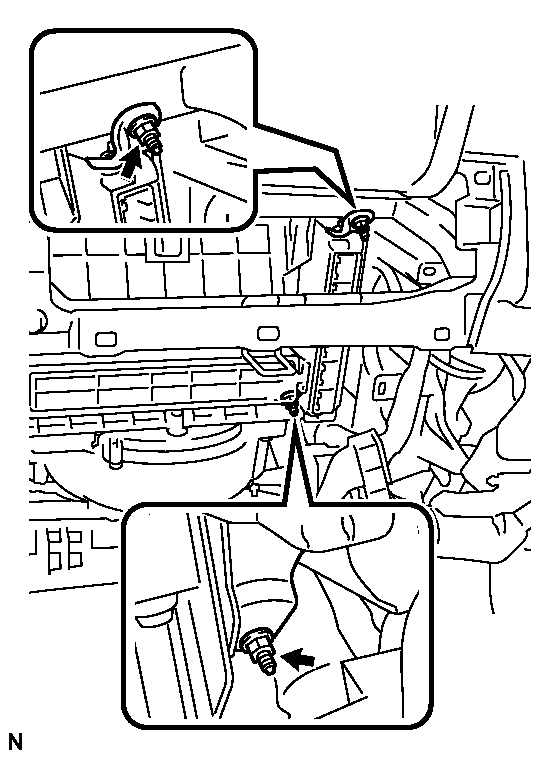

  Fig 4: Identifying ECM Connectors And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and ECM.
REMOVE ECM (with 10 speakers system)
1. Disconnect the 5 ECM connectors and 2 stereo components amplifier connectors.

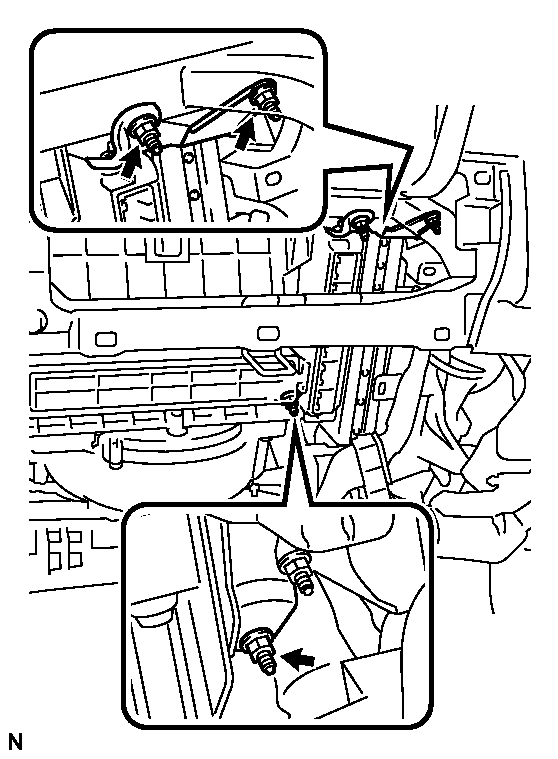

  Fig 5: Locating Nuts And ECM With Stereo Components Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 nuts and the ECM with the stereo components amplifier.
