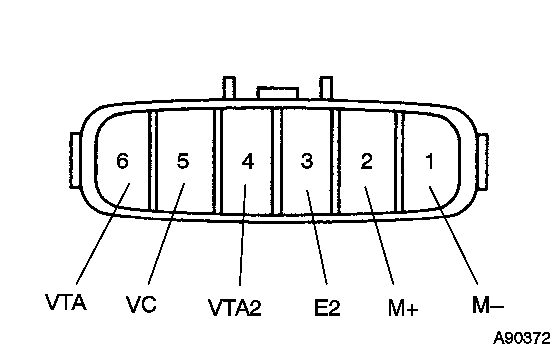

Using an ohmmeter, measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
| Symbols (Terminal No.) |
Resistance |
Temperature |
| M+ (2) - M- (1) |
0.3 to 100 Ω |
20°C (68°F) |
If the result is not as specified, replace the throttle body assembly.
