Camshaft Oil Control Valve: Installation: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2 Exhaust Side)
1. Apply a light coat of engine oil to the new O-ring and install it to the camshaft timing oil control valve.

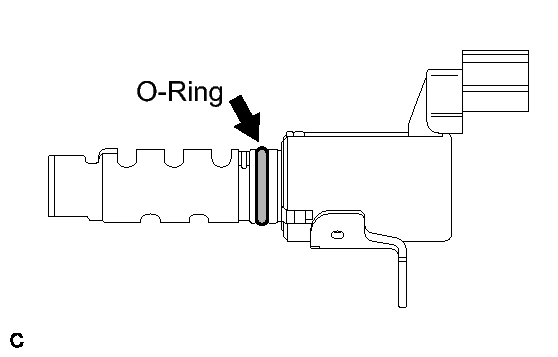

  Fig 1: Locating O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve assembly with the bolt.

  Fig 2: Locating Bolt On Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the camshaft timing oil control valve assembly connector.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2 Intake Side)
1. Apply a light coat of engine oil to the new O-ring and install it to the camshaft timing oil control valve.

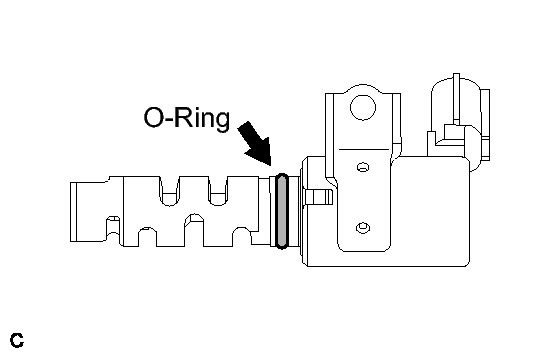

  Fig 3: Locating O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve assembly with the bolt.

  Fig 4: Locating Camshaft Timing Oil Control Valve Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Connect the camshaft timing oil control valve assembly connector.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1 Exhaust Side)
1. Apply a light coat of engine oil to the new O-ring and install it to the camshaft timing oil control valve.

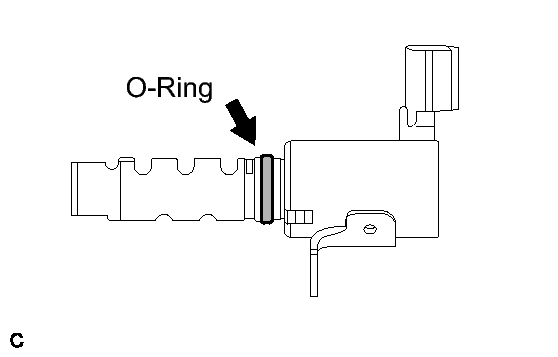

  Fig 5: Locating O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve assembly with the bolt.

  Fig 6: Locating Bolt On Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the camshaft timing oil control valve assembly connector.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1 Intake Side)
1. Apply a light coat of engine oil to the new O-ring and install it to the camshaft timing oil control valve.

  Fig 7: Locating O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve assembly with the bolt.

  Fig 8: Locating Bolt On Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the camshaft timing oil control valve assembly connector.
INSTALL INTAKE AIR SURGE TANK ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL AIR CLEANER CASE SUB-ASSEMBLY . Refer to INSTALLATION - Step 83
INSTALL AIR CLEANER CAP SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL NO. 1 AIR CLEANER INLET . Refer to INSTALLATION - Step 86
INSTALL NO. 2 AIR CLEANER INLET . Refer to INSTALLATION - Step 87
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 4
INSPECT FOR ENGINE COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSPECT FOR ENGINE OIL LEAK . Refer to REPLACEMENT - Step 5
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 117
INSTALL FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 90
INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY
HINT:

Refer to INSTALLATION
