Circuit Opening Relay: Inspection: Inspection

INSPECT CIRCUIT OPENING RELAY ASSEMBLY

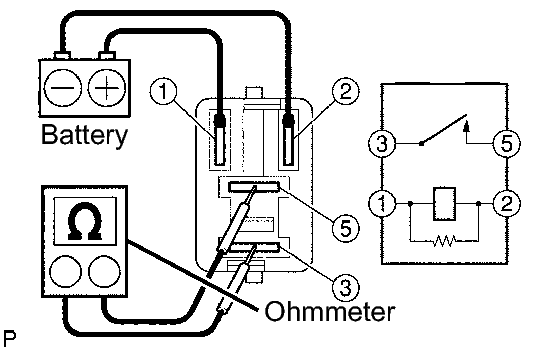

Fig 1: Measuring Resistance Between Terminals Using Ohmmeter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard

Tester Connection	Specified Condition
3 - 5	10 kΩ or higher
3 - 5	Below 1 Ω (Apply battery voltage to terminals 1 and 2)

If the result is not as specified, replace the circuit opening relay.
