Driver Side Power Window does not Operate with Power Window Master Switch: Procedure

1. Check for LIN communication system DTCs related to the power window control system. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .

   OK

   LIN communication system DTCs are not output.

NG → See step   10

OK: Go to next step

1. Check if DTC B2312 is output. Refer to DTC CHECK / CLEAR .

   OK

   DTC B2312 is not output.

NG → See step   11

OK: Go to next step

1. Use the Data List to check if the driver side motor is functioning properly.
   D-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D Door P/W Up SW	Driver side power window MANUAL UP switch signal / ON or OFF	ON: Driver side switch operated OFF: Driver side switch not operated	-
   D Door P/W Down SW	Driver side power window MANUAL DOWN switch signal / ON or OFF	ON: Driver side switch operated OFF: Driver side switch not operated	-

   OK

   The Techstream display changes normally when master switch is operated.

OK → See step   8

NG → Go to next step

1. Disconnect the N2 master switch connector.

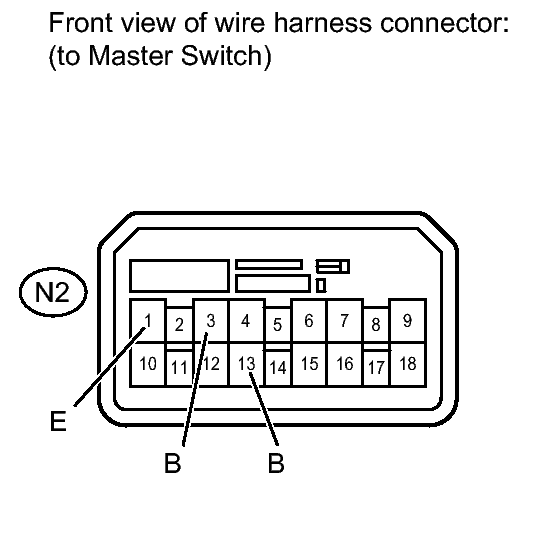

   Fig 1: Identifying Master Switch To Battery & Body Ground Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   N2-3 (B) - Body ground	Always	11 to 14 V
   N2-13 (B) - Body ground	Ignition switch ON	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N2-1 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the N12 motor connector.

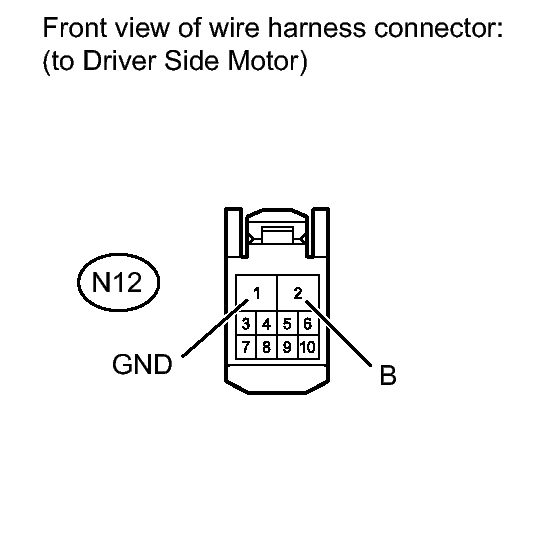

   Fig 2: Identifying Driver Side Motor To Battery & Body Ground Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   N12-2 (B) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N12-1 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the N2 master switch connector.

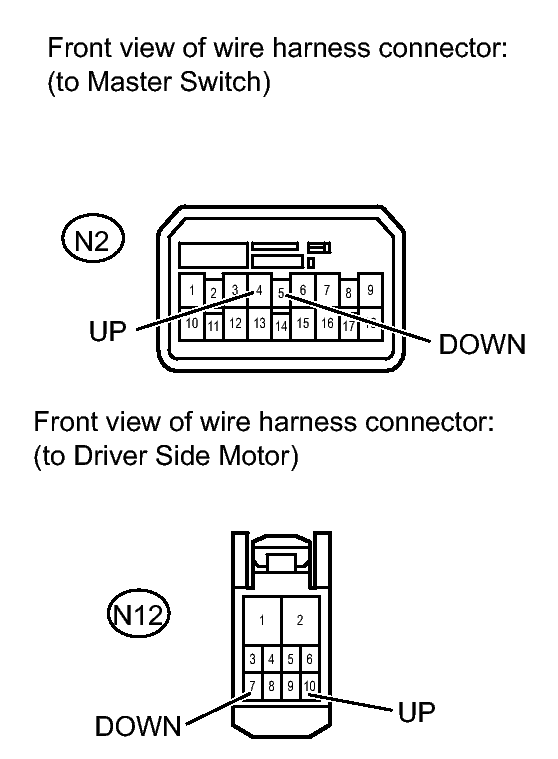

   Fig 3: Identifying Master Switch & Driver Side Motor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the N12 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N2-4 (UP) - N12-10 (UP)	Always	Below 1 Ω
   N2-5 (DOWN) - N12-7 (DOWN)	Always	Below 1 Ω
   N2-4 (UP) - Body ground	Always	10 kΩ or higher
   N2-5 (DOWN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the driver side motor. Refer to REMOVAL .
   Fig 4: Identifying Front Power Window Regulator Motor Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply positive (+) battery voltage to connector terminal 2 (B).
   NOTE:

   • Do not apply positive (+) battery voltage to any terminals except terminal 2 (B) to avoid damaging the pulse sensor inside the motor.
   • Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly to the door.
3. Apply negative (-) battery voltage to connector terminals 1 (GND) and 7 (DOWN) / 10 (UP).
4. Check that the motor gear rotates smoothly as follows.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → 2 (B) Battery negative (-): 1 (GND) (3 sec. or more) → 1 (GND) and 10 (UP) (within 1 sec.) → 1 (GND) (within 1 sec.) → 1 (GND) and 10 (UP)	Motor gear rotates clockwise
   Battery positive (+) → 2 (B) Battery negative (-): 1 (GND) (3 sec. or more) → 1 (GND) and 7 (DOWN) (within 1 sec.) → 1 (GND) (within 1 sec.) → 1 (GND) and 7 (DOWN)	Motor gear rotates counterclockwise

OK → See step   9

NG → Go to next step
