Power Window Control System (W/Jam Protection Function) (Diagnostic Codes & Symptom Tests)
>>
POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function)
>>
Symptom Test
>>
Driver Side Power Window does not Operate with Power Window Master Switch
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

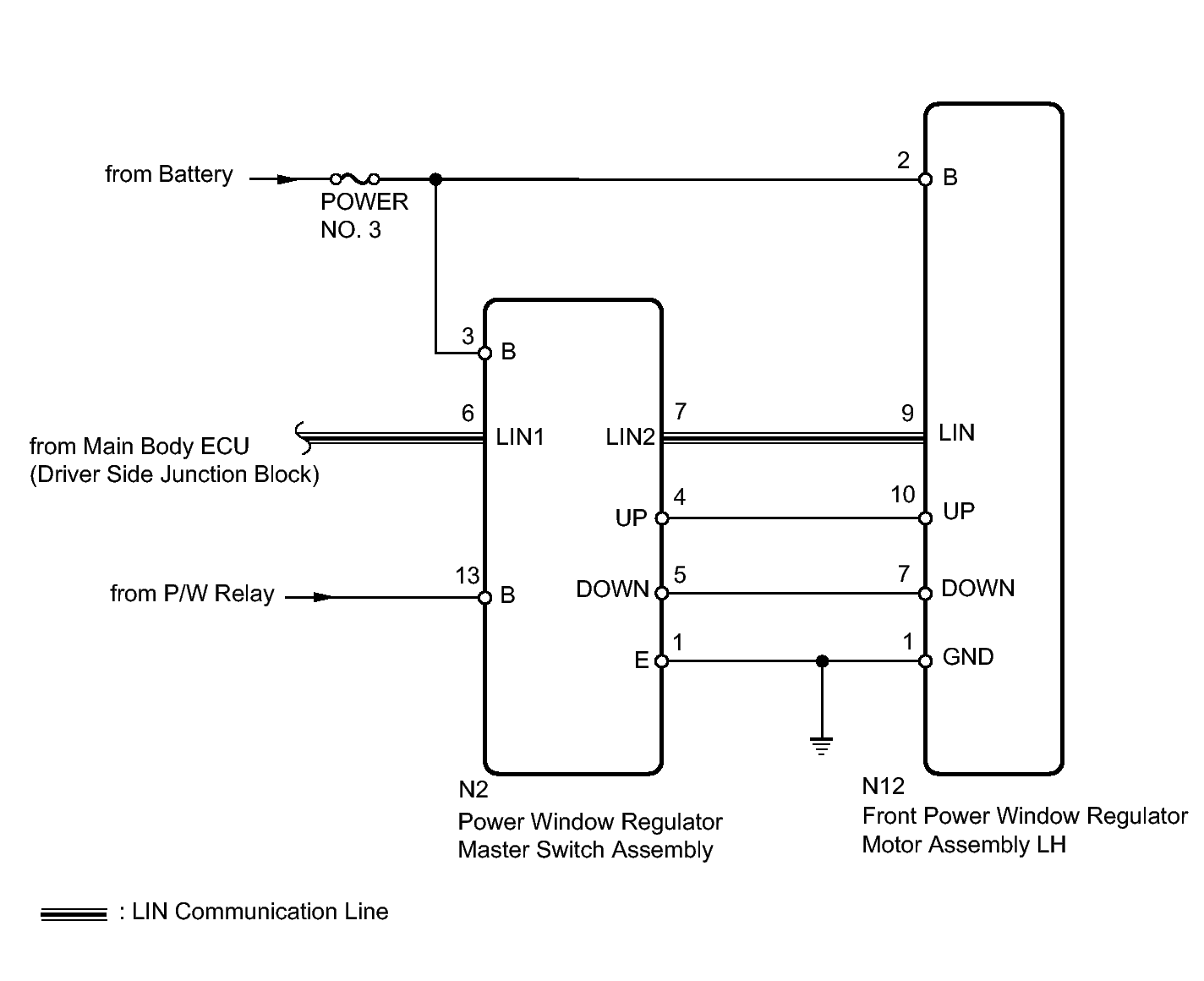

Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram
Fig 1: Identifying Driver Side Power Window Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
