Rear Power Window RH does not Operate with Rear Power Window Switch RH: Procedure

1. Disconnect the O5 switch connector.

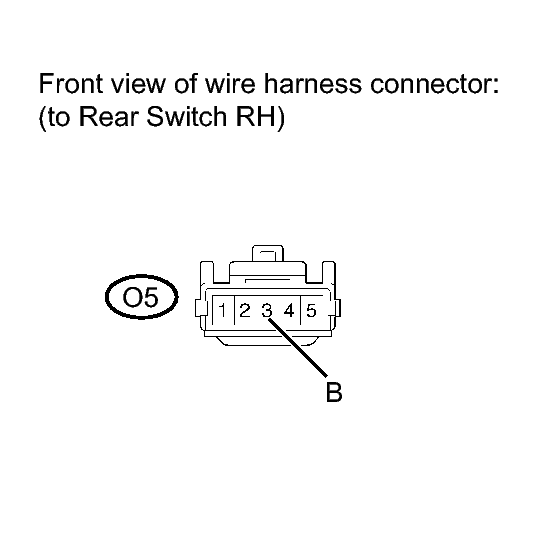

   Fig 1: Identifying Rear Switch RH To Battery Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   O5-3 (B) - Body ground	Ignition switch ON	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the rear switch RH. Refer to REMOVAL .
   Fig 2: Identifying Rear Power Window Regulator Switch Assembly RH & Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   4 (U) - 3 (B)	UP	Below 1 Ω
   1 (D) - 2 (SD)	UP	Below 1 Ω
   4 (U) - 5 (SU)	OFF	Below 1 Ω
   1 (D) - 2 (SD)	OFF	Below 1 Ω
   4 (U) - 5 (SU)	DOWN	Below 1 Ω
   1 (D) - 3 (B)	DOWN	Below 1 Ω

NG → See step   6

OK: Go to next step

1. Disconnect the O5 switch connector.

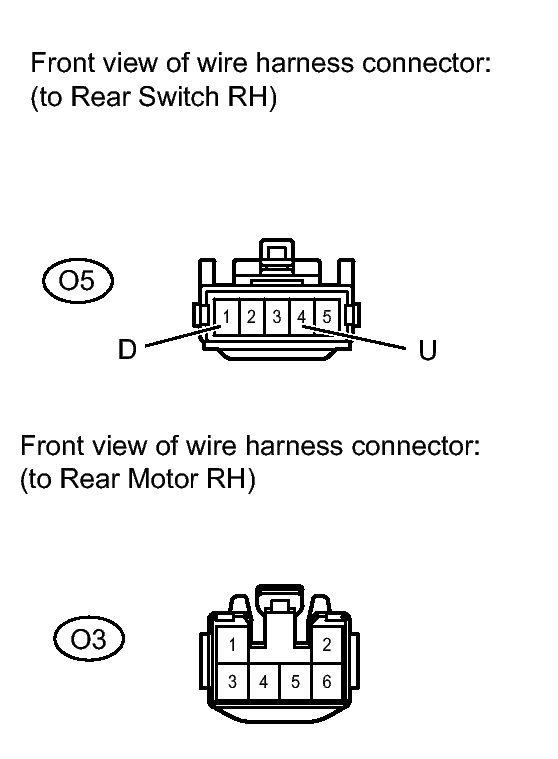

   Fig 3: Identifying Rear Switch RH & Rear Motor RH Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the O3 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O5-1 (D) - O3-1	Always	Below 1 Ω
   O5-4 (U) - O3-2	Always	Below 1 Ω
   O5-1 (D) - Body ground	Always	10 kΩ or higher
   O5-4 (U) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the rear motor RH. Refer to REMOVAL .
   Fig 4: Identifying Rear Power Window Regulator Motor Assembly RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage to connector terminals 1 and 2.
3. Check that the motor gear rotates smoothly as follows.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → 1 Battery negative (-) → 2	Motor gear rotates counterclockwise
   Battery positive (+) → 2 Battery negative (-) → 1	Motor gear rotates clockwise

NG → See step   7

OK: Go to next step

1. Disconnect the N2 master switch connector.

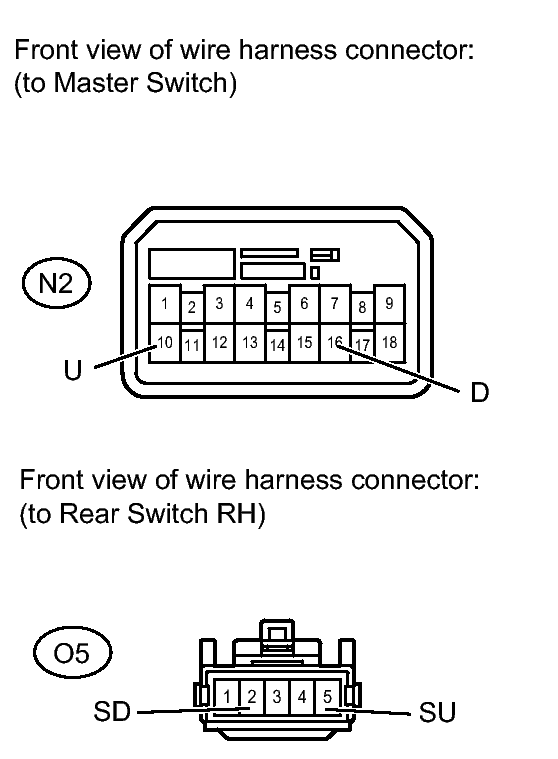

   Fig 5: Identifying Master Switch & Rear Switch RH Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the O5 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N2-10 (U) - O5-5 (SU)	Always	Below 1 Ω
   N2-16 (D) - O5-2 (SD)	Always	Below 1 Ω
   N2-10 (U) - Body ground	Always	10 kΩ or higher
   N2-16 (D) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   8
