Power Window Control System (W/O Jam Protection Function) (Diagnostics & Symptom Tests)
>>
POWER WINDOW CONTROL SYSTEM (W/O Jam Protection Function)
>>
Symptom Tests
>>
Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

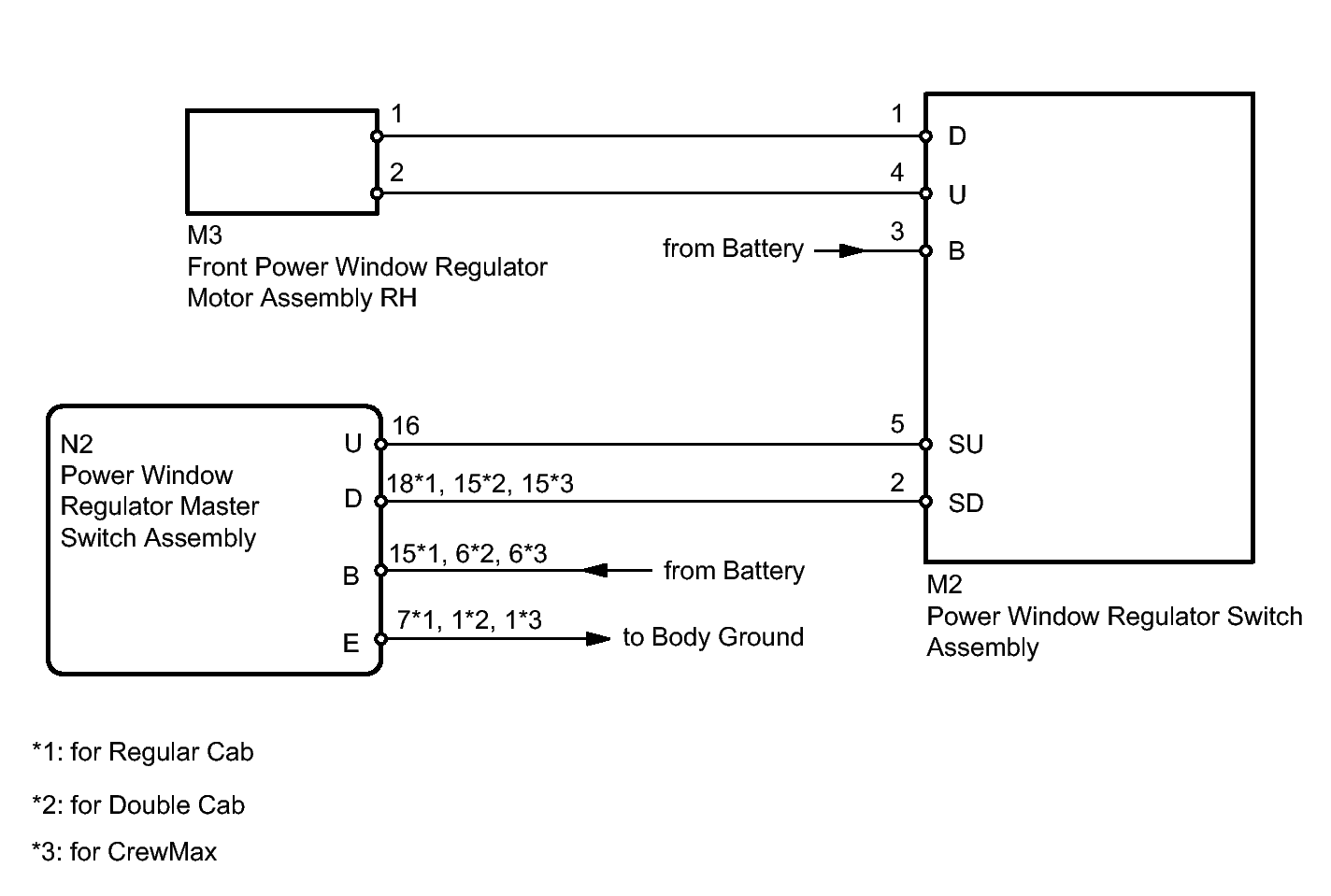

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram
Fig 1: Identifying Front Passenger Side Power Window Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
