Knock Sensor: Removal: Removal

  1. REMOVE ENGINE ASSEMBLY
    1. Remove the engine. Refer to REMOVAL .
  2. REMOVE CYLINDER HEAD SUB-ASSEMBLY RH (for Bank 1)
    1. Remove the cylinder head RH. Refer to REMOVAL .
  3. REMOVE NO. 1 WATER OUTLET PIPE
    1. Remove the 4 wire harness clamps.

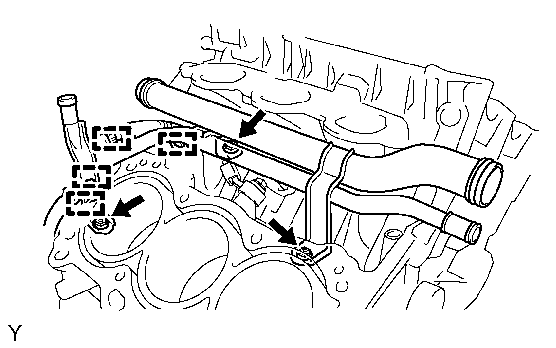

      Fig 1: Locating Bolt, Nuts & Water Outlet Pipe
      GTY194806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 2 nuts and water outlet pipe.
  4. REMOVE KNOCK SENSOR
    1. Disconnect the 2 sensor connectors.
      Fig 2: Locating Knock Sensor Connectors, Knock Sensors & Bolts
      GTY191273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 sensors.
