VVT Sensor: Components: Illustration

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 3)
GTY193137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 3)
GTY193719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

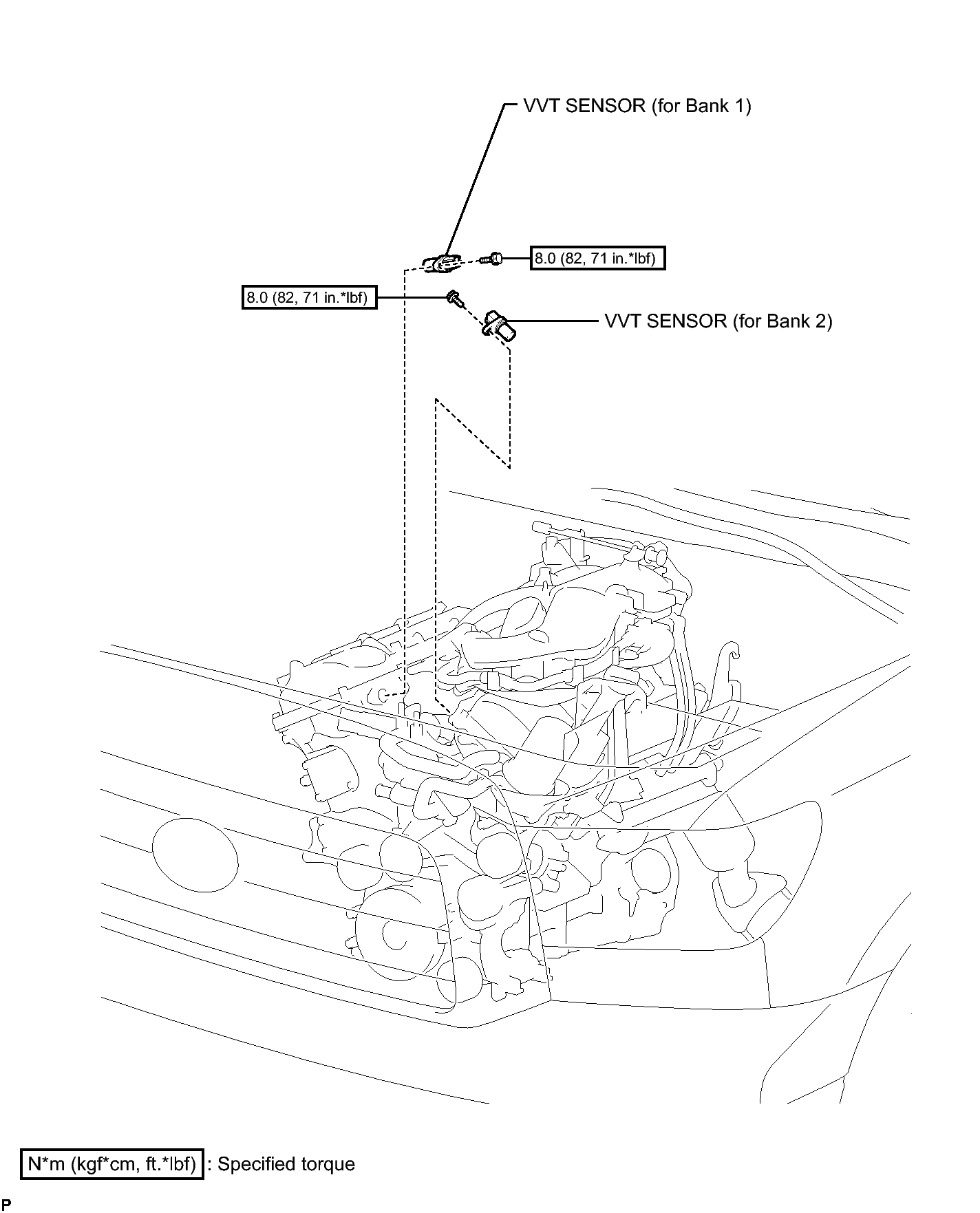

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (3 Of 3)
GTY188418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
