Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

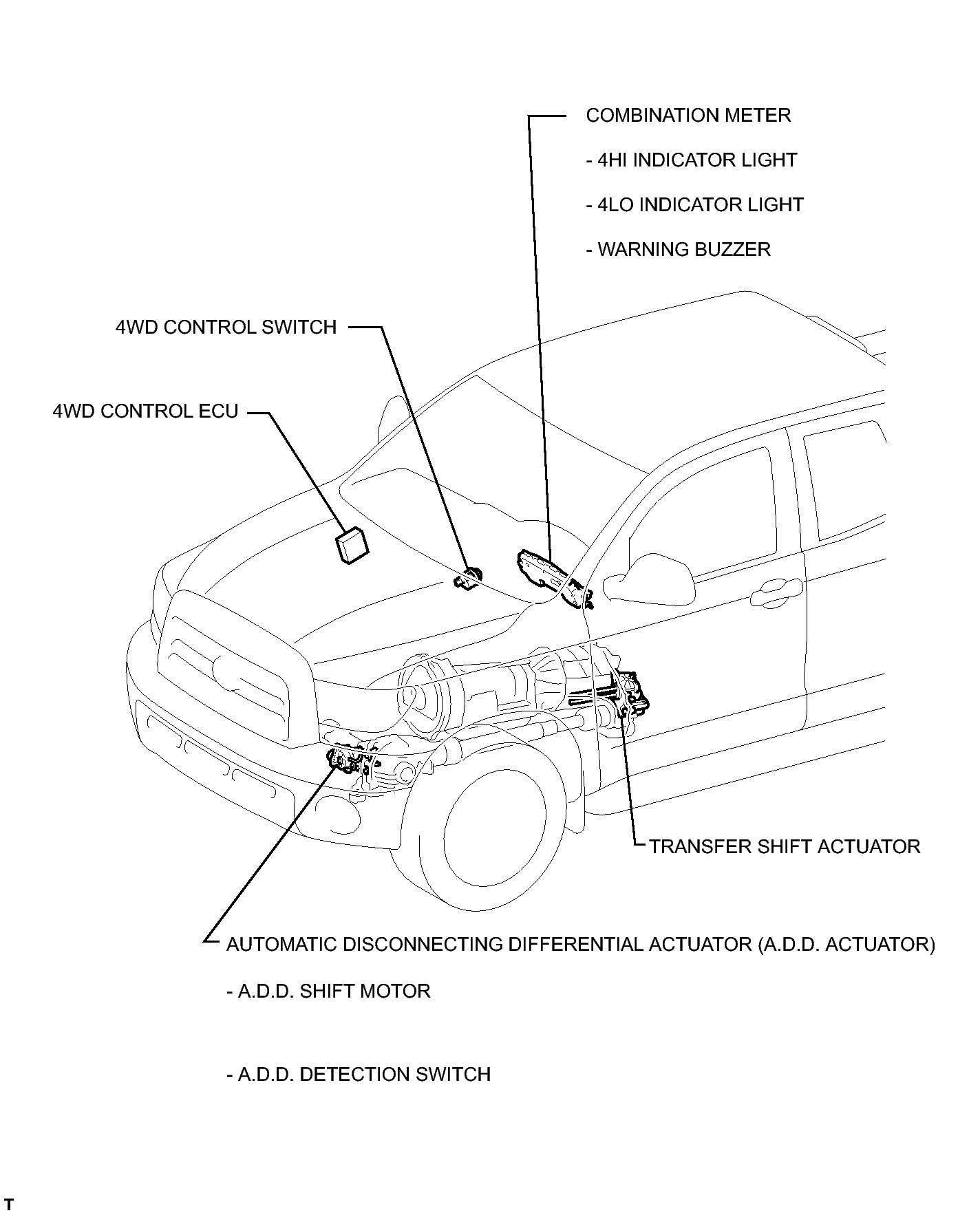

Fig 1: Touch Select 2-4 & High/Low System Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

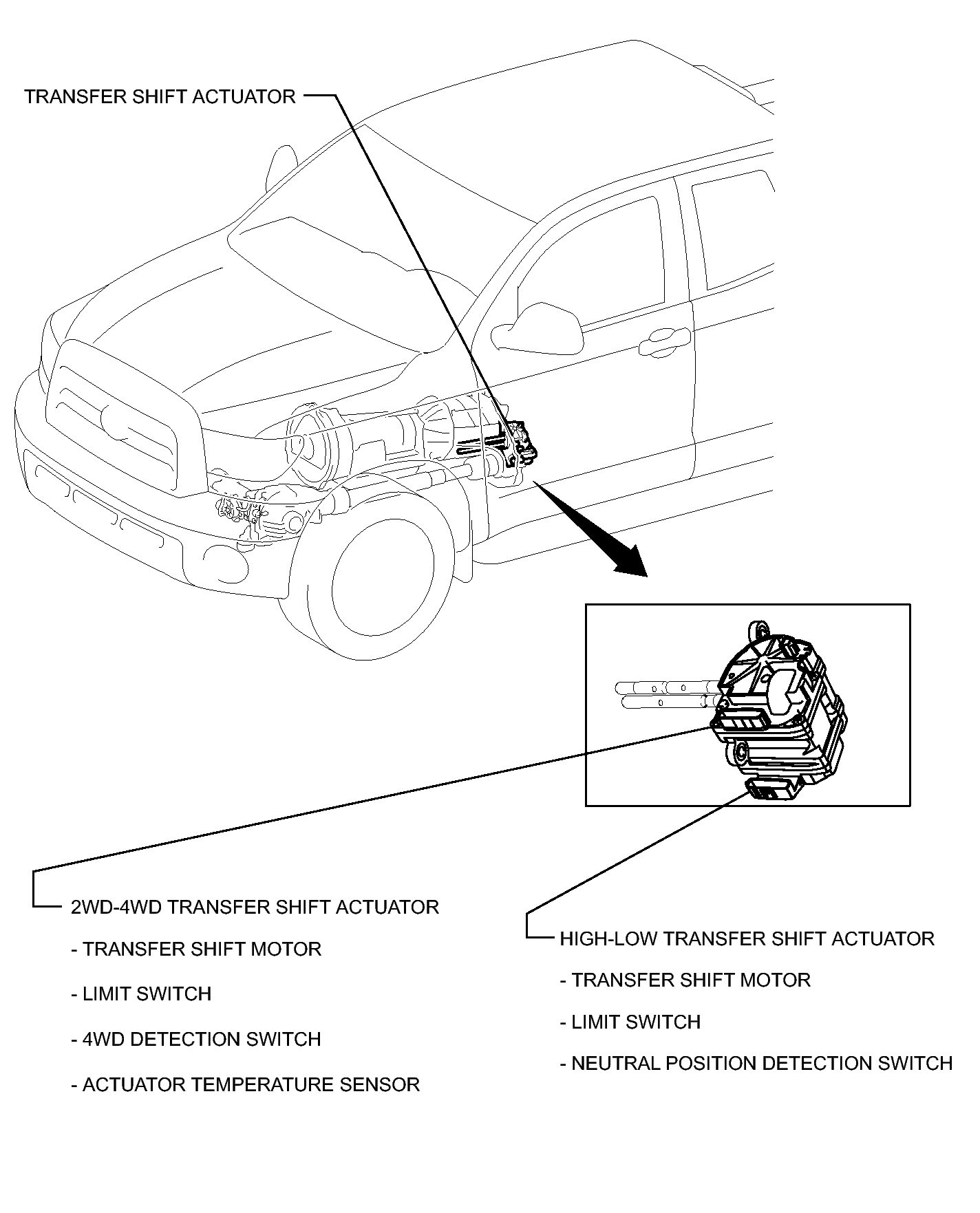

Fig 1: Touch Select 2-4 & High/Low System Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
