Model Code Identification & Line-Up

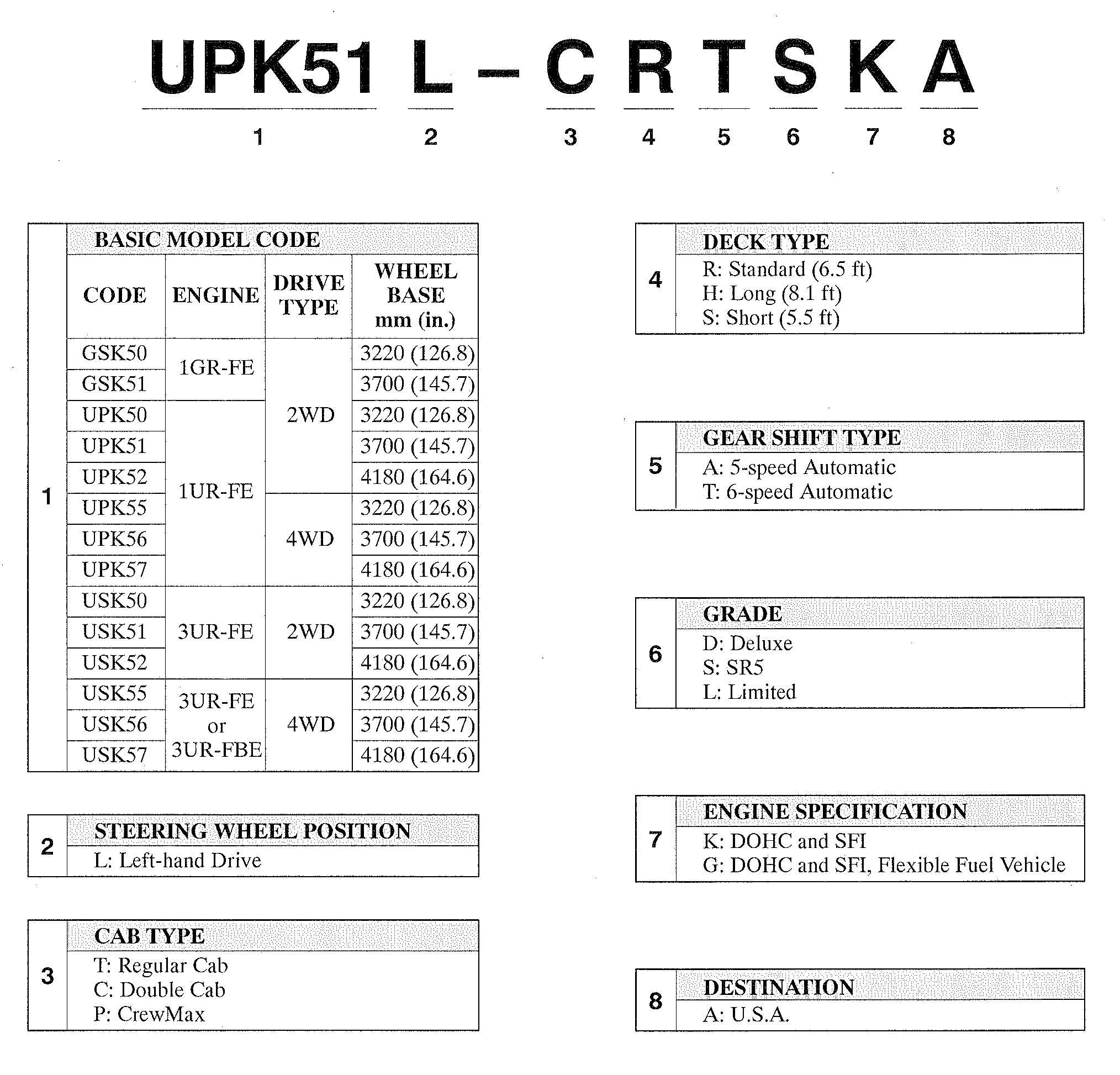

Fig 1: Model Code Identification
G00512114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

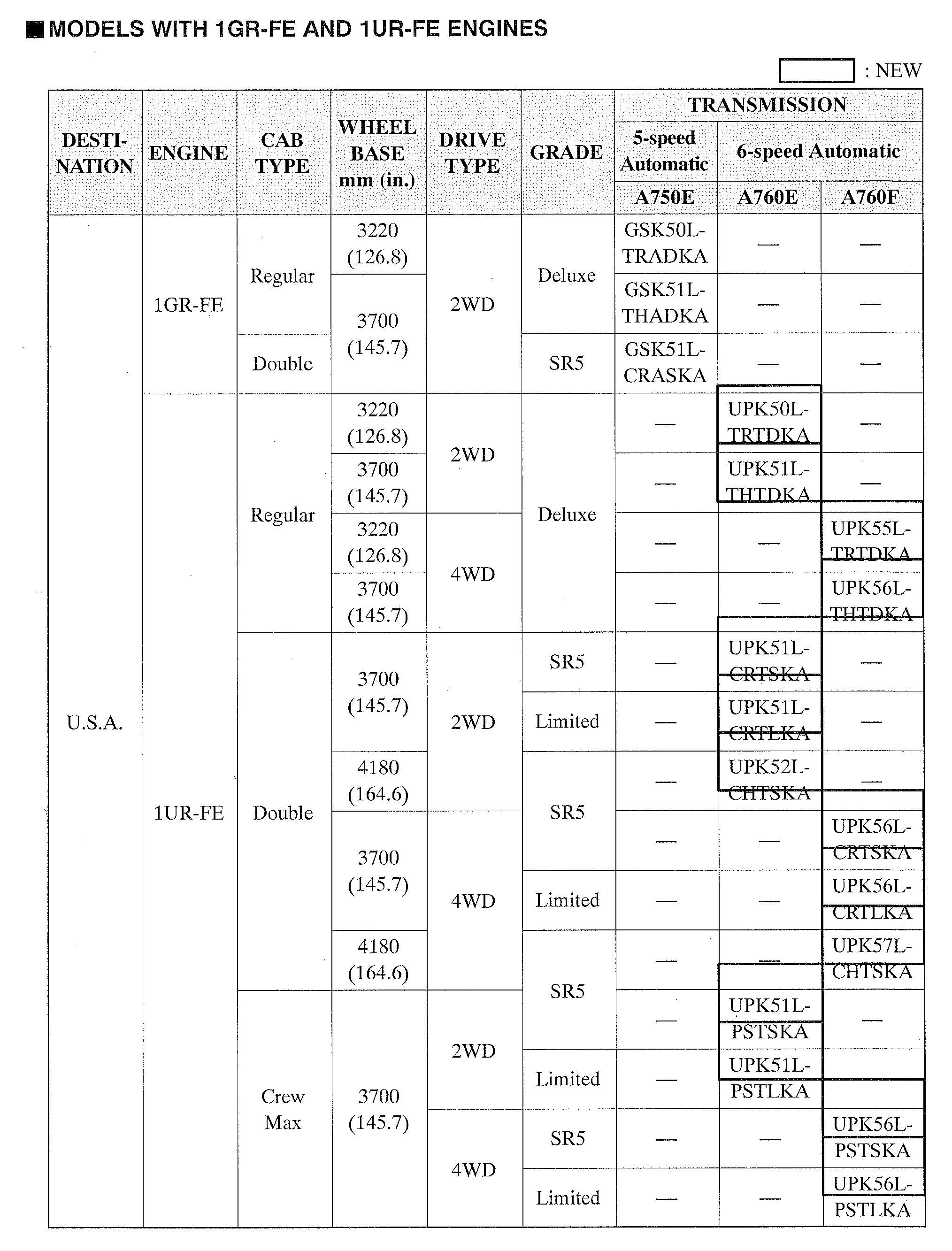

Fig 2: Model Line-Up (1GR-FE & 1UR-FE Engines)
G00512115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

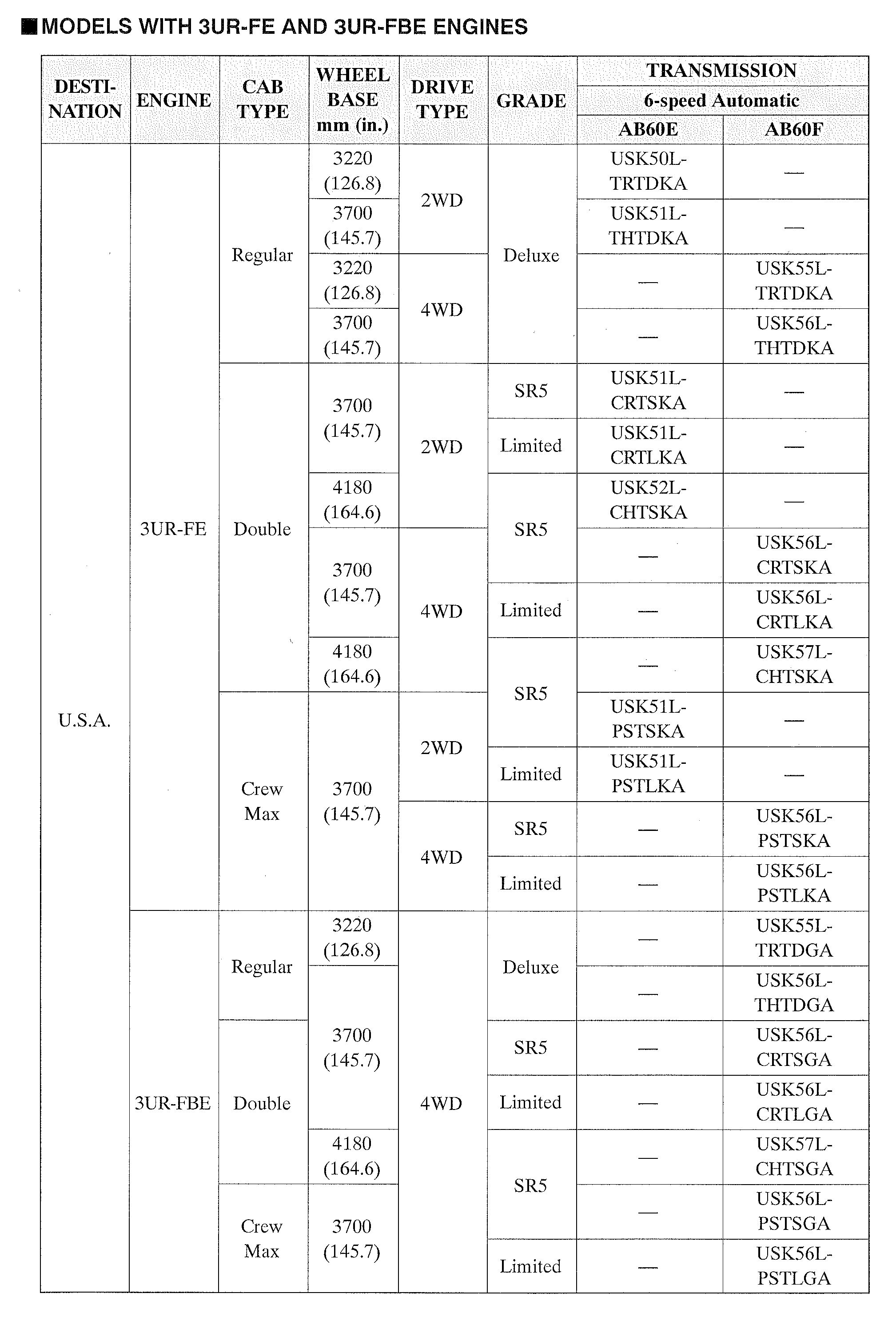

Fig 3: Model Line-Up (3UR-FE & 3UR-FBE Engines)
G00512116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
