Power Window Control System (W/O Jam Protection Function) (Diagnostics & Symptom Tests)
>>
POWER WINDOW CONTROL SYSTEM (W/O Jam Protection Function)
>>
Symptom Tests
>>
Driver Side Power Window does not Operate with Power Window Master Switch
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

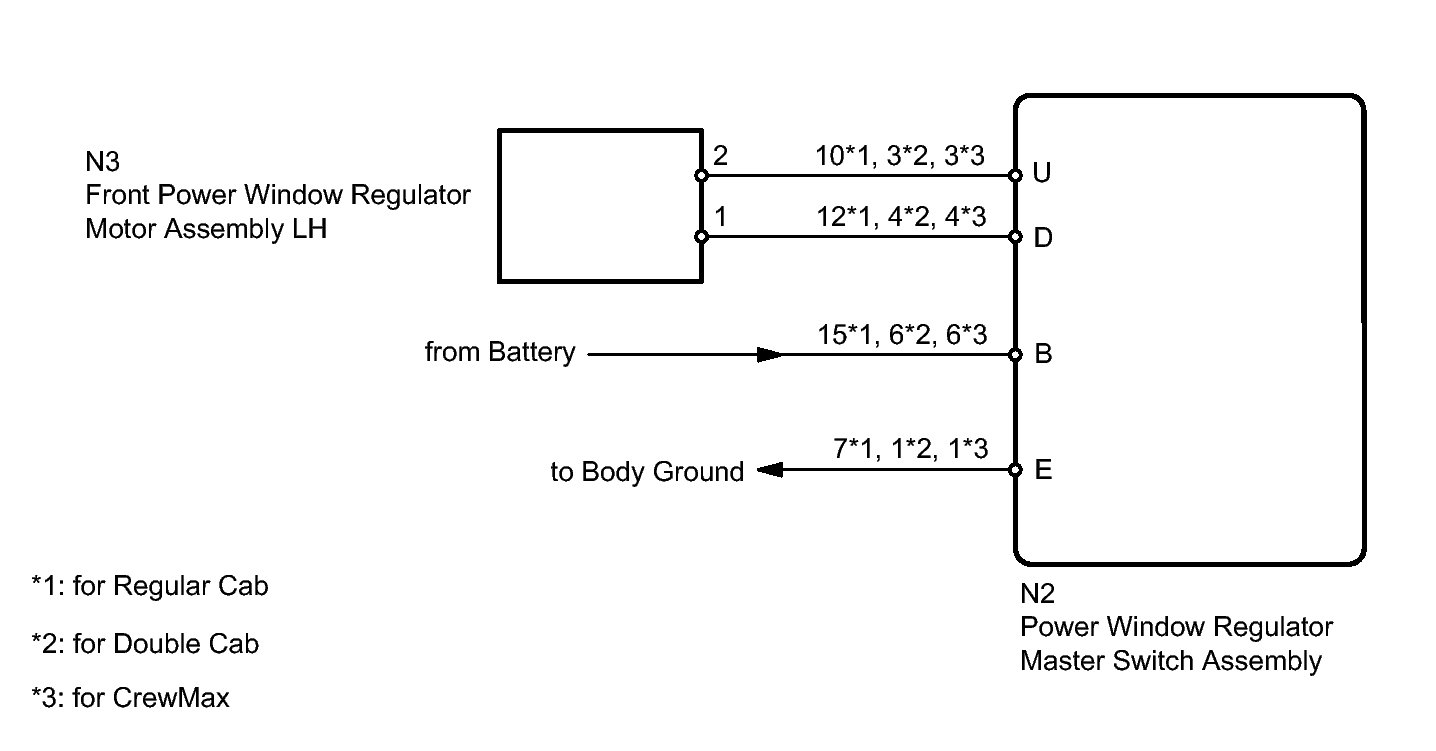

Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram
Fig 1: Identifying Power Window Regulator LH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
