Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

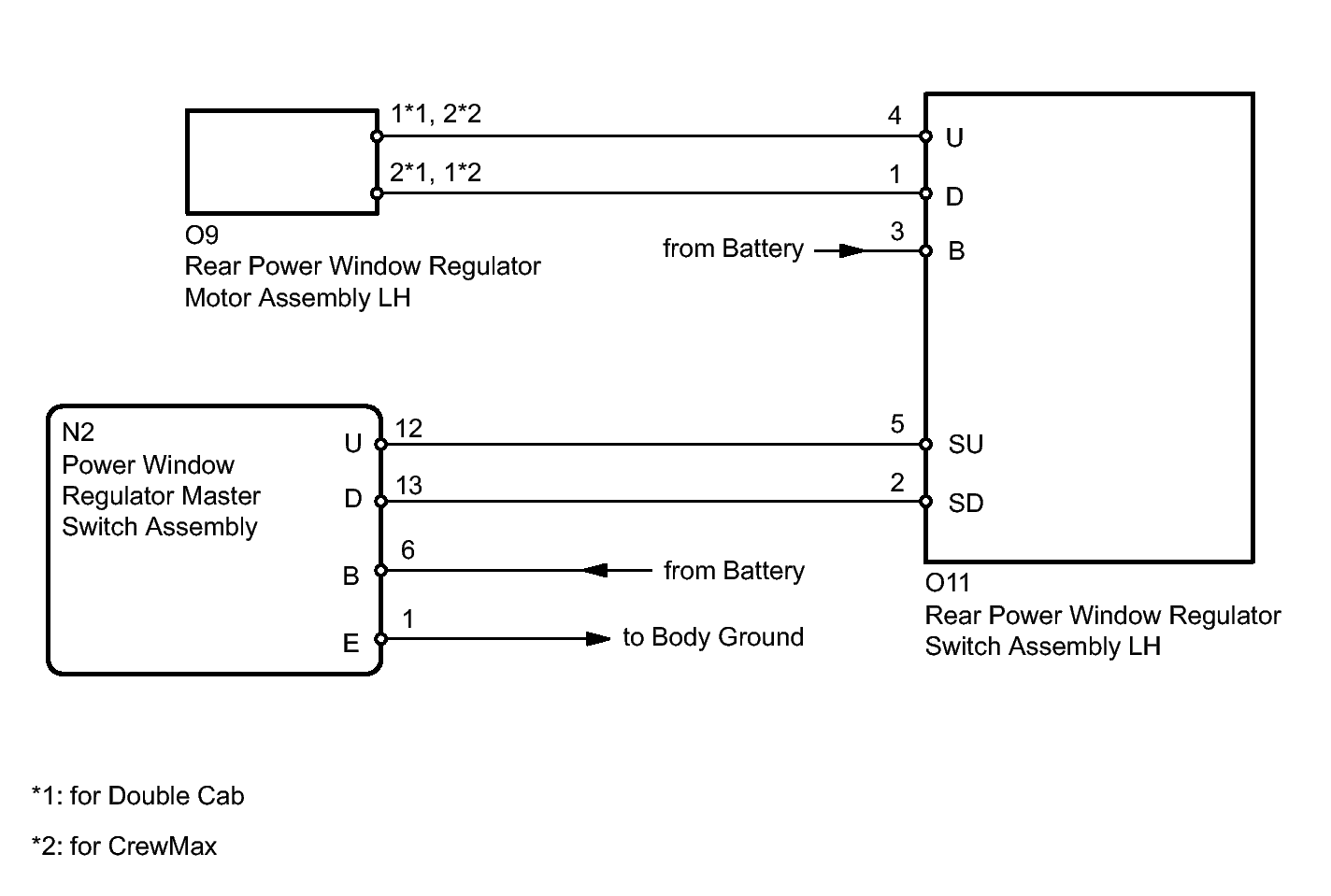

Fig 1: Identifying Rear Power Window Regulator LH Wiring Diagram
GTY174350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
