Engine Coolant Temperature Sensor: Inspection: Inspection

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

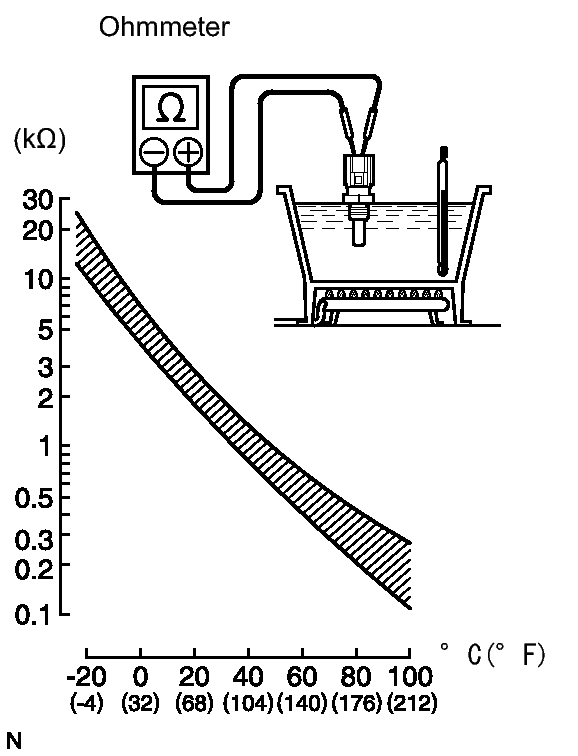

Fig 1: Identifying Resistance Between Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard resistance

Condition	Specified Condition
Approximately 20°C (68°F)	2.32 to 2.59 kΩ
Approximately 80°C (176°F)	0.310 to 0.326 kΩ

NOTE:

When checking the engine coolant temperature sensor in water, keep the terminals dry. After the check, wipe the sensor dry.

If the resistance is not as specified, replace the engine coolant temperature sensor.
