Mass Air Flow Meter: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE MASS AIR FLOW METER

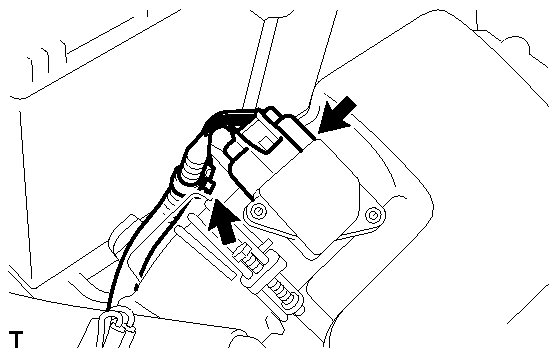

    Fig 1: Identifying Wire Harness Clamp And Mass Air Flow Meter Connector
    GTY237184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the wire harness clamp and mass air flow meter connector.
    2. Remove the 2 screws and the mass air flow meter.

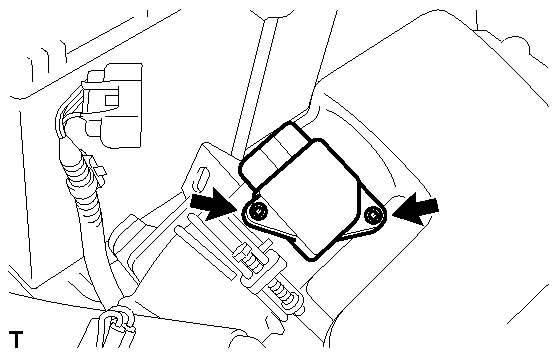

      Fig 2: Identifying Mass Air Flow Meter With Screws
      GTY237185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the mass air flow meter.

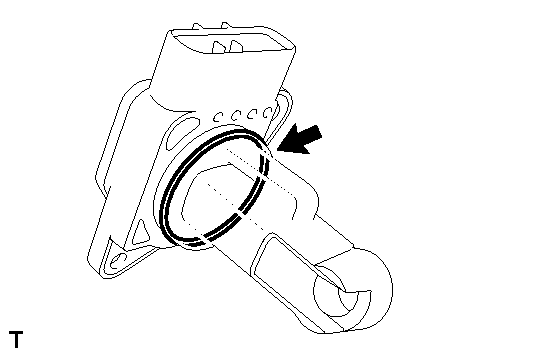

      Fig 3: Identifying New O-Ring Onto Mass Air Flow Meter
      GTY235486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
