Camshaft Oil Control Valve: Installation: Installation

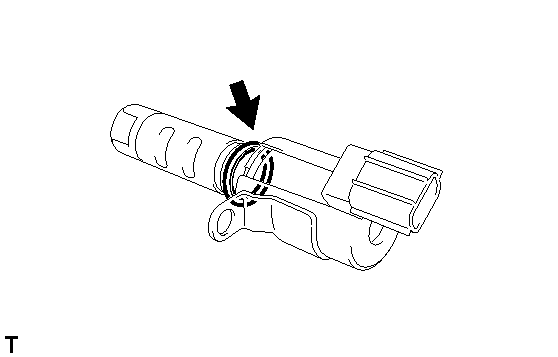

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply a light coat of engine oil to a new O-ring and install it onto the camshaft timing oil control valve assembly.
   NOTE:

   Do not twist the O-ring.

2. Install the camshaft timing oil control valve assembly with the bolt.

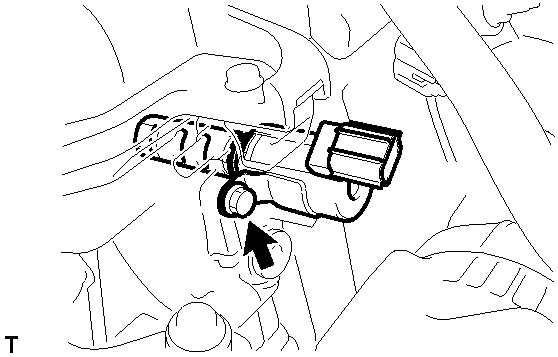

   Fig 2: Identifying Camshaft Timing Oil Control Valve Assembly With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

3. Connect the camshaft timing oil control valve assembly connector.

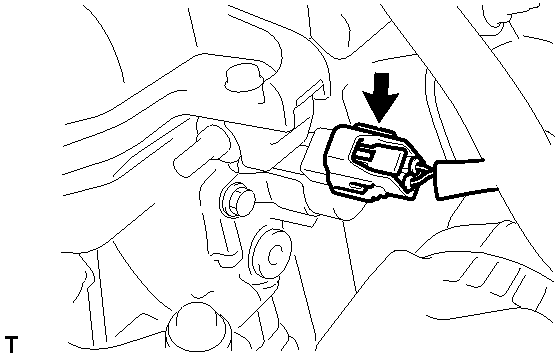

   Fig 3: Locating Camshaft Timing Oil Control Valve Assembly Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

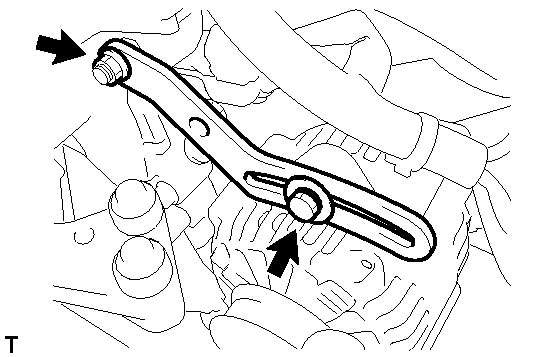

Fig 4: Identifying Fan Belt Adjusting Bar With Bolt And Nut

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Provisionally install the fan belt adjusting bar with the bolt and nut.
2. Tighten the nut to the specified torque.

   Torque: 11 N*m (112 kgf*cm, 8.1 ft.*lbf)

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
